Old Jan 27, 2013, 06:51 PM   #1
Sossity
macrumors 6502a

Join Date: May 2010
Best multibay hard drive external enclosures

I have multiple hard drives all in their own enclosures, but I am finding the wires are getting crazy, they all have their own fire wire and usb cables, & power cables for each of them, and would like to clean and simplify things some.

I need something that is not too big, to fit on an already crowded desk.

would a multi bay external enclosure work better? and when I have my hard drives in one, can I power up only the hard drives I am working with? or will it make me power them all up like in a daisy chain?

I am looking for one that has usb, & firewire, esata is nice but not absolutely required, my 2011 mac mini has a thunderbolt port, a firewire port, & usb 2.0 ports. Something that is hot swappable as well.

also, are there enclosures that could work wireless?

Last edited by Sossity; Jan 27, 2013 at 07:00 PM.
Sossity is offline   0 Reply With Quote
Old Jan 27, 2013, 07:26 PM   #2
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
If it has to be hot-swappable, the Drobo Mini/Drobo 5D, Pegasus R4/Pegasus R6 or LaCie 5big Thunderbolt.
Thumb resize.Thumb resize.Thumb resize.Thumb resize.
The 5big has a Gigabit Ethernet port, so you could connect it to your wireless network. Those enclosures are designed to use the disks in tandem, for safety by redundancy (a drive fails, you just pop in a new one and didn't loose any data) and/or speed by stripping (reading and writing on multiple disks simultaneously). However, they do support separate disks like you're using now but in a single enclosure.

If you're looking for an SSD RAID, the Pegasus J4 (which it isn't hot-swappable, though).
Thumb resize.

If those are too large, the LaCie 2big Thunderbolt.
Thumb resize.

Last edited by Giuly; Jan 27, 2013 at 08:10 PM.
Giuly is offline   0 Reply With Quote
Old Jan 27, 2013, 08:35 PM   #3
g4cube
macrumors 6502a

Join Date: Apr 2003
Quote:
Originally Posted by Giuly View Post
...
The 5big has a Gigabit Ethernet port, so you could connect it to your wireless network. Those enclosures are designed to use the disks in tandem, for safety by redundancy (a drive fails, you just pop in a new one and didn't loose any data) and/or speed by stripping (reading and writing on multiple disks simultaneously). However, they do support separate disks like you're using now but in a single enclosure.

If those are too large, the LaCie 2big Thunderbolt.
Thumb resize.
Note well, there are several different drive models bearing the 2big and 5big name.

The Thunderbolt models of both have only Thunderbolt ports. There are other models that have USB and FireWire, or Ethernet and USB ports. The new NAS 5big has dual Gigabit Ethernet ports, but the USB ports (2 and 3) are for connecting drives to the 5big; not to connect the 5big to a computer.
g4cube is offline   0 Reply With Quote
Old Jan 27, 2013, 10:08 PM   #4
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
Thanks for the suggestions, those are a little too expensive, I am looking in the 100.00 to 300.00 dollar range. will slightly older model of enclosures have a limit on the size or capacity of individual drives?
usb and firewire are ok, thunderbot is not a must.

do these type of enclosures require me to power on all the drives at once? or can I power on individual drives, the ones I just need to use?

and I dont need it to power up when my computer does, I can turn it on when I am ready to use it.

and I do not want to do any raid, just have my different hard drives in the slots.

Last edited by Sossity; Jan 27, 2013 at 10:20 PM.
Sossity is offline   0 Reply With Quote
Old Jan 28, 2013, 02:33 AM   #5
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
All of the Thunderbolt enclosures come with disks already installed, which makes up most of the price.
The next best thing would be Gigabit Ethernet, where you have the diskless Synology DS413J.
Thumb resize.

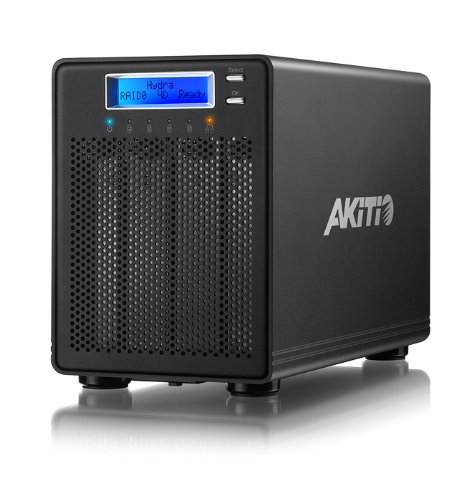

Then you have the Akitio HYDRA Quad Elite, which has USB, FireWire 800 and an eSATA port.
Thumb resize.

And last but not least, you have the nifty little LaCie Thunderbolt eSATA hub. If you hook it to a rather inexpensive 4-bay eSATA enclosure such as the Mediasonic HF2SU3S2, you have built yourself a 4-bay thunderbolt storage system for under $300. As the hub has 2 eSATA ports, you could could add a second enclosure later as well, and access them both simultaneously at full speed, and if that's still not sufficient, you can add a second, third, ... eSATA hub as well.
Thumb resize.Thumb resize.

Last edited by Giuly; Jan 29, 2013 at 04:27 PM.
Giuly is offline   0 Reply With Quote
Old Jan 28, 2013, 03:58 AM   #6
KylePowers
macrumors 68000

KylePowers's Avatar

Join Date: Mar 2011
Search jbod (just a bunch of disks) enclosure on Amazon. You'll get a bunch of choices for what you're looking for. I've been contemplating a silver Sans Digital 4-Bay myself, but probably going to wait until I fill up my 4TB external and get a second one.

Edit - Sans Digital's MobileStor line supports hotswapping btw

Last edited by KylePowers; Jan 28, 2013 at 04:07 AM.
KylePowers is offline   0 Reply With Quote
Old Jan 28, 2013, 05:30 AM   #7
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
Quote:
Originally Posted by KylePowers View Post
Search jbod (just a bunch of disks) enclosure on Amazon. You'll get a bunch of choices for what you're looking for. I've been contemplating a silver Sans Digital 4-Bay myself, but probably going to wait until I fill up my 4TB external and get a second one.

Edit - Sans Digital's MobileStor line supports hotswapping btw
They are USB 3.0 and eSATA just like the Mediasonic, so you still need the eSATA hub because the 2011 Macs don't have USB 3.0.
Giuly is offline   0 Reply With Quote
Old Jan 28, 2013, 03:53 PM   #8
KylePowers
macrumors 68000

KylePowers's Avatar

Join Date: Mar 2011
Quote:
Originally Posted by Giuly View Post
They are USB 3.0 and eSATA just like the Mediasonic, so you still need the eSATA hub because the 2011 Macs don't have USB 3.0.
But they'd work just fine with USB 2.0. eSATA hub is not a necessity unless you're particularly anal about speed. For most uses (like media storage), USB 2.0 would be fine.
KylePowers is offline   0 Reply With Quote
Old Jan 28, 2013, 07:59 PM   #9
FireWire2
macrumors 6502

Join Date: Oct 2008
USB2.0/FireWire JBOD enclosure

Quote:
Originally Posted by Sossity View Post
I have multiple hard drives all in their own enclosures, but I am finding the wires are getting crazy, they all have their own fire wire and usb cables, & power cables for each of them, and would like to clean and simplify things some.

I need something that is not too big, to fit on an already crowded desk.

would a multi bay external enclosure work better? and when I have my hard drives in one, can I power up only the hard drives I am working with? or will it make me power them all up like in a daisy chain?

I am looking for one that has usb, & firewire, esata is nice but not absolutely required, my 2011 mac mini has a thunderbolt port, a firewire port, & usb 2.0 ports. Something that is hot swappable as well.

also, are there enclosures that could work wireless?
Note: There are lots of company mislead consumer SPAN/BIG as JBOD
JBoD is Just a Bunch of Drives <-- This is what you need I think

So You can insert ANY SATA drive and It shows up.

I can be wrong, but there is NO FireWire and USB2.0 enclosure supports JBoB mode in MAC, except this
http://www.datoptic.com/ec/four-tray...-800-host.html

Last edited by FireWire2; Aug 22, 2013 at 02:26 PM.
FireWire2 is offline   0 Reply With Quote
Old Jan 29, 2013, 01:59 AM   #10
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
Thanks everyone for the suggestions, I notice they all state the hard drives they support; ie; supports up to 3 terabytes per bay etc.

what happens when i eventually get bigger capacity hard drives? like 4 or more terabytes as storage gets cheaper, will these enclosures that state support up to 3 tb be enough or any good?

in other words, can a place a 4, 6, or 8 tb hard drive in one of those enclosures in the future even though right now they are rated at support up to 3tb?

I need the enclosure to last me.

and lastly, if I have 4 hard drives in one of these enclosures, & power it on, do I have to have all the hard drives on & running to access just one like in a daisy chain?

I dont need to do RAID or anything yet, just house different hard drives, I read how someone lost all their data by mistake because of this. Is there some options or ways that one can set up one of these enclosures to work?
Sossity is offline   0 Reply With Quote
Old Jan 29, 2013, 04:33 PM   #11
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
Quote:
Originally Posted by Sossity View Post
Thanks everyone for the suggestions, I notice they all state the hard drives they support; ie; supports up to 3 terabytes per bay etc.

what happens when i eventually get bigger capacity hard drives? like 4 or more terabytes as storage gets cheaper, will these enclosures that state support up to 3 tb be enough or any good?

in other words, can a place a 4, 6, or 8 tb hard drive in one of those enclosures in the future even though right now they are rated at support up to 3tb?

I need the enclosure to last me.

and lastly, if I have 4 hard drives in one of these enclosures, & power it on, do I have to have all the hard drives on & running to access just one like in a daisy chain?

I dont need to do RAID or anything yet, just house different hard drives, I read how someone lost all their data by mistake because of this. Is there some options or ways that one can set up one of these enclosures to work?
Those 3TB restrictions come from Windows, the BIOS and the Master Boot Record scheme. As long as you partition the drives as GPT on a Mac (which is the default), larger drives up to exabyte size will work just fine.

If you don't need a RAID, the Mediasonic I posted above (with or without the Thunderbolt eSATA hub for more speed) is exactly what you want - it gives you four separate disks in OS X. It's also less expensive than any other 4-bay enclosure because of the lack of RAID.

Last edited by Giuly; Jan 29, 2013 at 04:44 PM.
Giuly is offline   0 Reply With Quote
Old Jan 31, 2013, 09:33 AM   #12
iWantAMac
macrumors 6502

Join Date: Feb 2003
Location: AUS
Since reading this thread I've looked for enclosures similar to the HF2-SU3S2 but haven't found anything really. The mediasonic has got some troubles from what I've read on various forums including their own. Are there any alternative 4 or even 2 bay enclosures with USB3, eSata and/or TB interfaces that aren't designed for RAID. And pardon the ignorance but do all RAID enclosures have the ability to run without RAID configured?
iWantAMac is offline   0 Reply With Quote
Old Jan 31, 2013, 10:49 AM   #13
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
Quote:
Originally Posted by iWantAMac View Post
Since reading this thread I've looked for enclosures similar to the HF2-SU3S2 but haven't found anything really. The mediasonic has got some troubles from what I've read on various forums including their own. Are there any alternative 4 or even 2 bay enclosures with USB3, eSata and/or TB interfaces that aren't designed for RAID. And pardon the ignorance but do all RAID enclosures have the ability to run without RAID configured?
They seem to have sorted out the problems with the latest firmware, but if you run into trouble and have an USB 3.0 port on your Mac, you can use a USB3.0 to eSATA Adapter, which come rather cheap compared to the LaCie eSATA hub.

Otherwise, all of the RAIDs and NAS above except for the Akitio support JBOD as well.
Giuly is offline   0 Reply With Quote
Old Feb 1, 2013, 02:46 AM   #14
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
I was looking at 4 bay enclosures, & found this; http://www.icydock.com/goods.php?id=33

are these good ones for what I want? I read the reviews, & some had problems with it, stating that it needed port multiplier cards, as they could only see or only 1 out the 4 hard drives installed would show up.

will I be able to use this with the lacie I was linked to on my mac mini right out of the box as Jobd?

----------

Quote:
Originally Posted by Giuly View Post
They seem to have sorted out the problems with the latest firmware, but if you run into trouble and have an USB 3.0 port on your Mac, you can use a USB3.0 to eSATA Adapter, which come rather cheap compared to the LaCie eSATA hub.

Otherwise, all of the RAIDs and NAS above except for the Akitio support JBOD as well.

would I be better off getting this instead of the lacie that I was given a link to? & would I lose the esata speed since the signal it is being transferred through a USB port? would this work with a usb 2.0 port?
Sossity is offline   0 Reply With Quote
Old Feb 1, 2013, 04:30 AM   #15
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
Quote:
Originally Posted by Sossity View Post
I was looking at 4 bay enclosures, & found this; http://www.icydock.com/goods.php?id=33

are these good ones for what I want? I read the reviews, & some had problems with it, stating that it needed port multiplier cards, as they could only see or only 1 out the 4 hard drives installed would show up.

will I be able to use this with the lacie I was linked to on my mac mini right out of the box as Jobd?

----------




would I be better off getting this instead of the lacie that I was given a link to? & would I lose the esata speed since the signal it is being transferred through a USB port? would this work with a usb 2.0 port?
Well, given that you don't have USB 3.0 ports on your Mac, you'd be better off with the LaCie. The USB ports on the ProBox don't have problems in USB 2.0 mode, so you wouldn't gain anything from it.
Giuly is offline   0 Reply With Quote
Old Feb 3, 2013, 02:15 AM   #16
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
Quote:
Originally Posted by Giuly View Post
All of the Thunderbolt enclosures come with disks already installed, which makes up most of the price.
The next best thing would be Gigabit Ethernet, where you have the diskless Synology DS413J.
Thumb resize.

Then you have the Akitio HYDRA Quad Elite, which has USB, FireWire 800 and an eSATA port.
Thumb resize.

And last but not least, you have the nifty little LaCie Thunderbolt eSATA hub. If you hook it to a rather inexpensive 4-bay eSATA enclosure such as the Mediasonic HF2SU3S2, you have built yourself a 4-bay thunderbolt storage system for under $300. As the hub has 2 eSATA ports, you could could add a second enclosure later as well, and access them both simultaneously at full speed, and if that's still not sufficient, you can add a second, third, ... eSATA hub as well.
Thumb resize.Thumb resize.
I looked back at this, & I can see how I could hook up a 2and estata 4 bay enclosure to the lacie, but how would I add more than 2 multibay estata enclosures to the lacie? it only has 2 estata ports on it.
Sossity is offline   0 Reply With Quote
Old Feb 3, 2013, 03:29 AM   #17
iWantAMac
macrumors 6502

Join Date: Feb 2003
Location: AUS
Quote:
Originally Posted by Sossity View Post
I looked back at this, & I can see how I could hook up a 2and estata 4 bay enclosure to the lacie, but how would I add more than 2 multibay estata enclosures to the lacie? it only has 2 estata ports on it.
...and two TB ports. One of which connects to your computer? Thunderbolt dock? Can the Lacie be daisy chained? Expensive though.

Last edited by iWantAMac; Feb 3, 2013 at 03:35 AM.
iWantAMac is offline   0 Reply With Quote
Old Feb 3, 2013, 06:58 AM   #18
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
Quote:
Originally Posted by iWantAMac View Post
...and two TB ports. One of which connects to your computer? Thunderbolt dock? Can the Lacie be daisy chained? Expensive though.
yes, one of the thunderbolt ports would connect to my computer, I don't know about daisy chaining, that is why I am asking.
Sossity is offline   0 Reply With Quote
Old Feb 3, 2013, 09:36 AM   #19
Giuly
Banned

Join Date: Oct 2009
Location: That depends whether you ask for timezone, state of mind or GPS coordinates.
You can daisy chain them, meaning one of the ports connect to your Mac, the second one to another eSATA hub, at which you could connect a third eSATA hub and so on.
Thumb resize.
Giuly is offline   0 Reply With Quote
Old Feb 13, 2013, 12:43 AM   #20
Sossity
Thread Starter
macrumors 6502a

Join Date: May 2010
Quote:
Originally Posted by Giuly View Post
All of the Thunderbolt enclosures come with disks already installed, which makes up most of the price.
The next best thing would be Gigabit Ethernet, where you have the diskless Synology DS413J.
Thumb resize.

Then you have the Akitio HYDRA Quad Elite, which has USB, FireWire 800 and an eSATA port.
Thumb resize.

And last but not least, you have the nifty little LaCie Thunderbolt eSATA hub. If you hook it to a rather inexpensive 4-bay eSATA enclosure such as the Mediasonic HF2SU3S2, you have built yourself a 4-bay thunderbolt storage system for under $300. As the hub has 2 eSATA ports, you could could add a second enclosure later as well, and access them both simultaneously at full speed, and if that's still not sufficient, you can add a second, third, ... eSATA hub as well.
Thumb resize.Thumb resize.

well thanks for the idea, but to my great disappointment, this set up does not work.

I bought the lacie esata hub, plugged it into my 4 bay estata/usb 2.0 icydock enclosure (a neighbor sold it to me fairly cheap, but it is practically new) & it absolutely did not work.

I installed one of my bare hard drives into one of the bays in my 4 bay enclosure, connected apple thunderbolt cable to my mac mini, to the hub, then esata cable to lacie hub to my enclosure, and the disk would not mount. I am not using raid, just the drives as individual drives.

tried using just a a usb 2.0 cable, & the hard drive in the enclosure works.

so after all is said & done, I am back to usb 2.0, a downgrade from the firewire of all my individual enclosures.

I have found out the expensive way that the lacie hub not only does not support port multiplying, but does not even support single bay enclosures from other brands. so far the hub is completely useless to me, I tried it with all my enclosures that I have via esata, nothing.
Sossity is offline   0 Reply With Quote
Old Feb 13, 2013, 01:26 AM   #21
MJL
Banned

Join Date: Jun 2011
Quote:
Originally Posted by Sossity View Post
I have multiple hard drives all in their own enclosures, but I am finding the wires are getting crazy, they all have their own fire wire and usb cables, & power cables for each of them, and would like to clean and simplify things some.

I need something that is not too big, to fit on an already crowded desk....

etc etc
Basically you have fallen into the trap that I had, what in 1999...

Just relying on a HDD setup for backup / data storage alone is not going to do the trick. Sooner or later some mishap happens (be it fire, theft, operator error, hardware failure, hacking etc) and you loose all and every bit of data.

To me it sounds you need network storage (NAS) coupled with a backup system (tapes, blueray etc) and there is no way around it if you value your data. Basically it comes down to how much is your data worth to you?

Do not fall into the trap of backing up HDD to another HDD which is afterwards switched offline. I lost all my data in that way: first HDD backup did not work so hook up the second lot and that did not work either - some virus destroying everything. You need to be able to hook something up that is not writeable by default when you hook it up. Cloud storage may be an option but then I do not trust cloud with my valuable data.

Good luck.
MJL is offline   1 Reply With Quote

Reply
MacRumors Forums > Apple Hardware > Mac Peripherals

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Similar Threads
thread Thread Starter Forum Replies Last Post
Nice Bus-Powered External Hard Drive Enclosures cazzette Mac Peripherals 12 Jul 2, 2014 08:29 PM
Can you buy Lightning hard drive enclosures? jbrown Mac Basics and Help 12 Mar 24, 2014 06:46 AM
Bare 3.5 hard drives, & enclosures vs buying all in one external hard drive Sossity Buying Tips and Advice 16 Feb 12, 2013 12:10 PM
External Hard Drive Enclosures?? NikiPod MacBook Pro 2 Oct 1, 2012 02:46 PM
USB 3.0 hard drive enclosures from Ebay ducatiti MacBook Pro 3 Sep 19, 2012 02:44 AM

Forum Jump

All times are GMT -5. The time now is 09:16 PM.

Mac Rumors | Mac | iPhone | iPhone Game Reviews | iPhone Apps

Mobile Version | Fixed | Fluid | Fluid HD
Copyright 2002-2013, MacRumors.com, LLC
