Old Jun 26, 2009, 07:03 AM   #1
WonderSausage
macrumors member

Join Date: Jul 2008
Any way yet to turn off Hyperthreading on 2009 Mac Pro?

Any updated CHUD that works on the 2009 Mac Pro to disable Hyperthreading? My encoder only supports 8 CPUs and I think I could get 10-20% better performance without HT.

It's very difficult to query the ADC site for CHUD, they've really buried it. Perhaps we have to wait for the 10.6 SDK?

thanks,

WS
WonderSausage is offline   0 Reply With Quote
Old Jun 26, 2009, 07:36 AM   #2
Tesselator
macrumors 601

Tesselator's Avatar

Join Date: Jan 2008
Location: Japan
Hey WS..

I think you're right. And the only way I know of is with the Processor prefs pane that come as a part of the XTools distribution free from Apple.

http://developer.apple.com/technology/xcode.html You might have to fill out a web-form or something I forget.
Tesselator is offline   0 Reply With Quote
Old Jun 26, 2009, 11:47 AM   #3
2002cbr600f4i
macrumors 6502

Join Date: Jun 2008
Install XCode off your OS install DVDs. Then I forget where in there you have to go, but in the directories where XCode gets installed, there's a prefs panel executeable that adds a Processor prefs panel. In there you can toggle the HT settings.

Note: you have to reboot for the changes to take effect.
2002cbr600f4i is offline   0 Reply With Quote
Old Jun 26, 2009, 11:50 AM   #4
VirtualRain
macrumors 603

Join Date: Aug 2008
Location: Vancouver, BC
Quote:
Originally Posted by WonderSausage View Post
Any updated CHUD that works on the 2009 Mac Pro to disable Hyperthreading? My encoder only supports 8 CPUs and I think I could get 10-20% better performance without HT.

It's very difficult to query the ADC site for CHUD, they've really buried it. Perhaps we have to wait for the 10.6 SDK?

thanks,

WS
Let us know if turning off HT helps. Hopefully it doesn't make any difference. I recall reading somewhere that the task schedular can have sufficient insights into the physical core structure to be able to make smarter decisions about where to assign tasks... eg. to physical cores and not logical ones. Not sure though if this was Windows or OSX.
__________________
tools: nMP for photography, rMBP for working, iPad for surfing, iPhone for communicating, Mac Mini for entertaining
Canon tools: 5D Mark III 24-105L/70-300L/35L/50L/85L for capturing
VirtualRain is offline   0 Reply With Quote
Old Jun 26, 2009, 04:49 PM   #5
WonderSausage
Thread Starter
macrumors member

Join Date: Jul 2008
Quote:
Originally Posted by 2002cbr600f4i View Post
Install XCode off your OS install DVDs. Then I forget where in there you have to go, but in the directories where XCode gets installed, there's a prefs panel executeable that adds a Processor prefs panel. In there you can toggle the HT settings.

Note: you have to reboot for the changes to take effect.
No, that's the same Processor prefs that's part of CHUD. It does NOT, repeat does not, affect Hyperthreading on the 2009 Mac Pro. It can only disable physical cores.
WonderSausage is offline   0 Reply With Quote
Old Jun 26, 2009, 07:47 PM   #6
Tesselator
macrumors 601

Tesselator's Avatar

Join Date: Jan 2008
Location: Japan
Quote:
Originally Posted by WonderSausage View Post
No, that's the same Processor prefs that's part of CHUD. It does NOT, repeat does not, affect Hyperthreading on the 2009 Mac Pro. It can only disable physical cores.
Get the newer one I linked you to. Another user here says that there's a "HT Off" menu selection in it when run on HT capable intels.
Screen shots of it show it listing 16 cores available for disablement as I recall.
Tesselator is offline   0 Reply With Quote
Old Jun 27, 2009, 09:29 PM   #7
WonderSausage
Thread Starter
macrumors member

Join Date: Jul 2008
Quote:
Originally Posted by Tesselator View Post
Get the newer one I linked you to. Another user here says that there's a "HT Off" menu selection in it when run on HT capable intels.
Screen shots of it show it listing 16 cores available for disablement as I recall.
Nope... the Processor.prefPane included with Xcode 3.1.3 has not been updated. It's still version 4.7.0 which came out in 2008 (though the created date has been changed to April 2009). Yes, it includes a "Hyper-Threading" checkbox but it does NOT have any effect whatsoever on the 2009 Mac Pro. Activity Monitor still shows 16 CPUs.

WS
WonderSausage is offline   0 Reply With Quote
Old Jun 27, 2009, 09:35 PM   #8
Tesselator
macrumors 601

Tesselator's Avatar

Join Date: Jan 2008
Location: Japan
Quote:
Originally Posted by WonderSausage View Post
Nope... the Processor.prefPane included with Xcode 3.1.3 has not been updated. It's still version 4.7.0 which came out in 2008 (though the created date has been changed to April 2009). Yes, it includes a "Hyper-Threading" checkbox but it does NOT have any effect whatsoever on the 2009 Mac Pro. Activity Monitor still shows 16 CPUs.

WS
OK, so the noob here that was saying it had that feature was taking the pizz. Sorry about that man.
Tesselator is offline   0 Reply With Quote
Old Jun 27, 2009, 11:53 PM   #9
Abidubi
macrumors 6502

Join Date: Feb 2009
Location: Montreal
Quote:
Originally Posted by WonderSausage View Post
Nope... the Processor.prefPane included with Xcode 3.1.3 has not been updated. It's still version 4.7.0 which came out in 2008 (though the created date has been changed to April 2009). Yes, it includes a "Hyper-Threading" checkbox but it does NOT have any effect whatsoever on the 2009 Mac Pro. Activity Monitor still shows 16 CPUs.

WS
Activity monitor will still show you 2X the number of bars, but only half of them are active. Yes you can disable HT on the 2009s. And yes it makes a difference. It makes some things actually run faster. Disabling it brings up the fps 5-10% in some games (effect is instantaneous and measurable), and running HD flash movies in safari is also significantly smoother when running 3 or more at a time on my quad core. Of course, 99% of the time I keep HT on since it doesn't make a noticeable difference in normal use.

Most non-multiCPU friendly programs will probably run better with HT off until 10.6 with grand central is released.

Maybe you should actually get your hands on the machine and test instead of assuming.
__________________
Quad 2.93, 6GB RAM, 2X 640GB Blacks, 640GB Blue, 1.5TB F2 spinpoint, 4870, airport
Abidubi is offline   0 Reply With Quote
Old Jun 28, 2009, 03:08 AM   #10
Tesselator
macrumors 601

Tesselator's Avatar

Join Date: Jan 2008
Location: Japan
LOL! All that and you don't say how. TeeHeeHee...
Tesselator is offline   0 Reply With Quote
Old Jun 28, 2009, 07:37 AM   #11
Abidubi
macrumors 6502

Join Date: Feb 2009
Location: Montreal
Quote:
Originally Posted by Tesselator View Post
LOL! All that and you don't say how. TeeHeeHee...
You click the button in the processor prefs.



Unclicking it clearly stops hyperthreading.

__________________
Quad 2.93, 6GB RAM, 2X 640GB Blacks, 640GB Blue, 1.5TB F2 spinpoint, 4870, airport
Abidubi is offline   0 Reply With Quote
Old Jun 28, 2009, 09:13 AM   #12
WonderSausage
Thread Starter
macrumors member

Join Date: Jul 2008
Quote:
Originally Posted by Abidubi View Post
Maybe you should actually get your hands on the machine and test instead of assuming.
http://forums.macrumors.com/showthread.php?t=664724

Maybe you should read someone's post history before being so rude. Or better yet, just don't be so rude, in general.

There is no credible evidence that HT is disabled, the processor palette that comes with the prefs shows it disabled but that prefs applet appears to be delusional because there is no performance difference in HandBrake, it does NOT persist across reboots or in Windows (where I really need HT disabled because of some Windows app compatibility), and no other utility confirms HT disabled.

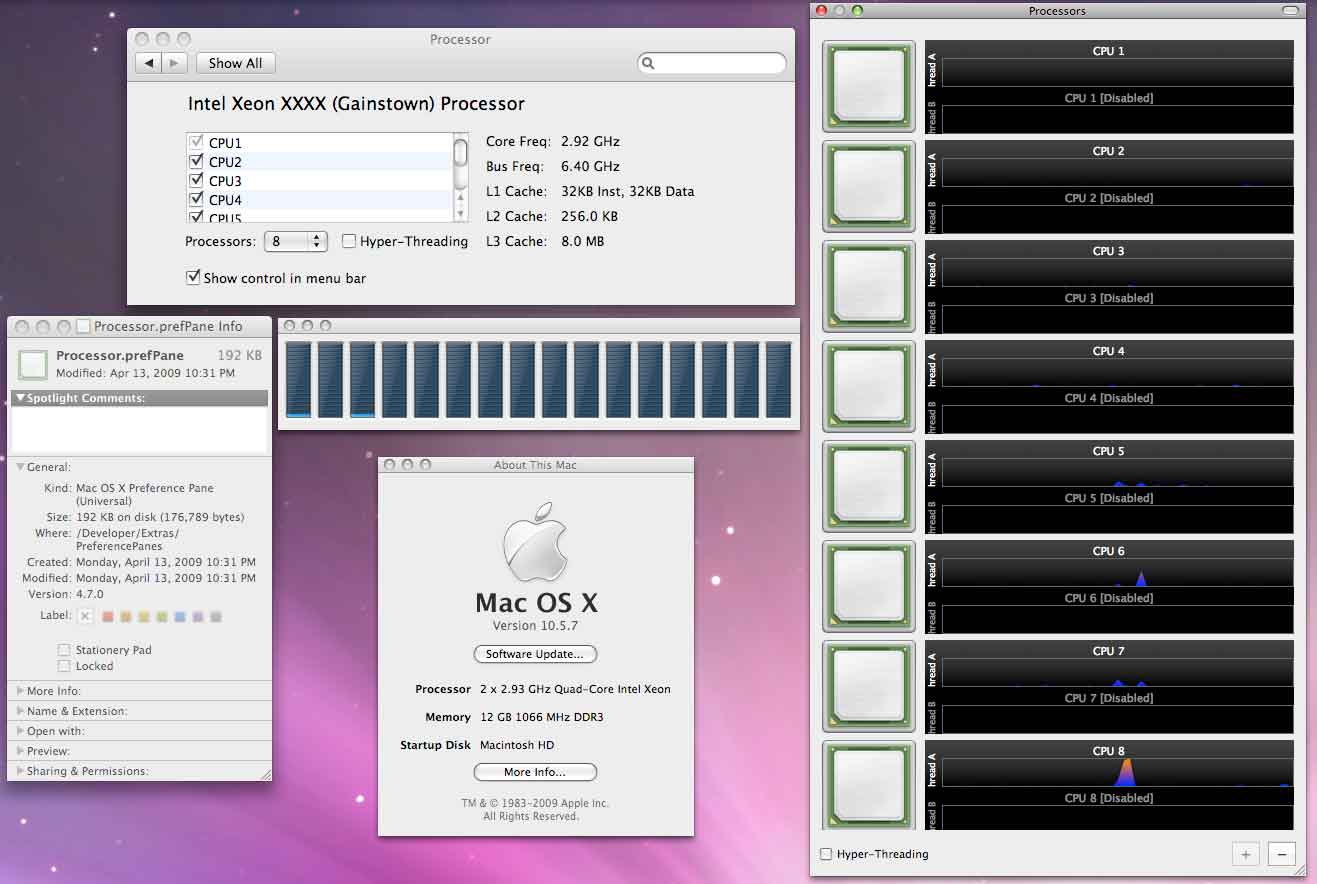

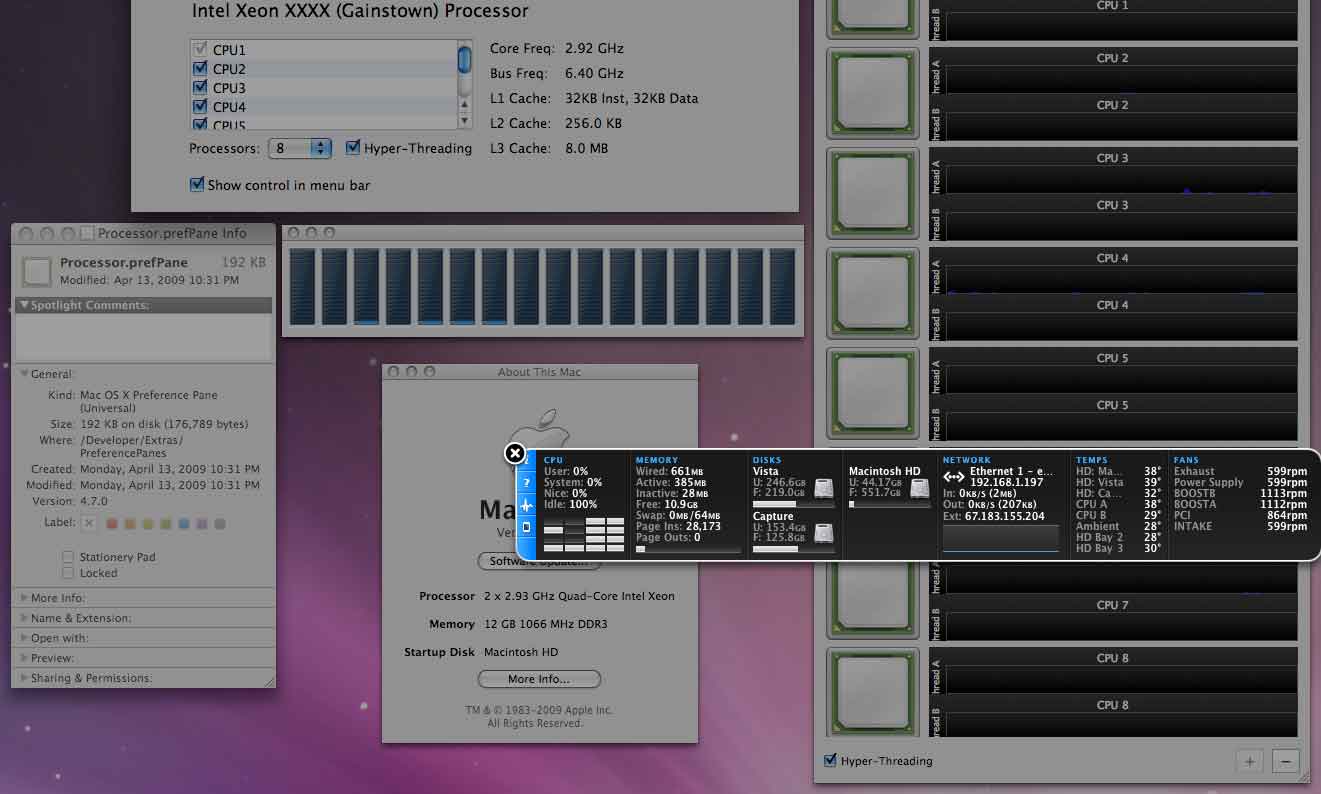

Here are shots clearly showing both Activity Monitor and iStat Pro indicating 16 cores with the checkbox disabled. iStat Pro is pretty respected.

Quote:
Originally Posted by Abidubi View Post
Activity monitor will still show you 2X the number of bars, but only half of them are active.
This statement conflicts with your second screenshot which shows 8 cores in Activity Monitor. And you don't have both the processor prefs and Activity Monitor in the same screenshot. Shenanigans.




WS
WonderSausage is offline   0 Reply With Quote
Old Jun 28, 2009, 09:28 AM   #13
Tesselator
macrumors 601

Tesselator's Avatar

Join Date: Jan 2008
Location: Japan
Easy enough to find out for sure Mr. Sausage.
  1. Start Handbreak doing it's thing.
  2. Look at any 16-bar CPU meter to make sure all 16 are going.
  3. Then flip the HT switch and watch the CPU meters.

Happiness is knowing in three steps or less.

But his does show that it works here:
Thumb resize.


EDIT: Thanks Abidubi! And if you're the guy who showed this before I apologize for falsely presuming sneaky noobishness.

Last edited by Tesselator; Jun 28, 2009 at 09:38 AM.
Tesselator is offline   0 Reply With Quote
Old Jun 28, 2009, 07:05 PM   #14
Abidubi
macrumors 6502

Join Date: Feb 2009
Location: Montreal
Quote:
Originally Posted by WonderSausage View Post
Maybe you should read someone's post history before being so rude. Or better yet, just don't be so rude, in general.
I have about as much time to read through every post you ever wrote as you do to properly test something before making assumptions and announcing them to the world as fact.

Quote:
Originally Posted by WonderSausage View Post
There is no credible evidence that HT is disabled, the processor palette that comes with the prefs shows it disabled but that prefs applet appears to be delusional because there is no performance difference in HandBrake
I can't speak for handbrake performance, but it clearly does disable hyper-threading.

Look at my screenshot again. Notice only 4 of the 8 bars are doing anything. Thats with HT off.

Quote:
Originally Posted by WonderSausage View Post
Here are shots clearly showing both Activity Monitor and iStat Pro indicating 16 cores with the checkbox disabled. iStat Pro is pretty respected.

This statement conflicts with your second screenshot which shows 8 cores in Activity Monitor. And you don't have both the processor prefs and Activity Monitor in the same screenshot. Shenanigans.
When you set your computer to single CPU what is handbrake's performance like? Open activity monitor... does it show just 1 single bar? Oh wait, it shows exactly the same number as before, therefore it MUST not be working. Hmmm, why is everything slower then?

Ever thought that maybe the # of processors is determined at startup, and therefore the information activity monitor uses to report the number of CPUs is what was known at boot time?
__________________
Quad 2.93, 6GB RAM, 2X 640GB Blacks, 640GB Blue, 1.5TB F2 spinpoint, 4870, airport
Abidubi is offline   0 Reply With Quote
Old Jun 29, 2009, 05:30 AM   #15
Concorde Rules
macrumors 68000

Join Date: Sep 2007
It does turn it off.

On my quad Mac Pro here temperatures DROP by 3-5C when HT is off.

So go and install the processor pane as it does work.

And trust me, I have been fiddling with that pane since launch. I can confirm from the change in chip temperatures that it does infact, work.
Concorde Rules is offline   0 Reply With Quote
Old Jan 19, 2010, 04:02 AM   #16
LPZ
macrumors 65816

Join Date: Jul 2006
Regarding a 2009 Mac Pro running Snow Leopard (10.6.2):

1) Can hyper-threading be toggled on-off from the command line?

2) Can current hyper-threading on-off status be determined from the command line?

3) How can I set my machine so that hyper-threading-off is the default after a reboot? Currently hyper-threading is always turned on when I reboot, even if I have the appropriate box unchecked in the Processor preference pane.

Thanks.

Code:
  Model Name:	Mac Pro
  Model Identifier:	MacPro4,1
  Processor Name:	Quad-Core Intel Xeon
  Processor Speed:	2.26 GHz
  Number Of Processors:	2
  Total Number Of Cores:	8
  L2 Cache (per core):	256 KB
  L3 Cache (per processor):	8 MB
  Memory:	6 GB
  Processor Interconnect Speed:	5.86 GT/s
  Boot ROM Version:	MP41.0081.B03
LPZ is offline   0 Reply With Quote
Old Jan 19, 2010, 06:55 AM   #17
SatyMahajan
macrumors regular

Join Date: Apr 2009
Location: Cambridge, MA
Assuming you have CHUD installed.

You can disable HT from Terminal using this command:

hwprefs cpu_ht=false

And enable it using this command:

hwprefs cpu_ht=true

You could create an AppleScript that does this and launch it every time you boot, but every time you wake from sleep you'll see that OS X will again re-enable Hyperthreading.
__________________
Mac Pro Octo + Dual 30" ACDs | MacBook Pro 13 | iPad 4G 64GB | iPhone 4S 64GB | Apple TV 2
Visit my website, Check out my iPhone and iPad Apps! and Follow me on twitter!
SatyMahajan is offline   0 Reply With Quote
Old Jan 19, 2010, 08:41 AM   #18
LPZ
macrumors 65816

Join Date: Jul 2006
Quote:
Originally Posted by ByteOfApple View Post
Assuming you have CHUD installed.

You can disable HT from Terminal using this command:

hwprefs cpu_ht=false

And enable it using this command:

hwprefs cpu_ht=true

You could create an AppleScript that does this and launch it every time you boot, but every time you wake from sleep you'll see that OS X will again re-enable Hyperthreading.
Thanks. But now I'm even more puzzled!

First, I have XCode 3.2.1 and CHUD.

I am now fairly certain that neither the Processor pref pane nor the command line method actually disable hyper-threading on 10.6 (using either 32 or 64-bit kernels). A check can be placed or removed, or cpu_ht can be set 1 or 0, but it seems to me hyper-threading is always enabled. Here's why I think so.

I have both a 10.5.8 and a 10.6.2 system on my Mac Pro 4,1. On each system I have identically compiled versions of the chess program Crafty.

When set to use 8 threads, Crafty is quite sensitive to hyper-threading status. It is measurably slower when hyper-threading is enabled.

When I run Crafty on the 10.5.8 system, toggling the hyper-threading status in the Processor pane has an immediate effect on Crafty's speed with 8 threads.

When I do the same thing on the 10.6.2 system, toggling the hyper-threading status in the Processor pane (or from the command line) has no effect on Crafty whatsoever. Speed is slow in both cases.

I wonder how we can get a definitive answer from Apple.
LPZ is offline   0 Reply With Quote
Old Jan 19, 2010, 04:48 PM   #19
LPZ
macrumors 65816

Join Date: Jul 2006
Upon further testing I am convinced that hyper-threading cannot currently be disabled using the Processor pref pane on my 10.6.2 Mac Pro 4,1.

Is there any way to do this?
LPZ is offline   0 Reply With Quote
Old Jan 21, 2010, 06:16 PM   #20
wbsimey
macrumors newbie

Join Date: Jan 2010
I too, cannot disable Hyper-threading

we are running an Xserve cluster (OS X 10.6.1) with Nehalem processors (2x2.8 Quad intel Xeon) and performance is suffering with hyper-threading enabled. I can uncheck the hyper-thread checkbox in the Processor pane, but as soon as I reopen the pane it is checked again. A restart does not work either. I have tried to talk to Apple folks and I don't think they are aware that this is a real problem.
Attached Thumbnails
Click image for larger version

Name:	Picture 2.png
Views:	89
Size:	510.7 KB
ID:	211714

Last edited by wbsimey; Jan 21, 2010 at 06:52 PM.
wbsimey is offline   0 Reply With Quote
Old Jan 22, 2010, 02:32 PM   #21
wbsimey
macrumors newbie

Join Date: Jan 2010
Apple xserve tech suggestion

An Apple xserve tech suggested I try setting the NVRAM to 0 with

NVRAM SMT=0

then restart OS

this eliminated the hyper-threading checkbox from the processor preferences pane, but it appears that 16 cores are still available instead of 8, which is what we want. Will test performance later today.
wbsimey is offline   0 Reply With Quote
Old Apr 8, 2011, 06:28 PM   #22
gglockner
macrumors 6502

Join Date: Nov 2007
Location: Bellevue, WA
Quote:
Originally Posted by wbsimey View Post
An Apple xserve tech suggested I try setting the NVRAM to 0 with

NVRAM SMT=0

then restart OS

this eliminated the hyper-threading checkbox from the processor preferences pane, but it appears that 16 cores are still available instead of 8, which is what we want. Will test performance later today.
This has to be run as root:

sudo nvram SMT=0

Otherwise, this is exactly what's needed. Even works with the 64-bit kernel.
__________________
Giving my money to Apple since 1993.
gglockner is offline   0 Reply With Quote
Old Apr 8, 2011, 07:13 PM   #23
beto2k7
macrumors 6502

Join Date: Jan 2010
Location: ::1
Quote:
Originally Posted by gglockner View Post
This has to be run as root:

sudo nvram SMT=0

Otherwise, this is exactly what's needed. Even works with the 64-bit kernel.
really??? replying a thread that is over a year old....
__________________
2010 Mac Pro | 2 x 2.40 GHz| 24Gb RAM | 3x2TB RAID0 | GTX 570 | 27" ALCD |
iPad 2 16Gb wifi+3G |
iPhone 4S 32Gb Unlocked |
beto2k7 is offline   0 Reply With Quote
Old Apr 8, 2011, 07:56 PM   #24
Joshuarocks
Banned

Join Date: Mar 2011
Location: Somewhere in Cyberspace
Why would u wanna turn it off?
Joshuarocks is offline   0 Reply With Quote
Old Apr 8, 2011, 08:34 PM   #25
Behemecoatyl
Banned

Join Date: Apr 2011
Quote:
Originally Posted by beto2k7 View Post
really??? replying a thread that is over a year old....
So making a useless and stupid reply (yours) is a better option?
Behemecoatyl is offline   0 Reply With Quote

Reply
MacRumors Forums > Apple Hardware > Desktops > Mac Pro

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
thread Thread Starter Forum Replies Last Post
Problems with Radeon 5870 on my Mac Pro using Boot Camp uelef Mac Pro 9 Jul 14, 2012 12:55 PM
MacBook Pro 15" 2010 running poorly. Freezing. Taking forever to turn off and on. postsanity Mac Basics and Help 4 May 7, 2011 11:46 AM
MISSING FEATURE: Ability to turn off audio on diff Apps> VISTA has it, macs dont maccuser OS X 3 Feb 25, 2010 06:24 PM
Is there a way to turn off iSight on the new iMac? RyanSA4 Mac Pro 32 Dec 30, 2005 10:13 AM


All times are GMT -5. The time now is 09:13 PM.

Mac Rumors | Mac | iPhone | iPhone Game Reviews | iPhone Apps

Mobile Version | Fixed | Fluid | Fluid HD
Copyright 2002-2013, MacRumors.com, LLC
