20" Rev.B iMac G5 is here finally (with pics!)

Discussion in 'Macintosh Computers' started by macanno, May 9, 2005.

  1. macanno macrumors newbie

    Joined:
    May 9, 2005
    #1
    yes guys, i have a time advantage here living in the GMT+8 region of the world and got my iMac 14 hours before. :)

    could anyone advise if there's any significant changes in the internal layout?

    http://www.flickr.com/photos/37127318@N00/

  2. snackcakeofd00m macrumors member

    Joined:
    Apr 30, 2005
    #2
    that is so hot i MUST HAVE ONE*turns into hulkish creature, runs to apple store takes one*

  3. mad jew Moderator emeritus

    mad jew

    Joined:
    Apr 3, 2004
    Location:
    Adelaide, Australia
    #3
    Thanks for the pics. Can anyone see any major differences between this and the rev A? I'm not quite observant enough to pick up on anything. :(

  4. yvovandoorn macrumors regular

    Joined:
    May 2, 2005
    Location:
    Renton (suburb of Seattle), WA
  5. ChrisFromCanada macrumors 65816

    ChrisFromCanada

    Joined:
    May 3, 2004
    Location:
    Hamilton, Ontario (CANADA)
    #5
    There doesn't appear to be any internal differences,

    The only difference you might notice is due to the size difference (I believe the stock apple image is of a 17")

  6. mad jew Moderator emeritus

    mad jew

    Joined:
    Apr 3, 2004
    Location:
    Adelaide, Australia
    #6

    Thanks for that, it's a 17-inch right? Or have they moved the hard drive further from the edge?

  7. Etrain macrumors 6502

    Etrain

    Joined:
    Feb 26, 2005
    Location:
    Land of Cleve
    #7
    They look different, but I don't know whats what. :)

  8. katie ta achoo macrumors G3

    Joined:
    May 2, 2005
    #8
    Yeah, something does look a little different.. The uhh silver thing with the square.
    I'm so helpful.

    MACANNO:
    Nice iMac!! :D
    *totally not jealous...*

    a little off topic, but I LOVE that table and chair set! So awesome!

    and I see you got the bluetooth mouse and keyboard.. awesome!! :D :D
    Man... I need either another free mac or a job and not go to vienna during march...

    Hmm.. a new mac or a trip to europe, haha

  9. jimsowden macrumors 68000

    jimsowden

    Joined:
    Sep 6, 2003
    Location:
    NY
    #9
    There is no physical difference between that and the rev.A 20".

  10. mad jew Moderator emeritus

    mad jew

    Joined:
    Apr 3, 2004
    Location:
    Adelaide, Australia
    #10

    Well, you can see the different graphics cards (I think that's what it is - near the top and kind of in the middle) and I'm pretty sure the RAM is laid out slightly differently but that might just be me.

  11. noel4r macrumors 6502a

    Joined:
    Jul 17, 2002
    Location:
    Los Angeles
    #11
    Well, I asked this numerous times already but can you confirm if the screen spanning hack works on this revision?

  12. macanno thread starter macrumors newbie

    Joined:
    May 9, 2005
    #12
    could you fill me in with more details about that "screen spanning hack"? :)

  13. macanno thread starter macrumors newbie

    Joined:
    May 9, 2005
    #13
    hi katie,

    that set is Air Table and Air Chair by Jasper Morrison, my top pick with my very limited budget :p

    now that my iMac G5 is here, implying my planned dive trips in South East Asia this year could only be dreams next year.....

    enjoy your Vienna or iMac! :p

  14. steve88 macrumors member

    Joined:
    Apr 18, 2005
    #14
    The fan ducting on the revB looks totally different. Unless you just cant see it in the 17" revA.

  15. iGary Guest

    iGary

    Joined:
    May 26, 2004
    Location:
    Randy's House
    #15
    Yep, and the heat sink for thr proc is different.

  16. noel4r macrumors 6502a

    Joined:
    Jul 17, 2002
    Location:
    Los Angeles
    #16
  17. Etrain macrumors 6502

    Etrain

    Joined:
    Feb 26, 2005
    Location:
    Land of Cleve
    #17
    Maybe the fan problem and the heat problem has been fixed! :D Since I am buying one tomorrow, I really hope so!

  18. wwooden macrumors 68000

    wwooden

    Joined:
    Jul 26, 2004
    Location:
    Burlington, VT
    #18
    The fans exhaust on the right of the picture is different then the rev A's. Also, it appears that the ram is angled the other way. i'll go back and check each now and see if anything else is different.

  19. wwooden macrumors 68000

    wwooden

    Joined:
    Jul 26, 2004
    Location:
    Burlington, VT
    #19
    Looking at the two side by side, there is a lot different. The two fans have different shaped vents, the airport card slot is moved. Seems like everything is shifted down, but that could be because the original is a 17'' and the new one is a 20".


    Attached Files:

  20. Sutekidane macrumors 6502a

    Sutekidane

    Joined:
    Jan 26, 2005
    #20
    Don't compare 17" with 20" they are pretty different on the inside. The RevA 17" is almost identical on the inside at the RevB 17" and the same applies with the 20" models. I have a RevA 20" and I can say that it looks nearly the same as the RevB 20", except mine doesn't have a built in airport card, it has a slot for one. Fan, ducts, heatsink, everything looks similar to the old stuff. The fan looks a bit different, and the positioning of capacitors and such is a little different.

  21. macanno thread starter macrumors newbie

    Joined:
    May 9, 2005
    #21

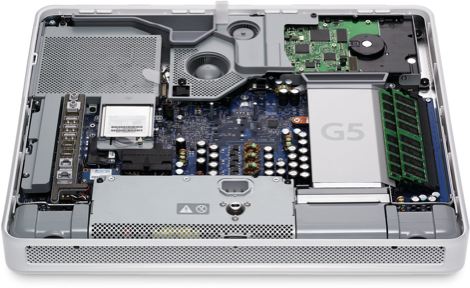

    found a pic of old 20" iMac here

    [​IMG]

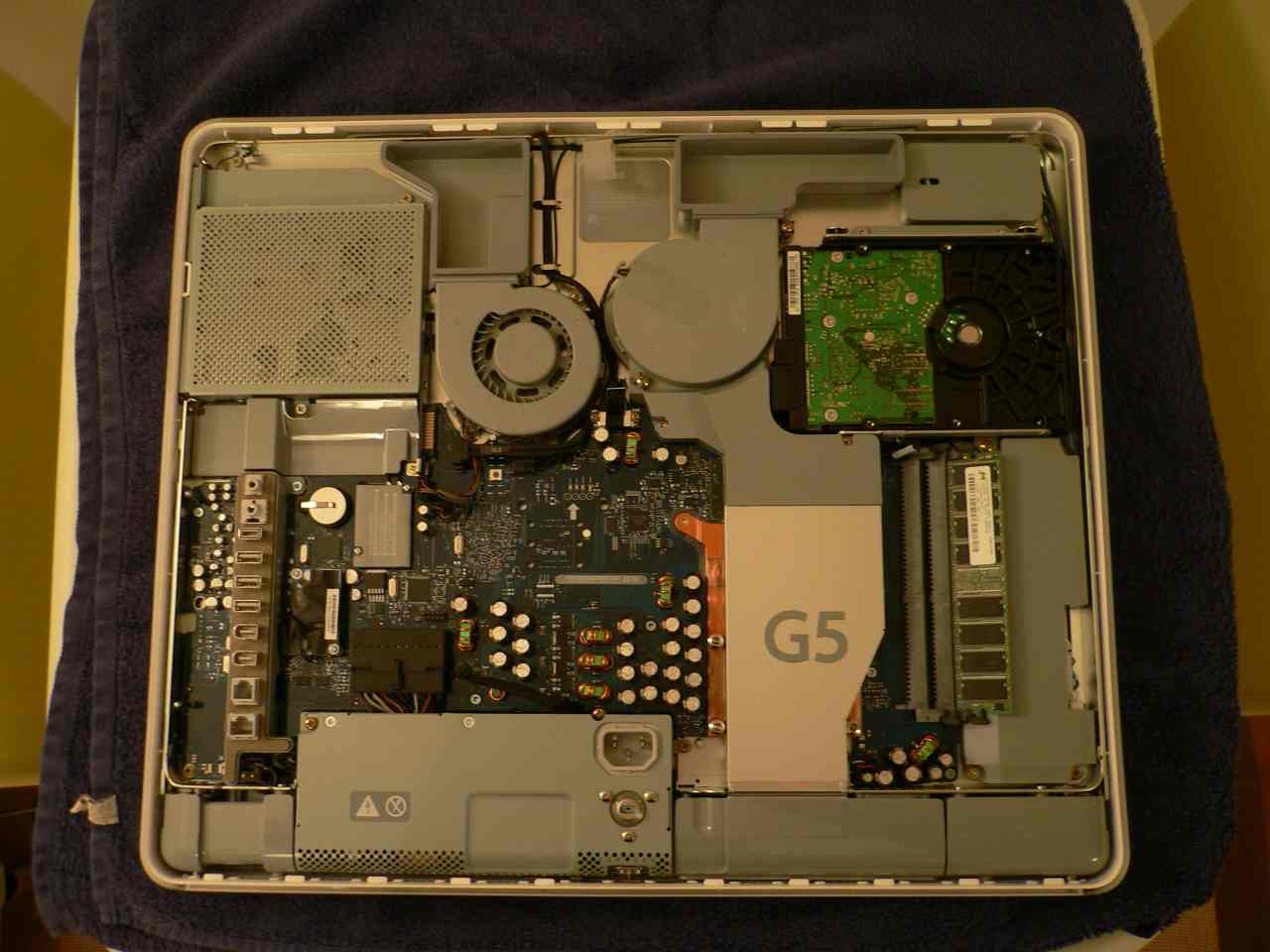

    compare with Rev.B
    [​IMG]

    NEW: sorry for the mistake, this should be the correct old 20", am quite certain this time coz the RAM modules of 17" are flipping inward while those of 20" flip outward
    [​IMG]

  22. sorryiwasdreami macrumors 6502a

    sorryiwasdreami

    Joined:
    Apr 24, 2004
    Location:
    way out in the sticks
    #22
    Nice pics man! I like your table and chairs too!

  23. aswitcher macrumors 603

    aswitcher

    Joined:
    Oct 8, 2003
    Location:
    Canberra OZ
    #23

    Those are pretty big changes. Thanks for the pics

  24. mad jew Moderator emeritus

    mad jew

    Joined:
    Apr 3, 2004
    Location:
    Adelaide, Australia
    #24

    I don't reckon they're all that major. Although, the hard drive definitely seems a little more centred now, which is strange.

  25. isgoed macrumors 6502

    Joined:
    Jun 5, 2003
    #25
    Seems to me that you found an old picture of the 17" mac.
