2009 iPod nano - diagnostic screens for the curious

Discussion in 'iPod' started by glossywhite, Oct 8, 2009.

  1. macrumors 65816

    glossywhite

    Joined:
    Feb 28, 2008
    #1

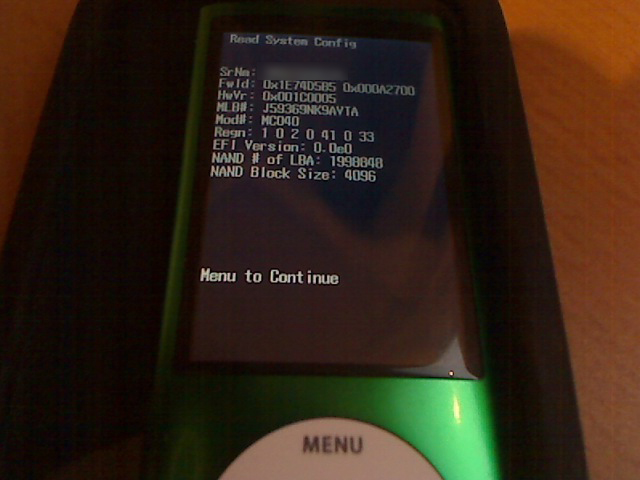

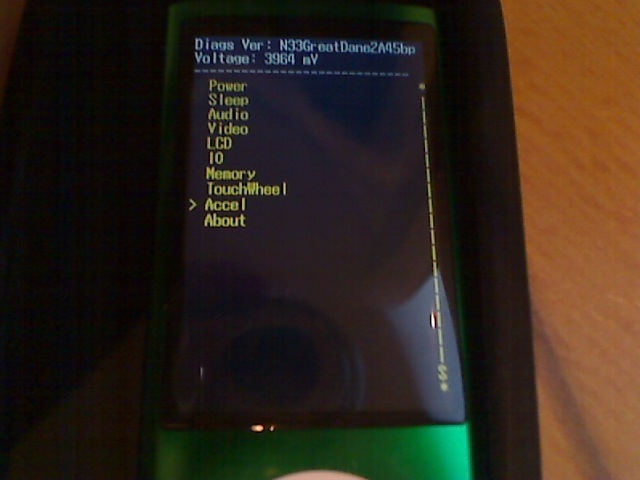

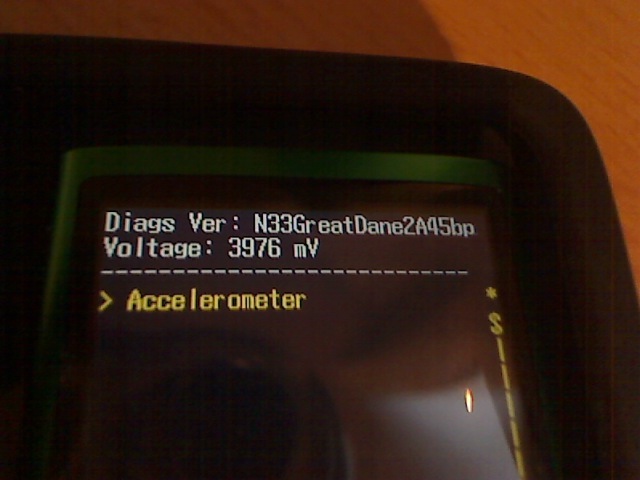

    Hi there. Just thought I'd share some snaps of the 2009 iPod nano diagnostic screens. To get these diag screens, do:

    1/ Hold down both centre button AND menu button until iPod nano reboots

    2/ As SOON as the screen goes black, hold down center button & '|<< ' *immediately* until the diagnostics screens appear.

    3/ To reboot and resume normal iPod nano usage, repeat step 1.

    Use '|<<' & '>>|' buttons to step through the menus, and centre button to execute the test with the '>' pointing at it, as shown. Menu button goes up one level.

    :D
