A few questions regarding shuffles and ipods

Discussion in 'iPod' started by jkelly888, Mar 9, 2006.

  1. macrumors regular

    jkelly888

    Joined:
    Oct 29, 2005
    Location:
    pluto
    #1
    i'll add the last question after i scan in something that pertains to the last Question

    1. can the ipod shuffle do line out thru the usb port? or just charge and update?
    2. what parts of a usb port go into chargeing a shuffle?
    3. Can i use an AC power adapter that apple makes with a usb hub or something to the like with 2 ipods? (a shuffle and a video)

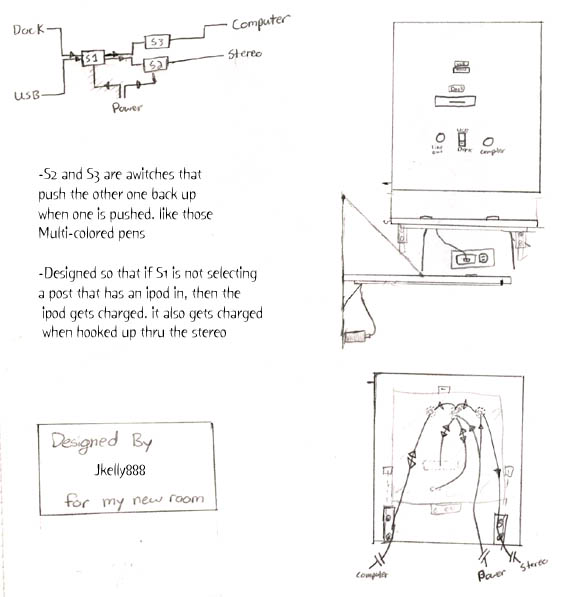

    4. is the electrical lay out diagram in the upper left correctly layed out? it'll change if the shuffle can't use line out feature of the docking ipod.


    [​IMG]

  2. macrumors 6502a

    panoz7

    Joined:
    Nov 21, 2005
    Location:
    Raleigh, NC
    #2
    I use a powered USB hub to charge my iPod. It works just like my apple firewire charger but lets me keep the iPod plugged into the computer whenever my laptop is on the desk. I've charged two iPod's simotaneously with it.

    I'm pretty sure the shuffle can do line out thru the usb port... I remember seeing an FM modulator for the shuffle that plugged into the usb port, so there must be some sort of way to get audio out of it. Its probably alot more expensive then just using two cables...

    I can't comment on the electrical diagrams. I was a little confused. Why are you trying to have two ipods hooked up to a stereo at the same time? Sorry if I misunderstood what you drew.

    Good Luck.

  3. thread starter macrumors regular

    jkelly888

    Joined:
    Oct 29, 2005
    Location:
    pluto
    #3
    is the usb hub seperately powered?

    i saw these speakers that someone makes that have a shuffle plug into it and have a plug comeing out of it that plugs into the headphone port. you'd think that a company that mass produces stuff for it would use what is could and such.

    heres how the diagram works. i'm planning on using this as a dock for my ipod and soon to be ipod shuffle. the switch in the middle switches between whether i'm planning on useing the ipod dock connecter and the usb port to either connect to the comp or play thru my stereo. when one is not doing either of the two, the dock charges it.

  4. macrumors regular

    Revlimit Punk

    Joined:
    Jan 8, 2006
    Location:
    Italy
    #4
    1. The Shuffle has no line-out, the usb port is used only to sync and charge it.
    2. USB pinout: http://www.starmount.co.uk/s_usbpin.htm
    3. Yes. And you are not limited to that, any 5 volt power adapter soldered to a usb connector will be just fine.
    4. It looks confusing to me, what is the goal?

  5. macrumors regular

    Revlimit Punk

    Joined:
    Jan 8, 2006
    Location:
    Italy
    #5
    Some usb hubs are powered by an external ac adapter while some others are bus powered, which means that they are sharing the power coming from the usb port they are connected to (in your case that would be the apple adapter usb)

    Wouldn't it be easier to leave the ipods both connected to the computer and then have a switch on your hi-fi to switch between one and the other?
    Also i don't get why you would want to use the ipod line out when you could connect the computer itself to the hifi and browse through your songs at a faster pace with iTunes.

  6. thread starter macrumors regular

    jkelly888

    Joined:
    Oct 29, 2005
    Location:
    pluto
    #6
    the goal is to have a homemade dock that i can dock my ipod on and my soon to be shuffle. with this, it would alway be hooked up to my computer and my stereo. the middle switch (between the two circles) controls whether the usb for the shuffle is used or whether the dock connecter port is used. the switches determines whether it communicates with my stereo to play music or to my computer to update. when the stereo part is selected, or when the middle switch is not on that port, if it has an ipod in it, it charges it. i hope thats clear.

    i have one powered by the bus.
    the comp i'm gonna be using in my room has one usb hub and is really slow (windows). if by hifi, you mean the new apple hifi, i dun have one but if your talking about my stereo, its pretty old. so since my comp is really slow, using the ipod itself would be quicker

  7. macrumors G4

    Joined:
    Jan 5, 2006
    Location:
    Redondo Beach, California
    #7
    [

    1. can the ipod shuffle do line out thru the usb port? or just charge and update?

    It would be a non-standard USB port if it carried an
    analog signal on one of the pins. I'm pretty sure
    that the iPod looks exactly lke any other USB mass
    storage device.

    2. what parts of a usb port go into chargeing a shuffle?

    USB has a protocol it uses. A device when plugged it
    "asks" for a certain amount of power, the USB hub
    decides if that is available or not and grants or
    rejects the request. Only after the grant is the USB
    device alowed to draw more than a very nominal
    amount of power. Basically an iPOd will not
    charge itself unless it is told buy the USB hub
    that it may do so. The iPod could possaby
    make a second request for less power but I have
    no idea if they are so sophiticated. I doubt it

    3. Can i use an AC power adapter that apple makes with a usb hub or something to the like with 2 ipods? (a shuffle and a video)

    Most powered USB hubs do have enough power to
    charge two iPods

  8. macrumors regular

    Revlimit Punk

    Joined:
    Jan 8, 2006
    Location:
    Italy
    #8
    What are your sources?
    The ipod will accept the current coming from the usb port in any case unless it is damaged or it isn't in the acceptable volt range.
    The fact that an usb controller won't allow a device to draw too much power is another matter entirely. It's the controller that asks the device how much is its consumption before giving it the power it requires. If you give the iPod power through a usb connector, it will charge just fine.

  9. macrumors 6502a

    panoz7

    Joined:
    Nov 21, 2005
    Location:
    Raleigh, NC
    #9
    Ok... i sort of get what you're doing now. I still don't entirelly understand why you would want to listen to the shuffle on the stereo when you have a normal ipod with presumably the same songs on it already. That doesn't matter though... I'm sure you've got good reasons. Anyway, my hub is the powered kind, and it has been able to supply enough power to sync / charge two ipods and run an external bus powered harddrive all at the same time. I love it.

    Now, regarding the line out through the USB port... can someone please explain how this thing works?

    http://www.xtrememac.com/audio/wireless/airplay_shuffle.php

    It's getting the audio somehow. Unless its clever enough to somehow get songs off the shuffle and decode them through the usb port I don't see how it could work. Is it possible that this is a special USB port that does have an analog component in it somewhere?

  10. macrumors 6502a

    panoz7

    Joined:
    Nov 21, 2005
    Location:
    Raleigh, NC
    #10
    "The transmitter also doesn't produce a true line signal, so volume is still controlled by shuffle's own controls (audio accessories that plug into 3G/4G and mini iPods produce higher-quality line-out signals that bypass iPod's volume controls), though this is likely due to the shuffle itself and not AirPlay."

    Just found that in a review of that airplay thing. It seems as if there must be something in the usb port that is transmiting the same audio that's coming out of the head phone port.

  11. macrumors regular

    Revlimit Punk

    Joined:
    Jan 8, 2006
    Location:
    Italy
    #11
    I've done a bit of research and yes you are absolutely right, it turns out that the shuffle connector is not a standard one. I was basing my statements on the tech specs at apple.com, sorry for the misinformation.
    If anybody wants to take a look, here is the connector of the iPod Shuffle:
    http://www.chipmunk.nl/ipod/ipodshuffle-2.html

  12. thread starter macrumors regular

    jkelly888

    Joined:
    Oct 29, 2005
    Location:
    pluto
    #12
    i dunno. i figure it'd be more simple (can't spell plural of easy for beans) to just use the usb for charging and docking

  13. macrumors regular

    Revlimit Punk

    Joined:
    Jan 8, 2006
    Location:
    Italy
    #13
    I found another product that seems similar, here is the review:
    http://www.ilounge.com/index.php/reviews/comments/dlo-transpod-for-ipod-shuffle-ipod/

  14. thread starter macrumors regular

    jkelly888

    Joined:
    Oct 29, 2005
    Location:
    pluto
    #14
