A possible leak

Discussion in 'MacBook Pro' started by michaelfengdayu, Oct 8, 2008.

  1. macrumors member

    Joined:
    Jun 22, 2007
    #1
    of MacBook Pro


    Attached Files:

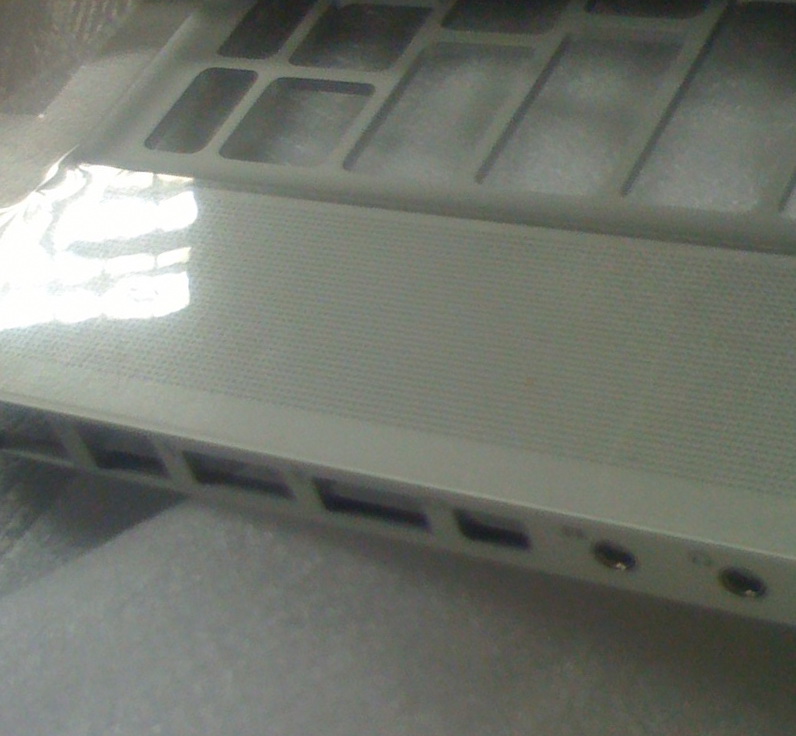

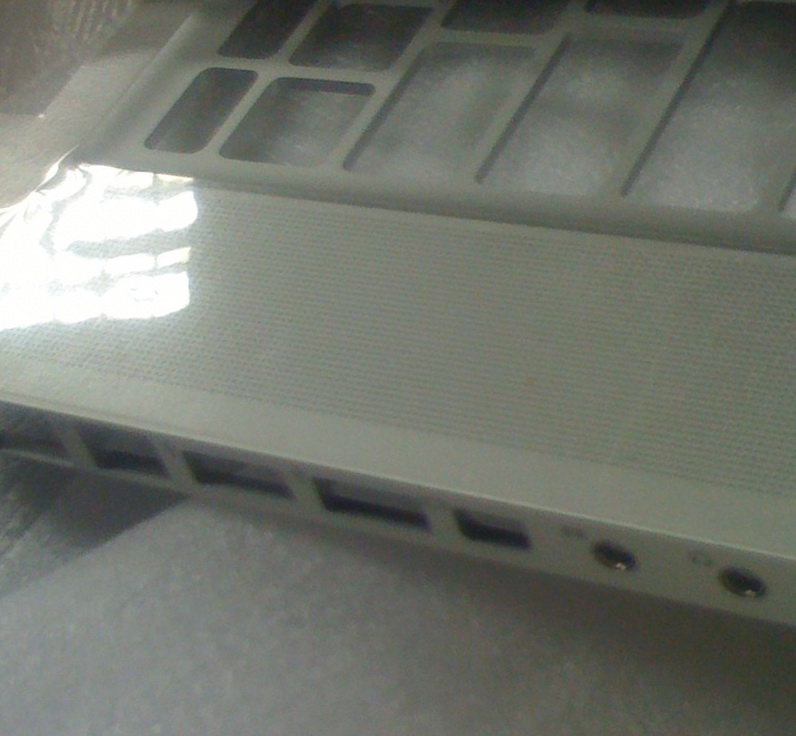

    • MF.jpg
      File size:
      130.9 KB
      Views:
      4,740
  2. macrumors P6

    Tallest Skil

    Joined:
    Aug 13, 2006
    Location:
    1 Geostationary Tower Plaza
    #2
    Source or you faked it.

    Either that or BOOYAH! ONE PIECE OF ALUMINUM! :D

  3. macrumors 68000

    Joined:
    Jul 14, 2008
    #3
    Hmmmm....


    Not the current one, as they have nothing between the USB ports and the audio jacks.


    Looks like the the front left edge of the bottom shell to me.

  4. macrumors regular

    Joined:
    Feb 28, 2007
    Location:
    British Columbia
  5. macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #5
    Ethernet, FireWire 800, Dual USB, an unknown (4-pin FW 400?), and audio ports.

    Now for the right side? :D

  6. thread starter macrumors member

    Joined:
    Jun 22, 2007
    #6
    The source is unknown. I grabbed it from a chinese forum. www.elesson.com.cn

  7. macrumors 68040

    acfusion29

    Joined:
    Nov 8, 2007
    Location:
    Toronto
    #7
    mini-dvi maybe for the unknown?

  8. thread starter macrumors member

    Joined:
    Jun 22, 2007
    #8
    That might just be the protection film.

  9. macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #9
    It's not large enough to be Mini or Micro DVI.

  10. macrumors member

    Joined:
    Mar 4, 2007
    Location:
    Canadia
    #10
    I think that "unknown" port looks a bit like an optical audio in/output.

  11. macrumors 68000

    Joined:
    Jul 14, 2008
    #11
    Looks a little small. Mini DVI might be one of the two big ones on the left side of the pic, or those could be ethernet and FW800, as mentioned.

  12. macrumors 68040

    acfusion29

    Joined:
    Nov 8, 2007
    Location:
    Toronto
    #12

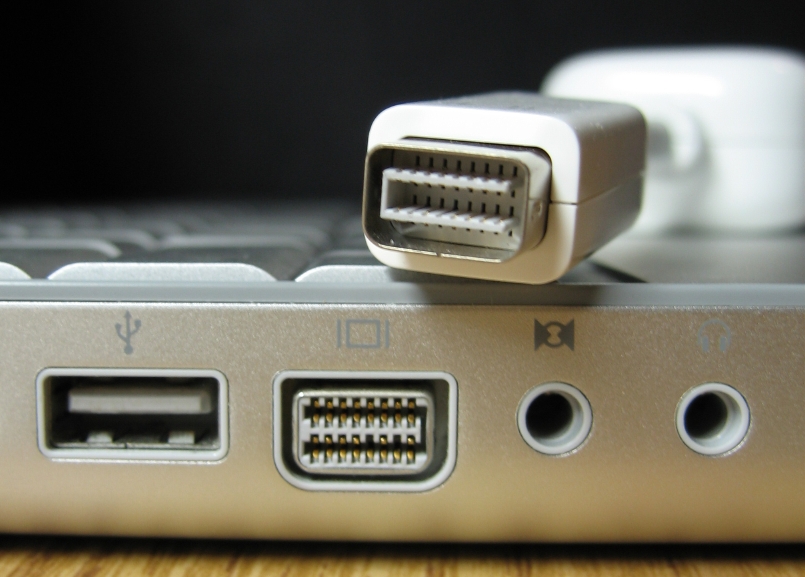

    I think it does...

    [​IMG]

  13. macrumors 6502a

    PeterQC

    Joined:
    Jun 30, 2008
  14. macrumors 68000

    Joined:
    Jul 14, 2008
    #14
    Maybe, but that is already built in to the audio ports. Why waste precious port space for that? If they are using Mini DVI, surely they would build the optical port into the headphone jack.

  15. macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #15
    It's not even as wide as the USB port in the original picture...

    It's about half as wide.

  16. macrumors member

    Joined:
    Mar 4, 2007
    Location:
    Canadia
    #16
    True, but it's got the same shape. I don't get why they would move the video output to that side when it's already got a great home on the right side of the MBP...

  17. macrumors 68020

    Brien

    Joined:
    Aug 11, 2008
    #17
    ...

    FINALLY! A real leak.

    14th come on!

    I don't see a full-size DVI port? :(

  18. macrumors member

    Joined:
    Jul 18, 2008
    #18
    We are not living in the past so i hope its HDMI.
    [​IMG]
    Thats HDMI next to normal DVI.

  19. macrumors newbie

    Joined:
    Oct 4, 2008
    #19
    That's probably one one of the most convincing pics yet. That is deffo no a PS job. I honestly think this could be it.

    SM/:apple:

  20. macrumors 6502a

    mrblack927

    Joined:
    Aug 19, 2008
    #20
    I'm a bit concerned by the fact that seemingly genuine leaks thus far have only been parts of the casing...

    To me that says that they don't even have assembled units ready... we could be in for a long wait

  21. macrumors 6502a

    Joined:
    Apr 19, 2007
    #21
    It doesn't look like a one piece of aluminium as you can clearly see the line on the edge. I think its again one of many fakes but we shall see. Also, why would someone take just a picture of this and nothing else?

  22. macrumors 68020

    kkat69

    Joined:
    Aug 30, 2007
    Location:
    Atlanta, Ga
    #22
    I've worked with metal before and I can say it does NOT look like a solid piece of alum. You can see the thickness of the side piece clear as day.

  23. macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #23
    Keep in mind we haven't seen the other side of the laptop. It looks like non-video related I/O ports right now.

  24. Moderator

    840quadra

    Staff Member

    Joined:
    Feb 1, 2005
    Location:
    Land of 10,000 Lakes
    #24
    True,

    Though in past leaks of other products, it has proven to be easier to get a hold of partial devices than complete units. I would suspect that full laptops would be more closely guarded. Either way, it is an interesting picture.

    [​IMG]

  25. macrumors member

    Joined:
    Dec 7, 2007
    Location:
    Honolulu, Hawaii
    #25
    It also looks like one piece of aluminum. no seems where the top part meets the sides
