Adobe Illustrator help: convert corner to pointed corner

Discussion in 'Design and Graphics' started by csc309, May 26, 2009.

  1. macrumors newbie

    Joined:
    May 26, 2009
    #1

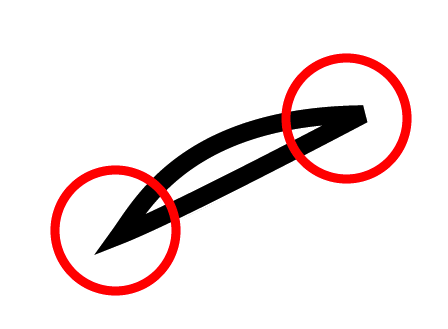

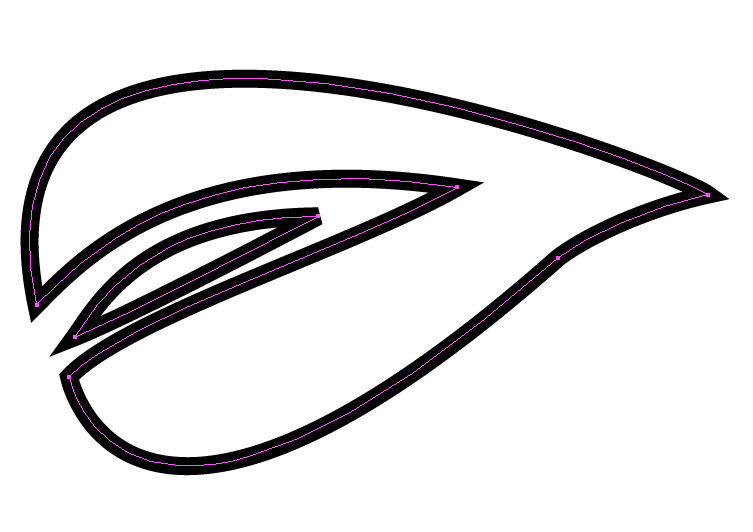

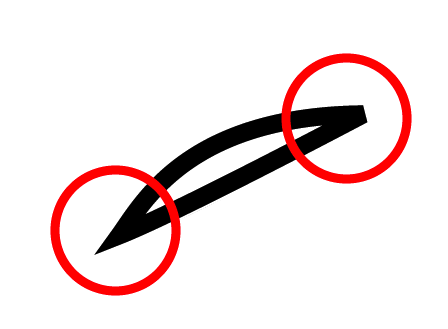

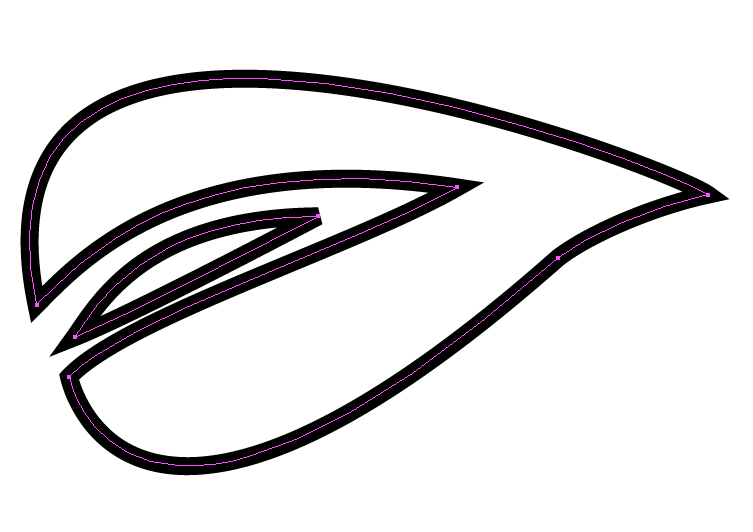

    In adobe Illustrator CS3 I am trying to convert a corner on a path into a pointed corner. Does anyone know how to do this, or why on one side the corner is pointed an on the other it is not?

    I know how to join two endpoints and then specify what type of corner I want but this path is already joined. I could break the path and then join it again but I have to do this a few dozen times throughout the drawing so that will take a lot of time.


    Attached Files:

  2. macrumors 68040

    tobefirst

    Joined:
    Jan 24, 2005
    Location:
    St. Louis, MO
    #2
    I assume that the correct corner type is selected in the stroke palette already? I would probably use the Convert Anchor Point tool (Shift+C) to re-drag the handles and see if that helped.

  3. macrumors member

    Joined:
    Aug 23, 2007
    Location:
    VA
    #3
    If the points are joined as one, then you can get the stroke to have a sharp corner in 2 ways-

    1. increase the miter limit in the stroke palette

    or

    2. also in the stroke palette, change the stroke to "inside stroke"

  4. macrumors newbie

    GigaWhat?

    Joined:
    May 27, 2009
    Location:
    Down Under
    #4
    Have you tried redrawing it?

  5. macrumors 6502

    sigmadog

    Joined:
    Feb 11, 2009
    Location:
    Eastern WA - USA
    #5
    The miter limit in the stroke palette is the answer. Select the corner point and adjust the miter limit up until the corner sharpens. It's simple. I do this all the time.
