Airport Extreme external antenna

Discussion in 'Macintosh Computers' started by damage, Feb 17, 2003.

  1. damage macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #1
    Does anyone know what type of external antenna connector is on the airport extreme ?

  2. iJon macrumors 604

    iJon

    Joined:
    Feb 7, 2002
    #2
    from what ive read its just a special port that can be used pretty must dr botts antenna. they could easily be saying that though so people wont use something else. go to dr botts site and see if there antenna will work with anything else or see if it uses an industry standard connector.

    iJon

  3. rainman::|:| macrumors 603

    rainman::|:|

    Joined:
    Feb 2, 2002
    Location:
    iowa
    #3
    actually, i heard it includes the standard nub connector...

    could be wrong tho...

    apple's online store lists some antennas, but they're probably a bit pricey...

    pnw

  4. iJon macrumors 604

    iJon

    Joined:
    Feb 7, 2002
    #4
    interesting, this doesnt surprise because i know nothing about antennas so you are more qualified than i am to answer that question. maybe i can hook a huge antenna on my roof and give access to the whole neighborhood like that guy in aspen.

    iJon

  5. damage thread starter macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #5
    Yeah I've seen the Dr bots antenna's but they don't have the range for what I want to do and I already have a number of external antenna's from my previous wireless hobbies so wanted to re-use them... which should just be a matter of getting a pigtail adapter made up - if I knew what this damned connector type was :D

  6. iJon macrumors 604

    iJon

    Joined:
    Feb 7, 2002
    #6
    im sure youve already done this but have you looked at the tech pdf on the new airport extreme. you may find your answer there.

    iJon

  7. damage thread starter macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #7
    ;) hehe yep it was the first place I looked and in true apple style it just says it is an "external antenna port" with no specification

  8. RBMaraman macrumors 65816

    RBMaraman

    Joined:
    Jul 25, 2002
    Location:
    Prospect, KY
    #8
    I called Apple to try and find out, mainly because I'm interested in this as well. The guy reminded me that the antenna port is only available on the more expensive model with the modem, which I already knew, and it's the model I need. I asked what kind of port it had, and he didn't know, so he transferred me to engineering, and the guy wouldn't tell me. All he said was, "The external antenna port only works with Apple approved antennas." So I said, "Let me guess, the only Apple approved antennas are the one's available through the Apple Online Store." His reply, "Yes."

  9. damage thread starter macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #9
    yeah pretty much what I would expect ;) I'm still trying to get a decent picture that I can post up here for you guys to check out but can;t get anything near clear enough.

    The APextreme however ROCKS !!! very nice access point

  10. jaguarx macrumors regular

    Joined:
    Jan 5, 2003
    Location:
    London
    #10

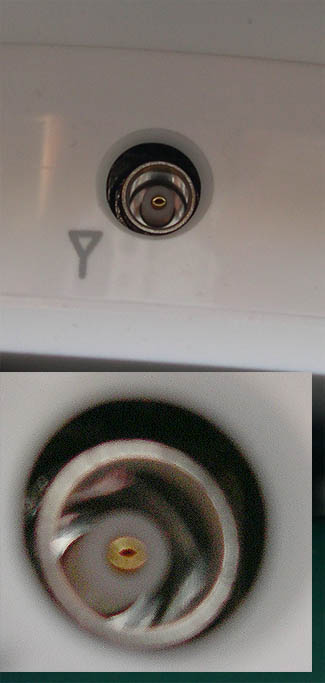

    This help?
    I have to agree Airport extreme does rock. Seems to work though about 4 brick walls in my house, sweet as!
    By the look of it the port si some kind of mini-coax type, don't know of any spec though.


    Attached Files:

    • port.jpg
      File size:
      33.7 KB
      Views:
      598
  11. damage thread starter macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #11
    Nice Job... now who's going to be the first to solve the mystery of the connector type :)

  12. yzedf macrumors 65816

    yzedf

    Joined:
    Nov 1, 2002
    Location:
    Connecticut
  13. benixau macrumors 65816

    benixau

    Joined:
    Oct 9, 2002
    Location:
    Sydney, Australia
    #13
    does someone have a wireless station with ext. antenna connectors on it? other than an AP-X station that is?

    take the photos and lets compare - here and now!

  14. Bear macrumors G3

    Joined:
    Jul 23, 2002
    Location:
    Sol III - Terra
    #14
    Something to verify...

    Are 802.11b antennas compatible with an 802.11g wireless access point?

    Not having checked this, the answer is maybe. It's the same frequency, so in theory it should be the same type of antenna. But I don't know much about antennas, so it could be different for some arcane reason.

  15. GrandShenlong macrumors member

    Joined:
    Dec 26, 2002
    Location:
    Michigan
    #15
    Yes, Bear.

    802.11g is backwards-compatible with 802.11b, which is prolly why they developed the g spec in the first place, since 802.11a is already 54 Mbps, but not compatible with Wi-Fi (802.11b).

  16. Bear macrumors G3

    Joined:
    Jul 23, 2002
    Location:
    Sol III - Terra
    #16
    I know the 802.11g protocol is compatible with 802.11b. My question (was besides possible connector differences) was: Can you use an 802.11b antenna with an 802.11g base?

  17. abates25 macrumors member

    Joined:
    Feb 16, 2003
    Location:
    Seattle
    #17
    802.11b antennas

    You should be able to use any antenna providing your able to plug it in. Antenna are generally dumb and don't correspond to one type of signal range or another. Using an antenna from 802.11b should provide you with both added range and *should* be able to provide the added speed as well.

  18. Bear macrumors G3

    Joined:
    Jul 23, 2002
    Location:
    Sol III - Terra
    #18
    Re: 802.11b antennas

    Agreed that antennas are generally dumb. However, different frequency ranges require different types of antennas. Or why do I have a seperate antenna for AM and FM on my stereo receiver?

    In theory antennas for 802.11b and 802.11g should be the same since they are on the same frequency set, however, the frequency modulation for 802.11g might require something special in the antenna.

  19. bmull macrumors newbie

    Joined:
    Oct 11, 2001
    #19
    I spoke to my Apple Rep. today and he was talking to me about the new Airport. He stated that it works with the dr botts antenna (didn't ask about others because I hadn't read this post yet) and that that antenna should increase range by about 500 ft. (I'm sure that's open air testing).

  20. jaguarx macrumors regular

    Joined:
    Jan 5, 2003
    Location:
    London
    #20
    Bear that's the do with grounding and resistance. B/G operate (correct me i i'm wrong) on the same frequency etcet and share most charastics therefore i'd be shocked if a b antenna didn't work for G. When i move in a couple of weeks i might get an antenna for my AE hub (well cord and antenna, i wanna be able to work in the park across the road), i'll report back when i do.

  21. timbloom macrumors 6502a

    timbloom

    Joined:
    Jan 19, 2002
    #21
    I am curious as to why my little cheap-o smc access point advertised 1800 ft range, whereas it can transmit aprox. 800 ft (my own testing)
    Yet apple advertises 50 feet when it can go quite a bit further without modification.

    Just Apple underestimating their stuff to compensate for less than ideal environments?

  22. damage thread starter macrumors newbie

    Joined:
    Feb 17, 2003
    Location:
    Sydney, Australia
    #22
    50 feet is the standard range for the 802.11g standard...

  23. topicolo macrumors 68000

    topicolo

    Joined:
    Jun 4, 2002
    Location:
    Ottawa, ON
    #23
    not if you get one of those crazy directional antennas that beam the signal 14miles (and gives cancer to anything that gets in between the signal). :D

  24. Glossybear macrumors member

    Joined:
    Oct 1, 2002
    Location:
    Hollywood CA
    #24
    On the Card

    but what about the antenna jack on the APX card itself??

    Has anyone been able to add an external antenna to a 12" PB?

  25. benixau macrumors 65816

    benixau

    Joined:
    Oct 9, 2002
    Location:
    Sydney, Australia
    #25
    yeah, but once it gets in the way of the signal you will start to loose reception.
    <sarcasm+humor+companyspeak> also those antennas do not create cancer. it has not been conclusivley proven and therefore can not ever possibly happen. </sarcasm+humor+companyspeak>

    oh well.

    ps. flys that get in the way may become mutants - "Rrrraaaarrrrr - Buy a Mac!!! - Rrrraaaarrrrr"
