Alleged Photos of Apple's New Dock Connector

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Aug 10, 2012.

  1. MacRumors macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]

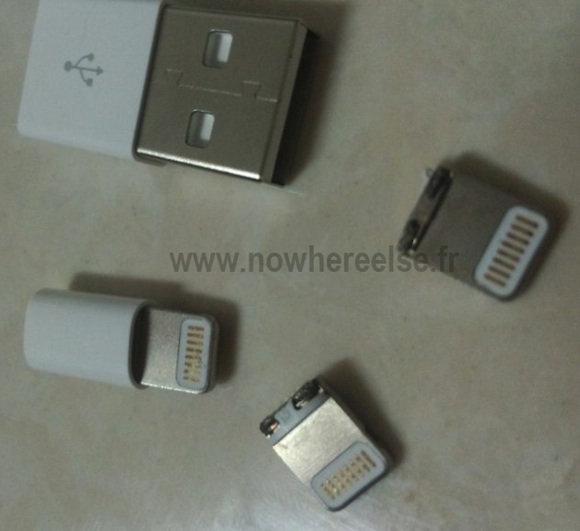

    French site Nowherelse.fr is continuing its string of parts leaks surrounding the next iPhone, sharing photos [Google translation] of what it has been told is the dock connector for the cable to be paired with the next-generation iPhone. The connector portion of the cable is shown next to the USB end of the cable, giving an idea of the size of the new connector.

    [​IMG]

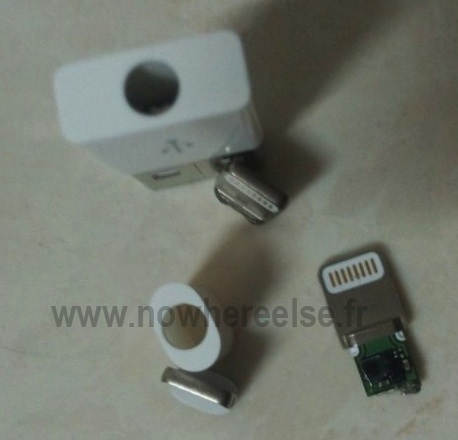

    The site notes that it can not confirm the validity of the images, but they do appear to show some features that could be consistent with what has been claimed about the new smaller dock connector. The connector shown in the images is considerably smaller that the existing dock connector, and the metal insertion piece appears to have 8 gold pins for making contact inside the corresponding port on the device. The insertion piece also appears as if it could be inserted into the iPhone in either orientation, as has been rumored.

    [​IMG]


    Nowhereelse.fr had a poor track record of leaks leading up to the launch of the original iPad, but has been relatively quiet until earlier this month when it began sharing photos of next-generation iPhone parts. Those leaks are believed to be legitimate, as they are originating from Asian websites and are consistent with other leaks seen to date.

    Update: Kyle Wiens of iFixit tells us the metal frame counts as a grounding pin, which means it's effectively a 9-pin connector. There has been some debate about it being an 8-pin vs 9-pin port, and this could reconcile those different claims.

    Article Link: Alleged Photos of Apple's New Dock Connector

  2. lbjsong macrumors regular

    Joined:
    Jun 8, 2009
  3. arian19, Aug 10, 2012
    Last edited: Aug 10, 2012

    arian19 macrumors 6502

    Joined:
    Jul 9, 2008
  4. rafaltrus macrumors member

    Joined:
    Jul 22, 2011
    Location:
    Champaign, IL
  5. Jimrod macrumors 6502a

    Joined:
    Jun 24, 2010
    #5
    Mmmm, exposed metal strips, nice and damageable...

  6. pgiguere1 macrumors 68020

    pgiguere1

    Joined:
    May 28, 2009
    Location:
    Montreal, Canada
    #6
    Reminds me of the MacBook Air USB thumb drive:

    [​IMG]

  7. striker33 macrumors 65816

    striker33

    Joined:
    Aug 6, 2010
  8. iBreatheApple macrumors 68020

    iBreatheApple

    Joined:
    Sep 3, 2011
    Location:
    Florida
    #8
    Things are getting exciting! I love this time of year. :apple:

  9. kk1ro macrumors regular

    Joined:
    Jan 31, 2008
    #9
    So, can we expect a USB 3.0 connection or a Thunderbolt one?
    I'd love to connect my iPhone 5 via Thunderbolt and have almost instant backups and syncs.

  10. fazik93 macrumors newbie

    Joined:
    Sep 22, 2007
    #10
    Why not just use Thunderbolt for everything now?

  11. Intarweb macrumors 6502a

    Joined:
    May 30, 2007
    #11
    I can't wait to diddle with that little man in boat.

  12. burnside macrumors 6502

    Joined:
    Jun 8, 2010
    #12
    If Apple's version of secrecy were a safe, it would be locked with a piece of duct tape.

  13. striker33 macrumors 65816

    striker33

    Joined:
    Aug 6, 2010
    #13
    The only realistic scenarios where damaging the ends of that connector become possible are usually a result of the user's error anyway.

    People with common sense will be fine as always.

  14. phillies262834 macrumors member

    Joined:
    Jun 15, 2012
    #14
    A thunderbolt port would be to thick for an iPhone, well atleast on the current generation

  15. rh1 macrumors member

    Joined:
    Feb 24, 2010
    Location:
    Britain
    #15
    Looks as good as legit to me. But then I guess many are still waiting to hear the compelling features behind the change of dock connector. :)
    This will make sure keep Apple racking £15 on those Apple Dock Connector to USB Cables :)

  16. chrmjenkins macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #16
    We're only missing the screen and PCB now essentially.

  17. The DRis macrumors 6502

    Joined:
    Jun 19, 2010
    Location:
    Oceanside, CA
    #17
    And queue the "OMG I have so many cables I don't want it to change" freakout, right... about....


    Now.

  18. Moonjumper macrumors 68000

    Joined:
    Jun 20, 2009
    Location:
    Lincoln, UK
    #18
    I'll wait and see on the robustness. As has been noted, it could have problems, but it might be OK.

    Loving the idea of it inserting either way. That is one of the best things about Magsafe.

  19. spb3 macrumors regular

    Joined:
    Mar 30, 2012
    #19
    man, Apple parts are leaking left and right. what's up with that? I want to keep the element of the surprise! :rolleyes:

  20. Jimrod macrumors 6502a

    Joined:
    Jun 24, 2010
    #20
    Yup, I do hope they give us a longer charging lead, the one they supply is never quite long enough...

  21. Moonjumper, Aug 10, 2012
    Last edited: Aug 10, 2012

    Moonjumper macrumors 68000

    Joined:
    Jun 20, 2009
    Location:
    Lincoln, UK
    #21
    Hopefully there will be options to connect with either.

  22. dontwalkhand macrumors 601

    dontwalkhand

    Joined:
    Jul 5, 2007
    Location:
    Phoenix, AZ
    #22
    I was hoping for a MagSafe style connector, though I guess people don't lay their phones charging around like they do laptops.

  23. phillies262834 macrumors member

    Joined:
    Jun 15, 2012
    #23
    There will probably be an adapter from the 30 pin to whatever the smaller one might be, if there really is a smaller one

  24. newyorksole macrumors 68020

    Joined:
    Apr 2, 2008
    Location:
    LongIsland/NYC
    #24
    it happens ever year tho..

  25. NT1440 macrumors G4

    NT1440

    Joined:
    May 18, 2008
    Location:
    Hartford, CT
    #25
    Any more fragile than a standard microUSB connection? (I hate how many of those break from just plugging in a device normally over time)
