Apple May Adopt 1704 x 960 Resolution Display for Upcoming iPhone 6

Discussion in 'MacRumors.com News Discussion' started by MacRumors, May 14, 2014.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Apple's next generation iPhone 6 may adopt a higher resolution display, jumping from the current iPhone 5s resolution of 1136 x 640 to a sharper 1704 x 960 resolution, reports 9to5Mac. On the rumored 4.7-inch model, this would result in a display with 416 ppi and the same 16:9 ratio of the iPhone 5/5s/5c, while a 5.5-inch model at the same resolution would carry a density of 356 ppi.

    [​IMG]
    With Apple's rumored move to larger displays in the iPhone 6, much discussion has been centered around what resolution Apple will use and how any changes would affect developers. Some speculation had suggested Apple might simply maintain the same resolution as on the iPhone 5s, making a seamless transition for developers. This stretch process would, however, drop the pixel density of the display below Apple's criteria for a "Retina" display.

    Alternatively, Apple could boost the resolution to maintain or increase the pixel density, although this move would require work from app developers to maintain compatibility with the new devices. KGI Securities analyst Ming-Chi Kuo suggested last month that Apple would maintain the current 326 ppi density, which could be achieved by bumping a 4.7-inch display to 1334 x 750, and we previously explored how that might work.

    But according to 9to5Mac, Apple may adopt an even higher-resolution display that triples the base number of pixels of the iPhone screen in both length and width. This "3x" mode would take the base "1x" resolution of 568 x 320 and expand it to 1704 x 960. Using this method, Apple would retain the Retina branding at 416 ppi and keep the current 16:9 ratio of the iPhone 5/5s/5c.
    Apple has allegedly been testing this 1704 x 960 resolution and while the design specs for the iPhone 6 are undoubtedly complete, it is not known for sure if Apple has elected to proceed with this resolution. Apple may be preparing to launch the 4.7-inch iPhone 6 sometime this fall with a faster A8 processor and improved camera technology.

    Article Link: Apple May Adopt 1704 x 960 Resolution Display for Upcoming iPhone 6

  2. macrumors newbie

    Joined:
    May 7, 2014
    #2

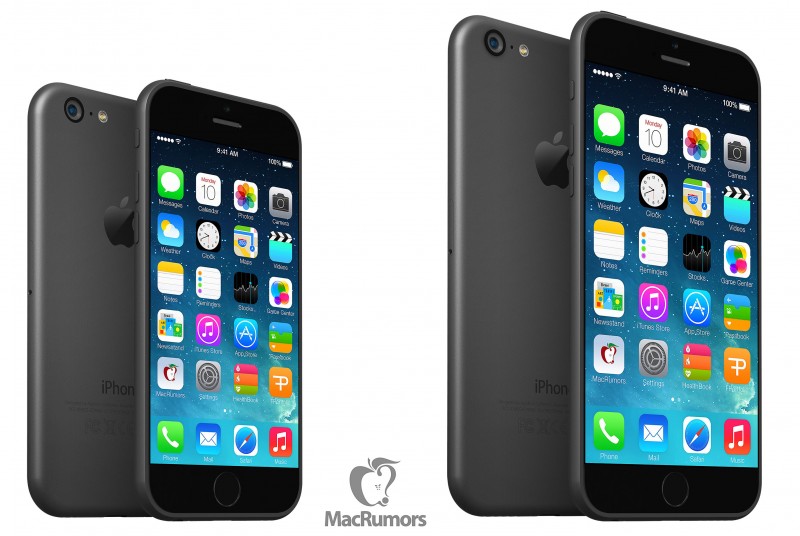

    That's still the best rendering of a possible "iPhone 6". I hope it looks similar to that, but it probably won't.

  3. macrumors 6502

    sualpine

    Joined:
    May 13, 2013
    #3
    Who cares what the resolution is?

    All I want to know is how iOS is going to scale up. I don't want a pathetic new row of icons again.

  4. macrumors 65816

    furi0usbee

    Joined:
    Jul 11, 2008
    #4
    I won't be happy until I have 1000ppi. Anything less than 1000 won't impress me at all. I want *really* crisp.

  5. macrumors regular

    Joined:
    Mar 10, 2014
    #5
    So in other words... We have no idea what the resolution will be.

    That's just macrumors being macrumors.

  6. macrumors 603

    Michael Goff

    Joined:
    Jul 5, 2012
    #6
    Maybe there will somehow be TWO new rows of icons instead. :D

  7. pgiguere1, May 14, 2014
    Last edited: May 14, 2014

    macrumors 68020

    pgiguere1

    Joined:
    May 28, 2009
    Location:
    Montreal, Canada
    #7
    It’s been a year since I started speculating that the iPhone 6 would have an @3x display, and so far a common reaction is always “But Steve Jobs said pixel-doubling was necessary when introducing the iPhone 4!”.

    It’s important to understand why @2x made sense to also understand why @3x does:

    1) It was an integer scaling multiplier.

    Xcode/Cocoa use a “points” system for every possible coordinate/dimension. Those don’t represent pixel values unless you’re using a non-Retina display (@1x). For everything else, the pixel dimensions of elements are found using points * scaling multiplier. For example, an iPhone 5 is seen as being 568x320 points * @2x = 1136x640 pixels.

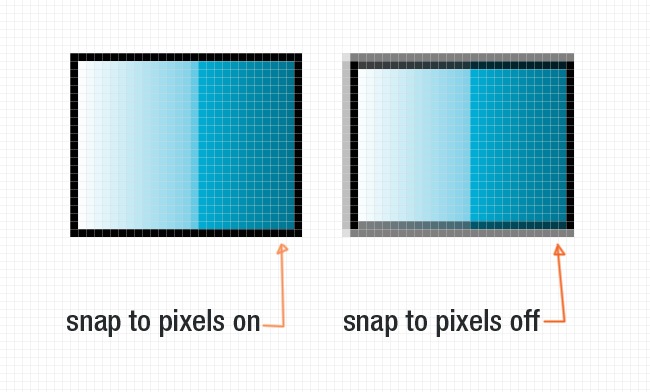

    If you had a floating point scaling multiplier, say @2.5x, you’d end up with floating point pixel dimensions as well. For example, a 85x45 points UI element * @2.5x = 212.5 x 112.5 pixels. Oops, fractions of pixels! Since the screen can’t render those directly, multisampling will be applied to “blend” fractions of pixels (think of anti-aliasing). What it would look like is this (on the right):

    [​IMG]

    You don’t want this blurry mess. Therefore, you don’t want your UI elements to end up with non-integer pixel dimensions. That’s why you want an integer scaling multiplier. In 2010 with the iPhone 4, @2x was chosen in large part because it was the next integer after 1, not because it’s the double. That means @3x would be an equally good scaling multiplier as far as keeping integer pixel dimensions goes.

    2) It didn’t require scaling interpolation on older displays

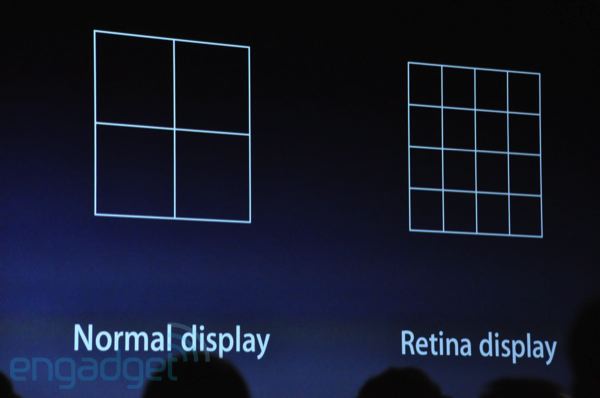

    Steve Jobs explained that one pretty clearly at WWDC.

    [​IMG]

    One pixel would become a 2x2 pixel grid. No fancy math had to be done to “scale” older apps on the iPhone 4. But why does this matter? Because scaling interpolations often reduce quality (not for performance reasons, that’s insignificant). Keep in mind however that unlike with the @1x -> @2x transition we had in 2010, this time we’d only have a 50% enlargement rather than 100%.

    The thing is, a 50% enlargement with interpolation doesn’t look worse than a 100% enlargement with pixel-doubling, despite the loss of details due to the interpolation.

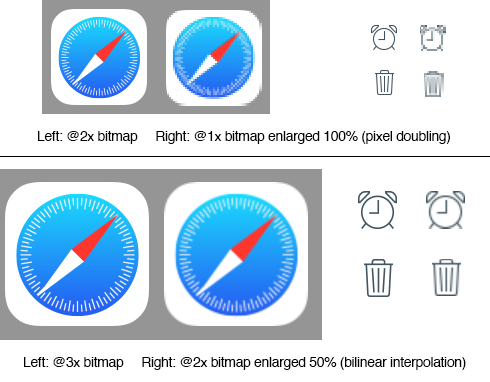

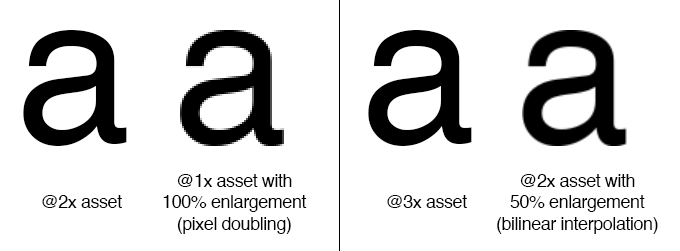

    See those examples I made with bilinear interpolation (iOS’ default interpolation when scaling images):
    [​IMG]
    [​IMG]

    As you can see, older non-@3x-optimized apps would actually look better on an @3x iPhone than non-@2x-opitmized apps did on an @2x iPhone. Add to this the fact that the screen's pixel density would be higher this time around, and the perceived image quality difference would be even smaller.

    Another common comment has been "But shouldn't developers be using AutoLayout constraints, which make apps pretty much resolution-independent? Therefore, who cares about the exact resolution?"

    Yes, they should. But the reality is that most apps (even those using AutoLayout) wouldn't magically scale well to a bigger display like it was a responsive website. They would require significant tweaking before they could do that, and I can't see Apple forcing AutoLayout everywhere just yet. That would essentially force developers to redesign/test their app in around a month, unless which their app would probably look like crap on the iPhone 6. Since that's kind of an unrealistic timeframe, it's the consumers that would end up paying in the end. I think Apple will go through a smoother transition than that.

    With the recent introduction of Asset Catalogs in Xcode, I think it's pretty clear that Apple wants to introduce a new resolution. The fact images are still labeled by "@1x" and "@2x" also leads me to believe they're not ready to drop the points system just yet.

  8. macrumors regular

    regkilla

    Joined:
    Mar 19, 2013
    Location:
    California
    #8
    No 1080p at least? Come on Apple get it together!

  9. macrumors 68040

    Joined:
    Aug 8, 2008
    Location:
    Manhattan
    #9
    I really don't see how Apple could possibly release an iPhone with a resolution below what is considered "retina" at this point. All major competitors have high resolution screens which are standard now. My guess is they go for 1704 x 960 at least. Anything less opens them up for unfavorably comparisons.

  10. macrumors regular

    perealb

    Joined:
    Oct 30, 2009
    #10
    Look at yourself! Why do you have to be so whiny?! "Who cares what the resolution is?" You make it sound like that's an irrelevant feature. If you are getting a bigger screen, of course a bigger resolution is an important feature.

  11. macrumors 6502a

    Joined:
    Aug 17, 2009
    #11
    I can't make sense of this news without a mockup compared to an iPhone 5!

  12. macrumors member

    Joined:
    Jun 12, 2012
    Location:
    New York City
    #12
    Good chance we get 1704x960. This means iPhone 5-compatible apps will automatically be iPhone 6 ready at launch. The only thing developers and designers will need to do is include higher resolution graphical assets as these do not scale up the way UI elements do.

  13. macrumors 6502a

    DipDog3

    Joined:
    Sep 20, 2002
    #13
    Would you really be able to tell a difference if the screen was 1080p?

  14. macrumors 65816

    Joined:
    Apr 22, 2008
    #14
    Something about lag usually shuts them up lol ;)

  15. macrumors member

    brunosh

    Joined:
    May 14, 2014
    #15
    Just look at how much space is wasted in the iPad and you'll have the answer.

  16. macrumors 6502a

    Joined:
    Mar 9, 2012
    #16
    marketing bull crap

  17. 3bs
    macrumors 603

    3bs

    Joined:
    May 20, 2011
    Location:
    Dublin, Ireland
    #17
    Yes. And no I don't mean if you're holding it an inch from your eyes.

  18. macrumors 68030

    BvizioN

    Joined:
    Mar 16, 2012
    Location:
    Manchester, UK
    #18
    Ignorance is bliss!

  19. macrumors 6502a

    Joined:
    Mar 9, 2012
    #19
    Ios on ipad is just pathetic waste of screen space it's purely blown up iPhone os. Terrible.

  20. macrumors 65816

    furi0usbee

    Joined:
    Jul 11, 2008
    #20
    In other news, my iWatch better be 4k, that's all I have to say.

  21. macrumors 6502a

    Joined:
    Apr 20, 2008
    #21
    Think of it this way. 1 new row, and 1 new column of icons. *bewm* :eek: I just blew your mind!

  22. macrumors 65816

    drew0020

    Joined:
    Nov 10, 2006
    #22
    I would make the change to 1080p now. At some point developers are going to make a significant change (and deal with this pain) so now is as good a time as any.

    On a 5.5" screen the minimum resolution should be 1080p in my opinion. It doesn't seem to make sense to have anything less than that.

  23. macrumors 65816

    Joined:
    Apr 22, 2008
    #23
    I remember when people said that 1080p was pointless on anything 32" and below... :eek:

  24. macrumors regular

    Joined:
    Apr 4, 2012
    #24
    Previously "new" iOS resolutions were supported by app developers so fast, I really don't think it matters much if they choose some multiple of an existing resolution or just come up with a new one that makes sense.

    Early adopters will have to go a month or two with some pixel stretching. No biggie :cool:.

  25. macrumors 68030

    cmChimera

    Joined:
    Feb 12, 2010
    #25
    I remember this. Good call!
