Apple Patent Application Reveals Integrated Charging Contacts in iPod Nano Clip

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Jul 12, 2012.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]

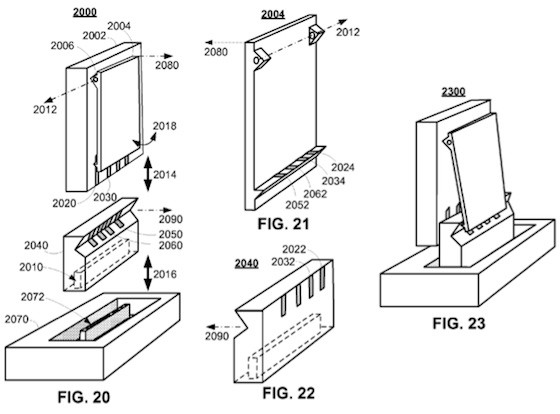

    A newly-published Apple patent application (via AppleInsider) reveals Apple's interest in exploring the use of the iPod nano's clip as a charging and docking mechanism, a move that would eliminate the need for a dedicated docking port on the bottom edge of the device as found in the current design.

    [​IMG]


    By incorporating electrical contacts into the clip and using a dock adapter to provide compatibility with Apple's current docking stations, the clamping action of the iPod nano's clip could hold the device in position for charging purposes.
    Apple's patent application also describes a number of other implementations for the clip-based charging mechanism, including the ability to clip directly onto a charging point on the bezel of another device.

    The newly-published patent, originally filed in January 2011, is not the first time Apple has proposed a means to increase the utility of the iPod nano's clip. A May 2010 application proposed integrating a piezoelectric speaker into the clip, while a prototype device has hinted at plans to equip the device with a rear camera that would project through a hole in the clip.

    A new rumor surfacing earlier this week claims, however, that Apple will be abandoning the current iPod nano design later this year in favor of an oblong design with a larger screen and a home button similar to that found on iOS devices.

    Apple is also rumored to be bringing a smaller dock connector to its iOS devices later this year, a feature that could make its way to the iPod nano as well given that the device currently uses the same dock connector design seen in iOS devices.

    Article Link: Apple Patent Application Reveals Integrated Charging Contacts in iPod Nano Clip

  2. macrumors G5

    jav6454

    Joined:
    Nov 14, 2007
    Location:
    1 Geostationary Tower Plaza
    #2
    Interesting concept. However, Apple nice charging methods are always tampered by case manufacturers.

  3. macrumors 6502

    FakeWozniak

    Joined:
    Nov 8, 2007
    #3
    Add a camera and the speaker, and I'd buy one!
    I liked the prior patent application for hiding a speaker behind the clip, too.

  4. macrumors 604

    Piggie

    Joined:
    Feb 23, 2010
    #4
    Neat idea, clip on for charging.

    But come on, can't we get wireless charging please?
    I know it takes a bit longer/slower, but even as an option?

  5. macrumors demi-god

    AustinIllini

    Joined:
    Oct 20, 2011
    Location:
    Austin, TX
    #5
    I wish they would just drop the clip. I liked the iPod touch-like design shown in an earlier thread.

  6. macrumors 6502a

    Hexiii

    Joined:
    Jun 30, 2011
    Location:
    Prague, Czech Republic
    #6
    I think the clip is okay, since if they kept the same size without the clip, you would lost it easily :)

  7. macrumors 68020

    charlieegan3

    Joined:
    Feb 16, 2012
    Location:
    U.K
    #7
    Can't they just sync/charge through the headphone jack like the shuffle? I always liked that solultion.

  8. macrumors 6502a

    Hexiii

    Joined:
    Jun 30, 2011
    Location:
    Prague, Czech Republic
    #8
    It takes quite a long time which is not problem of the Shuffle, because it lasts about 3 weeks on one charge. :)

  9. macrumors 6502a

    Joined:
    Oct 21, 2011
    #9
    Highly dangerous. Be sure to avoid this.

  10. macrumors 65816

    lifeinhd

    Joined:
    Mar 26, 2008
    Location:
    127.0.0.1
    #10
    Wow, this is actually really, really cool.

    Then accessories mfrs can design clothing with built-in contacts and solar panels. Clip your iPod to your shirt and charge while you jog! :D

  11. macrumors 6502a

    koruki

    Joined:
    Aug 16, 2009
    Location:
    New Zealand
    #11
    It's DC, its like saying having an open AA battery laying around is dangerous :rolleyes:

  12. macrumors demi-god

    ChristianJapan

    Joined:
    May 10, 2010
    Location:
    日本
    #12
    fancy it is. but I like the current monolithic approach with "one cable fits all". it's just simpler and more convenient.

  13. macrumors 65816

    lifeinhd

    Joined:
    Mar 26, 2008
    Location:
    127.0.0.1
    #13
    Can we please, please have the "downvote" button back? Even if just to stop the spread of misinformation like this?

    This is no different than the Magsafe charger. Try plugging it in and pressing the notebook end to your palm and see if anything happens. Answer: nothing does.

  14. macrumors 6502a

    kasei

    Joined:
    Dec 30, 2003
    Location:
    Los Angeles, CA
    #14
    Interesting concept. I am curious to see if this concept or something similar makes its way to the iPhone.

  15. macrumors 68020

    charlieegan3

    Joined:
    Feb 16, 2012
    Location:
    U.K
    #15
    If they are going to all the trouble of making this new dock work (which they may not be) then couldn't they work on making it faster instead?

  16. macrumors regular

    Joined:
    Nov 17, 2011
    #16
    You could lick the charger and still be safe. (Although you shouldn't try that ofcourse)
    Stop spreading misinformation.

  17. macrumors 6502

    Joined:
    Mar 3, 2008
    #17
    Cool idea, but I too prefer the one cable fits all solution. It's just much more convenient.

  18. macrumors 6502a

    Hexiii

    Joined:
    Jun 30, 2011
    Location:
    Prague, Czech Republic
    #18
    Yeah, sure it will be 100% better. Why do we need a big dock when you are ok with few inch long cable. It doesn't even fit the Nano box and would cost 5 times as much.

  19. macrumors 68020

    charlieegan3

    Joined:
    Feb 16, 2012
    Location:
    U.K
    #19
    I hope they improve the speed and go with that method for all iPods/iPads in future. Makes the devices much cleaner to look at.

    I guess they just wanted to call dibs on this idea so no one else does it.

  20. macrumors 65816

    skellener

    Joined:
    Jun 23, 2003
    Location:
    So. Cal.
    #20
    Just use your MagSafe technology Apple!! No more pins!!!

  21. macrumors 68020

    SeaFox

    Joined:
    Jul 22, 2003
    Location:
    Somewhere Else
    #21
    This is quite an interesting idea, but I would be concerned about the contacts becoming dirty/damaged from their placement on surfaces used for clipping to materials.

  22. macrumors 603

    Rocketman

    Joined:
    Dec 2, 2001
    Location:
    Claremont, CA
    #22
    A Nano running iOS with a home button. Hmmm, the iPhone Nano rumor realized.

    Also how many synching form factors are ther now?

    30 pin connector
    New approx 12 pin connector (expected)
    Original 30 pin with firewire
    Nano/Shuffle through 1/8" phone jack
    Clip (proposed)
    Others?

  23. macrumors 6502a

    Hexiii

    Joined:
    Jun 30, 2011
    Location:
    Prague, Czech Republic
    #23
    I doubt they would go with that method on iPad/iPhone/iTouch. Even if they had made it faster, they could have made the current one faster than that one. Because the iPad already takes 5 hours to charge and charging speed is kind of important factor.

    Therefore I can only imagine seeing it on Nanos/Shuffles.

  24. macrumors newbie

    Joined:
    Jul 12, 2012
    #24
    And this is exactly what is wrong with frivolous patent applications. Why is Apple able to register a patent for a clip-based charger when clip-based charging is already available in many devices? Anyone with a FitBit ultra or Suunto Ambit will use clip-based charging already. Apple may have some vaguely original claim to the manner of their particular implementation but really, is an evolution of an existing idea really worth a patent?

    This sort of thing stifles innovation instead of protecting it.

  25. macrumors 68000

    Joined:
    Oct 31, 2005
    Location:
    Wisconsin
    #25
    Not only slower, but it takes up a lot more space inside. There's no room to spare when you're trying to remain small.

    ----------

    Why is this dangerous? You don't have to worry about voltage until it nears 40V. This is no more dangerous than picking up a AAA battery with your bare hands.
