Assembled iPhone 6 Logic Board Revealed in New Photo

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Aug 14, 2014.

  1. MacRumors
    Expand Collapse
    macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    With under four weeks to go until the expected introduction of the iPhone 6, increasingly complex parts are continuing to leak. Just weeks ago, photos showing two bare logic boards similar to but distinct from corresponding parts from existing iPhones surfaced, lending credence to rumors of two larger iPhone 6 models.

    One of those logic boards has now been revealed in what appears to be a fully assembled state in a photo reposted by Apple.club.tw [Google Translate]. While several physical features such as the nano-SIM slot, a number of connectors for flex cable components, and a flash storage chip that appears to be from Toshiba are visible in the somewhat blurry photo, the most interesting components of the board unfortunately remain hidden under electromagnetic shielding. A silver component at the bottom of the board on the left is almost certainly the Wi-Fi module, although no identifiable markings can be seen.

    [​IMG]

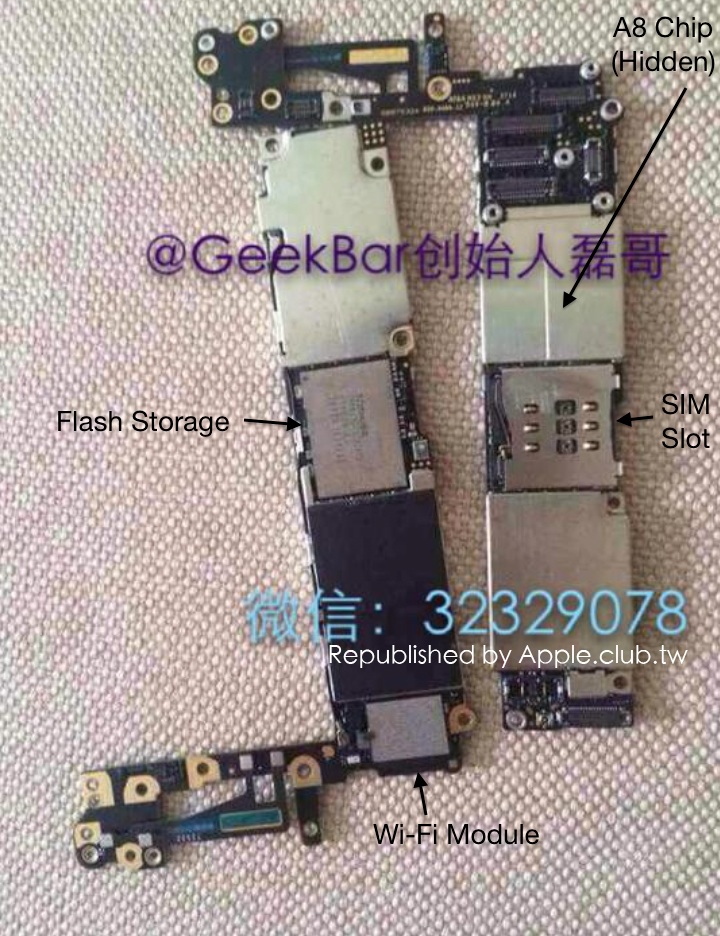

    Annotated photo of iPhone 6 logic boards
    A second photo [Google Translate] shared by Apple.club.tw today shows a pair of flex cables also said to be from the iPhone 6. The cables appear to be the same as seen in a detailed photo of the front panel display assembly yesterday.

    Article Link: Assembled iPhone 6 Logic Board Revealed in New Photo

  2. Arkious
    Expand Collapse
    macrumors 6502a

    Arkious

    Joined:
    Mar 14, 2011
    Location:
    Newcastle, UK
  3. Santabean2000
    Expand Collapse
    macrumors 65816

    Santabean2000

    Joined:
    Nov 20, 2007
  4. CmdrLaForge
    Expand Collapse
    macrumors 68040

    CmdrLaForge

    Joined:
    Feb 26, 2003
    Location:
    around the world
    #4
    To me - this daily reporting of minor leaks of parts is somewhat pointless.

  5. Nozuka
    Expand Collapse
    macrumors 6502a

    Joined:
    Jul 3, 2012
    #5
    so basically someone decided to make a picture of this and all the interesting stuff is not visible? great :p

  6. jrawl004
    Expand Collapse
    macrumors newbie

    Joined:
    Aug 22, 2012
    Location:
    Austin, TX
    #6
    Like the iPhone 6 production....mac rumors have begun to ramp up! Honestly I can't wait for the official announcement. Lots in store for us apple users......

  7. Hart4God
    Expand Collapse
    macrumors newbie

    Joined:
    Aug 14, 2014
    #7
    Ram?

    So we know where the RAM is and who makes it, but the big question remains:

    WILL WE HAVE MORE THAN 16GB AT THE LOW END?!?!?

    Please, Apple, make it so!

  8. keysofanxiety
    Expand Collapse
    macrumors 68040

    keysofanxiety

    Joined:
    Nov 23, 2011
    #8
    - logic board
    - minor part

    Pick one. And with respect you're on an Apple rumour site. We haven't yet seen a fully assembled Logic Board for the iP6. I'll agree there have been a lot of leaks recently, but that goes with the territory of being a rumour site.

  9. Hexiii
    Expand Collapse
    macrumors 65816

    Hexiii

    Joined:
    Jun 30, 2011
    Location:
    Prague, Czech Republic
  10. xero9
    Expand Collapse
    macrumors 6502a

    Joined:
    Nov 7, 2006
    #10
    I don't mind the parts leaks, though don't really care too much about the ribbon cables.

    Would be nice if there were some indication of new hardware inside (such as NFC). So far nothing to point in that direction.

    D.

  11. juanrp
    Expand Collapse
    macrumors 6502a

    juanrp

    Joined:
    Jun 14, 2014
    Location:
    Florida
  12. Devie
    Expand Collapse
    macrumors 6502a

    Joined:
    Aug 30, 2004
    Location:
    Adelaide, Australia
    #12
    16GB of RAM? Four times that of my iMac.

  13. cmChimera
    Expand Collapse
    macrumors 68040

    cmChimera

    Joined:
    Feb 12, 2010
    #13
    The logic board is a minor part now?

  14. ValSalva
    Expand Collapse
    macrumors 68040

    ValSalva

    Joined:
    Jun 26, 2009
    Location:
    Burpelson AFB
    #14
    That would be great. To go from 1GB of RAM to 16GB in one year ;) Maybe Apple will give us 1TB of flash storage too :D

  15. D.T.
    Expand Collapse
    macrumors 601

    D.T.

    Joined:
    Sep 15, 2011
    Location:
    Vilano Beach, FL
    #15
    I need to see the screws, these other components are pointless.

  16. Radio
    Expand Collapse
    macrumors 68000

    Joined:
    Mar 5, 2012
    Location:
    Central California
    #16
    Take a flat head screwdriver and pry that open now!!!

    Wonder if it's a faster processor ?!?! Could it be?!

  17. andreiru
    Expand Collapse
    macrumors regular

    andreiru

    Joined:
    Apr 18, 2008
    Location:
    Kurgan, RF
    #17
    Hmm way too many iPhone parts news and I seriously don't care...

  18. pmau
    Expand Collapse
    macrumors 6502a

    Joined:
    Nov 9, 2010
    #18

    Here you go ....

    [​IMG]


    Attached Files:

  19. joachim.mike1
    Expand Collapse
    macrumors member

    Joined:
    May 8, 2011
    Location:
    Philadelphia
    #19
    LOL.

    FOr tech geeks like me this is somewhat interesting.

  20. blue22
    Expand Collapse
    macrumors 6502

    Joined:
    Oct 15, 2010
    #20
    so tiny that flash storage is...

    Amazing the markup Apple does with the flash storage, eh? That said, here's to hoping they really do offer a 128MB option for the iPhone6.

  21. 69Mustang
    Expand Collapse
    macrumors 68020

    69Mustang

    Joined:
    Jan 7, 2014
    Location:
    In between a rock and a hard place
    #21
    Thank you both for the laugh this morning. :D I'm still amazed that people still confuse the two.

  22. Intelligent
    Expand Collapse
    macrumors 6502a

    Intelligent

    Joined:
    Aug 7, 2013
    #22
    Uh!? They are a rumors website, of course will report minor leaks daily.

  23. troop231
    Expand Collapse
    macrumors 603

    Joined:
    Jan 20, 2010
    #23
    Good luck trying to read the text off that flash chip, I already tried :eek:

  24. jabingla2810
    Expand Collapse
    macrumors 68020

    Joined:
    Oct 15, 2008
    #24
    "Computer, enhance!"

  25. Bhatu
    Expand Collapse
    macrumors regular

    Bhatu

    Joined:
    Apr 1, 2013
    #25

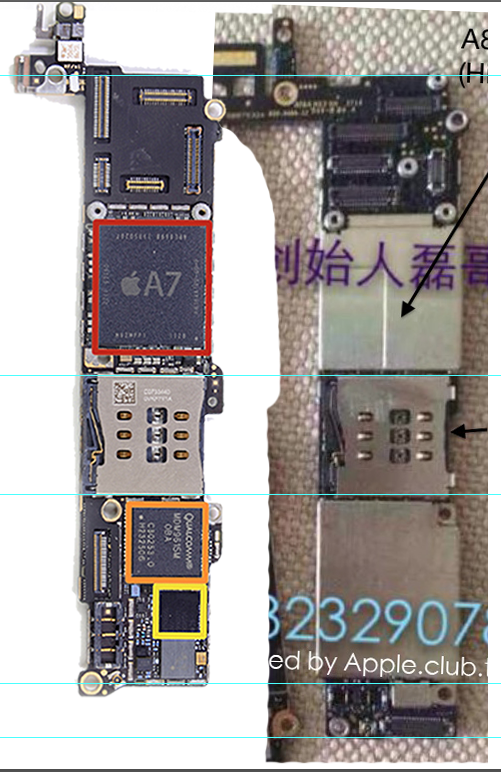

    A quick comparison b/w iPhone 5s motherboard with this.
