Best way to install SSD in Mac Pro Bay Sled

Discussion in 'Mac Pro' started by cjgonzales1900, Jun 10, 2011.

  1. macrumors regular

    Joined:
    Jan 10, 2009
    #1
    Hey guys,

    So i have this problem wanna help?
    I want to install the OWC 115GB SSD Here and was wondering what the best way to mount it in the drive bays sled would be.

    I have seen several different ways on this forum. from homemade to bought.
    I have the MP 1,1. Would this work? Here
    It says No, but are the drive sleds different between the years of MP?

  2. Moderator emeritus

    Hellhammer

    Joined:
    Dec 10, 2008
    Location:
    Finland
    #2
  3. thread starter macrumors regular

    Joined:
    Jan 10, 2009
    #3
    Thank you for your comment, but i dont like the fact that the ssd will be inside something and that th enclosure is made of plastic.

    I was looking for more of what i put in the links. a metal attachment or heatsink or a new drive sled to mount the ssd too.

  4. macrumors 65816

    Joined:
    Dec 2, 2010
    Location:
    Germany
    #4
    it specifically says that it is not compatible with the mac pro 1,1. the SATA ports mighT not be in the exact same location in the mac pro 1,1. So the the SSD wouldn't align with them and therefore not connect. So dont risk it id say.

    dont judge the quality of the adapter hellhammer posted because it plastic. SSD's produce literally no heat and they weigh hardly anything. it will be all you need. You wont see that adapter once its inserted incase you worrying about looks.

    You could also install the SSD like this guy did:
    http://www.macprossdinstall.com/Mac_Pro_SSD_Install.html
    Step by step guide of how to make an adapter, i did it for a friend following those instructions and it works perfectly.

  5. thread starter macrumors regular

    Joined:
    Jan 10, 2009
    #5
    If i was planning on buying the plastic one, i would rather do the DIY project seeing how the ssd would not be enclosed. Also i would make changes. such as not using tape, and making the mounting part out of aluminum. Also use screws to mount the ssd to the aluminum and then use the other screws already on the sled to secure it.

    Thanks for the help. Plus i know where i can get some aluminum to try this out for free lol and screws cost under $1 will post here when done sometime this month hopefully.

  6. thread starter macrumors regular

    Joined:
    Jan 10, 2009
    #6
    Also I wanted to ask. I want to buy the 115GB SSD but would say 60GB be enough for a boot drive. I would keep say music and movies and any other files such as downloads or torrent downloads on my other HD.

  7. macrumors 65816

    Joined:
    Dec 2, 2010
    Location:
    Germany
    #7
    id say get the 115GB, that way you can have all your applications running on it aswell so that everything loads super fast :) i have 150Gb of applications so id go at least 115GB.

  8. macrumors 6502a

    Joined:
    Aug 11, 2009
    #8
    I switched from a 60GB to a 120GB SSD for boot/apps, too.

  9. macrumors 6502a

    handheldgames

    Joined:
    Apr 4, 2009
    #9
    Ok. Maybe I'm cheap. It's a ssd in plastic housing already... Right? I'm thinking about using Velcro... :D

  10. macrumors 6502a

    Joined:
    Aug 11, 2009
    #10
    Finally, somebody else not willing to pay ~$20 to make something look good that's in a closed computer case most of the time.

  11. macrumors 6502

    Joined:
    Jan 21, 2008
    Location:
    Texas
    #11
  12. macrumors 6502a

    milbournosphere

    Joined:
    Mar 3, 2009
    Location:
    San Diego, CA
    #12
    ^ what he said. For your machine and your specific user case, it may just be easier to buy some brackets and mount the SSD in the optical bay if you don't want to use the IcyDock. You can easily find them at Frys or Newegg. Personally, I don't really see the issue with the IcyDock, a lot of people use them and are very happy with them. You already spent some good money on both the SSD and the Pro, you might as well mount it correctly.

  13. macrumors G4

    Joined:
    May 6, 2008
    #13
    The SSD's rectangular enclosure is made out of plastic for most of them (seem to recall Intel uses aluminum). But as mentioned, they use very little power, so they don't get hot. So if you do enclose it, it's not going to be damaged (they survive in laptops after all, and there's very little room for drives and ventilation in those vs. a MP).

    But if you want to go DIY, you don't even need to get that complicated. Just use Velcro or Zip Ties. ;) Others have done this before, and it works. Combine cheap + easy + effective of either of these solutions, I don't see any real reason why more complicated and expensive is worth the effort. :p

    Just a thought anyway. ;)

    See above. ;)

  14. macrumors member

    Joined:
    Jan 28, 2007
    #14
    After some research on the forums, it looks like there are three main ways to interface directly with the SATA connector in the Mac Pro.

    2006-2008 Mac Pro: Use MaxUpgrades' MaxConnect sled for 2006-2008 machines

    2009-2010 Mac Pro: Use OWC's Mount Pro or MaxUpgrades' sled for 2009-2010 machines

    Any Mac Pro: Use OWC's Multi-Mount adapters for the optical bay (scroll down for Mac-specific options)

    Also, there are cheap 5.25" to 3.5" adapters on Newegg which would probably work in the Mac Pro optical bays. But the 3.5" to 2.5" ones probably won't work for the 4 SATA bays since the Mac Pro sleds attach to the hard drive from the large bottom surface, while most adapters are for the sides.

    Another possibility is the Icy Dock, but I've seen lots of complaints that the adapter is flaky due to the fact that Icy Dock is not a direct connection to the Mac Pro's SATA connector. Perhaps they've finally fixed the problem.

  15. macrumors G4

    Joined:
    May 6, 2008
    #15
    :confused:

    It attach's to the tray, and that fits the backplane connector (2009/10's have the backplane connector soldered to the logic board, while earlier versions use cables with backplane ends that screw to 2 metal tabs back inside the HDD bay area (1x per HDD bay)).

    There were problems with the plastic versions (flaky ones), and had to do with Quality Control (bad solder joints and flux residue all over the soldered area). The metal versions OTOH, fared much better.

    Icy Dock is aware of the problem (a company employee created an account and posted about this). I'm not sure if they ironed the issue out or not for certain, but I presume they did as I don't recall any recent posts in that thread.

    Just for clarification. ;)

    Personally, I like the Velcro or Zip Tie method as you don't need to wait for a package from UPS before the SSD can be used (satisfies the symptom of impatience that results from new toy-itis :p). Your local hardware store carries these products as do most Wal*Marts, so it's an easy and inexpensive cure. :D

  16. macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #16
    The issues with the IcyDock were related to the metal versions (MB982IP-1S)... It seems the problem was solved by cleaning any residue from the manufacturing process off the problem connector and they got their production folks on it right away...

    http://forums.macrumors.com/showthread.php?t=1087399

    Here's another relevant thread related to any impact on performance... (of course there is none!)

    http://forums.macrumors.com/showthread.php?t=1019644

    I have a few of the plastic MB882 series Icydock's and haven't had any issues with them. For less than $20 they are the best solution available IMHO.

    If those don't do the trick, you can always buy the official Apple SSD carrier for a mere $292... :eek:

    http://www.macpartsonline.com/922-9629-ssd-carrier-adapter-mac-pro-mid-2010-a1289.html

  17. macrumors G4

    Joined:
    May 6, 2008
    #17
    Oops. Got the metal and plastic reversed. :eek: Seem to be having one of those days...

    But I do recall that in the back and forth in that thread, details emerged that it was more to do with bad joints and boards that hadn't been cleaned properly (connector not soldered properly or had flux on the contact pins = poor or no signal either way) than the connector's length (didn't indicate that the P/N used was out of spec, such as not molded properly/fully, which I've seen in SATA data cables).

    Shortcuts to reduce costs are so lovely aren't they? :eek: ;) :p

  18. macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #18
    Yep... I hear ya...Thankfully it's almost Miller Time! :D (and Canucks game time!) :D :D :D

  19. macrumors 68030

    phpmaven

    Joined:
    Jun 12, 2009
    Location:
    San Clemente, CA USA
    #19
  20. thread starter macrumors regular

    Joined:
    Jan 10, 2009
    #20
    I don't know about other SSD's but the ones I order from MacSales.com aka OWC are in Metal.

  21. thread starter macrumors regular

    Joined:
    Jan 10, 2009
    #21
    Thank you everyone. I will be buying the SSD sometime in the next month. Hopefully by then I will be able to make a decision on which way I want to mount it. I know i dont want to use the Icy dock, so most likely I will DIY project.

  22. macrumors 6502a

    handheldgames

    Joined:
    Apr 4, 2009
    #22
    I just ordered my Samsung 470 256mb. Looking forward to using a standard Sata cable hooked up to the optical disc SATA port, secured with Velcro, just enough to keep it from moving around. :cool:

  23. macrumors 6502a

    reel2reel

    Joined:
    Jul 24, 2009
    #23
    I use the Icy Dock in the spare optical bay of two different Mac Pro's. Haven't had a problem with either one. You could also use an OWC multimount instead of the Icy Dock.

    Can't live without SSD boot anymore.

  24. macrumors newbie

    Joined:
    May 30, 2010
    #24
  25. macrumors 6502a

    reel2reel

    Joined:
    Jul 24, 2009
    #25

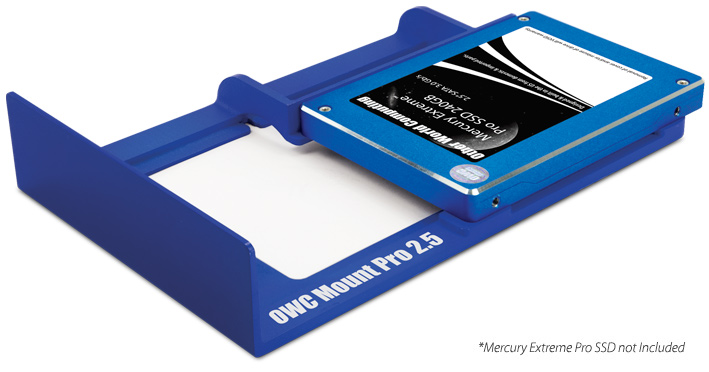

    This is cool, too.

    [​IMG]
