Black hinge uneven?

Discussion in 'MacBook Air' started by Lukewarmwinner, Nov 4, 2012.

  1. macrumors 6502

    Joined:
    Oct 12, 2012
    #1
    Hi guys

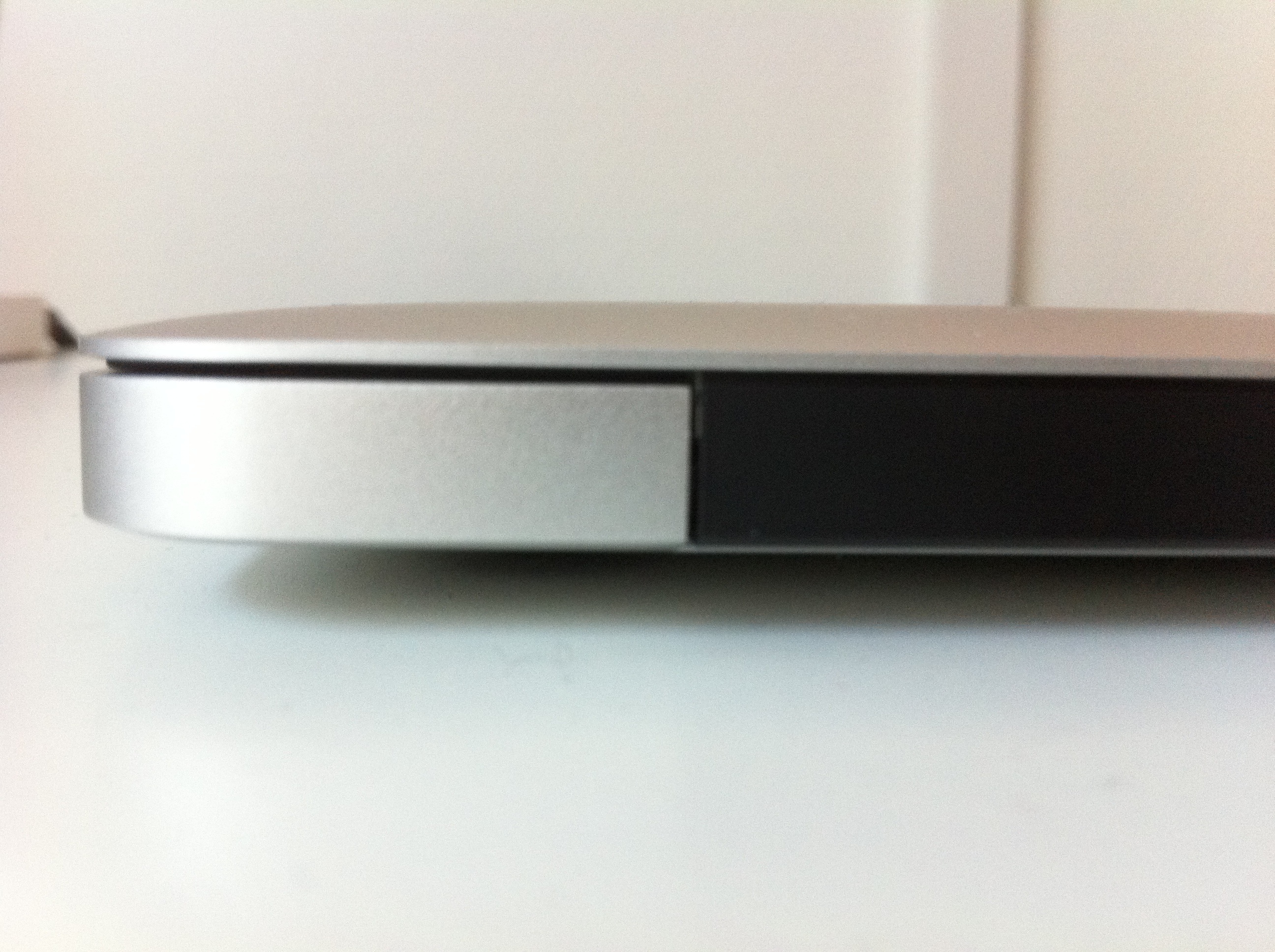

    My dad just got his first MBA yesterday and noticed that the black hinge (seen from the back when lid closed) is slightly uneven. We compared it to mine, which also had it. Is it normal or should we be worried? It is only in the left side there is a gap. The right side is all right and align.


    Attached Files:

  2. macrumors 601

    Joined:
    Aug 27, 2012
    #2
    I don't see anything uneven from that picture.

  3. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #3
    You don't notice a small (very small, you might have to zoom) gap between the black hinge and the silver-body? It just seems slightly off-centered

  4. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #4

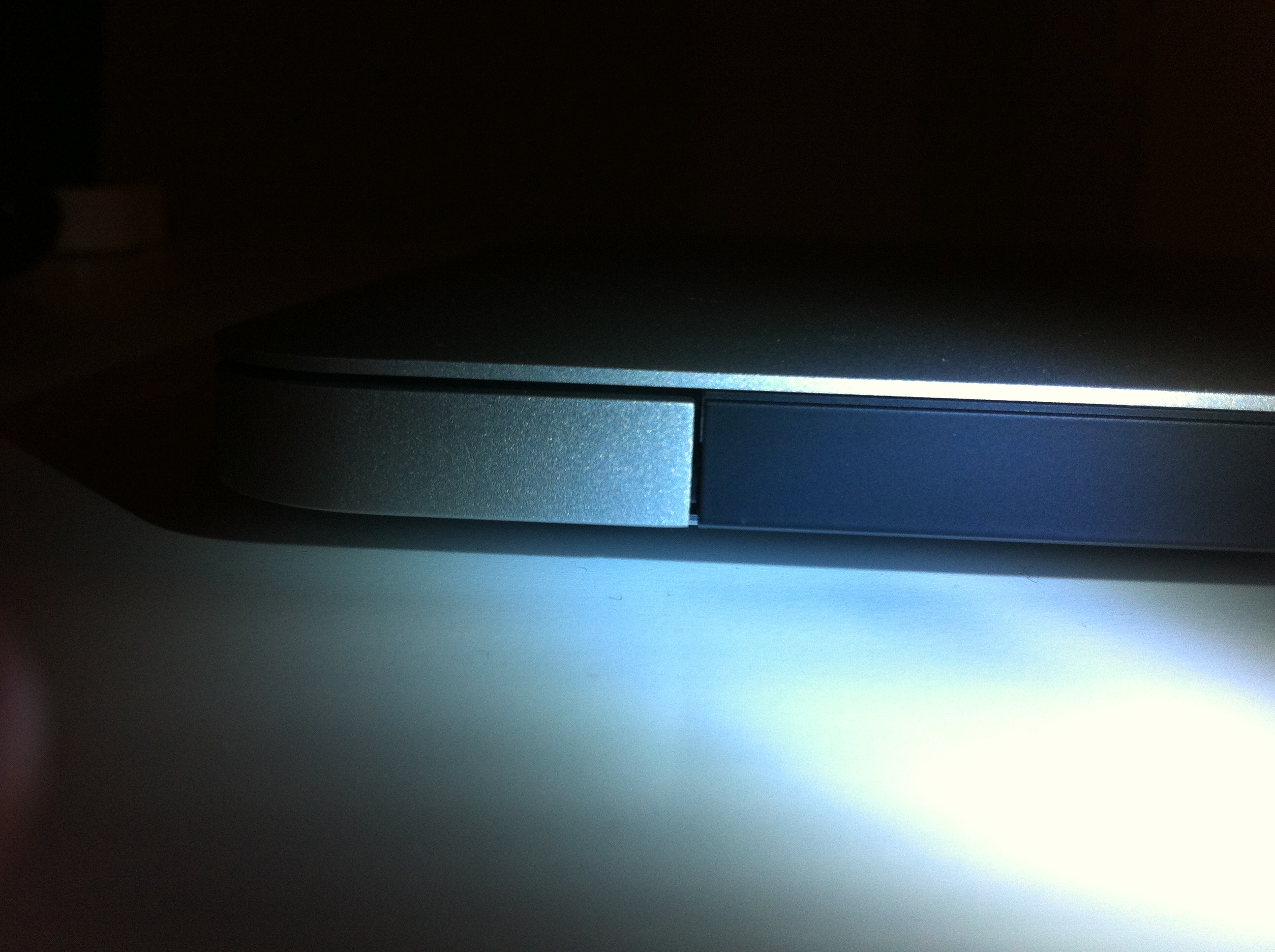

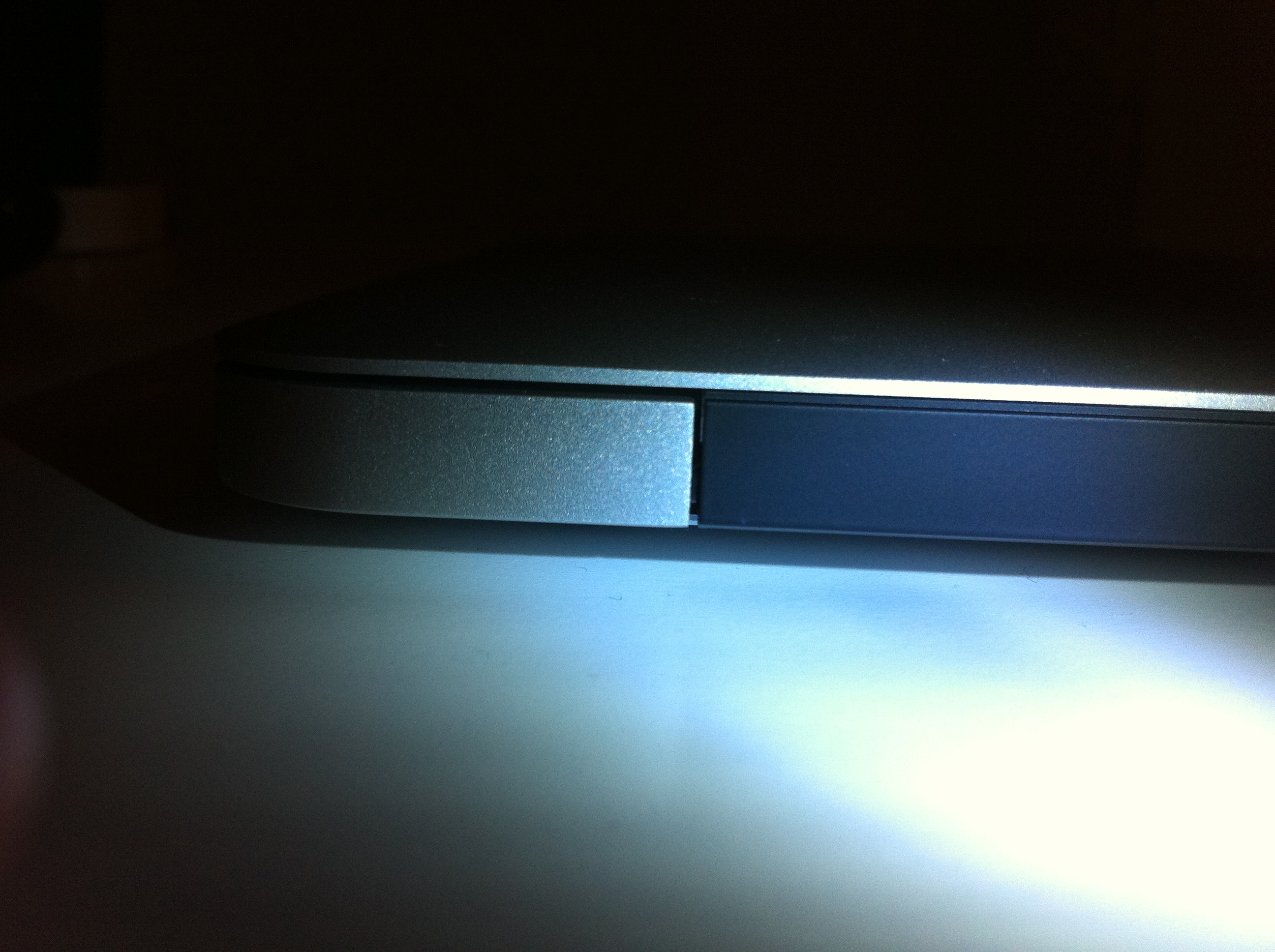

    Okay, it's actually pretty hard to take a picture, but what about this one - more clear?

    I know I might be OCD'ing, but just wanted to know if its normal :)


    Attached Files:

  5. macrumors member

    localhost8080

    Joined:
    Jun 18, 2012
    #5
    it looks the same as mine....

  6. macrumors 6502

    insimbi

    Joined:
    Mar 27, 2008
    #6
    Ummm? That's totally normal.

  7. macrumors 68030

    NutsNGum

    Joined:
    Jul 30, 2010
    Location:
    Glasgow, Scotland
    #7
    It's totally wrecked man, better send it to me as a write-off. :D

  8. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #8
    Thanks guys, good to know! :)

    Awesome upload-feature on this mobile version of Macrumors btw!

    ----------

    Bummer! You got it man! ;)

  9. macrumors 601

    Joined:
    Aug 27, 2012
    #9

    Zoomed it. Still can't see.

    Even if so, that's not a critical area. The black thing is just the cover, what matters is what goes on underneath. If it feels smooth (like mine :D) then is doing its job and stop obsessing.

    When you come to more$$$, buy a convertible and leave it parked top-down and walk away (with the alarm on). Try it. Really liberating.

  10. macrumors 68030

    Joined:
    Oct 21, 2012
    #10
    The cluch cover can slide (that's how you remove it) - so you should actually be able to slide it into the middle if it bothers you :p

  11. macrumors 601

    Prof.

    Joined:
    Aug 17, 2007
    Location:
    Chicago
    #11
    It looks fine to me! If it works properly and doesn't make any noise when you open/close it, don't worry. :)

  12. macrumors member

    Joined:
    Jun 16, 2012
    #12
    My black hinge can slide back and forth about 2mm if i slide it. So it's defs fine ;)

  13. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #13
    Haven't tried sliding it, but that would explain the off-centered!

    The lid is aligned with the body so no unevenness, and no cracking/noisy sounds when opening/closing lid.

    Thanks for clearing it up guys! Good to know it's normal and that you've all seen it before :D

  14. macrumors regular

    Joined:
    Dec 22, 2008
    #14
    man, are you guys observant

  15. macrumors 6502

    Joined:
    Jun 10, 2012
    #15
    Does the lid overhang to one side? If not, maybe they adjusted it so that it lines up. There are tolerances for both the top and lower half of the laptop, so they leave adjusting in so the top and bottoms can line up.

    If it does overhang take it in and they'll fix it.

  16. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #16
    Overhang? Not sure what you mean, but the lid is perfectly align with the body

  17. macrumors 6502

    Joined:
    Jun 10, 2012
    #17
    As in one part (top or bottom) stick out more on one side. If it is in line with your body then the original issue is likely just a result of calibration.

  18. thread starter macrumors 6502

    Joined:
    Oct 12, 2012
    #18
    Haven't really noticed that, so I guess it's fine :) The screen is perfectly in line with the bottom body

  19. macrumors newbie

    Joined:
    Sep 23, 2012
    #19
    My lid does show some overhang on the left side, this irritates me. Does anyone know if it is possible to realign this yourself?

  20. macrumors regular

    Joined:
    Oct 2, 2007
    #20
    Yes, use a pentalobe screwdriver (ebay or amazon for ~$4). CAREFULLY remove the bottom screws. Once you get inside there are 3 6-pointed star screws that hold each hinge on. Loosen them with the correct size screwdriver, allign screen, then tighten them.

    Once its aligned how you want it place the metal cover back on the bottom, then CAREFULLY reinstall pentalobe screws. Get them all threaded properly before tightening any of them.

    Pentalobe screws will strip if you look at them wrong so be very careful. If in doubt a genius should be able to do it in 10 minutes or so at the apple store.
