Can Somebody with a PC Help?

Discussion in 'Web Design and Development' started by dpaanlka, Nov 1, 2006.

  1. dpaanlka macrumors 601

    dpaanlka

    Joined:
    Nov 16, 2004
    Location:
    Illinois
    #1
    Can anybody with a PC tell me why this page's width is expanded the full width of the browser window, rather than only 600 pixels across?

  2. iBookG4user macrumors 604

    iBookG4user

    Joined:
    Jun 27, 2006
    Location:
    Seattle, WA
    #2
    I booted up parallels and in internet explorer it's a lot wider across than in firefox. This is probably due to the "standards" that microsoft expects the website to be in, while since the website is targeted at Macs, it's coded to look good in safari. In firefox the width stops at the "next" link for the pages.

  3. dpaanlka thread starter macrumors 601

    dpaanlka

    Joined:
    Nov 16, 2004
    Location:
    Illinois
    #3

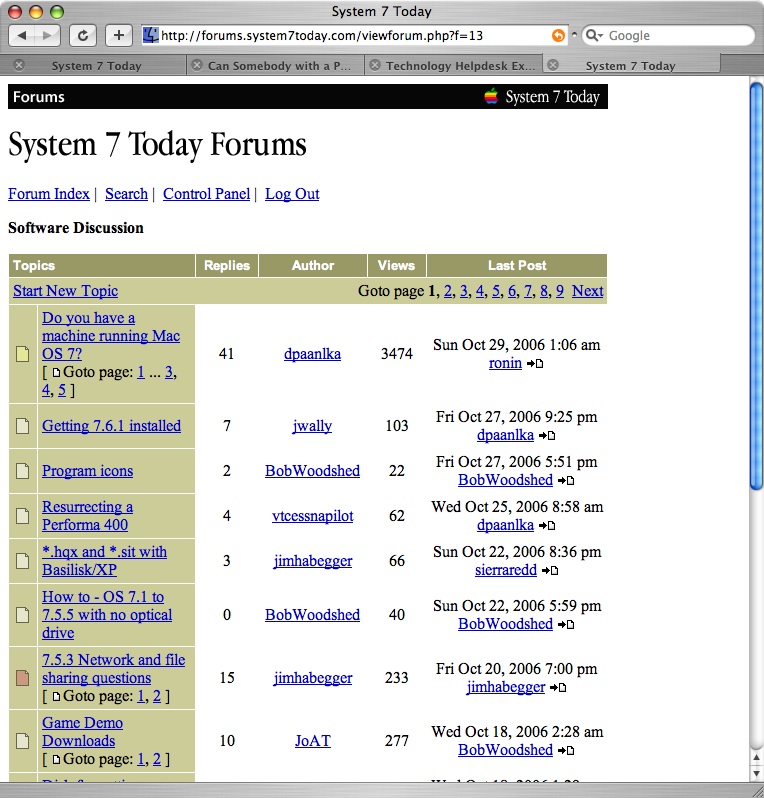

    This is how all the pages should look:


    The beige forums table should be exactly the same width as the black title bar at the top, and the black navigation bar at the bottom.

    Any ideas how I can fix this irregularity for IE? I don't get why exactly it is displaying wrong in IE, and I don't have a PC handy to test it on :confused:

    I just happened to test it in the library on a PC earlier today.

  4. Lixivial macrumors 6502a

    Lixivial

    Joined:
    Jan 13, 2005
    Location:
    Between cats, dogs and wanderlust.
    #4
    I'm inclined to believe it's a combination of two things -- one, you're referencing CSS classes that, to my perusing, aren't defined in a CSS file at all. (I don't see any CSS file referenced).

    And secondly, there is a bit of a problem in your table cell width definitions. You can remedy it one of two ways, you can stick static cell widths that add up to 590 (because that's what your column headers add up to) in or you can stick percentages in that add up to 100%.

    In your instance... you may want to go with static widths and avoid the nowraps (you'll get wrapping, but you'll be able to control the widths). I understand that you're avoiding CSS at all costs, due to the legacy support (and the Mac:IE pain in the arse...). I'll just pull a static example and show you what I mean.

    Here's the offending example (it's static HTML pulled from vBulletin's output, and in the name of conciseness, I pruned it down to one topic).
    HTML:
    	<tr>
    	  <td bgcolor="#CCCC99" class="row1" align="center" valign="middle" width="20"><img src="templates/sys7/images/folder.gif" width="19" height="18" alt="No new posts" title="No new posts" /></td>
    	  <td bgcolor="#CCCC99" class="row1" width="100%"><span class="topictitle"><a href="viewtopic.php?t=432" class="topictitle">Getting 7.6.1 installed</a></span><span class="gensmall"><br />
    		</span></td>
    	  <td class="row2" align="center" valign="middle"><span class="postdetails">7</span></td>
    	  <td class="row3" align="center" valign="middle"><span class="name"><a href="profile.php?mode=viewprofile&u=201">jwally</a></span></td>
    	  <td class="row2" align="center" valign="middle"><span class="postdetails">104</span></td>
    	  <td class="row3Right" align="center" valign="middle" nowrap="nowrap"><span class="postdetails">Fri Oct 27, 2006 9:25 pm<br /><a href="profile.php?mode=viewprofile&u=2">dpaanlka</a> <a href="viewtopic.php?p=2127#2127"><img src="templates/sys7/images/icon_latest_reply.gif" alt="View latest post" title="View latest post" border="0" /></a></span></td>
    	</tr>
    Should become something like this:

    HTML:
    	<tr>
    	  <td bgcolor="#CCCC99" align="center" valign="middle" width="20"><img src="templates/sys7/images/folder_sticky.gif" width="19" height="18" alt="No new posts" title="No new posts" /></td>
    	  <td bgcolor="#CCCC99" width="300"><span class="topictitle"><a href="viewtopic.php?t=4&sid=36730d589ce3e25742b67951a5f32323" class="topictitle">Do you have a machine running Mac OS 7?</a></span><span class="gensmall"><br />
    		 [ <img src="templates/sys7/images/icon_minipost.gif" alt="Goto page" title="Goto page" />Goto page: <a href="viewtopic.php?t=4&start=0&sid=36730d589ce3e25742b67951a5f32323">1</a> ... <a href="viewtopic.php?t=4&start=20&sid=36730d589ce3e25742b67951a5f32323">3</a>, <a href="viewtopic.php?t=4&start=30&sid=36730d589ce3e25742b67951a5f32323">4</a>, <a href="viewtopic.php?t=4&start=40&sid=36730d589ce3e25742b67951a5f32323">5</a> ] </span></td>
    	  <td align="center" valign="middle" width="50"><span class="postdetails">41</span></td>
    	  <td align="center" valign="middle" width="70"><span class="name"><a href="profile.php?mode=viewprofile&u=2&sid=36730d589ce3e25742b67951a5f32323">dpaanlka</a></span></td>
    	  <td align="center" valign="middle" width="50"><span class="postdetails">3474</span></td>
    	  <td align="center" valign="middle" width="110"><span class="postdetails">Sun Oct 29, 2006 1:06 am<br /><a href="profile.php?mode=viewprofile&u=217&sid=36730d589ce3e25742b67951a5f32323">ronin</a> <a href="viewtopic.php?p=2131&sid=36730d589ce3e25742b67951a5f32323#2131"><img src="templates/sys7/images/icon_latest_reply.gif" alt="View latest post" title="View latest post" border="0" /></a></span></td>
    	</tr>

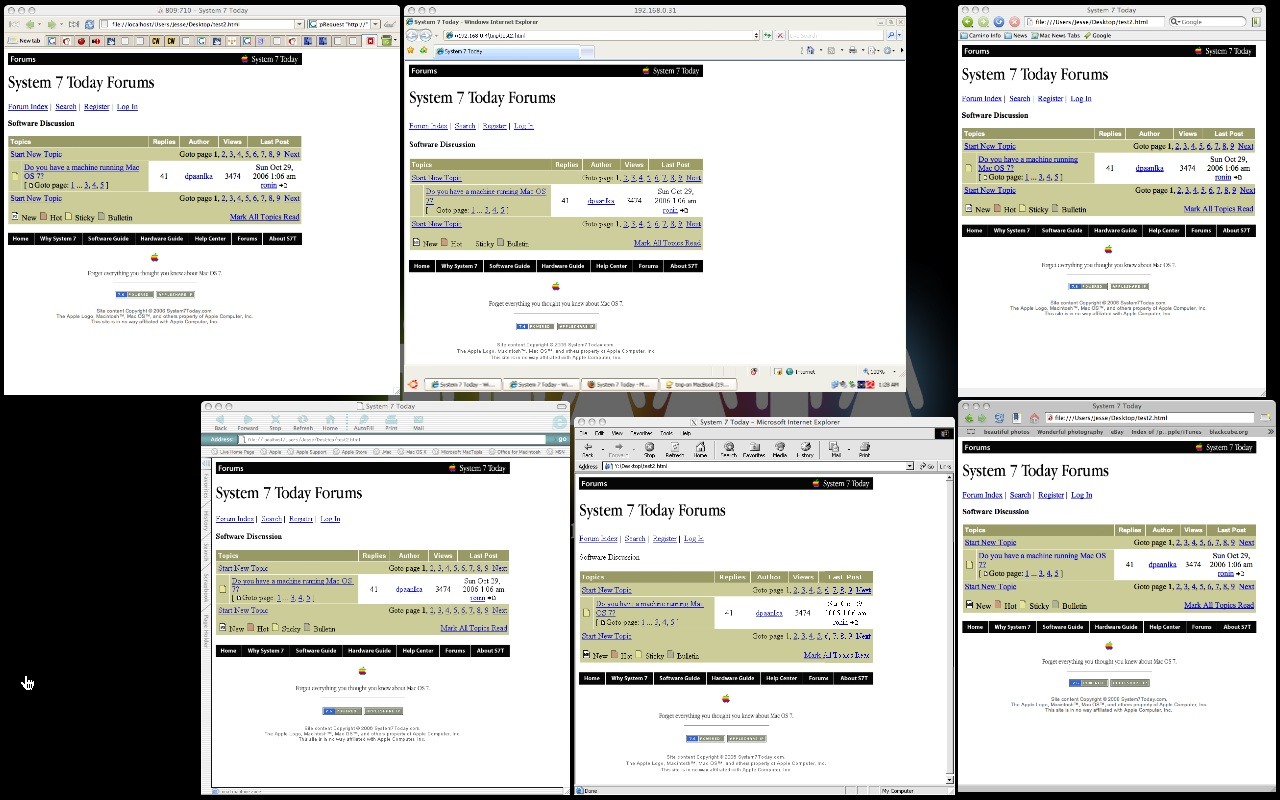

    Of course, the example I gave you is working within your current design confines. Since these are static widths, I would expect them to work well in nearly every browser (see attachment -- Top Row, Left-to-right: Opera 9, IE7, Camino; Bottom Row, left-to-right: IE:Mac 5.1.4, IE 6 SP1, Safari 2.0.4).

    You should probably define those same column widths in your non colspan'd column headers, too. Hopefully this post made some amount of sense, and wasn't too wordy. :)


    Attached Files:

  5. CanadaRAM macrumors G5

    CanadaRAM

    Joined:
    Oct 11, 2004
    Location:
    On the Left Coast - Victoria BC Canada
    #5
    Looks OK for width in Firefox 1.5.07 Win XP here

    The serif (default?) font is a little busy for the size of the cells, however. Can you reduce the amount of text, overall?
