DIY Under Cabinet Powerbook - LCD Help

Discussion in 'PowerPC Macs' started by kboyington, Feb 7, 2011.

  1. macrumors newbie

    Joined:
    Feb 7, 2011
    Location:
    Little Rock, AR
    #1
    Hello! I am new here but I am undertaking a DIY Project with my old PowerBook G4 17in. I pretty much dismantled the display from the body. It was all looking good until I went to mount it under my cabinet.

    I was holding the two seperate pieces ( I know, but I was in a hurry!) and I kept moving them around. Eventually the screen flickered and then went dark.:mad:

    I know the screen is still getting the video feed, and I can remote desktop into it. If I hold a light up to the screen I can see the desktop.

    Should I look at the inverter board, cables, logic board, or bulb? Thanks!

  2. macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #2
    Check the inverter board and check all the cables. Sounds like they got pinched and are shorting out somewhere.

    Throw up some pics of your DIY project too. That's a pretty cool idea though. Do you have to rotate 180* the screen display if you mount it underneath the cabinet since it's upside down?

  3. thread starter macrumors newbie

    Joined:
    Feb 7, 2011
    Location:
    Little Rock, AR
    #3

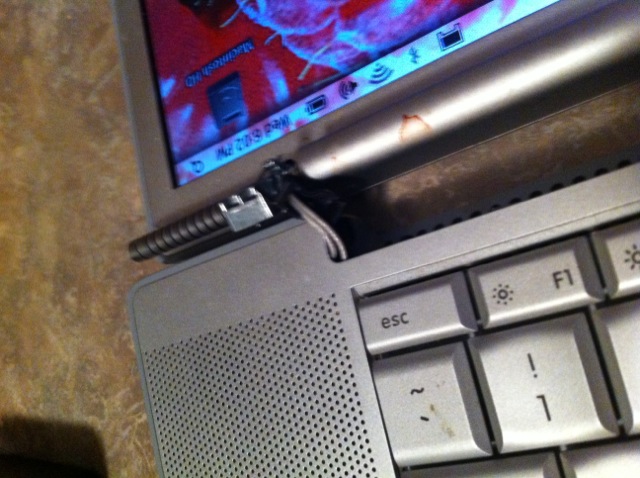

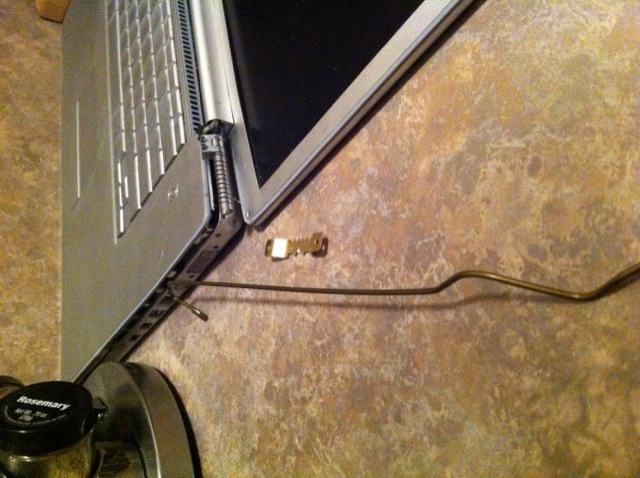

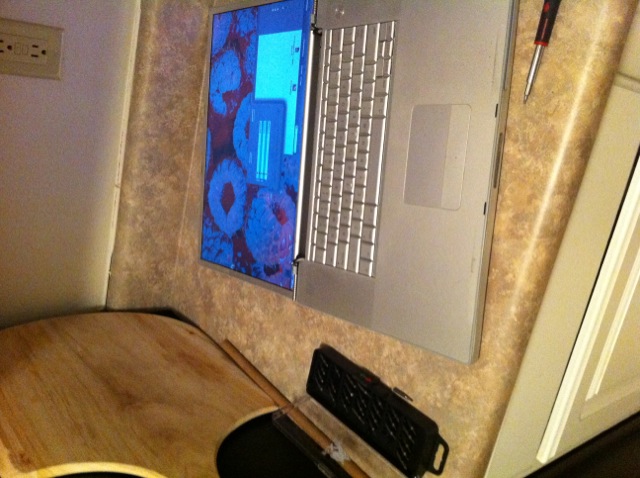

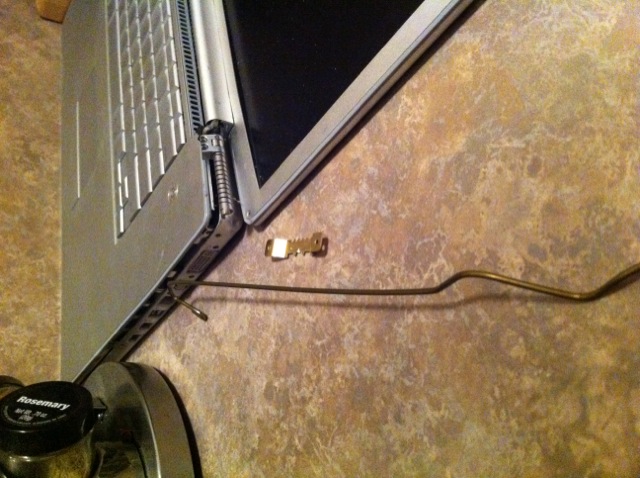

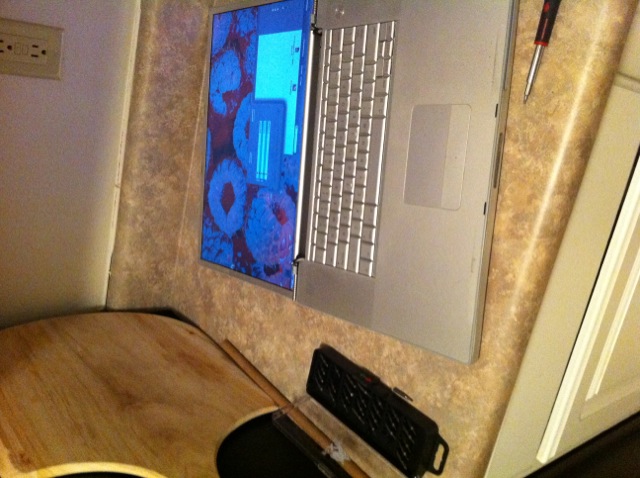

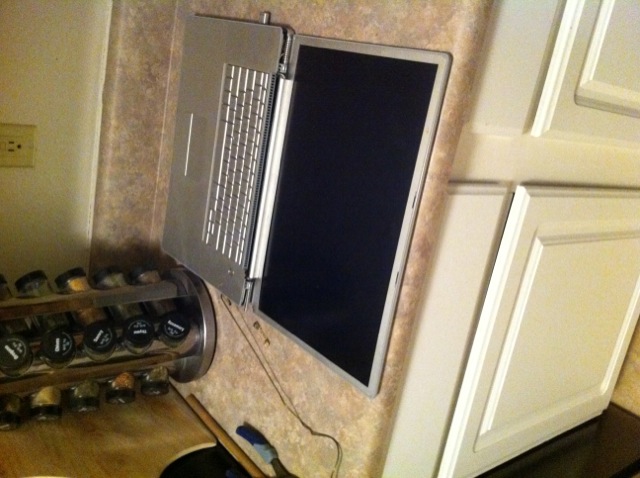

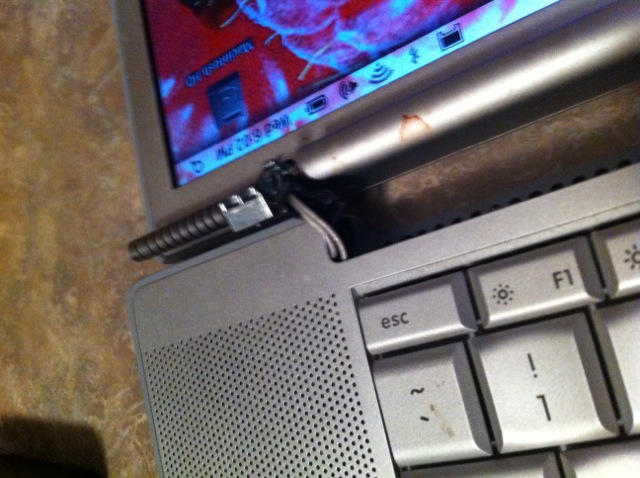

    Pictures and Inverter

    i have looked at everything I can see and dont see anything that jumps out at me. I dont know much about the board, but I cant see anything burnt.

    I got a old IBM Laptop off Freecycle and I was going to try to see if the inverter board will even light up the screen, bad idea?


    Attached Files:

  4. thread starter macrumors newbie

    Joined:
    Feb 7, 2011
    Location:
    Little Rock, AR
    #4

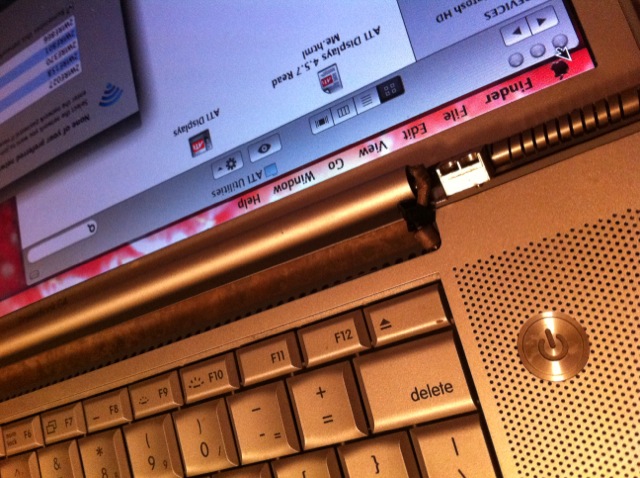

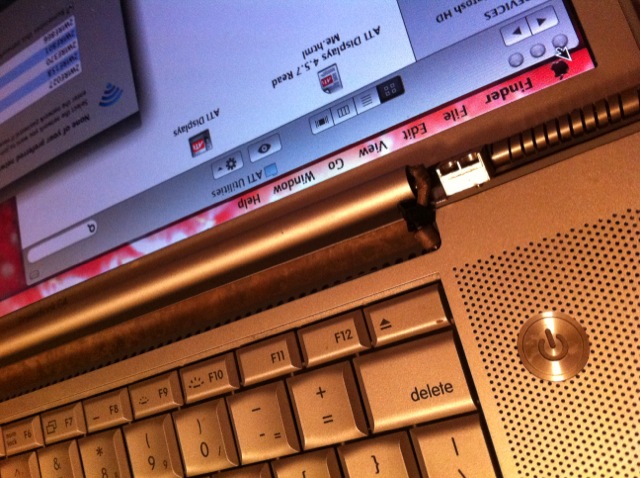

    Rotate

    Also, yes this was a pain for some reason. My PB would not show the option to rotate in the Pref Pane, so I had to find the ATI software to do it. Once installed, it worked well.
