Dual Gigabit Lan Ports... why?

Discussion in 'Mac Pro' started by nickname, Dec 19, 2006.

  1. nickname macrumors newbie

    Joined:
    Dec 19, 2006
    #1
    Can someone explain why there are two? can I connect both and double my speed?

  2. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #2
    no (or can you?), but you can connect to two networks

  3. ChrisBrightwell macrumors 68020

    ChrisBrightwell

    Joined:
    Apr 5, 2004
    Location:
    Huntsville, AL
    #3
    No, I don't think that you can. At least, I've never heard of anyone doing it successfully. :)

    You can, however, do what I do with dual ethernet on my workstations:
    - 1 link to the 10/100 LAN for 'net access and general bit shifting.
    - 1 link to the gigabit LAN to the backup file server (at work) or to my PowerBook (at home)

    Gigabit ethernet is 1000 Mbps, which is roughly 250% faster than FireWire 400 and 25% faster than FireWire 800.

  4. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #4
    i would imagine that with some of the features that i have seen in OS X Server you could plug your internet in to one, and your network in to another and use the computer as a router/firewall.

  5. ChrisBrightwell macrumors 68020

    ChrisBrightwell

    Joined:
    Apr 5, 2004
    Location:
    Huntsville, AL
    #5
    You can do that w/ plain ol' OS X.

  6. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #6
    yeah but under server admin / firewall / settings / advanced / advanced rules you can set up port forwarding.

    is there a way to do that in the workstation version of OS X?

  7. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #7
    is that true in real life stuff?...

    aka say if i have a gigabit ethernet router, can i really then connect the firewire 800 drive to any computer (given all have gigabit ethernet) and accessing it from any computer and it'd be just as fast as access it locally? since it's the firewire 800 that's limiting the speed?

  8. ChrisBrightwell macrumors 68020

    ChrisBrightwell

    Joined:
    Apr 5, 2004
    Location:
    Huntsville, AL
    #8
    That's the theory. :)

  9. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #9
    that would be nice, i am currently trying to figure out how i will usie the external backup once we move in to our new building. The servers will be upstairs, locked away in a server room. I know that after a hard days work and i am getting ready to walk out the door, i may not want to make that trip upstairs to grab the backup drive before i go home.... but i must!

    If i could backup over the network without losing too much speed... i would love it. (we do have gigabit ethernet)

  10. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #10
    what about in real life? where's the problem?

  11. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #11
    maybe i'm not understanding right... provided this is a company.. why do you need to take the backup of your company server home everyday?

    provided this is for your personal computer (still in the company setting), why do you need to put it in the server room?

  12. MacsRgr8 macrumors 604

    MacsRgr8

    Joined:
    Sep 8, 2002
    Location:
    The Netherlands
    #12
    Well, I think you can (but haven't tried it.. dunno if the switch your'e connected has to support this feature)

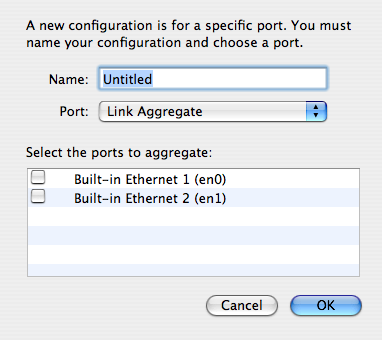

    Goto System Prefs, and Network. Select under "Show" Network Port Configurations.
    The click "new", and choose "Link Aggregate"
    Maybe someone knows what this exactly does?

    pics:


    Attached Files:

  13. kitki83 macrumors 6502a

    Joined:
    Mar 31, 2004
    Location:
    Los Angeles
    #13
    Ok maybe I am not getting it, but from what people said the second Network port can be used for another computer to get online while network to Mac Pro?

  14. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #14
    when dealing with over the network transfers, you are dealing with network traffic, two computers passing commands and data, the firewire chipset in the computer that the drive is attached to, the firewire chipset in the drive enclosure, and the drive its self, you are going to see some lag. you will always be limited by the weakest link in your chain, and the more links you have the more there are chances of having a weak link.

    where as with a direct FW 800 connection you are really only dealing with a computer with a hard drive, a firewire chipset, a hard drive enclosure with a firewire chipset and a hard drive.

  15. trainguy77 macrumors 68040

    Joined:
    Nov 13, 2003
    #15
    Yes you could however it would be all through the terminal. I think you may be able to use the GUI webmin if your really wanted to. OS X just uses IPFW so anything you can do with IPFW can be done with OS X.

  16. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #16
    I am talking about our file server at work. years of work on that computer. We have an internal raid, and external copy/backup and another external copy/backup that i take home.

    When working with backups, you need the information to be in at least 3 places at all times. 1 and 2, the raid drives, 3 the external backup that runs on a predetermined schedule, 4 the backup that i take home every night. It helps me sleep at night.

    ALWAYS take a copy out of the building. if theft or natural disasters destroyed your entire companies work, you still have a copy with you safe and sound.

  17. trainguy77 macrumors 68040

    Joined:
    Nov 13, 2003
    #17
    Yes the idea with that is that in doubles your speed. However, its almost useless many times as one 1000 base/t connection is just fine. As that is plenty fast. Its only usefull when you have a large number of computers connecting to it as in 300+ as a file server.

  18. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #18
    oh ok.. but in the gigabite ethernet's case, it seems theoretically it's limited by the firewire/drive...

    so network traffic, 2 computers passing commands and data to e/o is gonna take significant amount of bandwidth?

  19. MacsRgr8 macrumors 604

    MacsRgr8

    Joined:
    Sep 8, 2002
    Location:
    The Netherlands
    #19
    Ah.. cheers.
    Hoped so. :)

  20. nickname thread starter macrumors newbie

    Joined:
    Dec 19, 2006
    #20
    can anyone confirm this?
    it actually amazes me that this may not be possible. you'd think with two connections bridged it would technically double your speed on the LAN. clearly the internet can only go as fast as the ISP, but for internal purposes, you;d think you could do this by now...

  21. product26 macrumors 6502a

    product26

    Joined:
    May 30, 2005
    #21
    yes, just like how i used my powerbook to get my mac pro on the internet before i had an airport card (forgetting when i purchased it that it didn't come standard, WTF is that?)

    My powerbook was hooked up to my airport network / connected to my mac pro with an ethernet cable / powerbooks internet sharing turned on to share internet over the ethernet / mac pro connected to the internet.

    you could do the same with the two ethernet connections, the computer sees them all as network connections and can be told to share accordingly.

  22. trainguy77 macrumors 68040

    Joined:
    Nov 13, 2003
    #22
    You should read my post a further up. Yes it is possible but pointless in most cases.
    Yes the speed will not be your problem it will be the latency. It takes time for the data to travel through the FW, then through the CPU/system, then through the network cable then into the other system. So yes you will not have speed problems when it comes to raw transfer speeds but you will get the delay from when you ask for something or to view something and when it starts showing up. So about the same speed as accessing the internal drive of a remote machine.

  23. ChrisBrightwell macrumors 68020

    ChrisBrightwell

    Joined:
    Apr 5, 2004
    Location:
    Huntsville, AL
    #23
    TCP overhead may limit you from hitting 1000 Mbps for long stretches of time, but it will be vastly faster than 10/100 ethernet and should be able to keep up with the drive.

    There's also the fact that FW800 doesn't sustain 800 Mbps in most cases, due to system overhead.

    Either way, I suspect that the FW800 link will still be the bottleneck, but I'd have to do some testing to verify that.

  24. bearbo macrumors 68000

    bearbo

    Joined:
    Jul 20, 2006
    #24
    but say if i use itunes to access music, or use aperture to access my library on that place... is it gonna be affected much? (than say use the FW800 attached to my local machine)

    please do... i'm contemplating about whether to invest in gigabit router

  25. trainguy77 macrumors 68040

    Joined:
    Nov 13, 2003
    #25
    Well the speed of system should be able to handle it. But for example when you go to browse the drive it will be slow. But loading/transfering large files should not be too bad.
    Just connect the machines when they are right next to eachother to try it out. That way you will see what its like at 1000base/t It will not be as fast as local access. However, I think it should be very usable.
