eMac 800Mhz -> 1.33GHz conversion

Discussion in 'PowerPC Macs' started by lbodnar, Jan 5, 2004.

  1. macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #1
    Hello all!

    I have just recently got around putting up details of eMac 800MHz upgrade to 1.33GHz/1GB/160GB/OSX10.3

    http://www.lbodnar.dsl.pipex.com/eMac/eMac-upgrade.html

    As I said there 1.33GHz was not a definite limit but a point when I simply got bored resoldering jumpers. And it IS enough for me!

    Do you think this was just a lucky sample or Apple now has to underclock modern efficient CPUs to satisfy low-end Macs production? I guess (as in any manufacturing process) quality of chips constantly and gradually improves and Motorola would not produce "sluggish" chips for a purpose. Having the same line making all the 750MHz - 2GHz range is too expensive logistically?.. Well, that's just my thought.

    Could you suggest some application that would push all system to the limit and show how stable it really is? I know from experience that compiling a kernel under Linux is very unforgiving for any CPU-RAM faults but I don't want to install Linux on eMac just for that.

    Best wishes!

  2. macrumors 65816

    krimson

    Joined:
    Oct 29, 2003
    Location:
    Democratic People's Republic of Kalifornia
    #2
    try running dnet at a high (7 or 8 should work) setting (i suppose F@H/SETI would work too) then try running Photoshop on a large image, while running DVD2one compressing a 7Gb DVD folder to 2GB.

    and while your at it, heat up the room to whatever temp is normal for your summer. For me, that's about 90* F. :D

  3. macrumors 6502a

    Jetson

    Joined:
    Oct 5, 2003
    #3
    This is an excellent article, lbodnar. My hat is off to one brave soul!

    I'd love to bump up my eMac from 1gHz to 1.33gHz. It looks a little hazardous though.

  4. macrumors G3

    QCassidy352

    Joined:
    Mar 20, 2003
    Location:
    San Francisco
    #4
    lbodnar,

    xbench 147.81 on an emac! Well done indeed! A very good article, and some nice upgrades to give yourself quite a nice machine! hats off!

  5. macrumors 603

    Dont Hurt Me

    Joined:
    Dec 21, 2002
    Location:
    Yahooville S.C.
    #5
    very nice, just goes to show how Apple is Dumbing down the Emac so it dont compete with imac or the old G4 powermac. I wonder how a mod like this will effect its lifespan and i would have liked to see what kind of heatsink was being used. Very Bold step taken by the Author but i dont blame him a bit since Apple doesnt seem to want to build a decent speed Emac or Imac for that matter. way to go ibodnar, why dont you send a copy of this to Apple and tell them you had to take matters into your own hands since they are dicking the dog.
    Edit- there is nothing like a topnotch game to stress your system, i would try UT2003 or Halo and then play with your horizontal resolutions, if you can play Ut2003 for a couple of hours with no panics then you should be good to go.

  6. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #6
    Update

    As suggested I have run simultaneously for few hours
    - DNET data crunching client at priority 8
    - Photoshop 7 applying filters to 1GB image
    - saving 40GB folder from LAN server to external Firewire drive
    (I don't have DVD videos around to run MPEG compressor)

    today I am running UT2003 at minimum and maximum resolutions with no problems.

    to Donthurtme:
    the heatsink as it is originally is actually a thermal pad with attached heat transfer tube that goes all the way back to where exhaust fan is and there that tube crossects a heatsink which is a set of about 30 very thin "leaves" that seat right in the exhaust airflow. I'll post a picture next time I take it apart.

  7. macrumors 65816

    yamabushi

    Joined:
    Oct 6, 2003
    #7
    Good job! This is a great mod. I also think that the G4 in the revised eMac may be an underclocked cpu. That could mean that the iBook is also underclocked.

    I think that this might mean that we will see a jump to a 1.33GHz eMac as soon as a G5 iMac is released.

  8. macrumors 6502a

    manitoubalck

    Joined:
    Jul 17, 2003
    Location:
    Adelaide, Australia
    #8
    Nothing chew's preformace like first person shotter games. Try some with crappy ports and see how it holds up.

    By the way I haven't bothered to read the article, but if that's only using the stock passive heat sink then I recomend seeing what can be done with active cooling or better yet a liquid cooling soliution.

  9. macrumors 6502a

    manitoubalck

    Joined:
    Jul 17, 2003
    Location:
    Adelaide, Australia
    #9
    Ok I've read the articl now.

    Well done using the stocko HS.
    Now the next step is to see how far you can push the FSB. Even my 3 year old AMD K7 runs a faster FSB (200MHz) than your eMac.

    Good luck and well done.:D :D

  10. macrumors 68000

    hvfsl

    Joined:
    Jul 9, 2001
    Location:
    London, UK
    #10
    Thats a lot easier than overclocking the PB G4 550 to 667. I wish I had found an eMac that cheaply, I should probably go to PCWorld more often and check out their sales.

  11. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #11
    Update

    Yesterday I have installed Yellow Dog Linux on that eMac and compiled Linux kernel about 5 times without a hitch. KDE graphics interface seems so jerky compared to smooth OS X...

  12. macrumors 601

    virividox

    Joined:
    Aug 19, 2003
    Location:
    Manila - Nottingham - Philadelphia - Santa Barbar
    #12
    impressive

  13. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #13

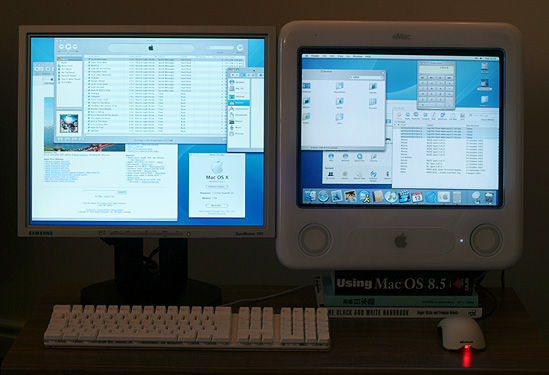

    This sweet little eMac now runs dual-screen. It hasn't failed once during all that time.
    [​IMG]

  14. macrumors 68000

    topicolo

    Joined:
    Jun 4, 2002
    Location:
    Ottawa, ON
    #14
    Instead of soldering, can you not use the "pencil trick"?

    Crosssing the bridges using graphite and then putting some protective tape over it should allow enough current to pass through the two points to form a circuit, no?

  15. macrumors 68020

    neoelectronaut

    Joined:
    Dec 3, 2003
    Location:
    Southeastern Louisiana
    #15
    How the hell did you pull that one off?

  16. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #16
    http://www.rutemoeller.com/mp/ibook/ibook_e.html

    Re solder pen. This could be an idea but how to remove it if CPU would not pull it up?

  17. macrumors 68020

    neoelectronaut

    Joined:
    Dec 3, 2003
    Location:
    Southeastern Louisiana
    #17
    Man...I thumbed through it a little pit (per say) and wow....I don't think I'm willing to do any possible system-damaging things for at least 3 years.

  18. macrumors G4

    Mord

    Joined:
    Aug 24, 2003
    Location:
    Old York
    #18
    go to john lewis in oxford street they had quite a few emacs for around that price last time i checked

  19. macrumors member

    bigbadmac

    Joined:
    Jan 12, 2004
    Location:
    Washington State
    #19
    eMac 700Mhz -> ?????

    Great stuff on the 800Mhz. Any input on the 700? I'm only interested in boosting to the min requirement for the new iLife... 733Mhz.

  20. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #20
    Re: eMac 700Mhz -> ?????

    bigbadmac, what processor type Xbench reports on your eMac?

  21. macrumors member

    bigbadmac

    Joined:
    Jan 12, 2004
    Location:
    Washington State
    #21
    Prcessor type

    Processor = PowerPC G4 @700 MHz
    Version = 7450 (V'ger) v2.1
    L1 Cache = 32K (instruction), 32k (data)
    L2 Cache = 256k @ 700 MHz
    Bus Frequency = 100 MHz

  22. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #22
    7450 is different from 7455 and I don't know how good are they for overclocking. Someone has to try! :)

  23. macrumors 603

    Dont Hurt Me

    Joined:
    Dec 21, 2002
    Location:
    Yahooville S.C.
    #23
    i dont think you would have a problem i had clocked my 733 (7450) to 800. this is almost certainly the same chip though i was on a 133 bus.

  24. macrumors member

    bigbadmac

    Joined:
    Jan 12, 2004
    Location:
    Washington State
    #24
    700MHz -> ????

    I'll give it a try if I can get some info on the jumper locations on the MB. Maybe the jumper settings on the 733 are the same? What the heck... my warantee is dead anyway and I've already had to resolder the CRT cable myself...

  25. thread starter macrumors regular

    Joined:
    Jan 5, 2004
    Location:
    UK
    #25
    Re: 700MHz -> ????

    way to go, bigbadmac! You can get configuration details from 7455 datasheet. Look for 100MHz bus on page 47. Your options are:
    700 ++-++
    750 +++-+
    800 --+++
    850 +--++
    etc...
    "+" is shorted (0) and "-" is open (1).

    Let us know! Can you take a picture of the board to compare with 800MHz eMac?
