Firewire/eSATA/USB 3 bridge board

Discussion in 'Mac Peripherals' started by macstatic, Jan 29, 2013.

  1. macrumors 6502a

    Joined:
    Oct 21, 2005
    #1
    I'm looking for a bridge board which takes four SATA III hard drives and has Firewire 400 & 800, eSATA and USB 3.0 ports. Several hard drive enclosures seem to use the same one as you can see below.
    Does anyone know who manufactures and/or sells this (or similar) bridge board?

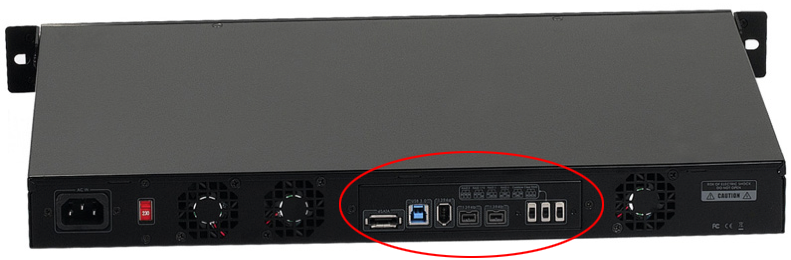

    OWC Mercury Pro rack
    [​IMG]

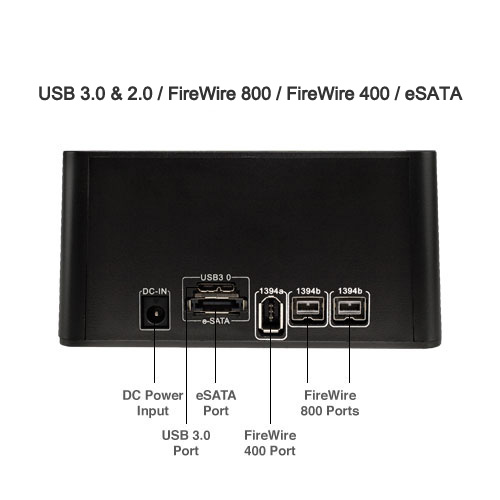

    Orico 9648rusi3
    [​IMG]

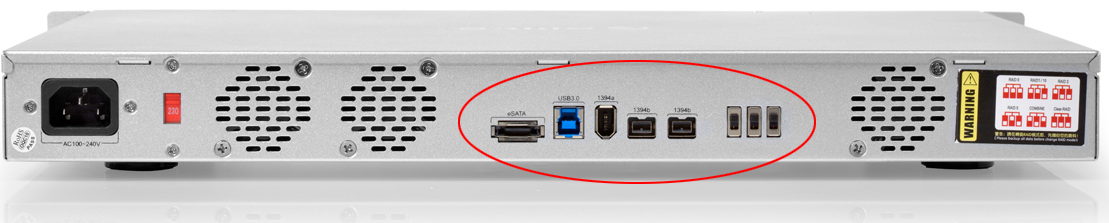

    Orico 9849rusi3
    [​IMG]

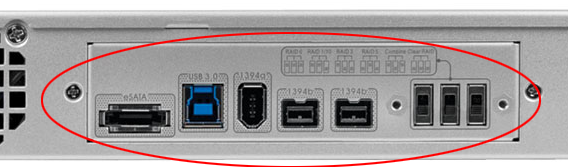

    RAIDage GAGE104U40SL-SAUF
    [​IMG]

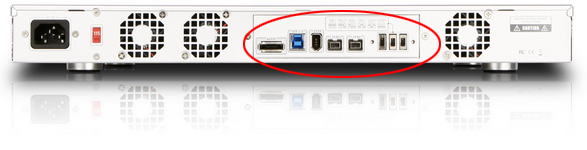

    Newertech Voyager Q3
    [​IMG]

  2. macrumors 6502

    FireWire2

    Joined:
    Oct 12, 2008
    #2
  3. thread starter macrumors 6502a

    Joined:
    Oct 21, 2005
    #3
    Would any of these do? Unfortunately none of them have USB 3 support though :(

    So this controller connects to the 4 SATA hard drives and gives me a "multiplied" output which connects to any bridge board (such as one of the above in your first link)?

    Will it work with any of those boards or does it have to support port multiplication (in case only their UF-SATA202 will do the trick). Unfortunately that board doesn't have an eSATA output connector, so would that mean I'd have to use the SPM393PS-SEH in addition to that bridge board?
    Seems like an awfully complicated setup and I was hoping for a single board which would do it all, hence my reference to those enclosures in my earlier posting (locating their origin seems a daunting task however).


    That would be for USB-3 equipped Macs allowing them to attach an external eSATA device, right? But not needed it I get a bridge board with a USB 3 output I assume.

  4. macrumors 6502

    FireWire2

    Joined:
    Oct 12, 2008
    #4
    JBoD or RAID with eSATA | FireWire | USB3.0 solution

    None of the list combo interface boxes at the 1st post allows you to have a JBOD mode

    I mean truly JBoD - Just Bunch of Drives.

    For JBOD mode - Here is how

    Get this http://www.datoptic.com/sata-5-sil3726-port-multiplier.html
    Connect to Five SATA drives - you can fancy it up with trayless rack here.
    I suggest the bottom fan tray-less to keep the HDD's temp lower.

    Now you have eSATA - JBOD - (it needs eSATA support PM host)

    To add USB3.0/USB2.0 interface use this USB3.0 to eSATA adapter support Port Multiplier in Windows and MAC

    Now you have eSATA and USB3.0/USB2.0 JBOD

    To add FireWire/USB2.0 interface use this FireWire/USB2.0 bridge support Port Multiplier in Both Windows and MAC

    Now you have eSATA USB3.0/USB2.0 and FireWire in truly JBOD - you system will show Five Individual drives


    For RAID mode - shows up as a SINGLE drive. No drivers, no software hardware RAID - Here is how:

    Use this Driver-less RAID controller five drives
    and this eSATA/FireWire/USB bride

  5. macrumors member

    Joined:
    Oct 11, 2010
    #5
    Did anyone ever find this board for sale?

  6. thread starter macrumors 6502a

    Joined:
    Oct 21, 2005
    #6
    I'm the OP, and no -I haven't made any progress in locating it.

  7. macrumors member

    Joined:
    Oct 11, 2010
    #7
    Thats too bad, would be a dead handy thing to locate.
