Firewire HD Help

Discussion in 'Macintosh Computers' started by rickvanr, Feb 21, 2004.

  1. rickvanr macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #1
    hello

    ok, i bought a firewire enclosure and a hard drive
    when i put it together and try and format it, its always getting stuck in apple's disk utility...

    Would it matter what the jumper settings are?

    is there a better tool to format the disk with?

    any help/insight would be appreciated

    Thanks

  2. IndyGopher macrumors 6502a

    IndyGopher

    Joined:
    Nov 3, 2001
    Location:
    Indianapolis, IN
    #2
    Yes, the jumper settings matter. Every enclosure I have, 2 ADS Pyros, a CompUSA, and a Belkin all absolutely insist that the drive be set to Master (or Stand-Alone/Single for Western Digital drives) On the Belkin if I have the drive jumpered wrong it behaves the way you describe, on the others the drive just doesn't show up in Disk Utility.

  3. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #3
    im using a western digital... so i should set it to slave or master with slave present? because i had it as single or master and i was having the problems

  4. MacRAND macrumors 6502a

    MacRAND

    Joined:
    May 24, 2003
    Location:
    Phoenix AZ USA
    #4
    FireWire HD help - call Western Digital

    rickvanr, if you continue to have problems figuring it out,
    call Western Digital's Tech Support - (800) 275-4932 they will be happy to walk you through it.
    WD has always been very knowledgable, patient and helpful with my install problems; most excellent. When you buy their product, you help pay for FREE technical & customer service, so don't be shy about using it.


    Attached Files:

  5. sonofslim macrumors 6502a

    sonofslim

    Joined:
    Jun 6, 2003
    #5
    have you tried setting it to cable select? sometimes that's an easy solution to drive conflicts.

    also, do you know what chipset is in the case? some firewire bridges have issues.

  6. RiseAgainst macrumors regular

    Joined:
    Jun 10, 2003
    #6
    i just had a similar problem...

    I would plug my enclosure in and it took like 10 minitues just to mount, and when it wasn't mounted it didn't even show up is Disk Utility.

    I had the jumper set to master, but then getting fed up with it I opened the drive up and changed it to Cable Select. It now works perfectly.

    I don't know if it matters, but I was using a WD drive in my enclusure too. I don't know if the jumper settings would depend on the drive itself or the enclosure.

    Well the cable select setting sort of makes sense to me now becasue what happens if i have a bunch of drives are daisey chained together. Setting them all on master wouldn't really make sense.

  7. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #7
    i dont know what chipset it is, and i looked on the case, and it doesnt really say... it there a way to work around these issues?

  8. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #8
    ok, i went to the company that made the enclosure, and there is updated firmware to download, but in the folder i downloaded there are many different versions, and there is no read me or anything...

    anyone have an idea
    my enclosure is:
    "Bytecc 3.5" HDD Aluminum Mobile Enclosure, part number ME-35OF (IEEE 1394)"

  9. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #9

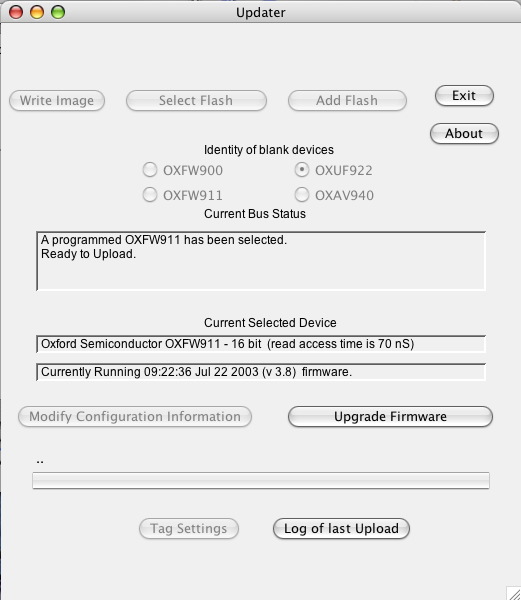

    heres a pic


    Attached Files:

  10. RiseAgainst macrumors regular

    Joined:
    Jun 10, 2003
    #10
    It seems to me that you have.....

    the OXFW911 Chipset by looking at the selected drive in the firmware updater.

    Just to be sure, plug in the drive and go to "About This Mac" in the menu bar and click on "More Info"

    Click on "firewire" in the left panel and then look at your device in the right panel. It should say one of those chipset numbers listed. That in the one you want.

  11. sonofslim macrumors 6502a

    sonofslim

    Joined:
    Jun 6, 2003
    #11
    the Oxford 911 is a quality bridge, so i wouldn't worry about that -- it's most likely a jumper thing. try slave and cable select.

    also, have you tried the drive in known case to make sure the drive works? i know most people don't have spare enclosures lying around, but maybe a friend has a case you might borrow.

  12. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #12
    hello

    i got her going, thanks for all the help, and excellent advice!!!

    bye for now

  13. MacRAND macrumors 6502a

    MacRAND

    Joined:
    May 24, 2003
    Location:
    Phoenix AZ USA
    #13
    FireWire HD solution is...

    ...And the solution to your dilemma was what exactly?:(

  14. rickvanr thread starter macrumors 68040

    rickvanr

    Joined:
    Apr 10, 2002
    Location:
    Brockville
    #14
    set the drive to channel select
    and update the firmware to the newest version

    i was either doing one thing or the other, but never both at the same time... which was the problem
