Fusion Drive

Discussion in 'Mac mini' started by PrePressAcrobat, Nov 2, 2012.

  1. macrumors member

    Joined:
    Nov 2, 2010
    #1
    I ordered a Mini server 2.6
    with
    the 2 HDDs
    From OWC - I ordered a 120 extreme SSD
    and
    a 750 7200 HDD.

    After I swap out the drives -
    can I run these as a Fusion Drive on a mini
    and
    is it worth it?

    There will be ...
    the operating system
    and
    100 GB of heavily used files - daily (continually)
    with
    500 or so
    GB files accessed occasionally (semi-daily) in storage.
    -
    Will Fusion Drive
    allow the entire 870 GB
    to be set up as a 435 GB mirrored RAID1?

    MSD

  2. macrumors 6502

    MatthewAMEL

    Joined:
    Oct 23, 2007
    Location:
    Orlando, FL
    #2
    No. I think you have a misunderstanding of how Fusion Drive works.

    It's not RAID, but Tiered Storage.

    http://en.wikipedia.org/wiki/RAID

    http://en.wikipedia.org/wiki/Automated_Tiered_Storage

    You can use RAID and Tiered Storage together, but I have no idea if CoreStorage supports that on OS X.

    You will get the capacity of your drives - 10% useable space for a single Logical Volume.

    I believe it's worth it. I am running a DIY Fusion Drive on my 13" MBP (240GB SSD, 500GB HDD). From what you said, you are exactly the kind of user Apple thinks would benefit.

  3. macrumors 6502

    Joined:
    Jun 9, 2010
    #3
    While you can install an SSD and HD in a Mac mini server, I doubt very seriously that they will function together as what Apple calls a Fusion Drive.

  4. macrumors 6502

    Joined:
    Jun 9, 2010
    #4
    I take that back ...Google seems to think otherwise.

  5. macrumors newbie

    Joined:
    Oct 26, 2012
    Location:
    East Moline, Ill.
  6. macrumors member

    Joined:
    Mar 31, 2012
    #6
    I have the same configuration. I saw a post a couple of days ago that said that the support for fusion drive was built into O'S X and that ther was a way to turn it on in terminal. It seemed too complicated for me, but I'm hoping someone will come out wit an add on that will do it. I'm in no hurry, I don't use the 750gb drive now.

  7. macrumors member

    Joined:
    Mar 31, 2012
  8. macrumors member

    Joined:
    Oct 26, 2012
    #8

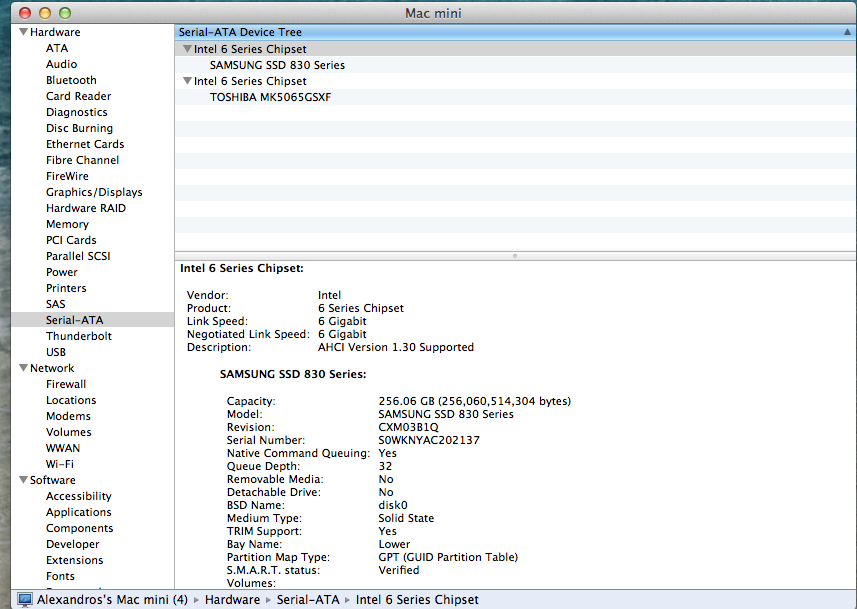

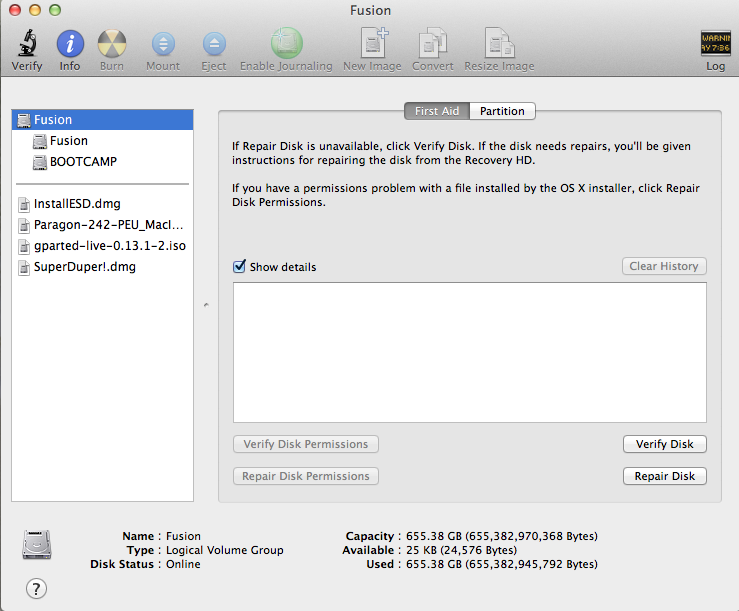

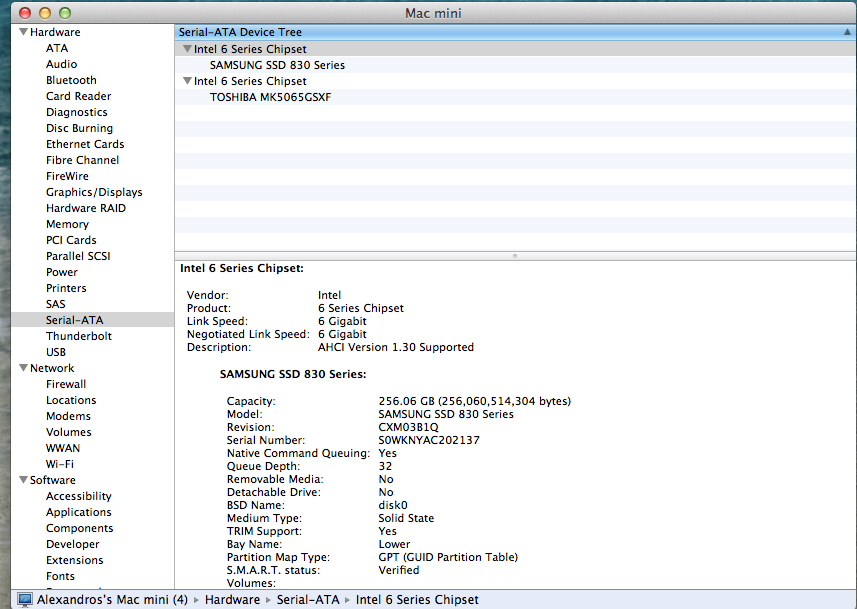

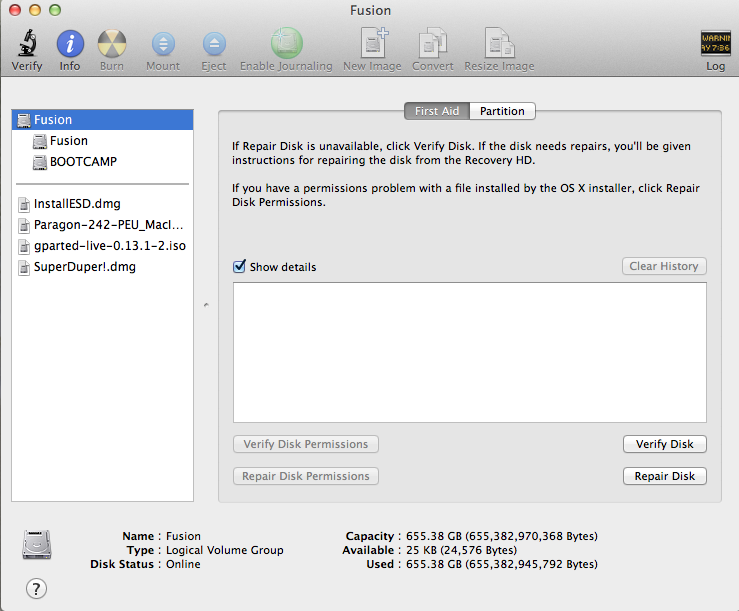

    Attached Files:

  9. macrumors member

    Joined:
    Oct 26, 2012
  10. macrumors member

    Joined:
    Oct 26, 2012
    #10

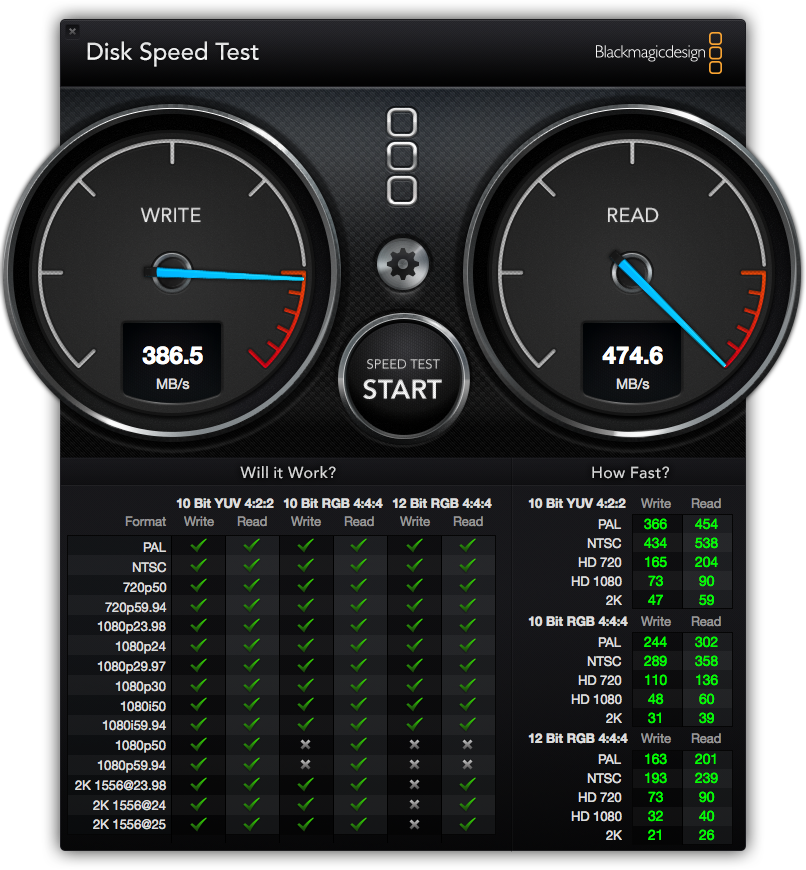

    Blackmagic test for Fusion


    Attached Files:
