graphic card Power Mac G5 Dual 2GHz

Discussion in 'PowerPC Macs' started by greedyhands, Aug 18, 2009.

  1. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #1
    Hey, does anyone have experience with upgrading the graphics on a PMG5 Dual 2GHz (max 16gig, not the 8gig model)? I am looking for a better card and I am not sure what to search for on ebay. If somebody has experience with a good one that handles HD and a dual monitor set up well please let me know.

    Thanks in advance
    Andy

  2. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #2
    Dual 2.o could be either AGP or PCIE.

    You need to be sure of which you have before you look at cards.

  3. macrumors 6502

    Joined:
    Jan 14, 2002
    Messages:
    386
    Location:
    Los Angeles and NorCal
    #3
    i have the Quad G5, last generation of the G5. I'm using the Ati X1900 GT (G5 version of the card). It's getting old and slowing a bit. I believe you can also get a Nvidia 7800 GT for that year as well, which was only available via BTO option. Others have hacked 7800 PC versions to work on the PCIe versions of the G5 as well

  4. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #4
    Alright, I've got it narrowed down to two choices. the nVidia 7800 GT with 256MB DDR3 and the nVidia Quadro FX 4500 with 512MB DDR3. There's a $250 difference between the two. I'd really like to save the money and get the 7800 but I don't want to end up not getting enough power. I've already got a 6600 LE 128MB installed and this is what I'd like to accomplish: I would like to run three monitors, with at least one, maybe two, dedicated to HD video. Would it be feasible to throw in the 7800 in addition to 6600 and be able to accomplish this without lag? At the moment, sometimes when I am surfing on one screen and watching HD video on the other, the loading of the web pages makes the video get laggy. This doesn't happen with regular AVIs though. If I used the 7800 for two DVI-HDMI connected 1080P monitors, and the 6600 for one VGA connected 720P monitor do you think this would reach my desired effect if I had 16GB RAM installed?

  5. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #5
    The 7800GT should work well with a 6600 to do 3 monitors.

    There is a rather rare upgrade option in the form of a 7800GTX512, which got tested on Barefeats. Fastest PPC card ever. Occasionally they pop up on Ebay from a few different vendors. Search for "mac 7800gtx 512"

    http://www.barefeats.com/mutant4.html

    Runs circles around the other cards, even the Quadro 4500.

  6. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #6
    Sweet! I found one up on eBay. Thanks for the heads up my friend. It's cheaper than the 4500 too.

  7. macrumors 65816

    300D

    Joined:
    May 2, 2009
    Messages:
    1,284
    Location:
    Tulsa
    #7
    Sorry to inform you, but the ATI X1900 is much faster than the 7800GTX512 and for 1/2 the cost.

  8. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #8

    Thanks for the heads up. I haven't purchased one just yet, however I am noticing that the only version of the ATI X1900 I can find for the G5 only has 256MB, the 512 versions seem to be Mac Pro only. I may be mistaken, but I just don't quite feel that the X1900 will be able to run faster than the 7800GTX with only half the RAM. Like I said, that is only my assumption, and if I am wrong I would be more than happy to spend less on that card. As it is, I am trying very hard to make sure I don't end up buying a card with too little power and regretting it.

  9. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #9
    Not correct.

    You may be thinking of the X1900XT which came for Mac Pros. The X1900GT for G5s was much less powerful, with reduced cores, RAM, etc.

    Look here for comparison with X1900GT and 7800.

    http://www.barefeats.com/quad15.html

    You will see that they are pretty evenly matched.

    And from the first link, you can see that the 7800GTX MOPS THE FLOOR with a 7800GT.

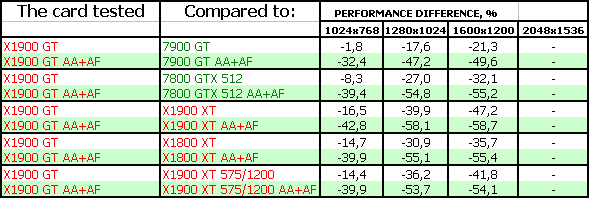

    Or, if you wish to see the results directly between 7800GTX512 and X1900GT in WIndows, look here:

    http://ixbtlabs.com/articles2/video/r580-5.html

    (warning...kinda bloody, the 7800GTX512 wins by as much as 50% at high res and AA)

    The image here is pretty self explanatory, from the linked article.

    With far greater bandwidth and RAM, the 7800GTX512 leaves an X1900GT for dead.


    Attached Files:

  10. macrumors 65816

    CubeHacker

    Joined:
    Apr 22, 2003
    Messages:
    1,067
    #10
    You can get the fastest video card on the planet, but i'm not really sure its going to help your video's skipping frames. Video decoding is done mostly by the CPU, so when those HD video's are skipping, its most likely because your G5 can't keep up, not because the video card can't. Some newer video cards do have hardware decoding features, but your current 6600 might already do that, and OS X doesn't take advantage of the feature half as well as windows does, so you might not even end up seeing a difference.

  11. macrumors 65816

    300D

    Joined:
    May 2, 2009
    Messages:
    1,284
    Location:
    Tulsa
    #11
    Very much correct. I have used both cards and the X1900 (GTO, the only one that works in the G5) is faster in everything except a few photoshop tests.

    Thats not even remotely true. My $100 X1900 is much faster than my $250 7800GTX512.

  12. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #12


    Color me skeptical, but given your history of always touting whatever hardware you currently have, or have had, as the only item worth having, and given the fact that there is such a difference in the amount of RAM on the cards, I would really need to see benchmarks to believe you. What you are saying, and what the specs say, don't really match up.

  13. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #13
    Perhaps you forgot to connect the power cable on the 7800GTX?

    Seeing as how what you are saying contradicts every single benchmark I linked too, I'd be curious to see some evidence.

    I will have one of each card in my hands next week. By all means, please tell me what apps to test so I can recreate your results.

    Did you look at any of the links I provided? Basically you are claiming things which go against typical computer experience. (More and faster RAM and cores typically means faster card)

  14. macrumors newbie

    Joined:
    Aug 20, 2009
    Messages:
    2
    Location:
    Melbourne
    #14
    graphics card in g5 power mac dual 2ghz

    i have the same model machine (i think) and want to replace my AGP card with a new one - my previous card was 64mb only GeForce FX 5200 - i have had heaps of trouble finding one in australia and finally bought one from usa. a nvidia geforce 6800 gt. 256mb. but now i cant seem to make it work as it requires power from somewhere? apparently you can re-route power from optical drive? i have no idea..
    there is heaps of stuff about flashing pc cards to make them work in macs - if you read rest of forum posts.
    hopefully we can both get some answers here!

  15. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #15
    Actually, you have a previous model to mine. My G5 has a PCIE interface, where as yours is AGP. I'm not sure exactly how to go about re-routing the power on your issue, but I did read your other post about it. I seem to agree with some of the sentiments others have espoused that you should have installation instructions included with any flashed card. If you haven't already, try to contact the vendor about that. If the cable you need wasn't included, I would say it is fairly likely that you got sent a PC card instead. As I've never installed an AGP card, I couldn't really answer any query for sure, but I would assume the best place to start is an email with your issues stated in it sent to the merchant you purchased your card from.

  16. macrumors 65816

    300D

    Joined:
    May 2, 2009
    Messages:
    1,284
    Location:
    Tulsa
    #16
    So wanting to have the best for the computers I have (and had), is a bad thing? :confused:

    Ram is merely a frame buffer and storage. Unless you're working with material large and complex enough to actually use it all, having 256 or 512mb makes no difference.

    And a 1.8ghz Core2Duo is faster than a 3.8GHz Pentium4. Specs don't translate directly to real world performance.

    There is also the fact ATI's Mac drivers are much better than Nvidia's.

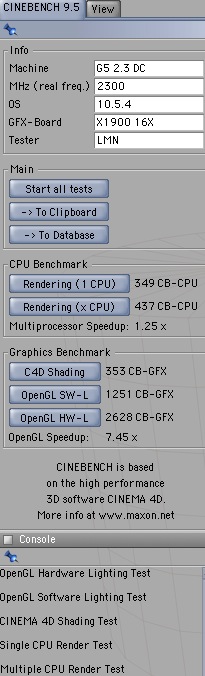

    7800GTX 512
    X1900
    Not possible. The card will not work without it.


    Attached Files:

  17. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #17
    Even young schoolchildren know that Xbench is worthless for GPU benchmarking.

    I'll be back to my Mac on Tuesday, will run some actual benchmarks then.

    But I don't understand how you can claim that all of the published ones are wrong.

  18. macrumors 65816

    300D

    Joined:
    May 2, 2009
    Messages:
    1,284
    Location:
    Tulsa
    #18
    Even elementary school children know using ad hominem arguments in a debate only demonstrates your lack of pertinent data.

    Its easy. I've tried it, the $250 7800GTX is a terrible deal compared to the $100 X1900.

  19. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #19
    Ask one of those children about "ad hominem".

    1. appealing to one's prejudices, emotions, or special interests rather than to one's intellect or reason.
    2. attacking an opponent's character rather than answering his argument.

    It applies when someone lacks actual facts and uses a basic emotional argument to push their side of a debate. I have provided several links to independent tests, all of which showed the GTX to win by substantial margins. You have provided ZERO (0) links to any support for your side, just a couple old, potentially photoshopped tests you claim to have run personally. (10.5.4? really?) You are the one who appears to lack actual facts, so perhaps you have used the phrase incorrectly? Just a thought.

    I will be happy to run any sort of currently accepted benchmark on Tuesday 8/25/09 to compare these cards. Until then I would be surprised if you could wrangle up even a single link to another person or site who shares your strong allegiance to the X1900GT. Tests will be run in a Dual 2.0 G5, I believe it has 6 Gigs RAM, not sure right now. Monitor to be used is an Apple Cinema Display and I will run tests at 2560x1600 and 1920x1200. Photos will be taken of cards and machine and I will be happy to host any witnesses who are bored enough to attend and live in Hollywood, CA. (BYO Beer)

    XBench has NOT BEEN UPDATED for more than three (3) years. If you can find a single reputable or respected Mac site or reviewer using it currently to compare GPUs....well.....you won't. It is generally regarded to be pointless and inaccurate for this purpose and has fallen out of use for this very reason.

    "Everything" is a mighty big word. Hope you're hungry.

  20. macrumors 603

    Joined:
    Nov 17, 2008
    Messages:
    6,292
    Location:
    Hollywood, CA
    #20
    Mac G5 Video Card Showdown

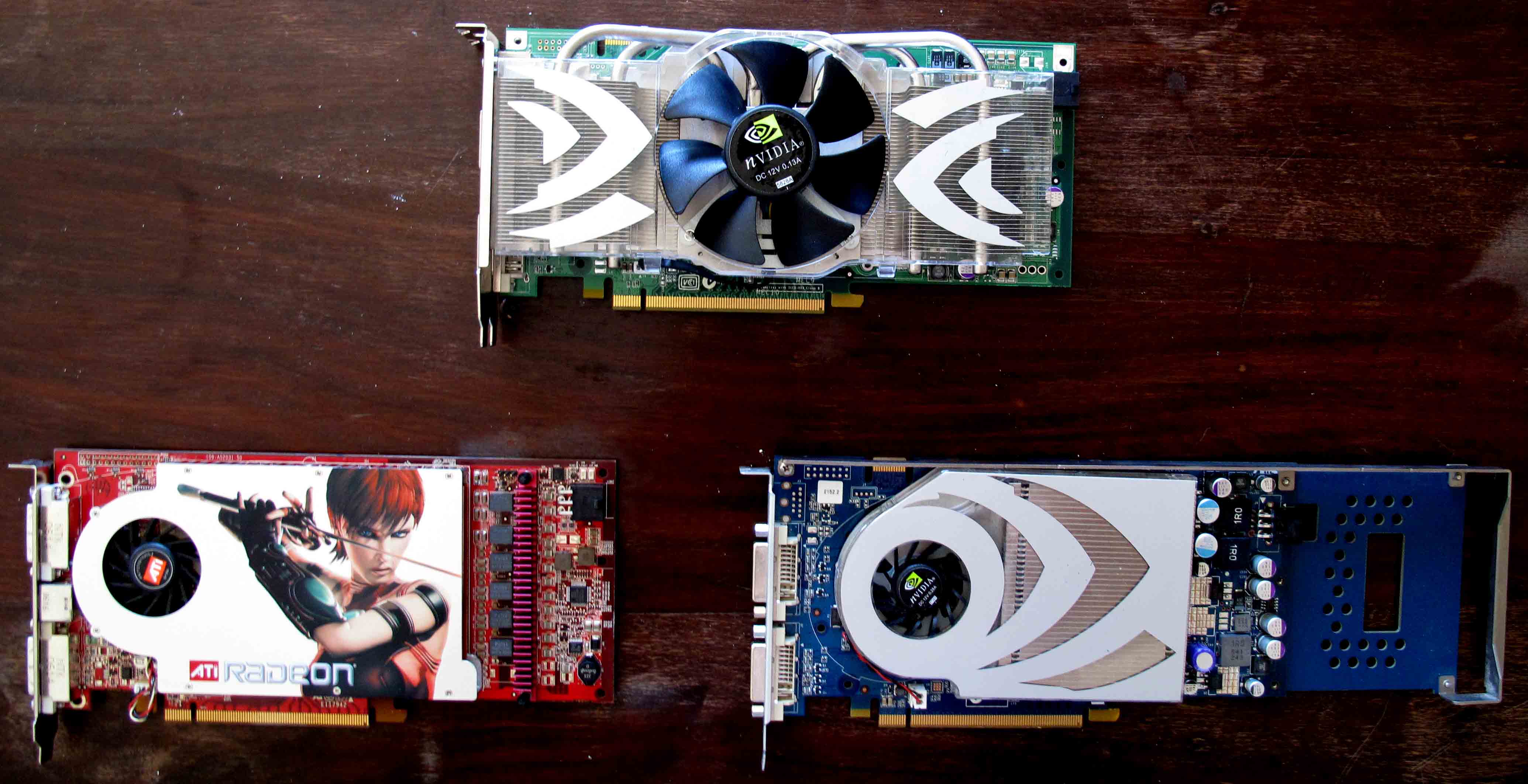

    Here they are, the contenders. I decided to include the "other" G5 upgrade, the 7800GT.

    The X1900GT and the 7800GT are the official "OEM" versions, not flashed ones.

    The 7800GTX512 is a flashed one, since there was no other way to have one.

    I got these cards late today so actual testing will begin tomorrow.

    Plan on running:

    1. OpenGl Extension Viewer Benchmark
    2. Cinebench
    3. Doom 3
    4. Halo

    Anyone else got something to suggest? Needs to be easily downloadable.

    Specs:

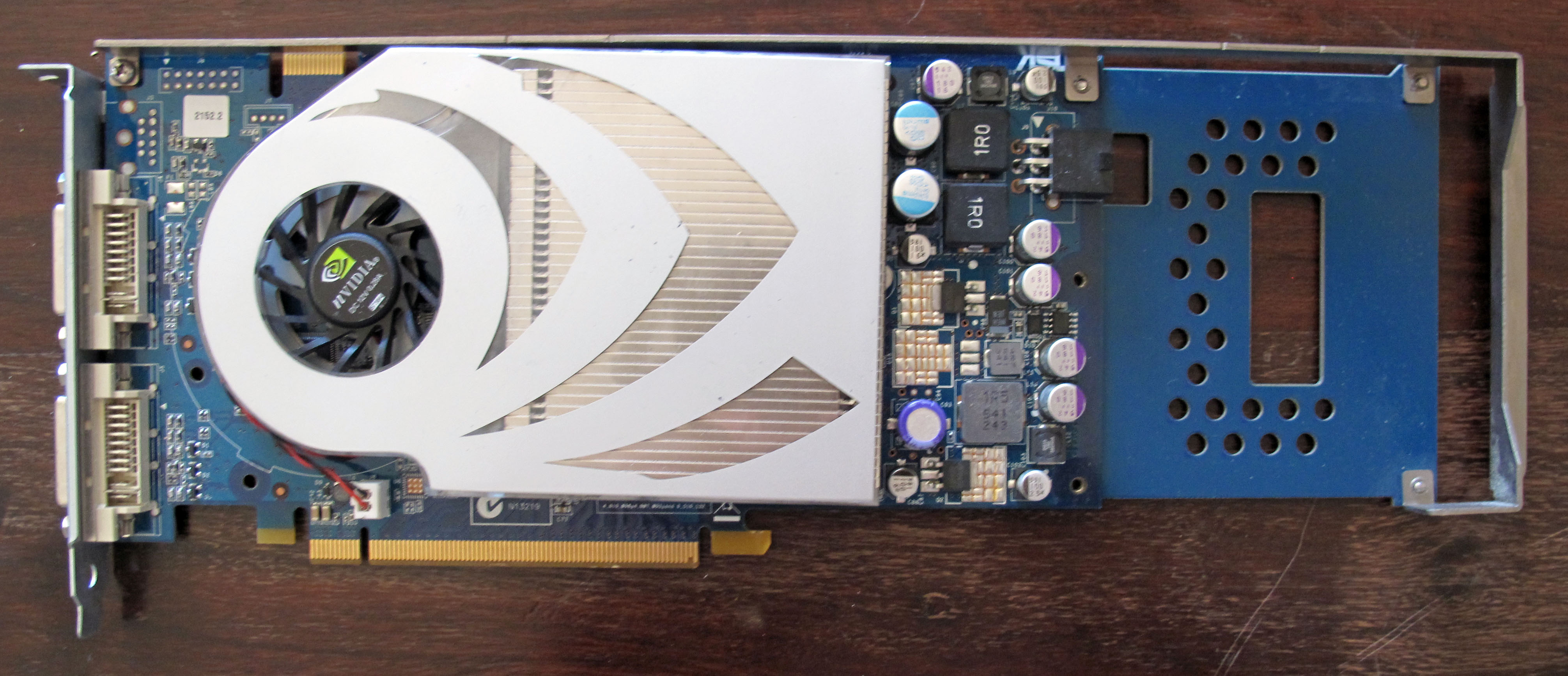

    GeForce 7800 GT

    Slot Compatibility: PCIe (PCI Express, NOT PCI-X)
    ROM (Firmware) Revision: v2152.2 (Newest)
    VRAM: 256MB 256-bit GDDR3
    Memory Clock: 500MHz (1,000MHz GDDR3)
    Memory Bandwidth 32 Gb/S
    GPU Clock: 400MHz
    OS Compatibility: OS X Tiger 10.4.6 - 10.5.1 Leopard
    Connectors: Dual DVI-I (One dual-link and one single-link)
    Display Modes: Single or Dual DVI , Extended Desktop, Mirrored Display
    Core Image Support: Yes
    Quartz Extreme Support: Yes
    Maximum Analog (CRT) Resolution: 2048 x 1536 @ 85hz
    Maximum DVI (LCD) Resolution: 2560 x 1600 @ 60hz (up to 30" Apple Cinema HD Display) on dual-link DVI-I port; 1920 x 1200 @ 60hz (up to 23" Apple Cinema HD Display) on single-link DVI-I port

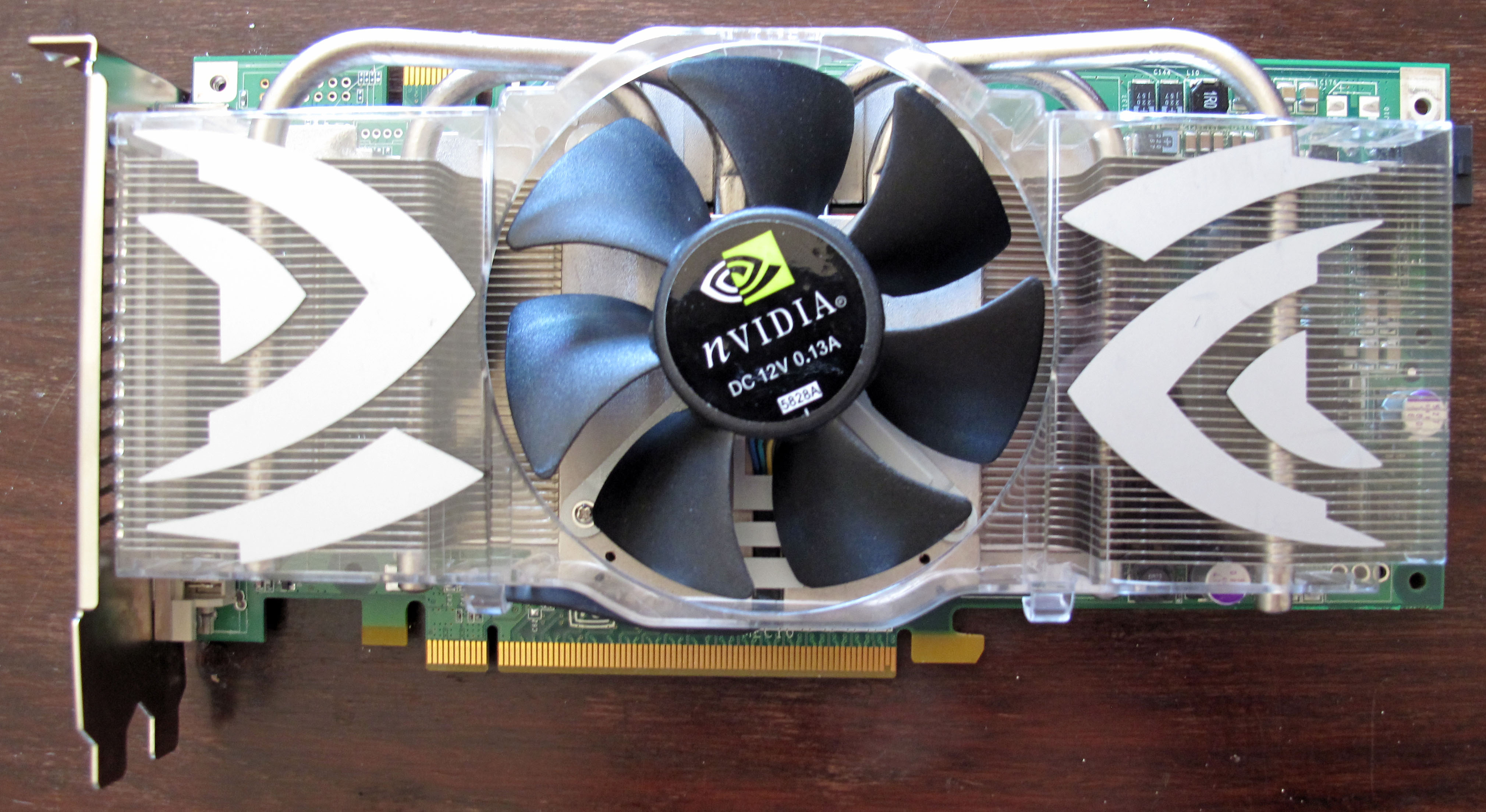

    GeForce 7800 GTX

    VRAM : 512MB 256-bit GDDR3
    Pixel pipeline 16-pixel pipeline
    Slot Compatibility : PCI-E (PCI Express)
    ROM (Firmware) vevision: v2149 (Latest)
    Memory Clock : 850MHz (1700MHz GDDR3)
    Memory Bandwidth : 54.4 Gb/S
    GPU Clock: 550Mhz
    Hardware Compatibility : PCI-E Dual Core / Quad-Core G5
    OS Compatibility : OS X Tiger 10.4.6 - 10.5.8 Leopard
    Connectors : 2 x Dual Link DVI-I
    Display Modes : 2 x Dual Link DVI-I , Extended Desktop, Mirrored Display
    Maximum Analog Resolution : 2048 x 1536 @ 85hz (with DVI>VGA adapter)
    Maximum DVI Resolution : 2 @ 2560 x 1600 @ 60hz

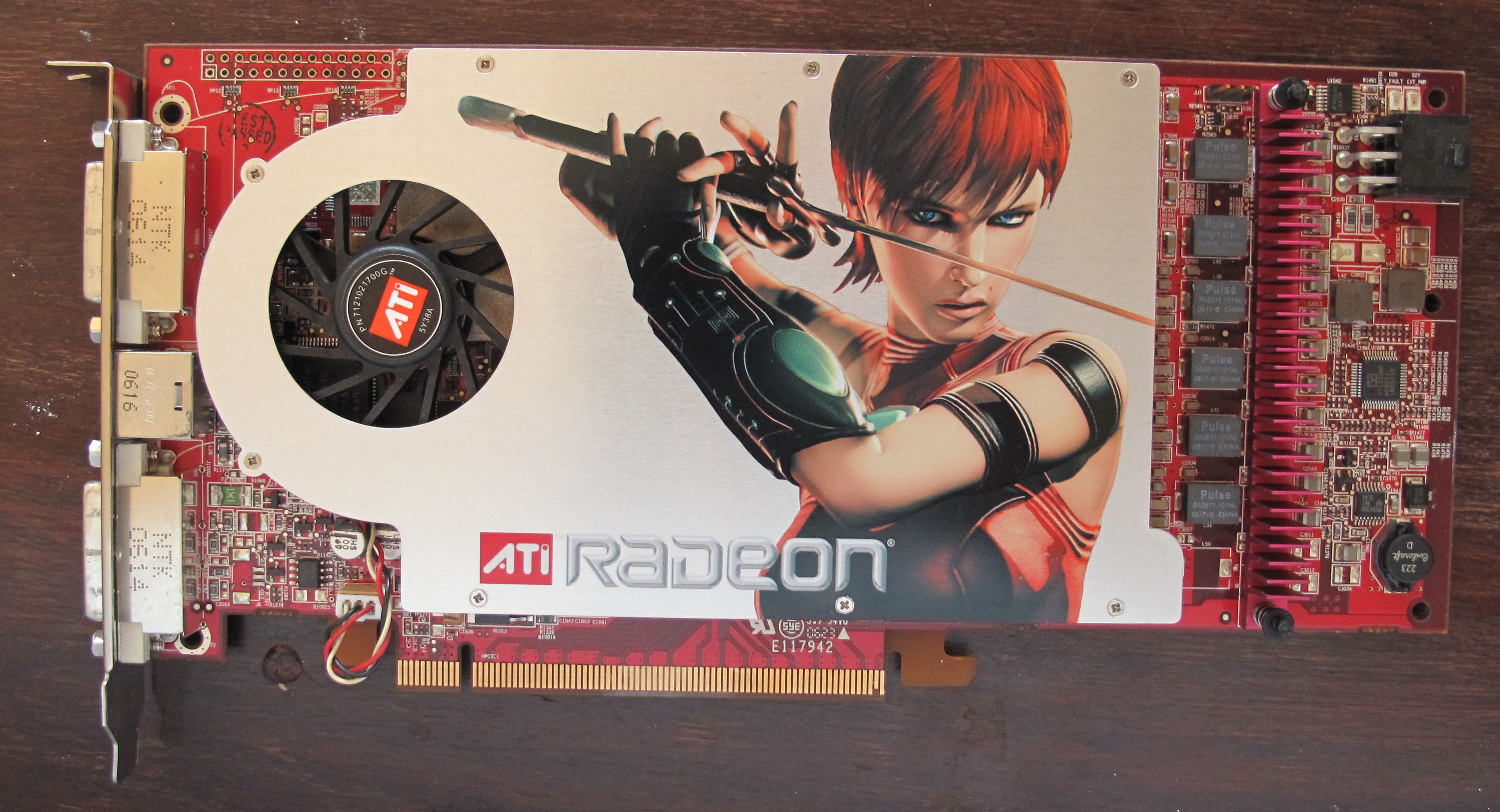

    X1900GT

    ROM (Firmware) Revision: v109 (Latest)
    VRAM: 256MB 256-bit GDDR3
    Memory Clock : 600MHz (1200MHz GDDR3)
    Memory Bandwidth: 38.4Gb/S
    GPU Clock : 500Mhz
    OS Compatibility: OS X 10.4.6 - 10.5.6 Leopard
    Connectors: 2 x Dual Link DVI-I
    Core Image Support : Yes
    Quartz Extreme Support: Yes
    Maximum available analog (VGA CRT or LCD) resolution is 2048 x 1536 @ 85hz
    Maximum DVI (LCD) Resolution 2560 x 1600 @ 60hz (up to 2 30" Apple Cinema HD Displays) on dual-link DVI-I ports


    Attached Files:

  21. macrumors 68020

    gugucom

    Joined:
    May 21, 2009
    Messages:
    2,137
    Location:
    Munich, Germany
    #21
    The stock cooler of the X1900XT was useless. Everybody I know replaced it with a proper one ASAP.

  22. macrumors 68040

    California

    Joined:
    Aug 21, 2004
    Messages:
    3,478
    #22
    Dear Rominator, you are my kind of guy.

    Are you married? (Just kidding.)

    Let us know how the testing works and what are you going to do with three cards afterwards? I would have let you borrow my Quadro card but i just sold the Quad.

  23. macrumors 65816

    300D

    Joined:
    May 2, 2009
    Messages:
    1,284
    Location:
    Tulsa
    #23
    I agree. I replaced mine with this:
    [​IMG]

  24. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #24
    Rominator, thank you very much for all of the research you have put into this with your own cards. I really appreciate that. I am interested to see the results.

  25. macrumors member

    Joined:
    Oct 7, 2008
    Messages:
    73
    Location:
    Atlanta
    #25
    oh, and 300, I'm not a retard, I know what RAM is for. I also know that more RAM does create HD rendering with less, or no, glitchy spots. Since I clearly stated in my OP that my intent was to be able to run HD without any hiccups, I would say that, yes, 512mb will definitely serve me better than 256. But I digress, I am anxiously awaiting the results.
