Help identify this RAM stick please...

Discussion in 'Macintosh Computers' started by 150hp, Sep 22, 2004.

  1. 150hp macrumors regular

    Joined:
    Jul 26, 2004
    Location:
    Door County, WI, USA
    #1
    Good day-

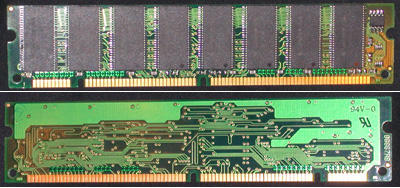

    I got this ram stick in a box of computer stuff that i got. I want to sell the stuff I don't need but of course I want to know what I have first. I have everything else figured out but this thing. The little info sticker is missing so here is what I know:

    168 pin
    single sided
    each of the 8 chips reads: "8Mx16 SDRAM - 75"

    So can I safely assume this is a 128MB stick?

    Any help is appriciated.

    Thanks.


    Attached Files:

    • RAM.JPG
      File size:
      59 KB
      Views:
      54
  2. NusuniAdmin macrumors 6502a

    NusuniAdmin

    Joined:
    Nov 19, 2003
    #2
    it looks like 128 meg SDRAM module to me.....

  3. FuzzyBallz macrumors 6502a

    FuzzyBallz

    Joined:
    May 2, 2003
    Location:
    Home of Al-Qaida
    #3
    8x64 = 64MB
    16x64 = 128MB
    32x64 = 256MB
    64x64 = 512MB

  4. NusuniAdmin macrumors 6502a

    NusuniAdmin

    Joined:
    Nov 19, 2003
    #4
    so what is 8Mx16?

  5. jared_kipe macrumors 68030

    jared_kipe

    Joined:
    Dec 8, 2003
    Location:
    Seattle
    #5
    Gotta tell him it is either a 100 or 133MHz chip too. Probably anyway.

  6. jared_kipe macrumors 68030

    jared_kipe

    Joined:
    Dec 8, 2003
    Location:
    Seattle
    #6
    On second thought maybe it is a 75MHz, don't know if they made it at that speed.

  7. Sun Baked macrumors G5

    Sun Baked

    Joined:
    May 19, 2002
    #7
    So does that make this a 66MHz 16MB SDRAM? or a 75ns DIMM?

  8. FuzzyBallz macrumors 6502a

    FuzzyBallz

    Joined:
    May 2, 2003
    Location:
    Home of Al-Qaida
    #8
    Ok, seriously man, just stick that RAM in a system that uses SDRAM, then run CPU-Z if you got a PC, and System Profile if you got a Mac.

  9. edesignuk Moderator emeritus

    edesignuk

    Joined:
    Mar 25, 2002
    Location:
    London, England
    #9
    Assumption is the mother of all ____ ups! :p

  10. wcj912 macrumors newbie

    Joined:
    Jul 31, 2004
    Location:
    Perth, Western Australia
    #10
    Probably easiest thing to do stick it in a computer and find out!

  11. Macs R Us macrumors 6502

    Joined:
    Mar 8, 2004
    Location:
    Here on My Mac(s) in my house in the USA!
    #11
    This looks to be an old one with a slower refresh rate... I think it could be a 128/64/32/16 I would surmise that it is ether 168pin or simmalr.

  12. tomf87 macrumors 65816

    tomf87

    Joined:
    Sep 10, 2003
    #12
    According to this site, they are showing 8Mx16 as 128MB. Of course speed, ECC, registered, and buffered options will make a difference as to whether it works in your system or not.

  13. slughead macrumors 68030

    slughead

    Joined:
    Apr 28, 2004
    #13
    No parity though!
