How To: Make your own Mac Pro SSD adapter for $5 or less.

Discussion in 'Mac Pro' started by HXGuy, May 22, 2011.

  1. macrumors 68000

    Joined:
    Mar 25, 2010
    #1
    [​IMG]

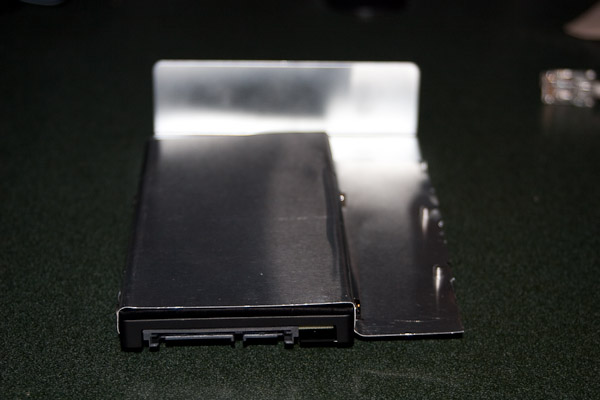

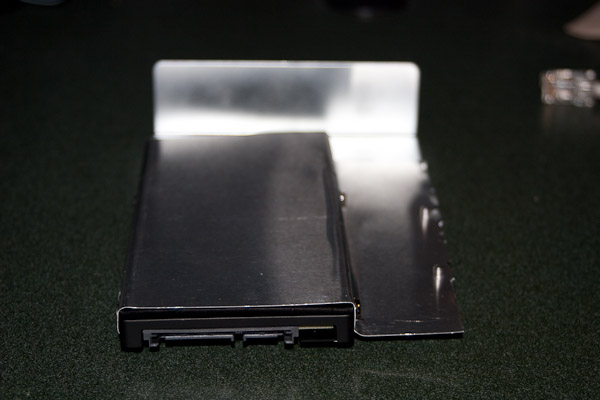

    Finally got one of my SSD's in yesterday (#2 coming tomorrow) and I've been searching for a solution to mount the SSD in the Mac Pro HDD Sled. Looked online and on here...saw there are adapters you can but for $25+, and since I need two...didn't really feel like shelling out $50+.

    So...came up with my own solution which I think should work very well and doesn't look all that bad in my opinion...and then did a quick DIY for anyone else looking to install an SSD.

    Enjoy and let me know what you think. :) www.macprossdinstall.com

  2. macrumors 65816

    johnnymg

    Joined:
    Nov 16, 2008
    #2
    Hot glue is much cheaper and makes for a cleaner install. :p

  3. HXGuy, May 22, 2011
    Last edited: May 22, 2011

    thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #3
    But how many people have a hot glue gun handy? And do you still use a CD for that or what do you use for a mounting plate?

    Plus, how easy is it to remove the SSD from the sled if you need to change it out?

  4. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #4
  5. macrumors 6502a

    Joined:
    Aug 31, 2004
    #5
    I actually bought one of the adapters from OWC. I don't like it very much. It does the job, but barely. The latch on the back of the Mac doesn't shut all of the way, and you can see the little pin that's supposed to lock the drive cages in place doesn't fit in just right.

    Your way looks very interesting. However, i worry about tape + heat. I suggest you check on it every couple of days initially to make sure the tape hasn't loosened up because of the heat.

    However, your site did give me an idea for a different way to accomplish this. Shouldn't cost much more money, but would require more tools and more time. I'm going to try it out soon.

  6. macrumors 601

    ActionableMango

    Joined:
    Sep 21, 2010
    #6
    First of all, kudos for the DIY approach. $25 for a simple size adapter is an outrage frankly, especially since several of them seem to have problems. It's why I bought 3.5" SSDs in the first place.

    HOWEVER...

    I feel like that tape will loosen, particularly where it "curves" between the right edge of the SSD and the right edge of the CD.

    Also, in my experience masking tape often shreds and leaves behind horrible residue if you leave it on too long. It is meant for temporarily masking a surface to protect it from paint, not for long-term mounting of electronics in a warm to hot environment.

  7. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #7
    Im actually looking at redoing this...still using the CD but drilling holes and actually screwing it down. I am a bit concerned about the tape as well.

  8. macrumors 603

    philipma1957

    Joined:
    Apr 13, 2010
    #8
    do the cd drilling and dump the tape do it quickly that tape will stick like a mo fo

  9. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #9
    Yea, Ill work on it later today. The tape says it has a 14 day removal period so it should be ok.

  10. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #10
    Ok done...much cleaner right? :)

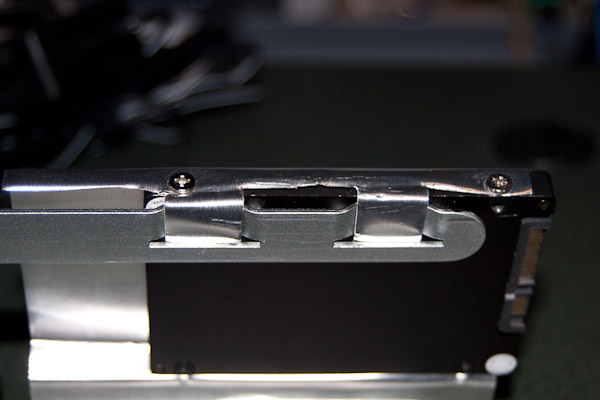

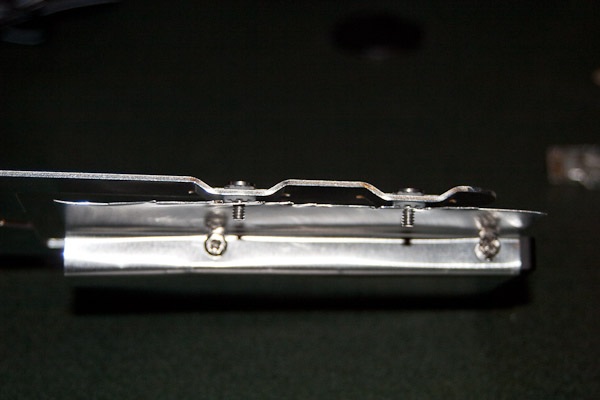

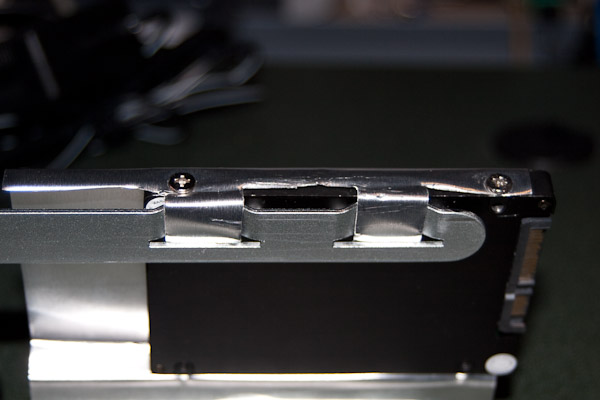

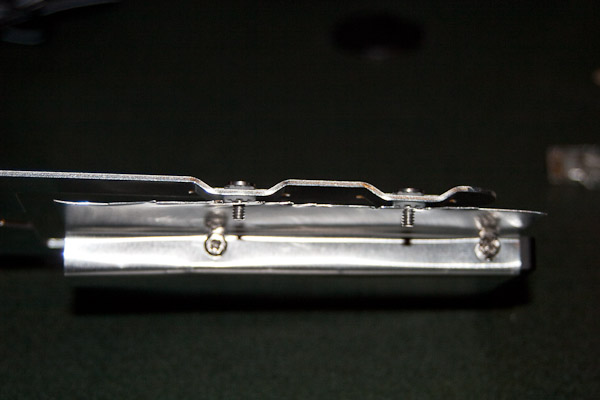

    [​IMG]

    Write up coming up shortly.

  11. macrumors 68040

    AlphaDogg

    Joined:
    May 20, 2010
    Location:
    Boulder, CO
    #11
    That looks a hell of a lot better!

  12. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #12
    The catch with this setup is that there are screws on only one side, for both the CD-to-sled and the SSD-to-CD because as you can see in the picture, the screws protrude past the CD surface and where the SSD is mounded flush, you can't use screws. I feel confident about it though as the SSD will support themselves just by the connector, it's just not the way you want to go because of gravity but this gives it plenty of support. I'm happy with how it came out.

  13. macrumors 6502

    Joined:
    Feb 26, 2011
    #13
    Why risk damaging the drives when you can spend $10 more for a proper enclosure? You've all ready spent around the same amount.

    The second solution looks a little decent... but I would still go with a proper solution.

  14. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #14
    Actually I spent $3 total for the tape. The cheapest solution I found was for $15/each and I need two.

    It's really not about the money though, I actually ordered a couple Icy Dock adapters anyway anyway, but I like tinkering with stuff and doing DIYs so this was a fun little project.

  15. macrumors regular

    Joined:
    Feb 14, 2008
    #15
    What size is Apple's SSD (3.5 or 2.5) in a BTO Mac Pro?

  16. macrumors 601

    ActionableMango

    Joined:
    Sep 21, 2010
    #16
    Much better. I'm glad you got rid of the masking tape.

  17. macrumors 6502a

    milbournosphere

    Joined:
    Mar 3, 2009
    Location:
    San Diego, CA
    #17
    I'm glad that works for you, but seeing that SSDs are still so expensive, I'll just spend the extra 20 bucks and get a proper sled from OWC. I get the feeling that if that plastic ever fails, it won't go well for the hard drive (and possibly the sata connector on the logic board).

  18. macrumors 6502a

    Joined:
    Aug 31, 2004
    #18

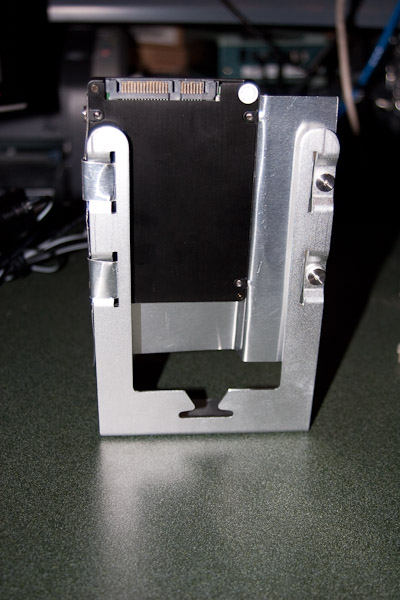

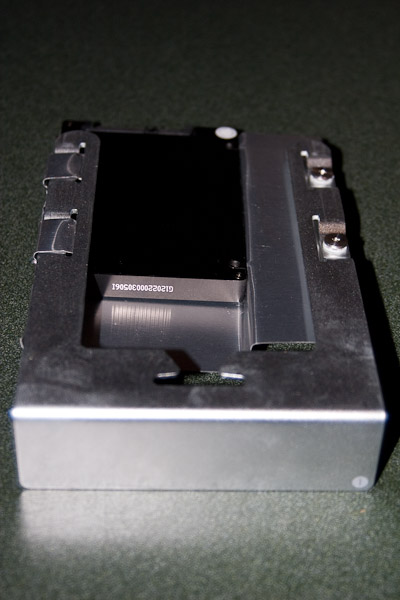

    Here's my go at it.

    I went to Home Depot and bought this.

    http://www.homedepot.com/h_d1/N-5yc...Flow=3&catalogId=10053&langId=-1&ddkey=Search

    I spent some time cutting, drilling, bending. What I came up with works, but doesn't look too pretty. I spent about an hour on it, and had I spent more time and used real tools (vs just using the side of my desk to make the bends, without even really measuring, I just eyeballed it) it could probably come out really nice. I have 9 more sheets, so I can have another go at it one day when I get bored.

    Oh and it fits real well. Slides right in, no resistance or anything when going into the SATA connector. For eyeballing it, it lines up perfectly. So for that I'm happy.


    Attached Files:

  19. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #19
    I still ended up ordering a couple of these...

    http://www.amazon.com/gp/product/B002Z2QDNE

    $29 for two, good price and from the comments, seems to work well with the Mac Pro.

  20. macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #20
    Looks identical to the Icy Dock or Kingston SSD carrier, which is what I use since day one. Definitely recommended for the 3.5" drive sleds. For the ODD bay, there are other options for multiple SSDs.

  21. thread starter macrumors 68000

    Joined:
    Mar 25, 2010
    #21
    It is the Icy Dock actually, same part number.

  22. milbournosphere, May 24, 2011
    Last edited: May 24, 2011

    macrumors 6502a

    milbournosphere

    Joined:
    Mar 3, 2009
    Location:
    San Diego, CA
    #22
    I'm thinking that I'll probably go with a set of traditional brackets and mount my SSD in the lower optical bay. I just came across two matching WD greens, so my two remaining drive bays are now spoken for. I don't use the the lower optical bay, so I'll just head down to frys and pick up some of those cheap side brackets for 5 bucks

  23. macrumors regular

    Joined:
    Jan 10, 2009
    #23
    I am planing on buying a SSD from either OWC or OCZ. I currently own a OWC 120GB SSD. I want to get either the 40-60gb range for the OS and a few files. My question is will the OCZ 3.5" adapter work to mount the 2.5" SSD in the second optical bay? has anyone tried it?

  24. macrumors 601

    ActionableMango

    Joined:
    Sep 21, 2010
    #24
    No, an OCZ 3.5" adapter for a 2.5" drive will not work in a 5.25" optical bay by itself. You need to add a 3.5" to 5.25" adapter.

  25. macrumors 6502a

    milbournosphere

    Joined:
    Mar 3, 2009
    Location:
    San Diego, CA
    #25
    If you buy an SSD that comes with a 2.5" to 3.5" bracket (like the intel 320s for example), you can purchase these for peanuts and they'll work just fine. It's not the prettiest, but I just did installed my new SSD and everything went in nicely.
