iBook G3 12" Snow DVT Board

Discussion in 'Apple Collectors' started by bobnugget, Oct 30, 2012.

  1. macrumors regular

    Joined:
    Nov 15, 2006
    Location:
    Kent, England
    #1
    Just managed to get a DVT Logic board from the iBook white for a few $ - it's non working apparently but I need to get a donor iBook to test it.

    Pics:

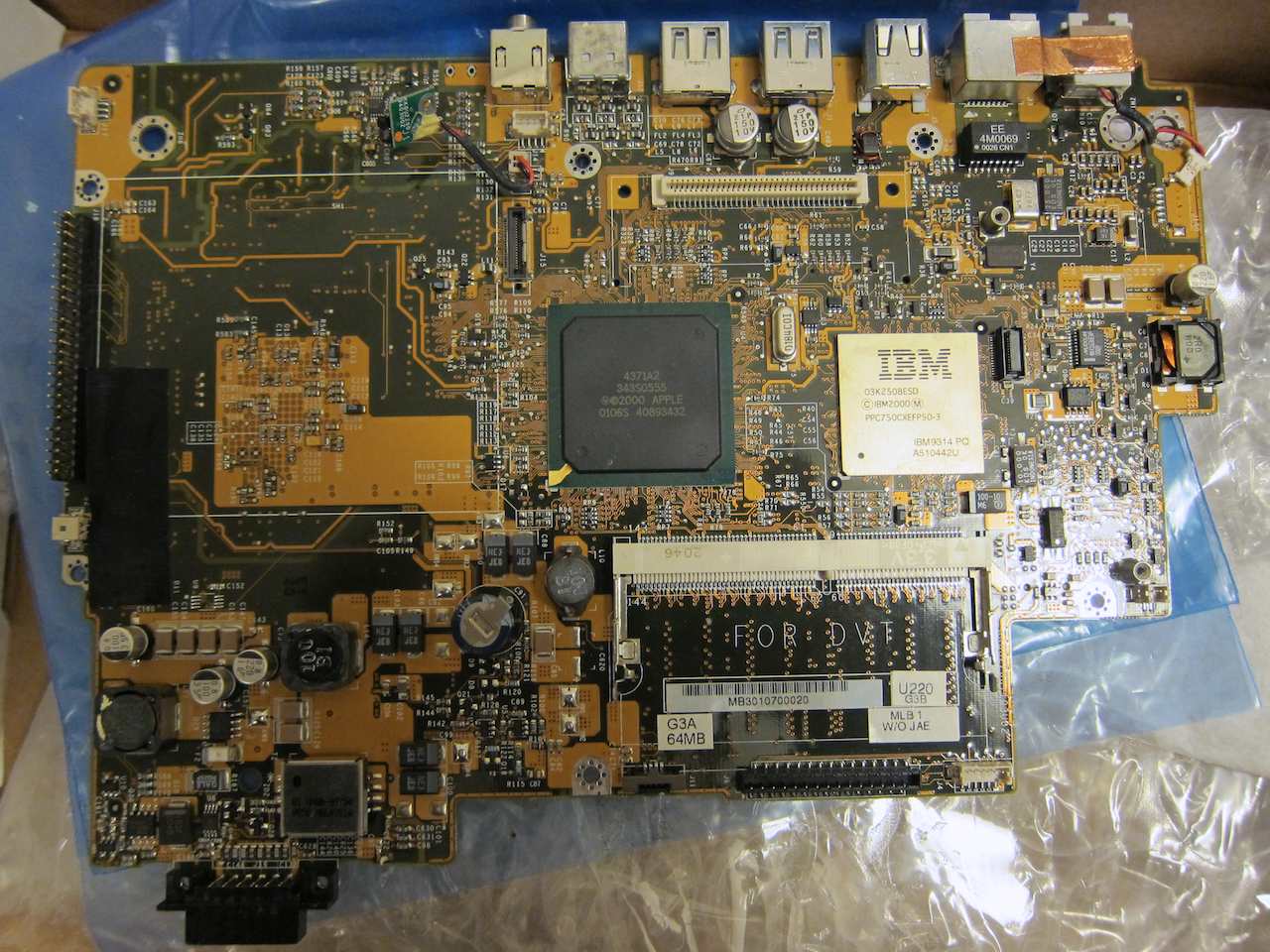

    [​IMG]

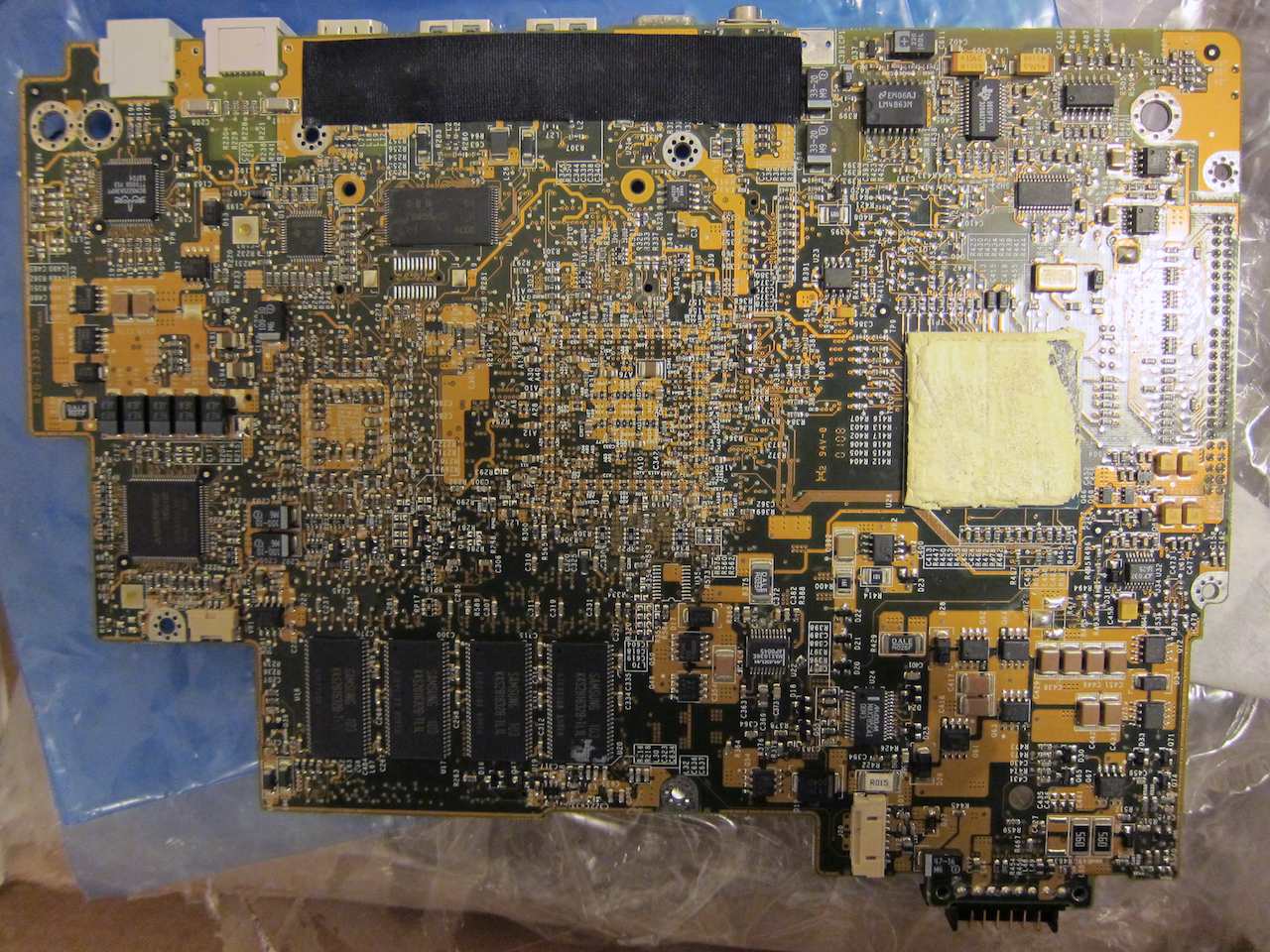

    [​IMG]

    Having looked at images on google and some chip spec docs, looks like it has an older revision apple chip, and a non Tray IBM 750CXE 500 Mhz CPU with a lead/plastic BGA mix as opposed to the standard one.

    From the board it looks like a 64 MB RAM version.

  2. thread starter macrumors regular

    Joined:
    Nov 15, 2006
    Location:
    Kent, England
    #2
    Current progress...

    OK, Been gradually getting prepared to try and fix/test this board, I'm hoping it's just a case of clamping the ATI card down :D

    I've just ordered a "dead" iBook G3 12" to test and an AC adapter. I'll post any progress here.

  3. macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #3
    Good luck. :eek:

    Not the nicest machine to try to get a test-bed together.

    I'm curious, if you manage to get it to boot up, what System Profiler says about various devices and versions/revisions.

  4. macrumors 6502

    David Schmidt

    Joined:
    Aug 22, 2006
    Location:
    Southeastern USA
    #4
    Apple and IBM chips next to each other, on the same board. Sold by Apple. My, how times change. (And continue to change.) Yes, this was a long time ago now. But at one time - for a long time - this would have been utterly unthinkable. it just kind of brings it into sharp focus seeing that board.

  5. macrumors 6502

    Joined:
    Mar 16, 2007
    #5
    I had a feeling someone on this board bought this after I saw the completed listing, and boom, here it is lol Good luck with the repair, and be careful with the reflow, the worst thing you can do is go too hot and blister the chips. I'd suggest doing a test repair on the iBook your ordered before attacking this board

  6. thread starter macrumors regular

    Joined:
    Nov 15, 2006
    Location:
    Kent, England
    #6
    Hey all, thought I'd give you an update- haven't made much progress as yet. The broken iBook appears to have a failed HDD, and nothing worse. I haven't got round to taking it apart yet (main hobby is bringing up a young one at the moment), but hope to get some dismantling time near Christmas. If it turns out to be the likely graphics chip, I have a couple of acquantances who work in electronic engineering/repair so might try and beg some of their time if it comes to that.
