iMac 27" Late 2009 can I replace optical with SSD as main boot drive

Discussion in 'iMac' started by mindquest, Nov 15, 2012.

  1. macrumors regular

    Joined:
    Oct 25, 2009
    #1
    I have a Imac 27" i7 late 2009 (Model Identifier iMac11,1) and wanted to throw in a SSD drive (Crucial M4) to replace the optical drive.

    The hard drive is still good so I thought I could use the SSD as the boot drive and the old internal as the secondary drive. Is there any advantage to physically putting the SSD drive in place of the original hard drive. Are the cable connectors the same for the HD & optical?

    Any advice is appreciated!

  2. macrumors 6502a

    Transeau

    Joined:
    Jan 18, 2005
    Location:
    Alta Loma, CA
    #2
    On the 11,1, both ports are SATA2. So replacing the ODD makes more sense, as the HDD has custom firmware so the EFI can monitor the temp. Replacing the ODD is fairly simple with a #10 Torx driver.

    Pick up an sad caddy for a Macbook Pro on Amazon. (about $11). You may need to modify it a bit to fit into the ODD frame in the iMac, the screws may not line up nicely.

    Use ifixit to get the unit open, you can do it without suction cups. Just make sure you get the thermostat cables all reconnected. (I learned that one the hard way)

  3. thread starter macrumors regular

    Joined:
    Oct 25, 2009
    #3
    Thanks for the info!! Does the optical bay not have a temp sensor? Just wondering in case I ever add a second SSD to replace the optical drive.

  4. macrumors 6502a

    Transeau

    Joined:
    Jan 18, 2005
    Location:
    Alta Loma, CA
    #4
    The ODD bay has a sensor taped to the drive, it's very easy to pop it off and attach it to the SSD.

  5. mogens, Nov 17, 2012
    Last edited: Nov 17, 2012

    macrumors member

    Joined:
    Jan 24, 2010
    #5
    Just created a fusion drive and everything runs fine and fast :). I used a samsung 830 256GB ( disk0) in the optical bay, and the internal 2G ( disk1) in my iMac late 2009 i7 and used this guide :

    http://www.petralli.net/2012/10/anal...nal-hard-disk/

    Did a fresh install of 10.8.2 on the new drive and used migration assistant to migrate from my Supersuper clone of the "old" disk (800 GB :) )
    Worked like a charm :)

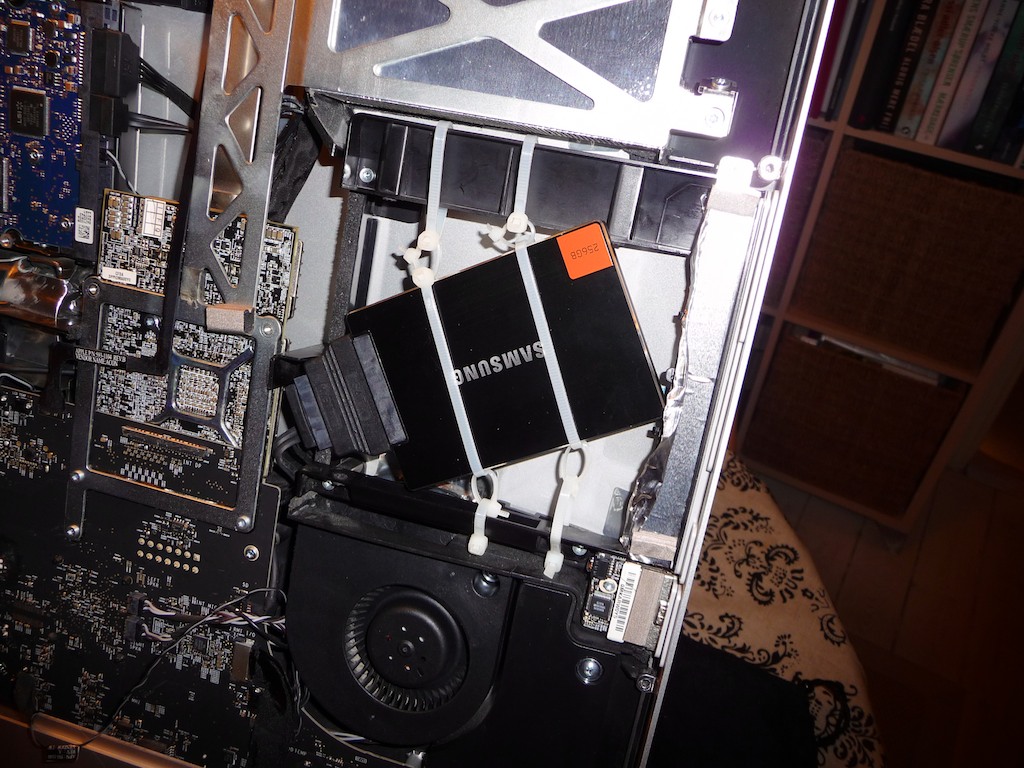

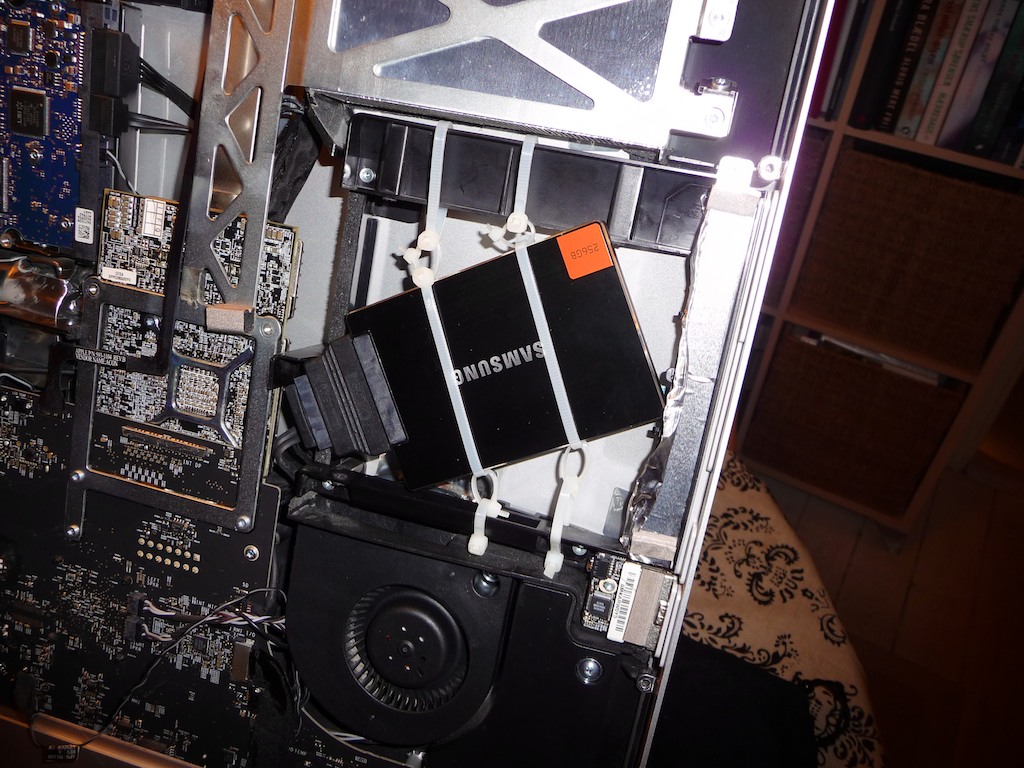

    No need to buy a fancy caddy etc. Just get an adapter to connect the SSD and use the case from the optical drive. I used plastic strips and the SSD sits rock solid. (see picture)

    this is the adapter you need :
    http://www.av-cables.dk/sata-stroem-adapter/stroemadapter-22pin-sata-til-13pin-slimline-sata.html

    Enjoy


    Attached Files:

  6. hfg
    macrumors 68030

    hfg

    Joined:
    Dec 1, 2006
    Location:
    Cedar Rapids, IA. USA
    #6
    haha .. you may want to cover or block the disk slot ... if someone sticks a disk in there, you will have to disassemble the iMac to get it out. :)

  7. macrumors 65816

    AppleNewton

    Joined:
    Apr 3, 2007
    Location:
    1 Finite Place
    #7
    late 09 you can swap out both the HDD & Optical drive without problem with newer drives, no special firmware or issues should arise
