iPhone only has one working bottom speaker/defective speaker

Discussion in 'iPhone Tips, Help and Troubleshooting' started by xUKHCx, Aug 19, 2008.

Thread Status:
Not open for further replies.
  1. xUKHCx, Aug 19, 2008
    Last edited: Nov 20, 2010

    Administrator emeritus

    xUKHCx

    Joined:
    Jan 15, 2006
    Location:
    The Kop
    #1
    There have been many threads in relation to the fact that one of the speakers on the bottom of the iPhone does not work.

    The reason for this is that there is only one speaker on the bottom of the iPhone. The other hole that people often confuse for a speaker is the microphone.

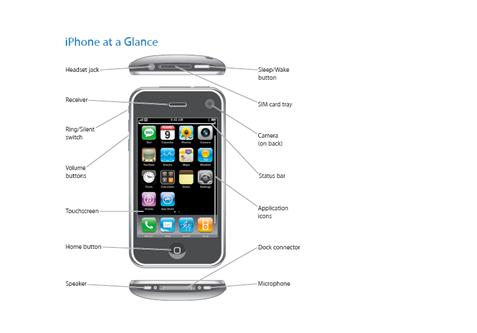

    Even though these pictures depict the 3G iPhone the same applies to the original iPhone.

    Click to enlarge


    Note: the iPhone 4 has the speaker and the mic reversed



    See guide entry

  2. thread starter Administrator emeritus

    xUKHCx

    Joined:
    Jan 15, 2006
    Location:
    The Kop
    #2
    If you see this question being asked then you can use the handy link to this thread (given below) and please report the thread using this button [​IMG]

    Copy the text below into your reply.

    --------
    [thread=546875]iPhone only has one speaker[/thread]
    --------

    It will be formatted like this iPhone only has one speaker
