Kitchen Remodel

Discussion in 'Community Discussion' started by Huntn, May 6, 2013.

  1. Huntn, May 6, 2013
    Last edited: May 6, 2013

    macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #1
    Any electricians around? I'm doing this remodel myself. I used to work as an electrician for summer jobs while going to school, so I know enough to do most house wiring.

    My question: We are moving a cooktop from an island to an exterior wall of the kitchen. The spot where we want it, has some wall switches that control a light and garbage disposal. Is it within code to keep these switches on the wall behind or close proximity to the cooktop? I'm thinking about moving them, but I'd like to know if leaving them would be a violation of code. I know it may depend on where you live and the local code, but thought I'd ask. I'm in Houston, Texas.

    Thanks!

  2. Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #2
    I don't know about about code, but I don't think its a good idea to leave them there. Seems like you may injure yourself if the the stove is on and you're cooking - you go to reach for those switches you may burn yourself.

    Call your building inspector and ask him.

  3. macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #3
    You should mention your state, at least. If you know it varies then you know the answer can't be exact.

    As far as switches go, regardless of state, code does require insulation to be in tact around the wiring. You will have to ensure that at a minimum. As for the rest, I would call your building inspector. In LA County I know the relocation of an oven and sink required an inspection.

  4. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #4
    Excellent idea, one I've done before, but I'm new to the area and have not figured who to call yet. As far as burning myself, that's what was bothering me. Funny I did not think about it until now, hence the post.

    Updated original post. I'm in Houston, Texas. Had a gas line put in for the new location of the cook top and had that inspected. I was thinking it's not the best place for them (the wall switches), but ultimately it's the code issue I'm curious about. You mentioned 'required inspection', I wonder about the attitudes around here. The plumber I called, I asked if an inspection of the new gas line was required and he said "naw". Ha! I insisted on an inspection for that, and the city did inspect.

  5. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #5
    Hopefully I have that covered. What I've done electrically to the kitchen is minimal, but for peace of mind I've decided to get it inspected. I'll see if I can scrounge up some pics...

  6. macrumors 603

    Tomorrow

    Joined:
    Mar 2, 2008
    Location:
    Always a day away
    #6
    Might not be an excellent idea. You'll be alerting him to the fact that you're remodeling, and he'll want to know (and presumably see) all your permits, schedule you for an inspection, etc. You DID get a permit and hire a licensed contractor for this work, right?

    I checked NEC 2011 (adopted by Texas, not sure whether Houston has any amendments) and surprisingly, I could find nothing in there addressing this one way or another.

    That being said, let me say as an MEP engineer this is not a good idea. My recommendation would be to move it 12" to the side of the cooktop. Reaching over the top of a heat source - not to mention possibly hot food, pots, etc. - to turn off a shorted-out light or kill a motor under the sink just reeks of safety hazard to me. Not to mention, the amount of steam, grease, etc. the switches would be exposed to might very well shorten their lives.

  7. macrumors Core

    MacNut

    Joined:
    Jan 4, 2002
    Location:
    CT
    #7
    Don't disposals require their own circuit. I would say move the switch to under the sink in the cabinet.

  8. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #8
    I had an electrical contractor come out and give me a quote, considering I had done all the work and he's charging me $400 for 3 visits plus the permit which is about $100. That's reasonable and gives me peace of mind. That is especially why I had the gas inspected. If the house blows up a week after having the work done, I don't want there to be any questions (if I'm still alive ;)) about doing my own work because insurance companies can refuse to pay your claim.

    Disposals do need their own circuit and that will be maintained.

  9. Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #9
    If the OP pulled a permit (or his contractor did) then the building inspector is already alerted to the remodel. The permits are in place to make sure the renovations are up to code and safe, so having the building inspector involved is not a bad idea imo.

  10. macrumors 603

    Tomorrow

    Joined:
    Mar 2, 2008
    Location:
    Always a day away
    #10
    I understand the point of a permit. In the OP, he states that he's doing the work himself. That alone is reason to wonder if there's a permit, plus in Texas you typically have to hire a licensed electrician to do this type of work.

    The other ramification behind having the work permitted and inspected is that the tax assessor very often increases the value of your home after such an improvement.

  11. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #11
    Is a kitchen remodel considered an improvement? I don't see changing the style of cabinets as something that increases the tax base of a house, but ya never know... Hmmm.

  12. macrumors 603

    Tomorrow

    Joined:
    Mar 2, 2008
    Location:
    Always a day away
    #12
    I would think so. Depends on how the tax assessor views it, I guess.

    Think of it this way - how many people remodel their home to lower the value?

  13. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #13
    Property value is a tricky thing when municipalities are trying to collect operating funds. Our house was purchased 4 years ago for $145k (2300sf rambler), added a pool, and they've tried to increase the value to $195k although the house across the street is a larger 2 story, with a pool and is valued at $180. On a square footage and lot size comparison, our house should be no more than $155.

  14. macrumors 65816

    pagansoul

    Joined:
    Aug 10, 2006
    Location:
    Earth
    #14
    I did a complete remodel of my kitchen last year but simply replaced everything and kept the same layout. I upgraded all the gas and electrical and was told that having my switch box in my laundry room was nolonger code but since that was it's original spot I could get away with it. I live in Georgia and my ranch is 30 years old. I think any electrician would know if it was up to code in your area. You could ask around saying you were getting estimates for some work.

  15. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #15
    I brought an electrician in and got a permit. Since moving to the Houston area, this is the first place I've lived with such a cavalier attitude about inspections coming from contractors. Do I need a permit for this? Oh, no. Except I did and for peace of mind, I insisted upon one.

    I wonder what changes makes a 30 year old switch box no longer to code? I have a house built in the 1980's and all of the original boxes are plastic. Got a couple of new ones for this project and really don't see a difference.

  16. macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
    #16
    The first and last time a contractor told me no inspection was needed he was dropped and a new one was brought in. An inspection was needed and in my case, wanted. If the inspection was done the first time I would not have had a $3,000.00 issue come up less than 6 months after buying a home.

    I will always call the city to ask about the inspections before I take the word of a contractor.

  17. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #17
    This might be an unlikely scenario, but you never know, if a homeowner does his own work and does not get an inspections (where one is required) and several months later the house burns down and an investigation reveals this, the insurance company may not cover the homeowner's claim. At least this is my impression. I want the insurance a permit represents.

  18. macrumors 603

    Tomorrow

    Joined:
    Mar 2, 2008
    Location:
    Always a day away
    #18
    Typically if something is built to comply with code at the time of construction, it's grandfathered unless you make some significant changes later. So unless you plan to change it, or it's giving you problems or posing some kind of safety risk, there's no need to upgrade it just to match newer codes.

    In your case, it's not the switch box itself that caused the potential issue, it's the cooktop which is now underneath it. That makes it worth looking into, IMO.

    Last I heard, plastic wall boxes are still OK, particularly in residential use. My house (2006) is full of them.

  19. macrumors 68040

    Arran

    Joined:
    Mar 7, 2008
    Location:
    Atlanta, USA
    #19

    Attached Files:

  20. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #20
    Understood about the grandfathering. Was just trying to figure out the comment about the "switchbox in the laundry room no longer to code" could mean the swichbox did not meet code or it's location did not meet code? My initial assumption was that the box it self no longer met code, which puzzled me.

    How does an air switch work me wonders? And why is that better than having an electrical switch? I assume an electrical on/off switch is still needed somewhere.

  21. macrumors 68040

    Arran

    Joined:
    Mar 7, 2008
    Location:
    Atlanta, USA
    #21

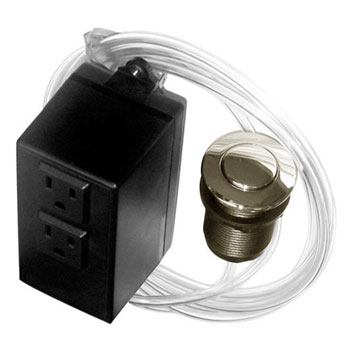

    Here's another model with a brochure that will explain. Nice diagram too. http://www.insinkerator.com/en-us/Documents/Disposer/sinktop_switch_brochure.pdf

    Basically the switch is right on the sink - beside the faucet for convenience. The switch is really just a plunger/piston type thing. Think of two hypodermic syringes connected by some aquarium air-line tubing. Push one plunger down and air pressure pushes the other one up. Put an electrical microswitch within its reach, and it's triggered.

    I like the safety aspect, because all the electrical gubbins are well away from where you'd be touching the switch (likely with wet hands if your as careless as me!).

  22. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #22
    Thanks for the info! However, switches and switch plates are constructed so that you hands can be wet and should not result in a short or shock if touched.

  23. macrumors 68040

    Arran

    Joined:
    Mar 7, 2008
    Location:
    Atlanta, USA
    #23
    True, but if you've been boiling a steamy pot of pasta on the back ring for the last 15 minutes, the switch could be saturated.

    Admittedly not such a big issue with US voltages. That said, I spent most of my life (and two kitchen remodels) with 240V which can be 'livelier' :)

  24. thread starter macrumors G3

    Huntn

    Joined:
    May 5, 2008
    Location:
    The Misty Mountains
    #24
    240V garbage disposals? As far as boiling water, in my kitchen remodel, we moved the cooktop from the island to a wall where there were switches. These switches were relocated for precisely this reason, however I'm not sure what code says about switch placement in the vicinity of a stove or cooktop. :)

  25. macrumors 68040

    Arran

    Joined:
    Mar 7, 2008
    Location:
    Atlanta, USA
    #25
    UK. 240V everything!
