macbook, matte screen installed

Discussion in 'MacBook Pro' started by 4JNA, Jan 7, 2007.

  1. macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #1
    please do not try this at home. :eek:

    got a deal on a black macbook core duo with a broken screen, and thought it a good time to try finding a replacement without the glare. i'm not a fan of the glossy screens. first impression is great, as it's really bright, amazing colors, and so on. but i find using one all day, every day, gets old with the reflection/glare.

    so, i fix computers and deal almost entirely with windows systems. i had worked on several sony laptops with 13.3" 1280x800 panels that looked really nice, and found something similar through a wholesale supplier to try with my broken blackbook. toshiba and matsushita joined forces about 4 years ago to produce lcd panels, and supply most of the sony panels. home page is HERE. the panel i received is missing part of the model sticker, and i am still waiting for an email back from TM to try and clarify the specific panel i used. what i have so far is LTD133E OR B, and then a torn edge. a second sticker near the bottom of the panel has NRL75-DEXKA11A K6B06T7 0118. neither seem to bring up results in google at the moment. TM's current product lineup doesn't have any matte finish 13.3" panels listed, so that is no help. also sent an email to my supplier looking for additional info on model, or what model of sony laptop this panel was intended for. so, sorry on slim details right now. i will update this when i receive more information.

    i can tell you this panel was an exact replacement, cables, screws, etc, and no modification was necessary to install the panel. i would also point out that i repair 2-10 laptops per week, can take powerbooks/ibooks apart from memory, and found this macbook to be one of the trickiest laptops to take apart i have ever encountered. you must take the screen completely off the laptop even though there are guides showing only the lcd panel/covers being removed. trust me. you have been warned.

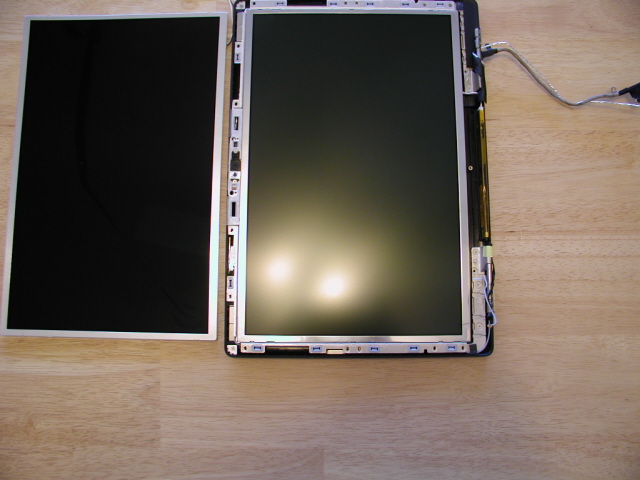

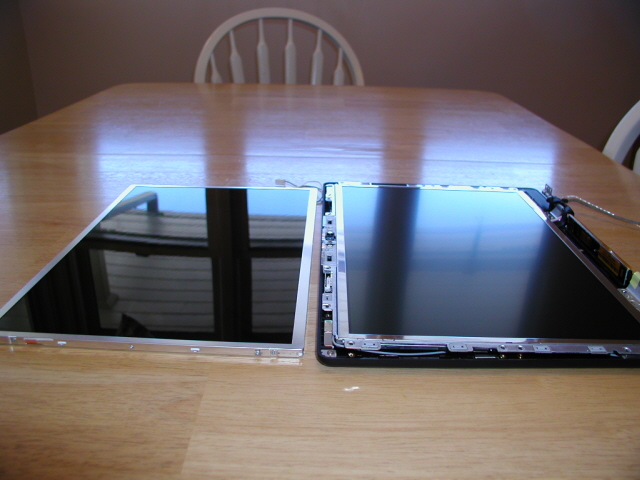

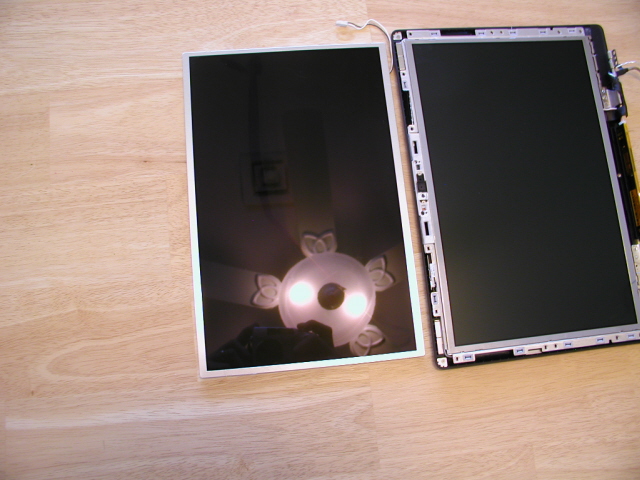

    tried to take pictures that showed the difference in the panels. first shot was side by side with a reflection. 2-4 were taken with the ceiling fan/light on to show the difference in the screen finish. not a good camera, but you get the point.





  2. thread starter macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #2
    more pics

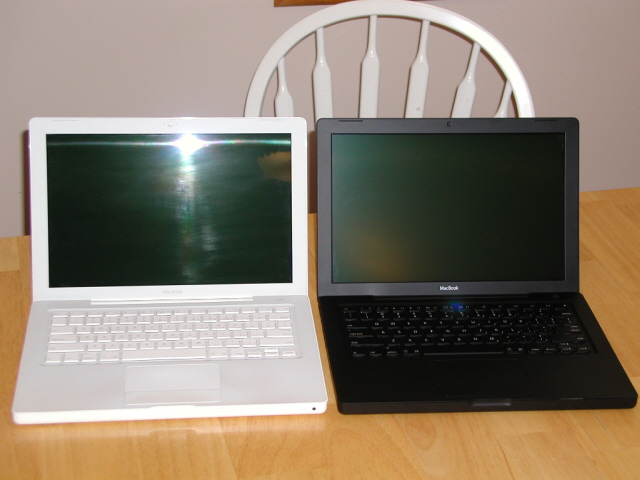

    couple more pics with the macbook back together and turned on.



    everything works the same. calibration, brightness control, photo booth flash, etc. seems very bright when side by side with a customers whitebook. overall, very happy with the results. the matte finish seems to match the finish of the blackbook better than the glossy. again, more details when i get them. peace out.

  3. macrumors G4

    daneoni

    Joined:
    Mar 24, 2006
  4. macrumors 68040

    iW00t

    Joined:
    Nov 7, 2006
    Location:
    Defenders of Apple Guild
  5. macrumors 68040

    iW00t

    Joined:
    Nov 7, 2006
    Location:
    Defenders of Apple Guild
    #5
    Since TM supplies Sony with their LCDs, and we all know how great Sony Vaio LCDs are, is there a display made by them that would suit the 15" MBP?

  6. Retired

    psychofreak

    Joined:
    May 16, 2006
    Location:
    London
    #6
    I'm hoping it'll be an option come MWSF...I can dream...

  7. macrumors 6502

    DavoMrMac

    Joined:
    Oct 9, 2005
    #7
    Well done, this is great, the matte screen option on a MacBook would be great. Apple would defo sell more.

  8. macrumors demi-god

    Zwhaler

    Joined:
    Jun 10, 2006
    #8
    Yeah I don't see why Apple doesn't offer the option for Matte Screen. Maybe it's because it will force people who hate glossy to buy the MBP! haha i figured it out.

  9. macrumors 68020

    phungy

    Joined:
    Dec 5, 2006
    Location:
    FL/NY/TX
    #9
    Maybe because I haven't owned a glossy notebook until the Macbook but I definitely like it better than the matte display on my old Vaio.

  10. macrumors 6502a

    Joined:
    Aug 10, 2006
    #10
    awesome dude.. wow you can really tell the difference between two screens..

  11. macrumors member

    Joined:
    Dec 28, 2006
    Location:
    Cardiff, UK
    #11
    Looks very good. I originally did order a mb, but then cancelled my order, and got a mbp. Glossy screen was one of many reasons why i cancelled. Surely though, getting that new screen, and fitting it, you may as well just get a mbp?

  12. thread starter macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #12
    bottom line, i would LOVE to get a MBP, but really can't justify the cost for what i do. if i had not received this blackbook with a broken screen, i wouldn't have done the install/upgrade/downgrade...

    i have less in this machine (2.0 CD, 2gb, 80gb, superdrive, matte) than the $999 base model blackbook at the refurb store. seemed like a good deal to me.

  13. macrumors member

    Joined:
    Dec 28, 2006
    Location:
    Cardiff, UK
    #13
    Sorry, i did read the post, but forgot, i kinda did mean you, but also other people maybe wanting to do this in the future. Out of curiousity, how much would an upgrade like that cost? a - to diy, b - to be done by a professional.

  14. thread starter macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #14
    A - $165 plus shipping, and 3 bottles of Fat Tire Ale. :)

    B - quick search on google for macbook lcd repair shows $375-$395, plus shipping, and a couple day turn around.

    that was not a fun repair, and i can see why they charge so much.

  15. macrumors 68020

    phungy

    Joined:
    Dec 5, 2006
    Location:
    FL/NY/TX
    #15
    I looked at the DIY and it looks like a pain.

    I would just sell the broken LCD notebook and put in an additional $400 (the cost it would repair the LCD) towards a refurb/new notebook.

    The matte Blackbook does look unique though.

  16. macrumors 68030

    xfiftyfour

    Joined:
    Apr 14, 2006
    Location:
    Clemson, SC
    #16
    Wow, can't believe I missed this one - awesome mod!

  17. thread starter macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #17
    well, that was a waste of an email...:mad:

    most helpful response received from TMDisplay:


    i never indicated this as a laptop panel or repair, so this must have been sent based on the partial model number i provided. sent back a very direct response, and a request for someone above office worker level to please look up the panel info. we shall see.

  18. macrumors 68040

    iW00t

    Joined:
    Nov 7, 2006
    Location:
    Defenders of Apple Guild
    #18
    Do you think the Japanese still hire their own people to do their tech support? :D

  19. macrumors 6502a

    mick4394

    Joined:
    Oct 25, 2006
    Location:
    Flyover country
    #19
    What makes you say that?:)

  20. macrumors 6502

    Butthead

    Joined:
    Jan 10, 2006
    #20
    Bite your tongue. As you know, Apple was just short of opening an India based tech support center. if you think any Japanese or Chinese manufacturer has poor understanding of the English language, just wait until you get to deal with the Indians, lol. (I wouldn't be surprised if that message came from an USA based TMDP operation, however; and not from a native speaking Japanese person either :p )

    Excellent mod, but if it's that difficult, of no use to most. Just have to big the bullet and get the lowest price matte finish MBP. I sure hope Apple never pulls the matte finish from the MBP line, that would make me pay for the swap no matter how much it costs.

  21. macrumors newbie

    Joined:
    Feb 26, 2007
    #21
    Would you mind sharing you source? I have been looking for the past couple weeks and no one seems to stock the matte finish at a reasonable price.

  22. macrumors 6502a

    Joined:
    Jul 23, 2002
    Location:
    at the end of the hall
    #22
    MMMMMMMM…made just down the street! :)

  23. macrumors 68020

    suneohair

    Joined:
    Aug 27, 2006
    #23
    There are ways to get exact panel information in windows. Let me see if I can find what the app is called.

  24. macrumors 6502a

    greenmeanie

    Joined:
    Jan 22, 2005
    Location:
    CT
  25. macrumors 6502a

    BlackMax

    Joined:
    Jan 14, 2007
    Location:
    North Carolina
    #25
    4JNA,

    Is this the display you purchased? I found it listed on the Toshiba Matsushita Display Technology website.

    Type Name LTD133EX2Z
    Feature WXGA,LVDS,High Luminance
    Applications for Mobile Notebook PCs
    Product Status custom product ex.
    Screen Size 33.7cm (13.3inch)
    Number of Pixels((W)x(H)) 1280pixel x800pixel
    Pixel Pitch((W)x(H)) 0.224mm x0.224mm
    Aspect Ratio 16:10
    Pixel Density 113ppi
    Active Area((W)x(H)) 286.1mm x178.8mm
    Pixel Arrangement Stripe
    Display Mode ACTIVE MATRIX, TRANSMISSIVE ,TN ,Norm .White(Posi)
    Device Type p-Si
    Surface Treatment Glare, Hardcoat
    Number of Colors 262,144color
    Contrast Ratio 250:1(min.)
    Luminance(typ) 250cd/m2
    Reflectance Ratio(typ)
    Response Time(typ)
    Response Time(max) (Rizetime)50ms ,(Falltime)50ms
    Viewing Angle(typ)
    Viewing direction(CR Peak) 6 o'clock
    Supply Voltage(typ) 3.3V
    Power Consumption(typ) 4.9W
    Interface LVDS
    Number of Gray Level 64
    Dimensional Outline
    ((W)x(H)x(D))(typ) 299.0mm x195.0mm x5.2mm
    Weight(typ) 320g
    Backlight FLx1
    Backlight Lifetime
    Operating Ambient Temperature 0 50
    Storage Temperature -20 60
    Datasheet
    RoHS OK
    Remarks Wide aspect ratio, High Luminance(250cd/m2)
