More Evidence of NFC Support for Both iPhone 6 Models

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Aug 27, 2014.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Last week, Chinese repair firm GeekBar shared a claimed schematic for the iPhone 6 showing what was claimed to be the pinning diagram for the device's rumored near field communications (NFC) chip. The part addressed on the schematic, PN65V, was thought to be a version of NXP's PN65 NFC package currently used in several Android devices.

    The leak is one of several schematics shared by GeekBar over the past week and a half, and while some of the components have been misidentified, it is looking increasingly likely that the schematics themselves are legitimate. Seen in that light, it is worth taking a look back at the NFC claim to see if there is additional evidence for it.

    [​IMG]

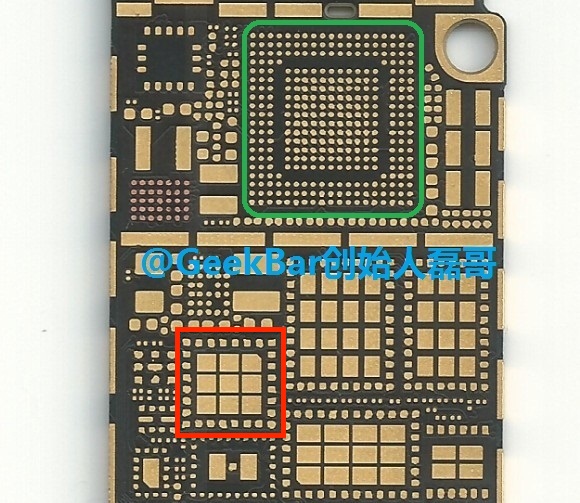

    Closeup of 4.7-inch iPhone 6 logic board with likely NFC chip location boxed in red, LTE modem boxed in green
    MacRumors forum member chrmjenkins has pointed us toward a document showing the package used by NXP for its PN65, noting that it measures 5 mm x 5 mm with 32 terminals for connectivity. In examining the bare logic boards from the 4.7-inch and 5.5-inch iPhone 6 models, chrmjenkins believes he has spotted where that chip will be located.

    [​IMG]

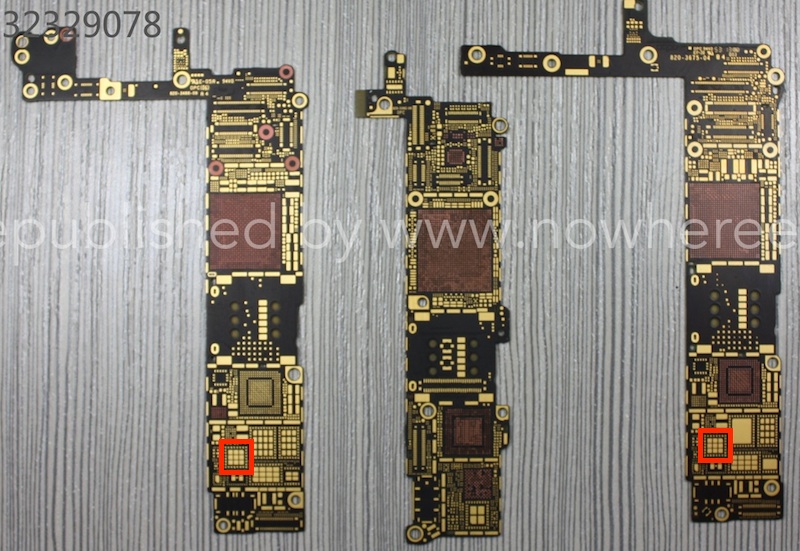

    Broader view showing likely NFC chip location boxed in red: 4.7-inch iPhone 6, iPhone 5s, 5.5-inch iPhone 6 (left to right)
    The location on the board is a square patch that does not correspond to any component from the iPhone 5s logic board, indicating that it may indeed be for a new component such as an NFC chip. Existing components may of course see changes in shape between generations, but many of the current major components can be mapped reasonably well to locations on the iPhone 6 logic boards, leaving relatively few candidates for this new square patch.

    Rumors of NFC for the iPhone have circulated for years, but they have yet to come to fruition. As a result, this year's crop of NFC rumors has understandably been greeted with skepticism, although the volume and specificity of the rumors has seemed greater this time around, with multiple sources pointing toward an NXP chip solution for the iPhone. And with Apple rumored to be making a push into mobile payments as soon as later this year, the time may finally be right for Apple to bring NFC to the iPhone.

    Article Link: More Evidence of NFC Support for Both iPhone 6 Models

  2. macrumors 603

    jrswizzle

    Joined:
    Aug 23, 2012
    Location:
    McKinney, TX
    #2
    Bleh - I'm interested to see how this will work with Passbook.....

    But I really think NFC belongs in the iWatch for payments.

  3. macrumors 6502

    sputnikv

    Joined:
    Oct 3, 2009
    #3
    If and when the iPhone gets NFC capabilities, it will be huge. Not because it'll be the first, it won't be, but because it'll boost the install-base of devices supporting NFC that venders and stations will really operate to include the tech moving forward.

  4. macrumors 68000

    yanki01

    Joined:
    Feb 28, 2009
    Location:
    Texas
    #4
    :YAWNS:

    welcome to 2012 again? I don't think I've ever seen this in action.

  5. macrumors 6502a

    Joined:
    Feb 8, 2008
    Location:
    Northern Va
    #5
    It's actually the wireless charging piece, not NFC.

  6. macrumors 6502

    Dilster3k

    Joined:
    Jul 20, 2014
    Location:
    Frankfurt, Germany
    #6
    Once Apple introduces it, the relevance of the technology shall immensely increase. It'll be integrated everywhere allover the world. Personally, I recently purchased a NFC-enabled 3.5'' Headphone Bluetooth Adapter from Sony, I can't wait to use it on the next iPhone more easily.

  7. macrumors 68020

    matrix07

    Joined:
    Jun 24, 2010
    #7
    In other words, still unconfirmed.

  8. macrumors member

    BerMuc

    Joined:
    Jul 1, 2013
    #8
    I like :)

  9. macrumors member

    Joined:
    Aug 28, 2013
    #9
    Skeptical

    Two things--

    1) That spot on the logic board could really be for any chip that size. The fact that there is a chip that size for NFC and that it is used in some cell phones does not mean that is what that spot is for.

    2) NFC has been available as a technology for quite some time, and Apple launched Passbook without it. NFC doesn't seem to be gaining any market traction? So why now? Is it that it just wasn't a priority and they finally got around to it after accomplishing the other things on the list? Or did their opinion about the value of NFC change?

  10. macrumors 6502a

    Joined:
    Jul 18, 2011
    #10
    Does anyone really care about NFC?

  11. macrumors 6502

    sputnikv

    Joined:
    Oct 3, 2009
    #11
    Apple is profoundly good at giving things like this traction.

  12. macrumors 68040

    Orlandoech

    Joined:
    Jun 2, 2011
    Location:
    Salt Lake City, UT
    #12
    :YAWN: you made me yawn, did I take a time machine back to 2012? LAME!

    ----------

    Nope... not at all. Not even remotely.

  13. macrumors 68020

    pgiguere1

    Joined:
    May 28, 2009
    Location:
    Montreal, Canada
    #13
    I'll say it again: pay more attention to Ming-Chi Kuo next time.

    Every time he predicts something, people are quick to generalize 'analysts' and point out how often they're wrong.

    Ming-Chi Kuo, while not 100% reliable, is a lot more reliable than other analysts. He constantly make correct predictions that are not obvious at all and clearly more than educated guesses.

    And while we're at it, also don't automatically dismiss a rumor coming from a 'random blogger' if he's Mark Gurman.

  14. macrumors 6502a

    Joined:
    Jul 7, 2010
    #14
    And in a few hours we will get another article saying that it wasn't NFC but something else.

  15. macrumors 65816

    MacSince1990

    Joined:
    Oct 6, 2009
    #15
    I feel like the circled part just looks like a dead-on shot of a ZIF.

  16. macrumors member

    Joined:
    Oct 25, 2009
    Location:
    Comment, NO
    #16
    Won't be standard NFC

    It won't be a standard NFC chip. It will be a chip that is capable of using for "tap-to-pay" using only your phone and fingerprint scanner or password protected phone.
    Credit card companies will jump on this because it reduces the chance of people losing their cards and others using an unsecured tap-to-pay.
    The Only reason Apple is adding this chip will be to get into the payment side of things at storefronts.
    It will save credit card companies millions.

  17. macrumors member

    Joined:
    May 14, 2007
    #17
    I just noticed yesterday that Apple Retail employees are using new EasyPays for for checkout/scheduling (I worked there for 4 years, so I'm a nerd and notice these things.). The new models have NFC on them. I doubt Apple would go to the trouble of updating/replacing their fleet of checkout devices just to accept payment from competitors' devices. The new iPhone will have NFC. I bet an appendage on it. Anyone up for the challenge? Whoever loses the bet loses an arm. Pics get posted to Macrumors. ;)

  18. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #18
    Those pads are clearly in an area of the board dedicated to RF communication components. It is always possible, but I know of no other part with that pinout. Also, most of the other parts are accounted for.


    I should have sent another link to show the pads are correct. Here's the diagram for solder reflow (actually attaching it to the board): http://www.nxp.com/documents/reflow_soldering/sot617-1_fr.pdf

  19. macrumors 603

    Menel

    Joined:
    Aug 4, 2011
    Location:
    ATL
    #19
    This feature will be about the only thing dragging me up to a 4.7inch phablet... rather than getting my 32GB TouchID upgrade from a discounted 5S.

  20. macrumors member

    Joined:
    Oct 15, 2012
    #20
    4.7 is a phablet now? Hah! Then my Note 3 is what then? :D

  21. macrumors 6502a

    Joined:
    Nov 10, 2006
    #21
    If NFC is coming I'm guessing the antenna will be utilizing the new iPhone logo cut-out.

  22. macrumors newbie

    Joined:
    Aug 27, 2014
    #22
    Logic board have 28 terminal contacts, and NXP's document says their chip have 32 terminals (8 on each side).

  23. macrumors 6502

    Joined:
    Feb 5, 2010
    #23
    Yawn because it's old, yet you haven't seen it in action. Uh, you know inclusion in the iPhone probably means the beginning of mainstream acceptance. So you wouldn't be yawning because you'd be seeing it in action.

  24. macrumors 68000

    1080p

    Joined:
    Mar 17, 2010
    Location:
    Planet Earth
    #24
    This report is all wrong. There is no 5.5" iPhone.

  25. macrumors 6502

    Joined:
    Feb 5, 2010
    #25
    Maybe not yet, but they will.

    ----------

    Link to some evidence? Or are you just goin off the ol' gut?
