NEC MultiSync EA261WM Detected as TV

Discussion in 'Mac Accessories' started by joekwondo08, Oct 16, 2010.

  1. macrumors newbie

    Joined:
    Sep 17, 2010
    Location:
    Mooresville, NC
    #1
    I am having a problem with my NEC MultiSync EA261WM as a second monitor on my iMac. The monitor is 26inches and has a native resolution of 1920x1200. According to the iMac tech specs the Mini-DVI connector has the capability of outputting 1920x1200 to a secondary monitor.

    The picture looks ok but it is actually detecting the display as a TV. This requires me to use the "Overscan" setting to stretch the picture out to the entire screen. Again, it doesn't look bad, I just feel like I can get more out of the quality of this display. It looks fine and is detected fine on a windows machine. I am using a DVI-D cable and the Apple Mini-DVI to DVI-D adapter.

    I hope someone can help me, I've spent hours trying to troubleshoot this thing with no luck. Its getting very frustrating.

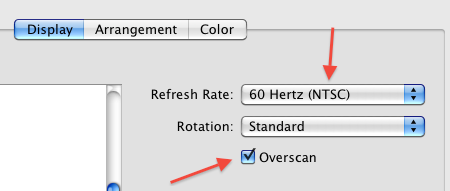

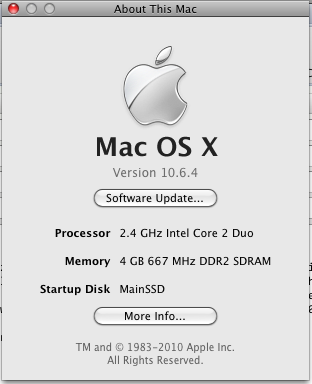

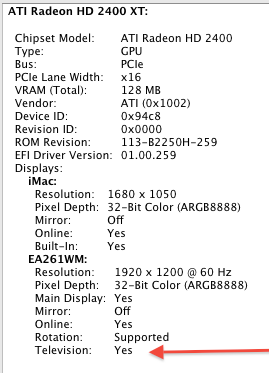

    Here are some screen shots.


    Attached Files:

  2. thread starter macrumors newbie

    Joined:
    Sep 17, 2010
    Location:
    Mooresville, NC
    #2
    Update:

    I was able to get my monitor to display correctly without overscan by:
    0.) Turn off DDC in monitor
    1.) Unplug Monitor from Mac
    2.) Shut Down Mac
    3.) Reset PRAM - While booting mac hold command option p and r
    4.) Plug the monitor back into the mac.

    It shows up fine but is still showing up as a TV. I'm getting NTSC 60hz.

    I would also like to note that Windows 7 64bit installed on Boot Camp looks perfect with no hacks at all. DDC enabled and everything. The text is much crisper in Windows 7 for some reason. I think its the NTSC problem.


    Does anyone else have any suggestions? I really want this to work properly.


    Attached Files:

  3. macrumors G4

    Joined:
    Jul 17, 2002
    Location:
    USA
    #3
    You purchased a cheap television monitor that masquerades as a computer monitor. Your Mac revealed the truth. Would you prefer that it lie to you?

  4. thread starter macrumors newbie

    Joined:
    Sep 17, 2010
    Location:
    Mooresville, NC
    #4
    I don't believe that....This NEC isn't a Dell Ultrasharp, but it is by no means a cheap acer.

    It is a problem with the EDID and the Mac. I'm a mac user, I hate windows. In this situation, Windows 7 installed in boot camp reads and displays the monitor perfectly with no problems at all. It is only in Snow Leopard that I have problems.

    Not looking to get into a forum war here, I just want an educated person to give me some technical information on how to fix my problem.
