new guide for installing mountain lion gm on unsupported macs

Discussion in 'OS X Mountain Lion (10.8)' started by dead.xx, Jul 15, 2012.

  1. dead.xx, Jul 15, 2012
    Last edited: Jul 28, 2012

    macrumors newbie

    Joined:
    Jul 13, 2012
    Location:
    China
    #1
    first of all, you still need to make sure your cpu supports 64bit extension. since mountain lion does not contain 32bit kernel now.
    [​IMG]
    Preparation
    1, a working OSX, any version could be fine
    2, mountain lion gm InstallationESD.dmg, the file name could be different.
    3, a partition or a flash disk that has at least 5GB space. it will be used as your installation source.
    4, the board id and name of your mac
    5, this patch

    Installation
    1, open Terminal, and enter defaults write com.apple.Finder AppleShowAllFiles YES
    2, then enter killall Finder
    3, double click InstallationESD.dmg to mount
    4, double click the hidden BaseSystem.dmg in the new Finder window to mount.
    5, open Disk Utility and format installation source partition as HFS+
    6, restore Mac OS X BaseSystem to your installation source
    7, copy mach_kernel from the root dir of Mac OS X Install ESD to the root dir of your installation source.
    8, copy Packages from the root dir of Mac OS X Install ESD to /System/Installation of your installation source and replace the original one
    9, copy OSInstall.mpkg of from the patch to /System/Installation/Packages of your installation source and replace the original one
    10, copy boot.efi from the patch to /System/Library/CoreService and /usr/standalone/i386 of your installation source and replace the original one
    11, edit /System/Library/CoreService/PlatformSupport.plist of your installation source to add the board id and name of your mac
    12, copy the modified PlatformSupport.plist to /System/Library/CoreService/com.apple.recovery.boot of your installation source and replace the original one
    13, reboot and hold option key until boot menu is shown
    14, choose your installation source to boot
    15, install
    16, copy the modified PlatformSupport.plist to /System/Library/CoreService of your installation target and replace the original one. you may do it in Terminal before system reboot while the installation progress is completed

    known issues
    1, find my mac of iCloud does not work.
    this installation method does not create the Recovery Partition for you. so you need to create it by yourself to fix the issue.

    2, sound driver does not work.
    you may fix the issue by installing the old AppleHDA.kext from Lion.

    3, graphics driver does not work.
    there is no complete solution for the issue at this time. and you may help us by porting Linux Graphics Drivers from Intel to OSX.

    4, 32bit efi will probably case a kernel panic when you have more then 4GB ram installed.
    there is no solution for the issue at this time.

    for detailed changes between the original and the patched boot.efi, see this post

  2. macrumors newbie

    Joined:
    Jul 15, 2012
    #2
    Great job dead.xx!

    I have another technique, using a compatible Mac :

    - Before doing anything, boot the old Mac and get its board id (something like Mac-F4208EC8)

    # ioreg -l -p IODeviceTree | grep board-id

    - If the Mac is running Lion, save /System/Library/Extensions/AppleHDA.kext

    - Install normally using compatible Mac and old Mac as a remote disk in target mode (boot by pressing "t" until the firewire symbol appears)

    - After install, with the system still booted from the compatible Mac, edit /System/Library/CoreService/PlatformSupport.plist and add the board-id

    - Copy boot.efi from dead.xx's patch to /System/Library/CoreService and /usr/standalone/i386 and replace the original ones

    - Copy back the saved /System/Library/Extensions/AppleHDA.kext

    - You should be good to go!

  3. macrumors newbie

    Joined:
    Aug 2, 2011
    #3
    Thanx for your tutorial. I did it a quit easy way with my MacMini mid 2011. I installed ML GM on a external fw drive and after that I replaced boot.efi and platform... and voila ML started on my Macbook late 2007. With kexthelper I installed the 64 bit 3100 kext and hda.kext and now I am on ML GM. 3100 kext help a little but its not perfect- no QE/CI.

  4. macrumors newbie

    Joined:
    Nov 4, 2007
    #4
    Thanks for the help with this, it works really well on my MacPro1,1, I'm posting from it now. Sound is working without any issues and I didn't have to copy the kext over from Lion.

    However if you try and boot with an nVidia 7300GT (the one that came with the original 1,1's) ML will not boot, even if it's part of a dual card setup.

    I have a stock pc (un flashed) ATI 6870 in slot 1, which works, but having the 7300GT in too got around 2 problems with Lion: lack of dual DVI monitor support on the 6870 alone (monitor 1 in 6870, monitor 2 in 7300), and games/dvd player crashing (Diablo 3 worked without issue!)

    Taking the 7300 out got the system to boot, but now I'm back to single monitor and DVD Player/Steam games crashing. I'm thinking the hdmi/miniDP's will work for the second monitor, but I'd appreciate any help on the other issue, as any google searches always return results for hackintosh setups. I'm doubtful copying the nVidia kexts over from Lion will work as they're 32bit...

    I checked activity monitor and kernel_task shows up as 64bit (not sure if this is a good way to tell if the kernel is running 64bit though).

    Thanks.

  5. macrumors regular

    rezzo

    Joined:
    Jun 12, 2006
    Location:
    Chile
  6. macrumors member

    Guru101011

    Joined:
    Jun 23, 2010
    #6
    Hi,

    Thanks for the guide.

    Is it possible i can put Mountain lion as an upgrade? or do i have to do a fresh restore?

    Thanks in advance

  7. macrumors newbie

    Joined:
    Jul 10, 2012
    #7



    i just tried this on my mac pro 1.1 and it got all the way to the end and said an error has occured couldnt restart..... im trying the install again right now also how do i copy the plist file in terminal???

  8. macrumors newbie

    Joined:
    Jul 10, 2012
    #8
    same error again.... the exact error is
    The Installer could not start up the computer from the disk Macintosh HD try selecting your disk using the startup utility.... i did that and it says it can't bless it...

  9. thread starter macrumors newbie

    Joined:
    Jul 13, 2012
    Location:
    China
    #9
    i didn't try but i guess you can.

    open Terminal in Utilities Menu, then enter
    Code:
    cp /System/Library/CoreServices/PlatformSupport.plist /Volumes/[Installation target]/System/Library/CoreServices
    you may restart your computer manually if everything is fine except restarting.

  10. macrumors newbie

    Joined:
    Jul 10, 2012
    #10
    when i try to restart manually it does not allow it.... it flashes O with a slash through it...

  11. JBasco20, Jul 15, 2012
    Last edited: Jul 15, 2012

    macrumors newbie

    Joined:
    Jul 10, 2012
    #11
    ok i got it working and now the only problem i have is the back to my mac keeps telling me incorrect password but it took the password for everything else..... any idea's? Also facetime says it encounters an error during registration

  12. macrumors newbie

    Joined:
    Mar 31, 2012
    Location:
    Derby, England
    #12
    Hi, I followed the guide to get me to the desktop, installed the audio kext, now i'm struggling to get the graphics to work (i know it doesn't work properly, i just want system profiler to acknowledge it's more than 64mb). Any help with this?

  13. dgarratt, Jul 16, 2012
    Last edited: Jul 17, 2012

    macrumors newbie

    Joined:
    Jul 16, 2012
    #13
    MacPro2,1

    Hi Friends,

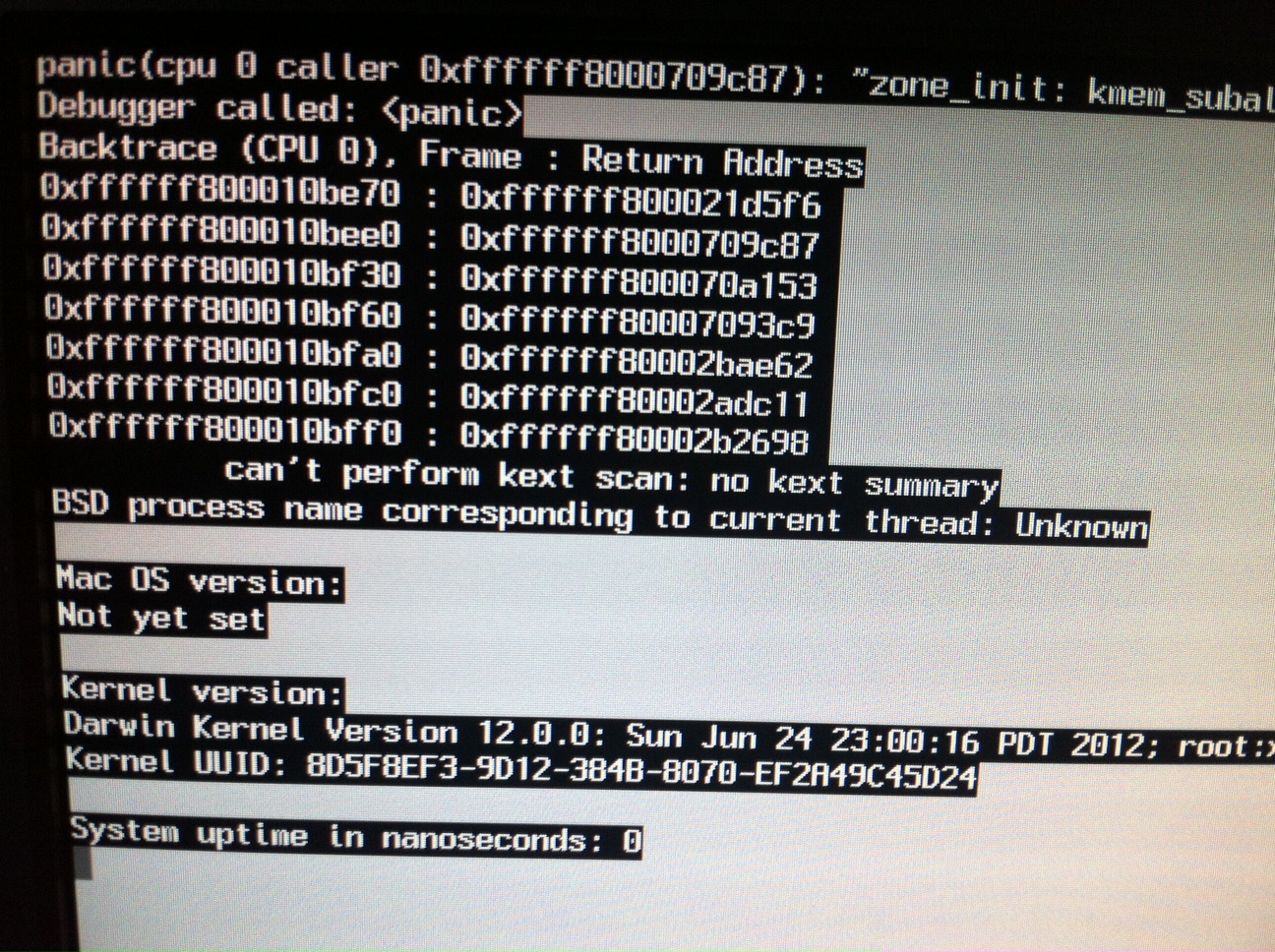

    I followed the guide to a T on my MacPro2,1 and when I attempted to boot from my installation source (flash drive) it started to boot and then...kernel panic :-(

    Any ideas anyone?


    UPDATE: Found the problem...I have 16GB of ram in 4GB sticks in my system. After I removed all but 1 stick leaving me with 4GB of ram it worked! However after the install finished I tried putting all of my ram back in but ran into the same problem (kernel panic). Seems the solution above works however it limits the amount of ram you can have. Would this have something to do with the patched boot.efi file?

    I hope this problem can be solved.

    Interested to hear others opinions....cheers-


    Attached Files:

  14. macrumors newbie

    Joined:
    Jul 17, 2012
    #14
    Would be able to post where you found the 64bit 3100 driver and the hda.kext? I can't seem to find the correct files. Thanks!

  15. coolio2004, Jul 17, 2012
    Last edited: Jul 17, 2012

    macrumors newbie

    Joined:
    Aug 2, 2011
  16. macrumors newbie

    Joined:
    Jul 17, 2012
    #16

    Same kernel panic as my MacPro 2,1 (Modified from 1,1) with 16GB ram.
    I tried more than 5 times with the same result.

  17. macrumors newbie

    Joined:
    Sep 21, 2007
    Location:
    Netherlands
    #17
    With the help of this post I've tried to install ML on a Macbook2,1 and it works except for iWork. Pages/Keynote and Number give the same error in Console and won't show any text.

    Console error:
    invalid pixel format

    I've searched the internet and it looks like it's a problem if you don't have accelerated graphics. Too bad because the rest of ML works "without problems" only slow.

  18. macrumors newbie

    Joined:
    Jul 17, 2012
    #18
  19. macrumors newbie

    Joined:
    Jul 16, 2012
    #19
    Please let me know if you come across a solution, I feel it would be a reasonably easy fix for someone technically minded in this area.

  20. dead.xx, Jul 18, 2012
    Last edited: Jul 19, 2012

    thread starter macrumors newbie

    Joined:
    Jul 13, 2012
    Location:
    China
    #20
    it might has something to do with the patch. so i made 3 new patches for this case. but i can't test them myself. please test them and report the result.
    thanks in advance.

    Update: the new patches has been tested and none of them work

  21. macrumors newbie

    Joined:
    Jul 16, 2012
    #21
    Thanks heaps, I'll be in a position to give this a try this time tomorrow.

    Will post the results.

  22. andyyau, Jul 18, 2012
    Last edited: Jul 18, 2012

    macrumors newbie

    Joined:
    Jul 17, 2012
    #22
    I am trying now. Please wait...


    update: 0c and 04 will display a prohibition sign at system boot up. 01 will cause the same kernal panic.
    So none of them work....

  23. dgarratt, Jul 18, 2012
    Last edited: Jul 18, 2012

    macrumors newbie

    Joined:
    Jul 16, 2012
    #23
    My tests came to the same conclusion..all of my tests suggest it must have something to do with the configuration in the boot.efi file.

    Hope this helps...I feel we're close.

  24. Seth Mac Fan, Jul 18, 2012
    Last edited: Jul 18, 2012

    macrumors regular

    Joined:
    Jul 18, 2012
    #24
    Only if they had a way to run it on a G5 lol , I do think it is not fair of apple to discontinue support for older intel macs .I mean those ones from 2006 should be completely capable of running mountain lion and future versions YEARS ahead from now . They where and are very good machines it does not make since . ohh well . I plan on getting a mini early next year so it will have mountain lion from the start . Still I wish I could at least run lion or snow leopard on a G5 . If you have a intel mac from 2006 and you want to run a current operating system you could always put the very good ubuntu on it is really a good alternative for those older machines and if your a mac user it is a very easy to get used to . If you do not like ubuntu there are many alternatives such as linux mint , kubuntu , or the mac look a like pear os . Pear OS is probably the most similar to mac as you can get when using linux give it a try you might like it , best of all these operating systems are free .

  25. macrumors 6502a

    Senseotech

    Joined:
    Nov 23, 2009
    Location:
    Wilkesboro, NC
    #25
    As the owner of two dropped macs, I can safely say it makes perfect sense to drop these machines. The dropped machines either lack a 64-bit EFI or have no GPU drivers that are 64-bit. Rather than maintaining two kernels, two sets of kexts, two disparate OSs, one 32 and one 64, Apple would rather focus on a single code base and improving it. Would it be nice if my two older macs could run it? Of course! Do I understand that in order to move forward, some things may need to be left behind? You bet. At the end of the day, my machines STILL do more now than they did when I bought them, so in my opinion, that's a win.
