'No Entry' Sign after install new SSD

Discussion in 'Mac mini' started by desaturated, Jan 7, 2013.

  1. macrumors newbie

    Joined:
    Nov 27, 2008
    #1
    Hi gurus,

    I just got myself a crucial M4 and replaced the default HDD. my steps are:

    - format the SSD externally using usb 1st, erase and format 1 partition in journal extended.
    - Prepared my mountain lion thumbdrive using the correct step (it works on my other mac)
    - replaced the default HDD with my new SSD.
    - Boot OS with option key holding.
    - only my mountain lion flash drive appear. So i selected.
    - it straight away give me a "no entry sign", not even an apple logo.

    May i know what went wrong?

  2. macrumors 6502

    Joined:
    Jul 5, 2011
    Location:
    the corner of Fire and Brimstone
    #2
    What computer? What version of ML?

  3. macrumors 6502a

    Joined:
    Jul 13, 2011
    Location:
    Mississippi
    #3
    You can't install on your USB, that's the installer. Tear your mac mini back apart and make sure the hard drive (SSD) cable is seated properly. You should see some other sort of drive when you boot off the Option key. If you don't see it, it's not installed (hardware wise) properly.

  4. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #4
    hi the version is 10.8.2, i just got my mac mini yesterday.

    ----------

    could it be because i formatted the SSD externally previously? i check my cable it actually fitted firmly.

    Also i check my SSD using usb cable, it actually detected correctly as an external drive.

  5. macrumors 6502a

    Joined:
    Jul 13, 2011
    Location:
    Mississippi
    #5
    Did you Erase it or did you Partition it? Make sure you partition it with the GUID option selected under Options in Disk Utility. Most drives come with a Windows boot/file system. The drive needs to be partitioned (one big one or whatever you want) but, the first partition need to be GUID enabled.

  6. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #6
    Thanks I will try that out when i get home. Will keep this post updated :)

  7. macrumors 6502a

    ybz90

    Joined:
    Jul 10, 2009
    #7
    This is my guess to the problem as well.

  8. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #8
    hey guys my mac mini still couldn't recognize my SSD. :(

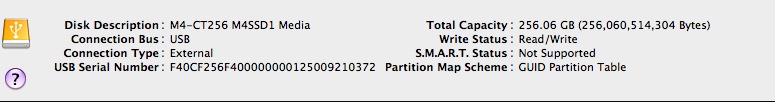

    below is the screenshot that i format it externally.

    [​IMG]

  9. macrumors 6502a

    Joined:
    Jul 13, 2011
    Location:
    Mississippi
    #9
    The only thing I can tell from here is a bad cable inside the Mac mini. It works with USB so, something inside is not working.

  10. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #10
    i actually tried putting the original HDD back. It is working fine, only couldn't detect my SSD :(

    Any place i can get the cable?

    ----------

    i was wondering could it be the firmware? but mine is up to date, which is 040H

  11. macrumors 68030

    fhall1

    Joined:
    Dec 18, 2007
    Location:
    NY State of mind
    #11
    If it detected your original HDD when you put it back in, the cable is fine.

  12. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #12
    so what am i suppose to do now? my SSD is fine, my cable is fine, the firmware is most up to date, my mac mini is brand new.

    Could it be the sata controller? the controller that i use to format my SSD is sata2 controller. While the mac mini is using sata3?

  13. macrumors member

    Joined:
    May 4, 2012
    Location:
    Massachusetts
    #13
    You cannot install 10.8.2 on a 2012 Mac Mini from USB it will not recognize the Mac Mini because it needs a special version of 10.8.1 installed first. The same thing happened with my new Mini and SSD. You will need to run internet recovery to get the OS reinstalled on the SSD. Boot with the SSD installed and hold down the Command-R key to begin recovery. When you see the Spinning Globe with a progress bar go watch a movie in the other room because it will take some time to complete. The Circle with the cross means it could not find any bootable media and it refuses to boot off the USB. I tried for an hour it will not work. Rumor is once 10.8.3 comes out you will be able to install off USB again on the 2012 Mini.

  14. macrumors 6502

    Joined:
    Jul 5, 2011
    Location:
    the corner of Fire and Brimstone
    #14
    This is correct

  15. macrumors 65816

    cocacolakid

    Joined:
    Dec 18, 2010
    Location:
    Chicago
    #15
    Jim is right, you have to do a fresh install through the recovery or at least install 10.8.1 first because there is a specific 2012 mini-only version of 10.8.2. Just follow his directions and you'll be fine.

  16. macrumors 6502a

    Joined:
    Jul 13, 2011
    Location:
    Mississippi
    #16
    Ahh, I don't have experience with the 2012s yet.

    OP I apologize for my ignorance.

  17. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #17
    hey guys thanks for the replies.

    Before that i actually tried using internet recovery. the wifi can never find my signal even-though the router is just beside. tried using ethernet and no luck either. Anyway my mac found no drive detected as well

    Anyway i have put back the original HDD. Now transferring everything to my new SSD externally using carbon copy cloner.

    Will that solve the problem?

    P.S. Because of this problem, now i am super quick in tearing mac mini. from the start of 30mins to around 7mins now.. lol..

  18. macrumors 65816

    cocacolakid

    Joined:
    Dec 18, 2010
    Location:
    Chicago
    #18
    What do you mean "no luck" using ethernet and internet recovery? "No drive detected" either means the SSD isn't formatted or it's dead.

    --
    Some SSD's have given me problems cloning them externally and then installing them, but not all are the same. Good luck.

  19. macrumors 65816

    randy98mtu

    Joined:
    Mar 4, 2009
    #19
    I have used both methods with Crucial m4's. I now have M4's in both my MBP's and my 2012 Mini. On one of the MBP's I did CCC and it worked fine. On the other two I did internet recovery and started fresh. No problems with any of them. Hopefully you are able to get it working.

  20. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #20
    hi guys,

    after copied everything using CCC, mac mini can finally detect my SSD! :D

    The only problem is the boot time is slower than my 5200rpm HDD? It take about 30 sec for the apple logo to appear. i tested my drive using black magic disk speed test, the test is good tho. 250mb write, 500mb read.

  21. macrumors 6502a

    Joined:
    Nov 29, 2011
    Location:
    Southern Cal
    #21
    Check startup drive setting in system preferences. Make sure SSD is selected.

  22. thread starter macrumors newbie

    Joined:
    Nov 27, 2008
    #22
    Thanks i will check it out.

    I am not a fan of cloning too, always preferred fresh install to new drive. But my ISP keep blocking port of -4403f. Thus i was unable to use internet recovery.

  23. macrumors 6502a

    ybz90

    Joined:
    Jul 10, 2009
    #23
    Glad to see CCC worked fine, but I personally recommend a fresh install when using SSDs.

  24. macrumors member

    Joined:
    Mar 24, 2011
    #24
    I had issues installing my ssd, when I connected the sata cable to the second connector my ssd wouldn't boot, but when I replaced it and put it in the HDD position it worked

    Did anyone have similar problem?
