Opening up a g3 iMac - HELP

Discussion in 'Buying Tips and Advice' started by sreedy, Oct 19, 2005.

  1. sreedy macrumors 6502a

    Joined:
    Feb 24, 2005
    Location:
    Somerset
    #1
    People,

    I'm having issues with my g3 iMac, it won't start, and I think it might be down to the power supply.

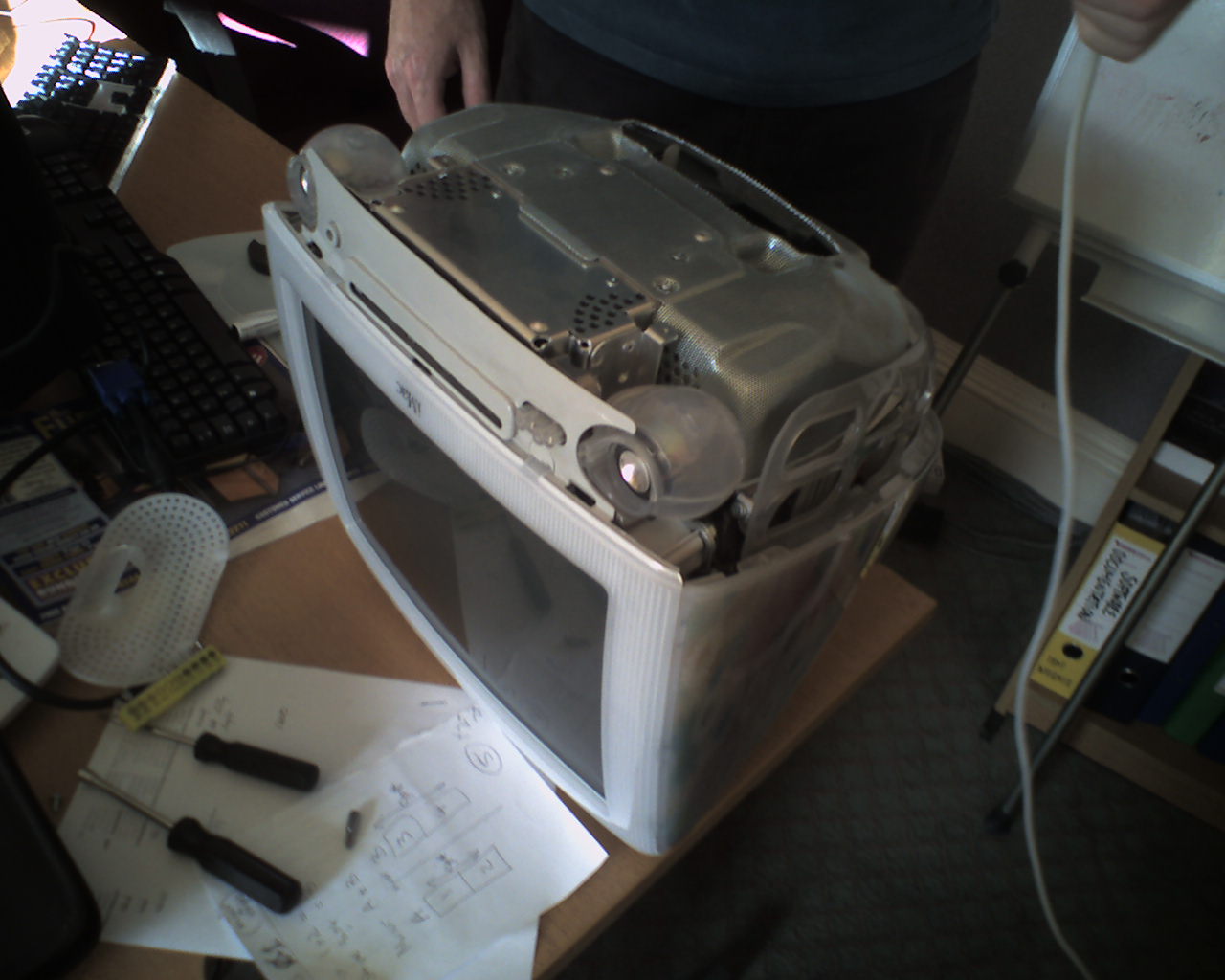

    So I've opened it up, taken off the base and now I am stuck on how to get anyone of it off, anyone help?

    Steve


    Attached Files:

  2. gwuMACaddict macrumors 68040

    gwuMACaddict

    Joined:
    Apr 21, 2003
    Location:
    washington dc
    #2
    no help, but everytime someone tries to take one of those apart, it makes me think of the movie zoolander- hahaha

  3. Jigglelicious macrumors 6502

    Jigglelicious

    Joined:
    Apr 25, 2004
    Location:
    NYC
    #3
    Check out the Apple Service Manuals on THIS site. They should come in handy, and thats what I used to take apart my iMac to replace the hard drive and get access to the motherboard to overclock it. Good luck!

  4. sreedy thread starter macrumors 6502a

    Joined:
    Feb 24, 2005
    Location:
    Somerset
    #4
    Awesome that worked a treat!

    Now I just have to get testing the power to see where it's dead.... got the 3 volt LED on the board on so I have got some power at least!

  5. sreedy thread starter macrumors 6502a

    Joined:
    Feb 24, 2005
    Location:
    Somerset
    #5
    Update

    hhhhmm I've opened it up and done some electrical trouble shooting and basically although I have power I am about 30% down on what I need. For example the hard drive is getting 9v instead of 12v which means it won't spin up..... I've connected it to a windows box and given it 12v and off it goes.

    Fuse is OK.... I have reset the PMU

    Anyone know why this could be/ got a bright idea?
