Photo of iPad 3 Logic Board with "A5X" System on a Chip

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Feb 19, 2012.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]

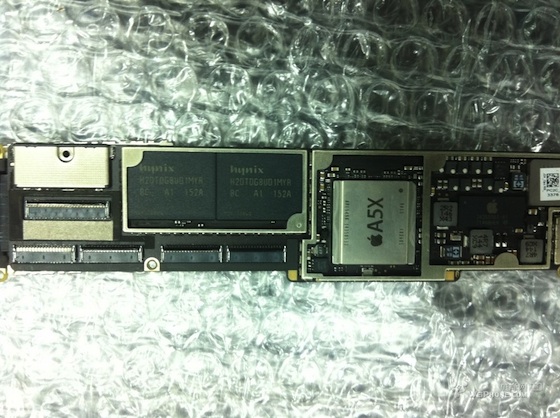

    A forum post at Chinese site WeiPhone offers a photo of what is claimed to be the iPad 3's logic board showing an "A5X" system-on-a-chip.

    Apple is expected to introduce an upgraded processor and graphics package for the iPad 3, with the assumption being that it would be called the A6 after the A4 initially appeared in the original iPad and iPhone 4 and was succeeded by the A5 in the iPad 2 and iPhone 4S. But if this photo is to be believed, that assumption appears to have been incorrect, with Apple instead having branded the upgraded package with the A5X name.

    [​IMG]


    Click for larger
    A date code of "1146" on the A5X indicates that it was manufactured in the 46th week of 2011, which would have corresponded to November 14-20.

    An "A5X" as a step-wise upgrade to the A5 corresponds with progression of processor part numbers as revealed by BGR in February. At the time the A4 was known to be the S5L8930X, the A5 as the S5L8940X and the new iPad processor as S5L8945X.

    Several other features are also visible on the logic board, including a pair of 16 GB flash memory chips from Hynix and a rectangular Apple-branded chip. That chip appears to correspond to power management chips found in previous iPad teardowns but which carries a higher part number, suggesting an upgraded part.

    Apple is expected to introduce the iPad 3 at a media event on March 7, with the device also receiving an ultra high-resolution display and LTE capabilities. Other claims have suggested that it will carry a slightly more tapered case design and perhaps offer an 8-megapixel rear camera.

    Article Link: Photo of iPad 3 Logic Board with "A5X" System on a Chip

  2. macrumors member

    Joined:
    Sep 11, 2011
    #2
    Then it's probably just going to be a higher clocked dual-core, probably at 1.5GHz or higher. Maybe the GPU will be quad-core?

  3. macrumors 68020

    Joined:
    Jun 9, 2009
    Location:
    SI, NY
    #3
    Not that i don't enjoy this (because i really enjoy this :D) but Why are there so many leaks? i don't think there were this many last year.

    Regardless this is very cool

  4. macrumors demi-god

    xraydoc

    Joined:
    Oct 9, 2005
    Location:
    192.168.1.1
    #4
    "If its not a quad core A6 then I wont buy it" complaints commence in 3... 2... 1...

  5. pmz
    macrumors 68000

    Joined:
    Nov 18, 2009
    Location:
    NJ
    #5
    Maybe it's a dual core A15 that has been branded A5X. Makes sense to me.

  6. macrumors 6502

    whoathere

    Joined:
    Feb 8, 2006
    Location:
    Rockford, IL
  7. macrumors Core

    miles01110

    Joined:
    Jul 24, 2006
    Location:
    The Ivory Tower (I'm not coming down)
  8. macrumors regular

    Macopotamus

    Joined:
    Jun 22, 2010
    #8
    Looks legit to me, unless it's a prototype of course. A5X... would that suggest quad core A5 or just an overclocked A5? If it's a prototype, maybe it's just the code name?

    I suppose the real question to ask would be if the A5 chip is sufficient to power all these new (rumored) features we keep hearing about. The retina display is going to create a surge of image and video editing apps, and you need quite a bit of power and RAM to manipulate HD video and high res images.

  9. macrumors 6502

    wickerman1893

    Joined:
    Dec 16, 2008
    #9
    Sounds like this thing is gonna have some serious power under the hood. I like!

  10. macrumors 68040

    Cynicalone

    Joined:
    Jul 9, 2008
    Location:
    Okie land
  11. macrumors 68020

    Joined:
    Sep 12, 2009
    #11
    iPad 3.

  12. macrumors 68040

    neiltc13

    Joined:
    May 27, 2006
    #12
    Does Apple actually print "A4" or "A5" on existing chips?

  13. macrumors 65816

    DTphonehome

    Joined:
    Apr 4, 2003
    Location:
    NYC
    #13
    Wirelessly posted (Mozilla/5.0 (iPhone; CPU iPhone OS 5_0_1 like Mac OS X) AppleWebKit/534.46 (KHTML, like Gecko) Version/5.1 Mobile/9A405 Safari/7534.48.3)

    Who cares what they call it. I'm certain it'll be a beast, and that's all that matters.

  14. macrumors 65816

    Joined:
    May 20, 2008
    #14
    yes

  15. PBP
    macrumors 6502

    PBP

    Joined:
    May 13, 2011
    #15
    Sooo a faster dualcore then.
    *preorders cancelled :D

    ;)

  16. macrumors 68040

    Cynicalone

    Joined:
    Jul 9, 2008
    Location:
    Okie land
    #16
  17. macrumors 6502a

    Joined:
    Nov 9, 2010
    #17
    Holiday season

    I think one should consider that the iPad has to "survive" the next holiday shopping season, because I'm sure there will be no additional iPad this year.

    So, I'll bet it will be ahead of the competition by a large factor.

    On the other hand, just imagine you want to start shipping these in just a few weeks. They need time to produce them, so the first batch for the shops has already been produced weeks ago...

    Meaning that the specs, including the contracts with suppliers, are much older ...

  18. macrumors regular

    Joined:
    Jun 20, 2003
    Location:
    pittsburgh
    #18
    i'm geting most things i want. i'd like to see 2 64gb memory chips from hynix.

  19. macrumors 6502a

    djrod

    Joined:
    Sep 16, 2008
    Location:
    Madrid - Spain
    #19
    Wirelessly posted (Mozilla/5.0 (iPhone; CPU iPhone OS 5_0_1 like Mac OS X) AppleWebKit/534.46 (KHTML, like Gecko) Version/5.1 Mobile/9A405 Safari/7534.48.3)

    Time to get all the parts and create a build yourself iPad kit

  20. macrumors 6502a

    Jobsian

    Joined:
    Jul 30, 2009
  21. macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #21
    I like these all these "leaks". It usually means something's about to come out :)

    Maybe the A5X is just a prototype chip?

  22. macrumors 68000

    deannnnn

    Joined:
    Jun 4, 2007
    Location:
    New York City & South Florida
    #22
    Any redesigned Mac Book Pros hanging around with all these iPad 3 parts? ;)

  23. macrumors 603

    nfl46

    Joined:
    Oct 5, 2008
    #23
    iPad 2HD coming in March 2012. iPad 3 coming in 2013 with a new design.

  24. PBP
    macrumors 6502

    PBP

    Joined:
    May 13, 2011
    #24
    Even if it's a faster dualcore i don't care. It's the RAM,camera's and the display what needed an upgrade

  25. macrumors 6502

    Menopause

    Joined:
    Feb 26, 2011
    #25
    The concept you happily believe in ("quad core is better than dual core") is weak and flawed.
