Photos of Claimed New 15-Inch MacBook Pro Logic Board Show NVIDIA GT 650M, Retained Layout

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Jun 10, 2012.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    M.I.C. gadget points to a pair of posts from Chinese forum WeiPhone.com showing portions of what is claimed to be the logic board and graphic hardware from the next-generation 15-inch MacBook Pro set to be introduced tomorrow.

    [​IMG]

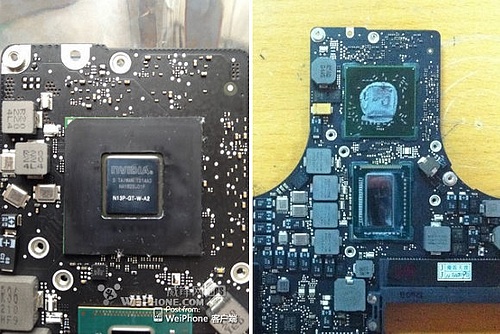

    New MacBook Pro logic board with NVIDIA GeForce GT 650M (left) and current MacBook Pro logic board (right)
    The images show an NVIDIA GeForce GT 650M graphics chip and 1 GB of GDDR5 graphics memory, which many have expected would make an appearance in the new MacBook Pro. Interestingly, the posters have also compared the leaked photos with the logic board of the current MacBook Pro, finding the layouts to be nearly identical all the way down to the screw holes on the board.

    [​IMG]

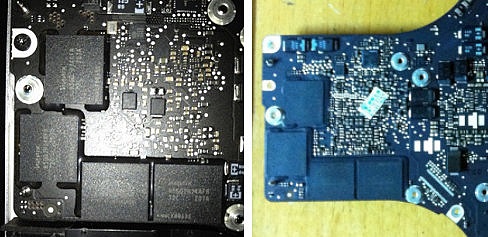

    New MacBook Pro logic board with 1 GB GDDR5 graphic memory (left) and current MacBook Pro logic board (right)
    One of the reports also claims that the new 15-inch MacBook Pro will arrive with 2.3 GHz and 2.5 GHz chip options on stock models, with a 2.7 GHz chip available as a high-end custom configuration. The exact chips to be offered are not detailed by the poster, but some attempts at matching up to Intel's Ivy Bridge offerings can be made.

    At the 2.3 GHz level, Apple would have its choice of the Core i7-3610QM or Core i7-3615QM. For a 2.5 GHz chip, the only appropriate Ivy Bridge processor currently available is a dual-core Core i5-3210M, which would actually be the low-end chip. And at the high end, Apple would apparently be offering the Core i7-3820QM as had been seen in benchmarks that appeared last month.

    Apple has been widely rumored to be introducing a redesign MacBook Pro with a Retina display and a thinner profile. But if the leaked photos are genuine they may indicate that no redesign of the body is forthcoming, as Apple would be expected to make significant changes to the logic board to accommodate rearranged internals in a thinner enclosure.

    An alternative explanation relates to claims put forth late last week by KGI Securities analyst Ming-Chi Kuo, who indicated that a thinner, Retina-capable Mac notebook would appear as a third member of the MacBook family with Apple continuing to offer the existing MacBook Pro alongside the new model for the time being. In that case, these leaked photos could represent the updated version of the current MacBook Pro with the new notebook still remaining under wraps.

    Article Link: Photos of Claimed New 15-Inch MacBook Pro Logic Board Show NVIDIA GT 650M, Retained Layout

  2. macrumors 68020

    Comeagain?

    Joined:
    Feb 17, 2011
    Location:
    Spokane, WA
  3. macrumors regular

    Joined:
    Oct 16, 2011
    Location:
    New York
  4. macrumors 6502

    Joined:
    Dec 4, 2007
    #4
    "Apple has been widely rumored to be introducing a redesign MacBook Pro with a Retina display and a thinner profile. But if the leaked photos are genuine they may indicate that no redesign of the body is forthcoming, as Apple would be expected to make significant changes to the logic board to accommodate rearranged internals in a thinner enclosure. "

    No no no! Don't let it be true!

  5. macrumors 68000

    wikus

    Joined:
    Jun 1, 2011
    Location:
    Planet earth.
    #5
    That pretty much puts all the rumors of a macbook pro redesign to rest. Looks like the optical drive will continue to be used.

    Glad I didn't do anything with my 15" Sandybridge MacBook Pro, I had plans of selling and upgrading but now theres even less incentive to do so.

  6. macrumors 603

    appleguy123

    Joined:
    Apr 1, 2009
    Location:
    15 minutes in the future
    #6
    Looks like all the hopes of a redesign are unfounded. We didn't really have any solid evidence for it anyways. Just analysts and wishes.

  7. macrumors regular

    Joined:
    Feb 25, 2011
    #7
    Would the logic board have to be rearranged for the mbp to be made thinner?

  8. macrumors 6502

    Joined:
    Mar 19, 2011
    Location:
    Toronto, Canada
  9. macrumors 68020

    Prodo123

    Joined:
    Nov 18, 2010
    #9
    By where the screw holes are, they're not doing a redesign of a MacBook Pro.
    Yet.
    If it ain't broke, why fix it?

  10. gatortpk, Jun 10, 2012
    Last edited: Jun 10, 2012

    macrumors 6502

    Joined:
    Nov 25, 2003
    Location:
    Melbourne, FL
    #10
    Why couldn't the current Unibody MacBook Pro with this logic board have a Retina Display?

    If this is real, I certainly hope this is simply an updated Logic Board for the current MacBook Pros with the addition of Retina Display.

    If there is a New MacBook logic board, then this isn't it, and we still may see a thinner Unibody MacBook with a Retina display also.

  11. macrumors 6502

    Rudy69

    Joined:
    Mar 30, 2009
    #11
    I have a hard time seeing how a Retina Macbook would fit in the current product line. If it's true, I don't see why someone would purchase a non retina macbook

  12. nagromme, Jun 10, 2012
    Last edited: Jun 10, 2012

    macrumors G5

    nagromme

    Joined:
    May 2, 2002
    #12
    Three lines of laptops seems really odd (though I suppose it could be a temporary transition... an omelet that requires breaking eggs).

    If the MacBook Pros keep the same basic design (as suggested here) then maybe all the NEW machines will be branded as Airs.

    in other words, maybe instead of “thin Pros” we’ll get “fat Airs”? The Airs will be as slim as ever on the low end, but new higher-end Airs will have Pro-level power (retina too) while the old Pros (maybe keeping the DVD even) get a spec boost to serve during the rest of this transition.

    And then later (6-12 months?) these new Pros get discontinued, and only the high-end Airs remain: same full power, not as thin as the low-end Airs, but still very thin and no DVD. Probably no more 17” if they truly don’t sell. (At which time, I can see “Air" being dropped from the name, and they might all just be “MacBooks”.)

    I’d bet that low-end (11-13”) Airs don’t get retina displays yet—but eventually they will.

  13. macrumors 603

    appleguy123

    Joined:
    Apr 1, 2009
    Location:
    15 minutes in the future
    #13
    It would be a logistical nightmare to keep the logic board exactly the same and redesign the computer to be significantly thinner, and let's not even mention a possible removal of the optical drive.

    If this board be real, there's no redesign. That's it.

  14. macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Los Angeles Area
    #14
    you sound like that samsung commercial :p

  15. macrumors 65816

    myrtlebee

    Joined:
    Jul 9, 2011
    #15
    Not happening- why would the new MacBook have a better display than a Pro machine? Somethin's a brewin' for tomorrow, but not that...

  16. macrumors G3

    QuarterSwede

    Joined:
    Oct 1, 2005
    Location:
    Colorado Springs, CO
    #16
    Price. Same reason the 13" MacBook existed while the 13" MacBook Pro was added.

  17. macrumors 68000

    Joined:
    Jan 18, 2011
    #17
    if they don't bring retina to the pro that will be a major let down.

  18. macrumors 6502a

    DrJohnnyN

    Joined:
    Jan 27, 2010
    Location:
    California and Texas
  19. macrumors 68020

    Joined:
    Jul 8, 2006
    Location:
    California
    #19
    Why would Apple go back to using NVIDIA GPUs instead of sticking with AMD? What are the advantages and disadvantages of using the next-gen GPU of either manufacturer?


    ----


    *Full disclosure, I am currently holding a long position in AMD.

  20. macrumors 68000

    Joined:
    Apr 13, 2010
    Location:
    Into the lungs of Hell
    #20
    Honestly, I was expecting a redesign, but given that the aluminium unibody notebooks are simply excellent, I don't see why Apple would bring us a redesign.

    But nonetheless, I expected the optical drive to magically disappear as if it never existed. Looks like the magic is set for next year.

  21. macrumors member

    Joined:
    Jun 23, 2010
    #21
    This is gonna be the same kind of let down that the iPhone 4s was. All the hype for a big redesign, but it's actually just an incremental upgrade. So lame...

  22. macrumors 6502

    Joined:
    Jul 25, 2008
    Location:
    Richmond, Virginia
    #22
    These "day before" leaks tend to be true, so I'm pretty upset right now. I wanted a redesign! Maybe I should consider an iMac and an air instead of a new MBP. :mad:

  23. macrumors regular

    Joined:
    Apr 24, 2007
    Location:
    Iowa
    #23
    650M??

    BOGUS !!

    The 680M is like 800% better.

    Give us an option for the love !!!!!!!!

  24. macrumors 6502

    Joined:
    Jun 14, 2008
    #24
    How can a company that prides itself on innovation take so long to change the design of a laptop. This would be huge disappointment. This was one of the expected announcements, although I knew the claims that everything would be updated were
    fake. It's just not apples style. They like to draw things out.

  25. macrumors G4

    daneoni

    Joined:
    Mar 24, 2006
    #25
    Well thats unexpected but typical Apple. So much for all the hyped up rumours.

    How does the GT650M compare to the 6750M/6770M?
