Plotting three variable data in a triangular formation

Discussion in 'Mac Programming' started by serralves, Aug 29, 2007.

  1. macrumors newbie

    serralves

    Joined:
    Apr 28, 2005
    #1
    Hi, this might have to go in the software section but I wanted to start where people might have used what I am looking for!

    I want to plot values between 0 and 1 that are associated with three parameters - ie values f(p1,p2,p3) and it strikes me that the most visually informative way of presenting this is if I plot the data chromatically and on a triangle whose sides (left to right) represent the values of each of the parameters.

    Does anyone know of a mac os x program that would let me do this?

    Failing that, is there a name for these types of plots, so that I might look for extensions to MATLAB etc or check feature sets of graphing software? I know it is not a triplot (as available in R), since that marks the position of a point with respect to three variables, rather than assigning values to a dense three value parameter space...

  2. macrumors 6502a

    Joined:
    Sep 3, 2005
    Location:
    Cramlington, UK
  3. macrumors 68040

    MongoTheGeek

    Joined:
    Sep 13, 2003
    Location:
    Its not so much where you are as when you are.
    #3
    Take a look at Grapher. Its in the utilities folder. Its icon seems to be what you describe :)

  4. macrumors G4

    Eraserhead

    Joined:
    Nov 3, 2005
    Location:
    UK
    #4
    The problem here that he has a function from R^3 --> R (where I'm assuming R is the real numbers (though it could be something else)) which gives a total of 4 dimensions. However Grapher can only plot something in 3 dimensions. Grapher could plot f(x,y), but not f(x,y,z) unless f(x,y,z) happens to be constant, which doesn't appear to be the case here.

    Now you can create a four dimensional plot by using a clever trick, like the triangle, if the x,y and z values are bounded (i.e. they don't go off to infinity), or by using colour over the three dimensional plot to show the value of the fourth dimension, though that may not always work.

    However I would have thought you can do this in MATLAB or Mathematica, however I have no idea how you might go about it as I've never used Mathematica and the MATLAB graphing system is fairly horrible to use (I mostly use Grapher if I can as its much easier to use ;)).

    Mathematica may be better but I don't know if you have a copy of it, but either way it may be better to pose this question on a MATLAB or Mathematica forum. For MATLAB take a look here.

  5. macrumors 6502a

    Joined:
    Sep 3, 2005
    Location:
    Cramlington, UK
    #5
    Having re-read my post I realise what a useless contribution it was. My apologies!!!

    Here's a suggestion though, you could use OpenGL to draw a cube with each voxel coloured according to your function. You could then visualise your data by using clipping planes to look at slices through the cube.

    Hope that's a better attempt!

    b e n

  6. macrumors member

    cruzrojas

    Joined:
    Mar 26, 2007
    Location:
    USA
    #6

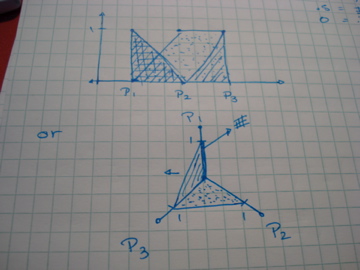

    I'm having trouble to understand how you want to do the plot, let me know if any of this two plots resemble a little bit what do you want. for the second one I have done that kind of plots on excell, the first one will not be too hard to do on MATLAB, you just have to write a plotting function and parse the parameters to it.

    EDIT: sorry the pictures are the other way around.


    Attached Files:

  7. macrumors newbie

    Joined:
    Aug 29, 2007
    #7
  8. macrumors member

    Joined:
    Dec 27, 2006
    Location:
    Missouri
    #8
    You beat me to it. I'd recommend SigmaPlot. It's a nice, easy to use interface, that has built in (though I've not used this feature) ternary plot functionality. It is much easier to create a nice looking plot with Sigma Plot than Mathematica or Matlab (I use both).

    This link is an example of what it can do: http://www.omatrix.com/spsamples/ternary.html

    Edit: Apparently there is no Mac version. Our license is a PC one. Sigh.

  9. thread starter macrumors newbie

    serralves

    Joined:
    Apr 28, 2005
    #9
    Thanks for all your replies.

    I've been away from an internet connection for a few days. I think what I originally had in mind when I posted was not actually possible - a 2D array of tessalating hexagons appropriately colour coded, but I will look at the options you have very kindly suggested.

    Many thanks,
    Matt

  10. thread starter macrumors newbie

    serralves

    Joined:
    Apr 28, 2005
    #10
    Actually, the MATLAB functions were exactly what I was after! These plots are going to look *so* beautiful... I'll try and post some next week, if anyone is interested.
