Power Mac G4 Quicksilver, Dual ADC Monitors?

Discussion in 'PowerPC Macs' started by CashGap, Sep 10, 2010.

  1. macrumors 6502

    CashGap

    Joined:
    Sep 15, 2007
    Location:
    Music City, USA
    #1
    Just picked up a minty Power Mac G4 Quick Silver and two ADC Studio Displays. I'd like to hookup both displays, but I only see one ADC port.

    What's my lease expensive dual ADC display option for this machine?

    THANKS

  2. thread starter macrumors 6502

    CashGap

    Joined:
    Sep 15, 2007
    Location:
    Music City, USA
    #2
    Pic

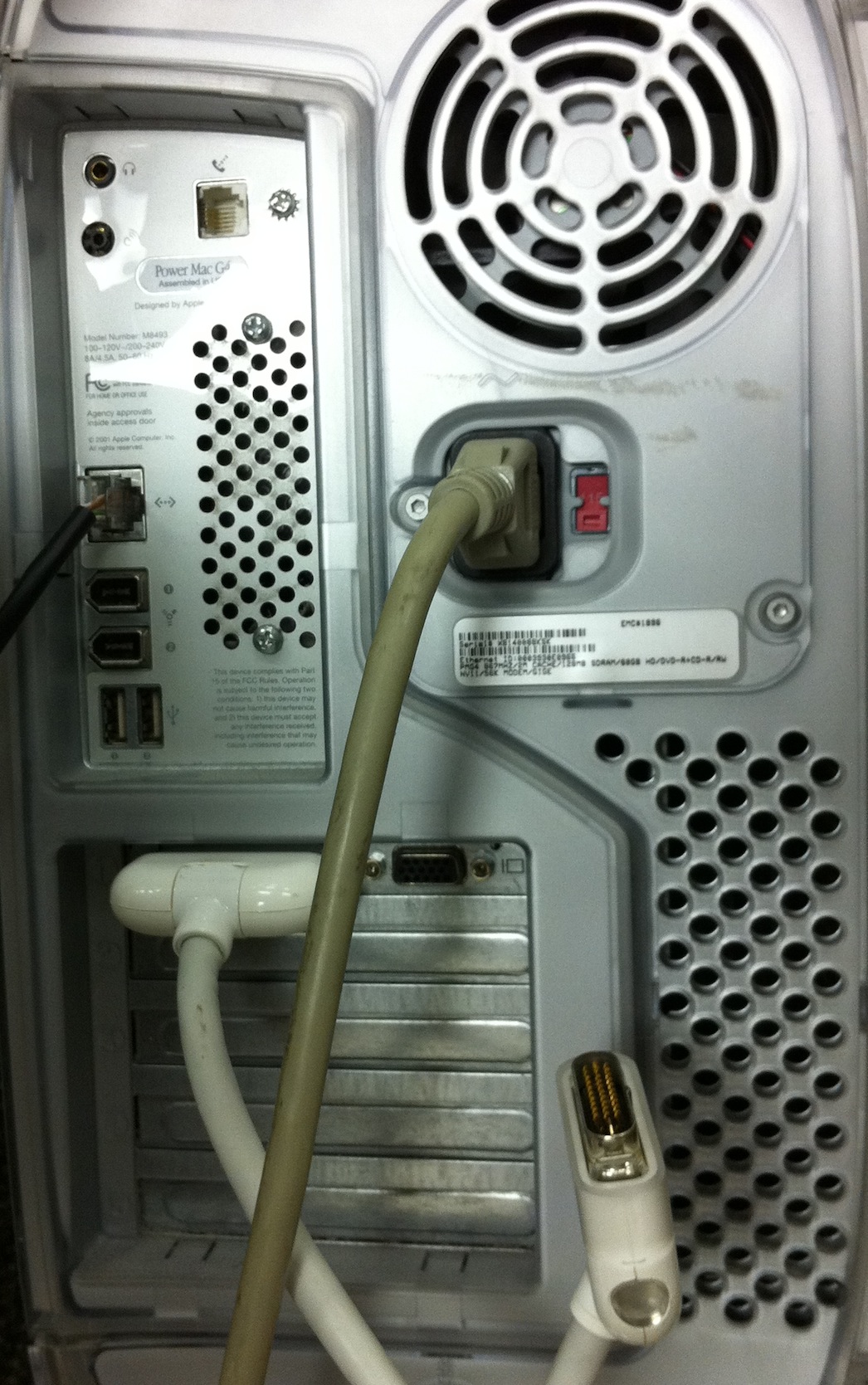

    Photo of the back


    Attached Files:

  3. macrumors 68000

    Hrududu

    Joined:
    Jul 25, 2008
    Location:
    Wichita KS
    #3
    Thats going to be tough. I think the only way I'm aware of is to buy a graphics card that has both ADC and DVI outputs. Then get a DVI to ADC adapter and use that from the DVI port. Not exactly easy or cheap, but it would work.

  4. macrumors 6502

    Joined:
    Feb 26, 2006
    #4
    I've never seen a graphics card with only one ADC port on. Are you sure there isn't a DVI or VGA port next to it too?

    If there's a DVI, Hrududu's right, you need the an Apple ADC/DVI converter, last price retail was about £69 (UK). It's effectively a power supply, as ADC not only provides the video signal, but also power too. DVI is video signal only, hence the large brick that comes with the ADC/DVI converter.

    There is a Formac version, but it's just as expensive if memory serves. Good luck!

  5. thread starter macrumors 6502

    CashGap

    Joined:
    Sep 15, 2007
    Location:
    Music City, USA
    #5

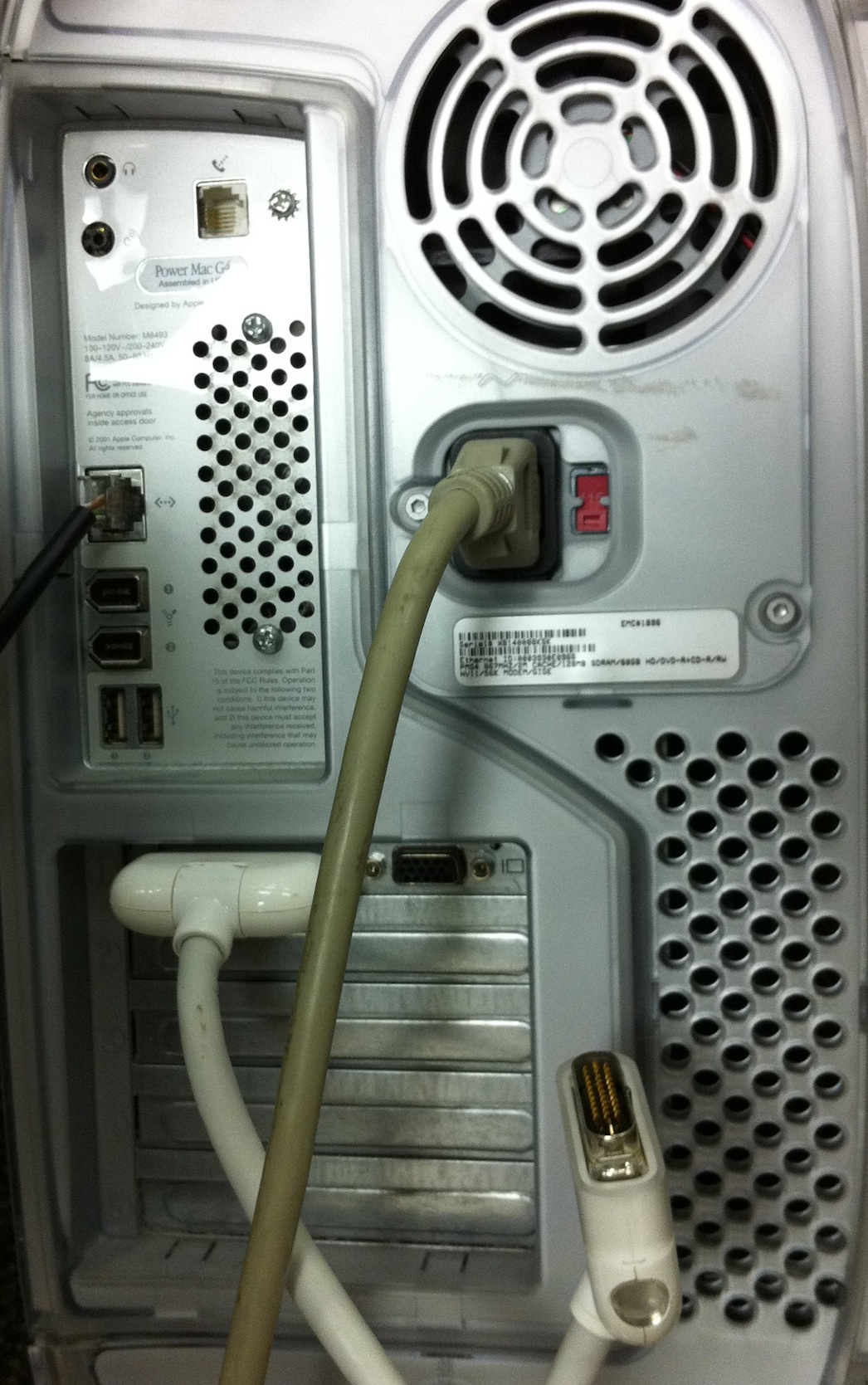

    Looks like VGA...

    Could I swap out for an ADC/DVI card and an adapter? What card should I look for?

    See attached.

    THANKS


    Attached Files:

  6. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #6
    G4 compatible ADC + DVI cards:
    - GF4 MX 32MB
    - GF4 MX 64MB MDD version (QS version had VGA)
    - GF4 Titanium 128MB
    - Radeon 9000 Pro 64MB
