replace ibook modem with _____ .... possible?

Discussion in 'Macintosh Computers' started by graydecember, Jul 9, 2004.

  1. macrumors member

    Joined:
    Jan 2, 2002
    #1
    hi. I got an 800Mhz ibook g4 a few months ago and would like to (especially) increase audio performance. Don't need the modem as I use wifi and ethernet exclusively (though I could take that out).

    In short, just looking to get some muscle out of that modem or enet slot I don't use- does anyone know of an 3rd party junk to put up in there that will at least be more useful than a 56k?!

    thanks!

    elliott

  2. macrumors G4

    Mord

    Joined:
    Aug 24, 2003
    Location:
    Old York
    #2
    the modem is part of the logic board so such a product cannot exist

  3. macrumors 68030

    crazzyeddie

    Joined:
    Dec 7, 2002
    Location:
    Florida, USA
    #3
    I don't know quite what you're going to accomplish by getting rid of the modem or ethernet, since those are actually on the motherboard of the iBook.

    If you want stellar external sound, check out this company: M-Audio They have great Firewire and USB sound systems with up to 7.1 Dolby Surround sound output and various inputs.

    There is no way to increase the capabilities of the internal sound card of the iBook.

  4. thread starter macrumors member

    Joined:
    Jan 2, 2002
    #4
    thanks!

    that's what I wanted to know. I thought I saw somewhere it was possible. Are you ceratin I can't just , you know, paste some stuff in there with glue or something?

  5. macrumors 65816

    Dr. Dastardly

    Joined:
    Jun 26, 2004
    Location:
    I live in a giant bucket!
    #5
    HA!

    no. :eek:

  6. macrumors 68000

    latergator116

    Joined:
    Sep 30, 2003
    Location:
    Providence, RI
    #6
    I beleive the modem on the iBook is detachable from the motherboard, but I don't know if you can replace it with anything.

  7. macrumors G4

    Mord

    Joined:
    Aug 24, 2003
    Location:
    Old York
    #7

    as an apple tech i can tell you it's on the logic board i have the service manual that shows this only on some powerbooks was there a detachable card but because of the slow speed of the connector you could only replace it with a serial port which isent that usefull for audio

  8. macrumors 6502a

    Finiksa

    Joined:
    Feb 23, 2003
    Location:
    Australia
    #8
    Not true most iBooks have a detachable modem card, I'm not sure if the earlier models did. The 16MB VRAM and up G3 iBooks use modem card part number 661-2676.

  9. macrumors G5

    Sun Baked

    Joined:
    May 19, 2002
    #9

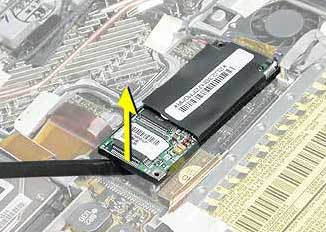

    It's an I2S modem, what I2S device are you planning on using?


    Attached Files:

  10. macrumors 6502a

    csubear

    Joined:
    Aug 22, 2003
    #10
    If you had alot of time. AND I MEAN ALOT. you could go make your own whatever useing a PIC microcontroller (www.microchip.com). They speak I2S (But i remember that lab being hard). AND you have to hack some sort of driver to interface the os to the new part in you frakenbook(not even sure if apple has put out docs for making I2S drivers for the southbridge). all and all sounds like a master thesis, or phd work for a EE. :)

  11. macrumors G4

    Mord

    Joined:
    Aug 24, 2003
    Location:
    Old York
    #11
    oh yhea whoops i said that it was on the mobo because i remember when i opened my ibook that it was on the mobo obiously i was mistaken. (now i'm off to study the service manuals)
