'Rogue' Series6XT Graphics for Future iOS Devices Detailed

Discussion in 'iOS Blog Discussion' started by MacRumors, Feb 24, 2014.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Back in January, Imagination Technologies announced its next-generation Series6XT graphic architecture, providing a glimpse at the graphics capabilities likely to make their way into Apple's future A-series chips. Apple, a minority investor in Imagination Technologies, has used the company's integrated graphics since the original iPhone back in 2007, with Apple's latest A7 chip using the G6430 Series6 graphics package.

    [​IMG]
    AnandTech has now published an in-depth look at the so-called "Rogue" architecture used in Imagination's current and upcoming graphics packages. The piece was made possible by Imagination taking a rare step to provide increased transparency about its technology as part of an effort to compare and contrast its offerings with NVIDIA's highly publicized Tegra K1 processor with 192-core Kepler graphics.
    The article is a fairly technical discussion of how GPUs in general and the Rogue architecture in particular function, but basically it outlines how Imagination is trying to redefine "cores" with respect to its designs. Imagination has historically described its graphics architectures in terms of Unified Shading Clusters (USCs), popularly referred to as "cores" as in the "quad-core" G6430. But with NVIDIA now advertising 192-core graphics, Imagination needs to show how its upcoming six-cluster GX6650 can equal or outperform NVIDIA's Tegra K1.

    Imagination lays out its case for emphasizing the use of more efficient but less powerful 16bit Arithmetic Logic Units (FP16 ALUs) over FP32 (32bit) ALUs in its Rogue pipelines, a move that actually makes for improved overall performance in mobile-focused settings. With the upcoming Series6XT, Imagination has placed even greater focus on FP16 ALUs, improving performance even more. MacRumors forum member chrmjenkins provides an excellent summary of what all of the technical details mean:

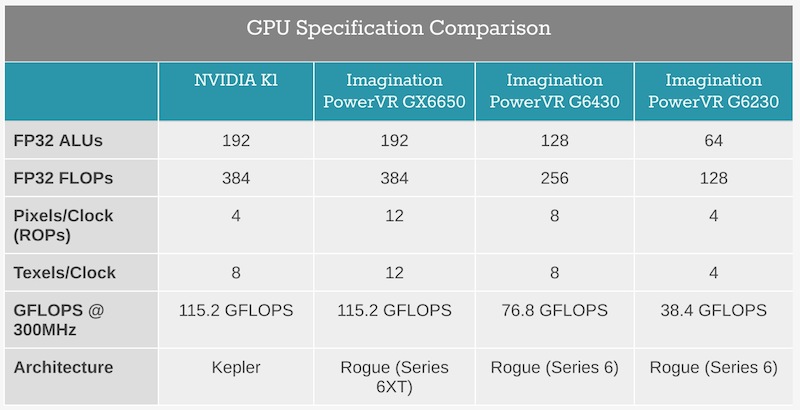

    AnandTech compares the specifications of GX6650 to NVIDIA's Tegra K1 and Imagination's G6430 from the A7 chip, showing the significant improvements possible for future iOS devices.

    [​IMG]
    As for when Apple will be able to bring the new Series6XT graphics to its iOS devices, historical data on intervals between announcement of new designs from Imagination Technologies and their implementations suggests that A9 chips in 2015 would be the most likely target, but it is possible that Apple could surprise and bring the new graphics to the A8 later this year. As shown in delivering a 64-bit architecture for the A7 last year, Apple has shown that it is able and willing to be aggressive in its chip designs, and as a significant investor in Imagination Technologies likely is able to press forward more rapidly than other licensees.

    Article Link: 'Rogue' Series6XT Graphics for Future iOS Devices Detailed

  2. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #2
    One key point is that there's a lot of other things that 6XT brings to the table not discussed here (and that ImgTec wouldn't divulge to Anandtech).

    ImgTec press release claims 50% performance bump over "previous generation architectures" and Anandtech talks about the improvements too.

  3. macrumors 601

    macduke

    Joined:
    Jun 27, 2007
    Location:
    Central U.S.
    #3
    That kind of performance is approaching last generation gaming consoles—in your pants.

  4. macrumors 68020

    teknikal90

    Joined:
    Jan 28, 2008
    Location:
    Vancouver, BC
    #4
    hopefully this well help my iphone to not lag on flappy bird when a text message comes in

  5. macrumors 65816

    VanillaCracker

    Joined:
    Apr 11, 2013
    Location:
    Washington D.C.
    #5
    Hahaha so true. Even the ads. make the game stutter for a second

  6. macrumors 6502a

    gto55

    Joined:
    Mar 14, 2010
    Location:
    Tel Aviv
    #6
    Great improvements, however the main issue of the smartphones from any brands is the battery.
    Apple could seriously hit the competition if they propose an iPhone with a technology allowing the phone to last 24 hours in intensive use with no charge

  7. macrumors 68030

    macs4nw

    #7
    Thinner and lighter is all very nice, but significantly longer battery life, even up to a week between charges, is indeed the as yet unfulfilled dream performance enhancement we're all waiting for.

  8. macrumors 6502a

    Joined:
    Jan 3, 2009
    #8
    Probably the key point is that they are focused on just mobile apps, not slim desktop designs squeezed into mobile apps. That effect on the overall product is going to be "well rounded" compared to Nvidia.

    The main thing you need 32 bit pipelines for is increaded depth, and less QA testing to prevent clipping. But mobile apps are not "Crysis" that just throws triangles and huge textures at the screen and hopes the video chip sorts them out.

  9. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #9
    Yeah, in the other thread I made the point that ImgTec is optimizing to mobile specific workloads which gives them a leg up on Nvidia who wants to use the same architecture across all implementations.

  10. macrumors 6502a

    gto55

    Joined:
    Mar 14, 2010
    Location:
    Tel Aviv
    #10
    that's why I don't care if the device is thicker and gets a 3000maH battery

  11. macrumors regular

    Joined:
    Dec 27, 2011
    Location:
    Washington, DC
    #11
    1000 cores vs 6 is marketing fodder...

    Nvidia has dropped the ball before on their previous mobile SOC graphics capabilities. I had a Gen 1 Nexus 7 and the graphics "power" in that tablet was laughable.

    What was worse is that Nvidia has slipped on launching products to the mobile market, to the degree that most people look at their timeline with skepticism.

    We can speculate till the cows come home but the proof is in the pudding when these products launch.

    :cool:
