SATA card for a quad 2.5 G5

Discussion in 'PowerPC Macs' started by rabidz7, Dec 11, 2012.

  1. macrumors 65816

    rabidz7

    #1
  2. macrumors 6502

    prvt.donut

    Joined:
    Jan 1, 2008
    #2
  3. thread starter macrumors 65816

    rabidz7

    #3
    Well its just a driver?

    I'm sure it can be cracked to create mac osx 10.5 compatibility.

  4. macrumors 6502

    prvt.donut

    Joined:
    Jan 1, 2008
    #4
    Good luck with that. Let us know how it goes...:rolleyes:

    Or are you a hardware programmer and willing to spend the time to write the drivers for that card?

  5. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #5
    cards with SIL 3132 or asmedia 1061 the cost all of $10 on ebay

  6. thread starter macrumors 65816

    rabidz7

    #6
    What are those cards?

  7. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #7
    SATA cards that use those two controllers..

  8. macrumors 6502

    prvt.donut

    Joined:
    Jan 1, 2008
    #8
    They are Sata controller chipsets for Sata cards.

    Is it true they will work? I assumed a cheap controller would work for secondary drives, not sure about booting though.

    I would like to have 4 drives in my powermac. 1 SSD for boot drive and 2 large spinners in raid 1 to data integrity and a final large drive for an internal time machine backup.

    The question then becomes, where to put the drives? I guess I can get on of those brackets that stores the drives over the RAM.

  9. thread starter macrumors 65816

    rabidz7

    #9
    Does anyone else have any ideas?
    I tried to use some random sata card and it just caused kernel panics
    :)

  10. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #10
    The two I posted work and are bootable

  11. macrumors 6502a

    seveej

    Joined:
    Dec 14, 2009
    Location:
    Helsinki, Finland
    #11
  12. macrumors 68000

    MisterKeeks

    Joined:
    Nov 15, 2012
    #12
    Will absolutely any card that uses those controllers be compatible with Leopard PowerPC (as long as it is the correct PCI-X with PCI-X macs, -e, with PCI-e Macs)?

  13. macrumors 6502a

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    A small rural village in western Poland
    #13
    99% probability. However, if the card is a "PC-only" item, it would need to reflashed with a firmware update of a similar card from http://www.wiebetech.com. Just track down a Wiebe Tech card with same number of SATA ports and running the same PCI/e/X interface as the generic one you bought off ebay (count ESATA and internal SATA are of no difference) and - obviously - using the same chipset, double-check System Profiler if you have anything listed in PCI section (you'd have an "unknown device" or similar listed) and flash it with the terminal app provided with Wiebe Tech update.
    I have been running 2x SATA PCI RAID in my G4, now I have a very fast 2x SATA PCI-E RAID in my G5, all done with this very procedure.

  14. MisterKeeks, Jan 12, 2013
    Last edited: Jan 12, 2013

    macrumors 68000

    MisterKeeks

    Joined:
    Nov 15, 2012
    #14
    Thank you. I honestly have no need for this right now, but it is useful to know.

  15. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #15
    I've run both at the same time on my quad..Boot SSD of the AS media, storage drive and SATA Blu-Ray off the native SATA ports and eSATA back up's on the SIL card. The SIL card needs a driver from the website to work.

    http://www.siliconimage.com/support/searchresults.aspx?pid=32&cat=3&os=3

    SiI 3132 32-bit universal Mac OS X 10.4.9, 10.4.10, & 10.5.1 BASE Driver 12/26/2006 1.1.9 154 kb Use this universal driver with Mac OS X 10.4.9, 10.4.10, & 10.5.1 on PowerMac G5, PowerBook G4, and MacBook Pro.

  16. thread starter macrumors 65816

    rabidz7

    #16
  17. GermanyChris, Jan 13, 2013
    Last edited: Jan 13, 2013

    macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #17
  18. thread starter macrumors 65816

    rabidz7

    #18
    What pins are you referring to?

  19. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #19

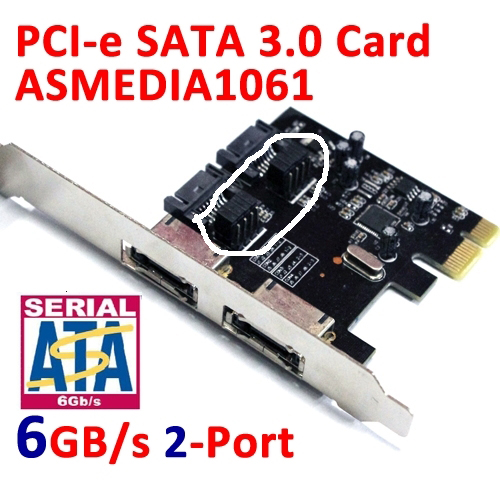

    These


    Attached Files:

  20. thread starter macrumors 65816

    rabidz7

    #20
    How did you change the pins?

  21. macrumors 601

    GermanyChris

    Joined:
    Jul 3, 2011
    Location:
    Here
    #21
    You don't cange the pins you move the cover from bottom to top.. There is a technical name for those pins I just can't think of it off the top of my head.

  22. macrumors 6502

    prvt.donut

    Joined:
    Jan 1, 2008
    #22
    Jumper

  23. thread starter macrumors 65816

    rabidz7

  24. macrumors 6502a

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    A small rural village in western Poland
    #24
  25. thread starter macrumors 65816

    rabidz7

    #25
    What specifically did you do? Was it difficult. I really need one of these, as you can see i my signature, a 1 tb hdd, and a ssd is just for looks without a controller card.
    I had a syba card and it caused repeated kernel panics.
