SATA HD to 44 IDE connector

Discussion in 'PowerPC Macs' started by auricle25, Nov 4, 2012.

  1. macrumors newbie

    Joined:
    Nov 4, 2012
    #1
    I was wondering if somebody could help with this issue. I would like to install a SATA hard drive to my powerbook g4 1.5 GZ 17 inch, but I have got problem to get the right adapter to connect SATA to 44 pin IDE.

    I have just bought a SATA HD Western Digital 160 gb 7200 rpm,the connector I have bought from ebay is compatible, but I have got problem to screw the hard drive caddy to HD because of the adapter which is vertical and touch with the caddy. I have attached a link from ebay so you could check which connector I bought it.

    http://www.ebay.co.uk/itm/160881289257?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1438.l2649

    I was considering getting the next one from ebay but I don not know if that will be ok

    http://www.ebay.co.uk/itm/120984786206?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1438.l2649

    I have heard that somebody else has manage to connect a 2.5 inch SATA HD in a powerbook G4 17 inch and 15 inch. It will help is anybody in this forum could give me some light in this matters.

  2. macrumors newbie

    Joined:
    Nov 2, 2012
    #2
    I have a 15" Powerbook 1.67 GHz. I bought the same adapter you did, but also couldn't get it to fit.

    I've done quiet a bit of research on this topic and I can't figure out how these people are putting in SATA drives with an IDE adapter. They don't give any detailed instructions.

    This guy says he's done it. He says to use a horizontal adapter, the same one you were thinking of buying. I can't see how it would fit any better than a vertical adapter, but I'll probably buy one.

    http://www.ifixit.com/Answers/View/64118/Can+I+replace+the+HD+with+a+SATA+drive#answer87576
    He didn't give a link or picture of the adapter he used.

  3. thread starter macrumors newbie

    Joined:
    Nov 4, 2012
    #3
  4. macrumors newbie

    Joined:
    Nov 2, 2012
    #4
    That one is a Micro SATA adapter. The pins are different from 2.5 and 3.5" SATA drives. You'll have to use 1.8" SATA drives and those are uncommon. I did see some 1.8" SSDs on Ebay.

    In that same thread another poster states
    I have no idea how he did that.


    This is what the thread starter said

    Does anybody know what he's talking about? If it's a IDE -> SATA flex cable, I don't think those exist.

  5. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #5
    I'd like to see one too. SATA to IDE conversion requires kind of controller chip, it's not straight "pin-to-pin" conversion. All adapters I've met so far are built on circuit boards.

    I was thinking about Micro SATA adapter + 1.8" SSD but only one available is based on JMicron chip, which has some issues in OS X like sleep problems or occasional data corruption.

  6. macrumors 68000

    Joined:
    Jan 1, 2010
    #6
    On SSDs, what else does one have to look for when choosing a SSD for PPC-Macs? (I think there are actually two micro SATA 1,8" SSD drives available, one from Toshiba and one from Samsung, if I recall right).

  7. macrumors 6502

    Joined:
    Jan 25, 2011
    #7
    I posted a thread like this a couple of months ago and didn't get any definitive answers. I'll be attempting this soon hopefully, so I'll do a full write-up on it!

  8. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #8
    There are also ones made by Super Talent, but I was referring to micro SATA adapter being based on JMicron chip.

  9. macrumors 68000

    Joined:
    Jan 1, 2010
  10. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #10
  11. macrumors 68000

    Joined:
    Jan 1, 2010
    #11
  12. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #12
  13. macrumors newbie

    Joined:
    Nov 2, 2012
    #13
    So I tried the horizontal adapter and just as I suspected it does not fit. I think the dremel is the only way to go. I don't even have one.

  14. macrumors newbie

    Joined:
    Nov 2, 2012
    #14

    Update: I spoke too soon. If you buy a long enough IDE cable with the horizontal adapter it looks like you can fit a SATA drive in the optical bay. So you lose the optical drive, but there is another problem. The hard drive is smaller than the optical bay so it will flop around when you move the powerbook.

    The IDE cable will need to twist so buy something like this http://www.ebay.com/itm/2-5-inch-44-Pin-Female-to-Female-IDE-Laptop-Cable-/280510419796?pt=US_Drive_Cables_dapters&hash=item414fb95354 Not this http://www.ebay.com/itm/4-inch-44-Pin-Female-to-Female-IDE-Laptop-Cable-/280510421568?pt=US_Drive_Cables_dapters&hash=item414fb95a40

    Logic board-> Yellow ribbon cable->44 pin IDE twisty cable->horizontal SATA adapter->SATA SSD/HDD

    I bought a cable that does not twist so I don't know the correct length. Make sure your cable has 43 pins not 44. Pin 20 is suppose to be missing. My cable did not work. It would not spin up the hard drive and the bridge chip began overheating. :mad: Thankfully no damage as far as I can tell. I also haven't figured out how to keep the drive in place, but that probably isn't a big challenge.

    A little more work than the dremel but less destructive.

  15. macrumors newbie

    Joined:
    Nov 29, 2012
    #15
    Has anyone found a converter that might be small enough to fit? They are generally made for desktops.

  16. macrumors newbie

    Joined:
    Nov 18, 2012
    Location:
    New Zealand
    #16

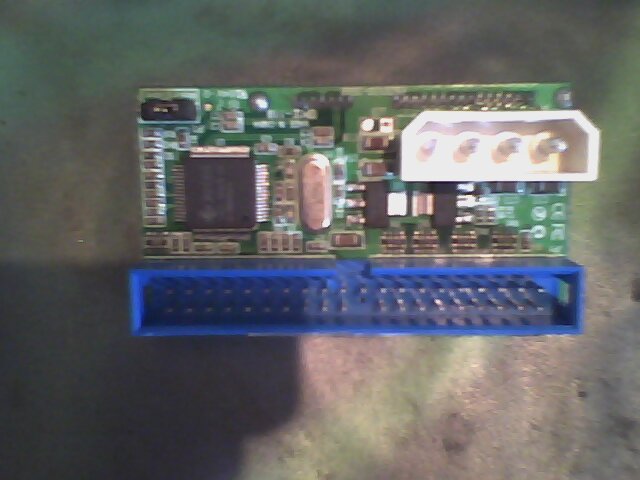

    I bought thts adapter today


    Attached Files:

  17. macrumors newbie

    Joined:
    Nov 18, 2012
    Location:
    New Zealand
    #17

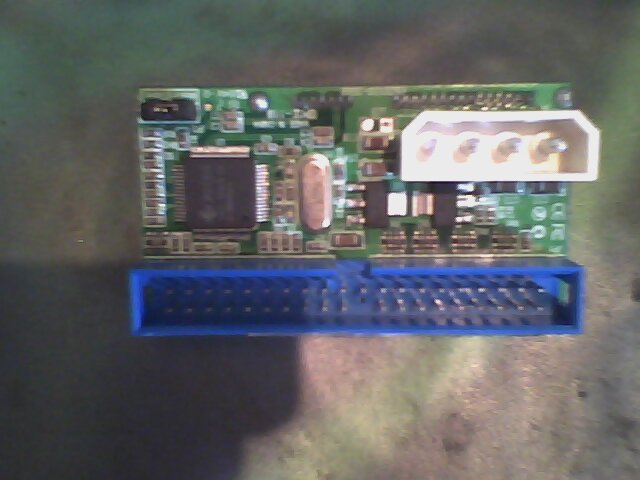

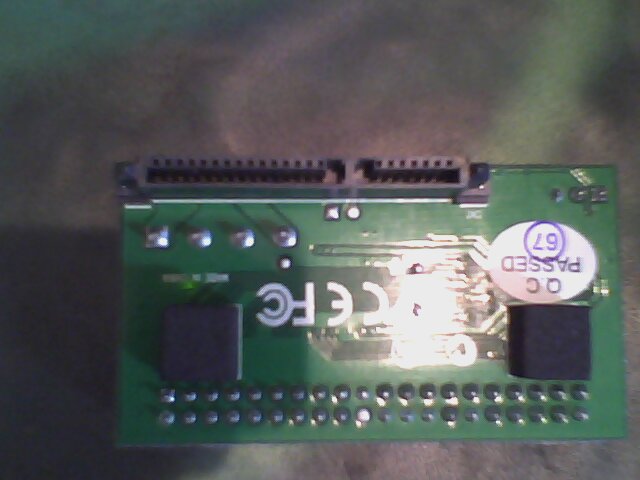

    this is both sides of it


    Attached Files:

  18. macrumors newbie

    Joined:
    Nov 18, 2012
    Location:
    New Zealand
    #18

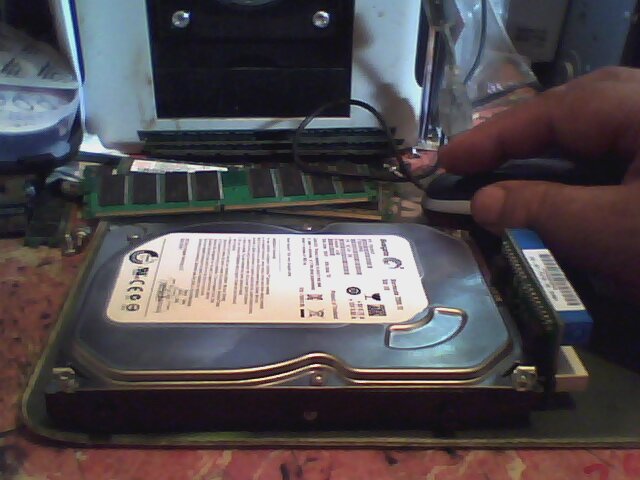

    wow my mission failed with the sata hdd installed the hardware 500 gig seagate added ubuntu and the pram failed to find the OS
    the old question mark of death

  19. justperry, Dec 8, 2012
    Last edited: Dec 8, 2012

    macrumors 603

    justperry

    #19
    Delete, not relevant.

  20. macrumors newbie

    Joined:
    Nov 18, 2012
    Location:
    New Zealand
    #20
    my point is its not Mac OSX that rejects the adapters

  21. macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #21
    What G4 model it is? Why do you want to put Ubuntu on it? You could run 10.4 on any G4.

  22. macrumors 603

    justperry

    #22
    I think I have to apologize to you.
    My Original post was directed at all the posters in this thread and I said why you all try to this while there is another solution, a SATA to PATA caddy which you can connect to the PATA port.
    This though is for the later Powerbook G4 which does not have a 44 pin connector but a different connector.
    That’s the reason I said: Delete, not relevant.
    I should have said, Moderators, please delete this post, not relevant.

    This is the adapter I gave a link to and is for the Powerbook G4 1.67.

    Pata IDE to SATA Hard Drive 2nd HDD Caddy 4 apple Powerbook G4

  23. macrumors newbie

    Joined:
    Nov 18, 2012
    Location:
    New Zealand
    #23
    well sorry if i have misunderstood the situation.
    mines an Emac 800mhz
    To be honest i have no experience with Mac OSX at all
    I have 2 G3 all in one desktops with Mac OSX I find it hard as i am unfamiluar with it

    I have been using Ubuntu for over 6 years
    The graphics on the Emac is impressive for 32mb

  24. macrumors newbie

    Joined:
    Nov 2, 2012
    #24
    Max speed of the IDE port of the optical bay is 16.7 MBps.
