Schematics Allegedly Reveal M7 Successor Chip 'Phosphorus'

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Aug 25, 2014.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Apple is unsurprisingly working on a new version of the M7 co-processor for the upcoming iPhone 6, claims GeekBar (Via G 4 Games) in a post on Weibo. In this latest report, a new set of schematics allegedly showcase this new co-processor chip, which is internally labeled "Phosphorus."

    [​IMG]
    GeekBar claims "Phosphorus" will be the successor to the M7, collecting motion data as well as processing other health-related information handled by Apple's new HealthKit API. This chip potentially is the power behind Apple's new Health app for iOS 8, which will import data from the iPhone and other third-party devices in order to create an overview of the user's health.

    Apple introduced its new Health tracking app and its HealthKit API at WWDC in June. Besides encouraging developers to build health and fitness-related functionality into its device, Apple also may be talking to hospitals, health institutions and insurance companies in order to expand its HealthKit initiative beyond the user's device. In one scenario, data from the Health app could be shared with a health insurance companies in order to lower a healthy subscriber's monthly premium.

    Update 9:29 AM: The "Phosphorus" component actually appears to be a barometric pressure sensor, not a next-generation M7 chip.

    Article Link: Schematics Allegedly Reveal M7 Successor Chip 'Phosphorus'

  2. Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #2
    That makes sense, looking to increase the functionality of the M7 and include more biometric info

  3. macrumors 6502

    Joined:
    Mar 23, 2014
    Location:
    Porto, Portugal
    #3
    m8

    I imagine that in the future they could make a much useful device just with that processor. It would easily last days, too.

  4. macrumors 6502a

    rosalindavenue

    Joined:
    Dec 13, 2003
    Location:
    Virginia, USA
    #4
    Working? On the processor for a phone currently being manufactured? Don't you think the work on the successor to a component to the iPhone 6 was done a long time ago?

  5. macrumors member

    Joined:
    Nov 19, 2013
    Location:
    Los Angeles, CA
    #5
    Not to mention

    They also have to somehow beef or add a processor to enable the "hey siri" feature without the need of being plugged in. I mean if they keep it that way it'd be stupid to introduce that feature. I think they introduced it because it will be a key feature for iPhone 6 / iWatch... but the phones before can't do it without losing MASS battery because how it sucks off the processors.

  6. macrumors 68040

    Dwalls90

    Joined:
    Feb 5, 2009
    #6
    Very curious as to how this will work without an iWatch or device that is constantly tethered to your body.

  7. macrumors 6502

    Joined:
    Mar 23, 2014
    Location:
    Porto, Portugal
    #7
    Maybe the coprocessor can do it all, like the Moto X?

  8. macrumors 6502

    FatMax

    Joined:
    Jun 28, 2007
    Location:
    Norway
    #8
    Hey Siri is probably intended for CarPlay in the beginning..

  9. macrumors 65816

    japanime

    Joined:
    Feb 27, 2006
    Location:
    Japan
    #9
    Phosphorus?

    Maybe the "killer feature" of the iPhone 6 will be that it glows in the dark — even when the screen is turned off! :D

  10. macrumors 68020

    T'hain Esh Kelch

    Joined:
    Aug 5, 2001
    Location:
    Denmark
    #10
    Given how they just replaced the screen (According to rumor), why shouldn't they also change this?

    In any way, this is really nitpicking about details..

  11. macrumors G5

    Rogifan

    Joined:
    Nov 14, 2011
    #11
    How far can Apple go in the health space without requiring FDA approval?

  12. macrumors 603

    Joined:
    Sep 19, 2003
    #12
    This sounds like a terrible idea to me, if not downright scary in its implications.

  13. macrumors 68040

    cocky jeremy

    Joined:
    Jul 12, 2008
    Location:
    Huntington, WV
    #13
    With their wallet, about as far as they want.

    ----------

    Only if it were forced.

  14. macrumors 65816

    luckydcxx

    Joined:
    Jun 13, 2013
    #14
    that's a great question, i would assume as long as they don't claim that their product can heal or cure you of a disease they wouldn't really ever need approval.

  15. macrumors G5

    Rogifan

    Joined:
    Nov 14, 2011
    #15
    Meaning what? Healthcare industry is highly regulated. I'm skeptical how much Apple will be able to do in this space without being up to their eyeballs in regulations and FDA approvals. Which means rollout of some grand health initiative could take a long time.

  16. macrumors 6502

    Joined:
    May 13, 2013
    #16
    You can read the several pages of posts on this topic since this was brought up last week. No need for this debate again here.

  17. macrumors 603

    Joined:
    Sep 19, 2003
    #17
    Not only. Would it be right for someone to have access to a lower premium just because they own an expensive phone?

  18. leecbaker, Aug 25, 2014
    Last edited: Aug 25, 2014

    macrumors newbie

    Joined:
    Apr 7, 2012
    Location:
    New Zealand
    #18
    This chip is a pressure sensor

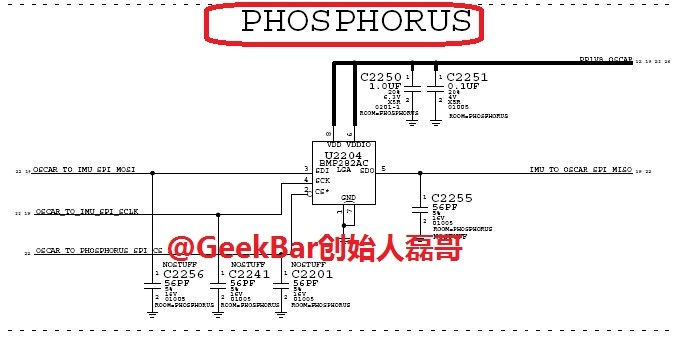

    So here's what's in the schematic in the article:
