Screen suddenly VERY dim

Discussion in 'MacBook Pro' started by ridingonchrome, Oct 19, 2006.

  1. ridingonchrome macrumors newbie

    Joined:
    Oct 19, 2006
    #1
    In June I brought my G4 in to replace the DC-in board and once that was replaced the computer would only boot in safemode. Specialist stated I needed a new logic board. I didn't have 900$ at the time so I left it. I recently purchased a logic board and took my old one out to find that it was not compatible. So now I am in the process of putting the original one back in. Everything is connected but not screwed down and the top is still of. When turned on the screen is VERY dim, I can barely make out a box but have no idea what it says. Good news is it looks like its not in safe mode as I didn't have to enter a password (as far as i can see). So can someone help as to why my screen is now suddenly VERY dull (was perfect before) and why my keyboard isn't working?

    Any suggestions would be great, and No i am not with apple care anymore.

  2. Eraserhead macrumors G4

    Eraserhead

    Joined:
    Nov 3, 2005
    Location:
    UK
    #2

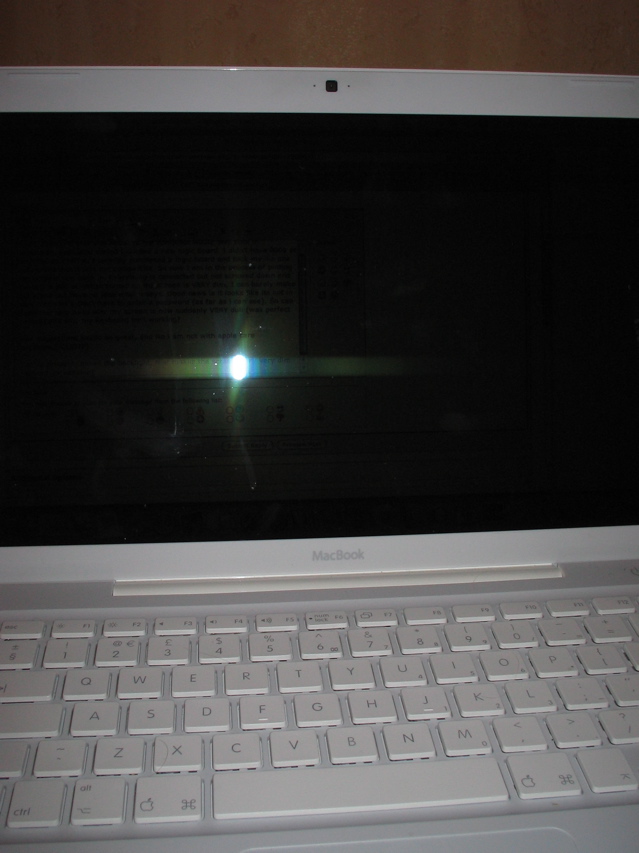

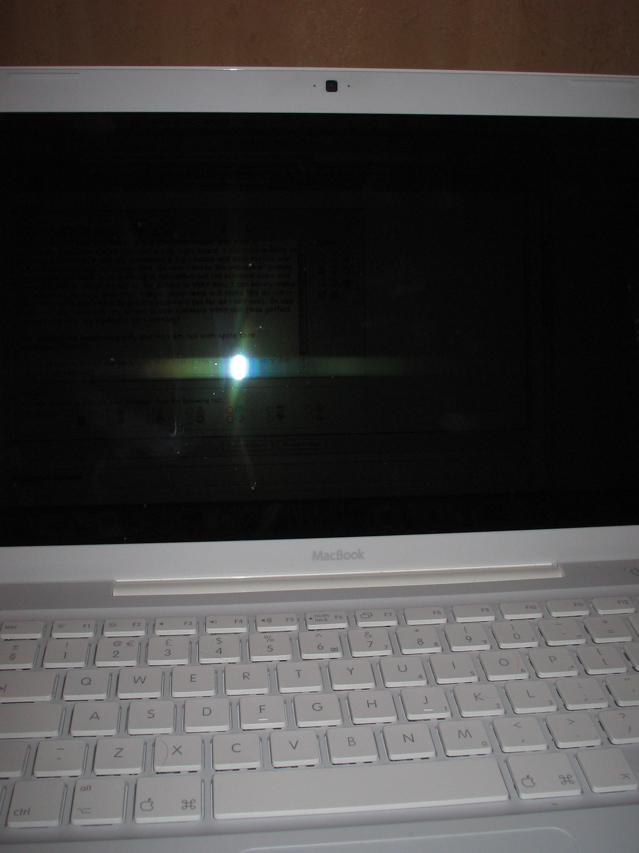

    You've probably blown the backlight, that makes the screen. very very dim (almost unreadable), see the attached photo, for what my Macbook looks like with the backlight off.

  3. ridingonchrome thread starter macrumors newbie

    Joined:
    Oct 19, 2006
    #3
    thanks, how do I go about fixing it?

  4. Eraserhead macrumors G4

    Eraserhead

    Joined:
    Nov 3, 2005
    Location:
    UK
    #4
    first check the connections you may not have plugged a wire back in correctly.

  5. Hockeypuck macrumors regular

    Joined:
    Sep 29, 2006
    #5
    Sounds like your inverter board is not working correctly. It would be one of the cables that comes out of the display hinges and plugs back into the logic board.
