Support for Marvell Quad-Core ARM Chips Found in Xcode

Discussion in 'iOS Blog Discussion' started by MacRumors, Sep 23, 2011.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    [​IMG]

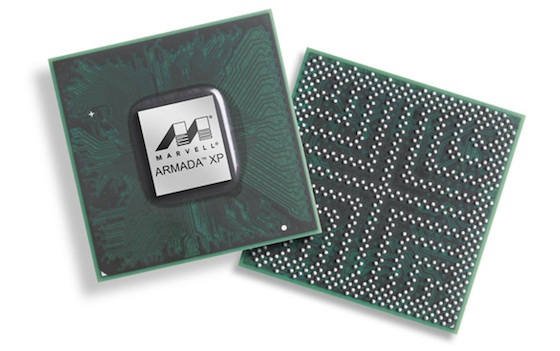

    Ars Technica reports that support for Marvell's quad-core Armada XP processor has recently been added to the version of Apple's "Clang" compiler used in its Xcode developer tools. It is unclear, however, why support for the ARM-based processor has been included.
    The reports suggests that while the inclusion of Armada XP support could point toward potential adoption of the processor in a future iOS device or even a MacBook Air, it is more likely that Apple is using the processor in prototypes simply for testing purposes as it continues work on its own ARM-based chips.

    Several reports have indicated that Apple's next-generation A6 system-on-a-chip will offer a quad-core processor, although Ars Technica's report suggests that the A6 is primarily being designed as die shrink of the existing dual-core A5 design.

    Article Link: Support for Marvell Quad-Core ARM Chips Found in Xcode

  2. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #2
    I wouldn't guess anything but prototyping. Their internal team has proven themselves more than capable with the A4 and A5.

    I also agree with Ars' prediction that A6 will simply be a 28nm die shrink of the A5. Have to save all the power they can to squeeze in a new LTE chip from Qualcomm.

  3. macrumors 603

    Joined:
    Jun 19, 2009
    #3
    A4 and A5 are just modified Samsung ARM CPU's. maybe for A6 Apple is going with another reference design?

  4. macrumors 68020

    jayducharme

    Joined:
    Jun 22, 2006
    Location:
    The thick of it
    #4
    I still find it hard to believe that we're talking about a quad-core processor inside a phone! Just a few years ago, I was stunned that one was possible inside a desktop computer.

  5. macrumors regular

    Joined:
    Feb 19, 2002
    Location:
    Gothenburg, Sweden
    #5
    Clang is an open source project, that Apple is heavily invested in. But It could be that the support is included by someone else. Since it is an open source project, one could probably dig into the project and find out who included the support.

    The Armada cores are ARMv7 compliant but they are not derived directly from ARM's own core design (Coretex A8 and A9) as are the A4 and A5. I have no clear idea of what this means for iOS development though.
    I think it's unlikely that Apple will use Armada XP processors in any product since they are not designed for cellphones of portable devices. It's plausible though that Apple is using them for simulating stuff for future designs.

  6. macrumors G3

    Joined:
    May 10, 2004
    #6
    Low-power cores are much simpler than desktop cores.

  7. macrumors 6502a

    Joined:
    Nov 10, 2006
    #7
    http://www.appleinsider.com/article...les_time_capsule_backup_appliance.html&page=2

    Apple currently uses Marvell SoC in the Time Capsule and Airport Extreme. Perhaps Apple wants to expand the Time Capsule to become a mini-server and needs a quad core, but wants to stick with Marvell? This would certainly fit with those rumours before of the Time Capsule gaining the ability to store and stream both media and OS updates to connected devices.

  8. macrumors 68020

    guzhogi

    Joined:
    Aug 31, 2003
    Location:
    Wherever my feet take me…
    #8
    [obligatory] But will it play Crysis? [/obligatory]

  9. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #9
    A4, yes (the hummingbird core in 1st gen Galaxy S devices), but the A5 is a heavily modified Cortex A9 architecture. It doesn't resemble anything in Samsung's portfolio other than the fact that their Exynos chip is also a dual core Cortex A9 design (which it also shares with the Tegra 2 and OMAP 4). They have different GPUs and different die shapes (although their sizes are very similar).

    http://www.anandtech.com/show/4686/samsung-galaxy-s-2-international-review-the-best-redefined/14
    http://www.itproportal.com/2011/06/...-samsung-exynos-4210-soc-die-shot-comparison/

  10. macrumors 603

    Joined:
    Jun 19, 2009
    #10
    it's just multiple execution units that share a cache. it's not like real multiple CPU's on a single die

  11. macrumors regular

    Joined:
    Feb 19, 2002
    Location:
    Gothenburg, Sweden
    #11
    I don't think have anything to do with anything. If they went down this route with AitPort stations, they probably would re-use their Ax design or use an Atom based chip from Intel.

  12. macrumors 603

    chrmjenkins

    Joined:
    Oct 29, 2007
    Location:
    CA
    #12
    Mobile quad cores follow the same philosophy as desktop ones. I don't see a distinction. They both share caches too.

  13. Editor emeritus

    longofest

    Joined:
    Jul 10, 2003
    Location:
    Falls Church, VA
    #13
    obligatory "no". not all quad-cores are created equal.

    ----------

    Ah... OMAP :) Just recently was looking pretty heavily at OMAP designs because they are some of the few that have TI's C64x DSPs, but it looks like OMAP 4 is starting to migrate away from that...

  14. macrumors 6502a

    Joined:
    Nov 10, 2006
    #14
    Going with an Apple Ax processor or Atom would be useful if Apple intended to run a variant of iOS or OS X on the Time Capsule, but since they don't need all the high level APIs. They'd more likely stick with evolving their current firmware/low-level OS implementation.

    The other argument for Apple Ax in particular, is that it's potentially cheaper to reuse existing technology. However, Apple's justification for the designing their own processors is that it enables them to strip out all the functions they don't need, particularly extraneous I/O, that wastes power. Assuming Apple has done that in order to optimize the SoC for handheld use, it is no longer appropriate for the Time Capsule. The Quad Core Marvell Armada XP on the other hand has integrated Gigabit ethernet controllers to support up to 4 ports and multiple PCIe lanes to attach extra I/O like the WiFi controller. Seeing the Apple A5 has little need for 4 Gigabit ethernet ports, Apple will continue to have to use third-party SoC for the Time Capsule and Airport Extreme.

  15. macrumors 6502a

    Mad-B-One

    Joined:
    Jun 24, 2011
    Location:
    Southern Plains
    #15
    Quad-core

    It might very well be a testing lab thing. If someone wants to optimize addressing 4 cores just to see if the load spread is working properly, it is the right way to use an existing chip which is a close as it can get to the ones used right now. That does not mean it will be used in iDevices. When I use my 6 core processor, I see that even brand new software is not optimized for multicore systems beyond 2 cores. Early implementation in software design would help to save battery life down the line if programmers can test quadcores early on.

  16. macrumors 68020

    guzhogi

    Joined:
    Aug 31, 2003
    Location:
    Wherever my feet take me…
    #16
    Looks like someone needs to realize what sarcasm is…

  17. macrumors G4

    *LTD*

    Joined:
    Feb 5, 2009
    Location:
    Canada
    #17
    Crysis?

    Pffft . . .

    Infinity Blade is the new benchmark. :p

  18. macrumors 68020

    Joined:
    Mar 11, 2009
    #18
    Oh boi do i want a fanless MBA with an ever better battery life for occasional browsing and writing.

  19. macrumors G4

    *LTD*

    Joined:
    Feb 5, 2009
    Location:
    Canada
    #19
    You can already get one:

    http://www.apple.com/ipad/

  20. macrumors 6502a

    Joined:
    Nov 10, 2006
    #20
    Does ARM themselves offer any dev boards? They can't just be designing the architecture theoretically and waiting for someone to implement it to see how it works. And I can't see SoC makers licensing a new architecture unless ARM can show them working reference boards to prove the benefits over the previous architecture.

    And as pointed out by others, if Marvell uses a custom ARMv7 architecture it's not the best reference point to do your optimization compared to using sa y nVidia Tegra 3, TI OMAP5 or Freescale i.MX6 which appear to use stock Cortex A9.

  21. macrumors 68040

    Joined:
    May 29, 2003
    #21
    Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_3_5 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8L1 Safari/6533.18.5)

    Give this guy a cookie. Finding support for other processors in CLang means nothing as it is open source. You need more information than just saying it is included, for example who included it, is it a standard item when clang is built for ARM & etc.

    As to quad cores I suspect they are coming and may arrive in IPad 3. The next chip we see from Apple is likely a low power A5 that has been enhanced somewhat. It is likely one of the hold ups for the new iPhone as A5 is currently a little hot for that.

  22. macrumors 6502a

    Joined:
    Nov 10, 2006
    #22
    As explained in the Ars Technica article, the Marvell support was added in Apple's private branch of CLang. If the open source flag is defined, then the Marvell support is disabled.

    http://arstechnica.com/apple/news/2...-arm-cpu-shows-up-in-apples-xcode-but-why.ars

  23. macrumors 68020

    MacinDoc

    Joined:
    Mar 22, 2004
    Location:
    The Great White North
    #23
    Perhaps for the next-generation Apple TV?

  24. macrumors member

    Joined:
    Jan 31, 2011
    #24
    Well Apple is already starting to source flash storage away from Samsung. It would be reasonable to conclude that they would want to move away from Samsung ARM CPU parts as well.

    As a precautionary move due to Samsung's ongoing litigation

    It might also have to do with VIA. Perhaps Marvell CPUs don't violate VIA patents (not saying that Apple does right now, but its just in case!) http://www.macrumors.com/2011/09/22/via-technologies-files-patent-lawsuit-against-apple-over-ios-device-processors/

  25. macrumors 68020

    theBB

    Joined:
    Jan 3, 2006
    #25
    They don't use Samsung CPUs, but I wouldn't know if they are buying some IP or know-how from Samsung.
