Teardown of New 21.5-inch iMac Reveals Glued Down LCD and Dual Microphones

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Dec 1, 2012.

  1. macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]

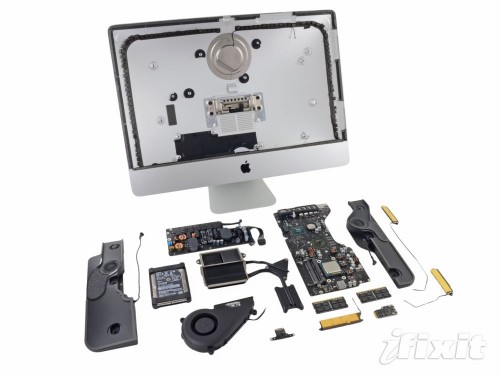

    iFixit has released a comprehensive teardown of Apple's new 21.5" iMac.

    The new iMac, with its ultra slim bezel proved to be a disappointment to the iFixit team, because both the glass and the LCD are glued to the iMac frame with strong adhesive, which negatively impacts repairability.
    While the RAM, hard drive, and CPU can be replaced, the entire logic board must be removed to do so, which led the iFixit team to give the 21" iMac a repairability score of 3 out of 10, down from 7 out of 10 for last year's model.

    [​IMG]

    Here are the highlights of the teardown:

    -Nothing about the internals of the new Mac resemble last year's model.
    -Apple has swapped out the 3.5" desktop hard drive for a 2.5" HGST laptop hard drive, freeing up valuable space.
    -The hard drive has a rubbery housing at its edges, which is a new design meant to dampen the vibrations from the hard drive in the closely packed quarters of the iMac.
    -There are no longer multiple small fans. Instead, Apple is using a single centralized fan.
    -Apple's new iMac has two microphones to improve sound quality when using FaceTime.
    -The AirPort card uses a Broadcom BCM4331 single-chip WLAN solution and three Wi-Fi antennas.

    iFixit's teardown also included a detailed listing of all of the chips on the logic board.

    Despite the repairability concerns, early reviews for the design of the new iMac were largely positive.

    Apple's new iMacs went on sale on Friday, Nov. 30. The 21.5" model starts at $1299 and $1499. The 27" iMac starts at $1799 and $1999. The 21.5" model can currently be purchased in the Apple Store, but the 27" models have yet to ship.

    Article Link: Teardown of New 21.5-inch iMac Reveals Glued Down LCD and Dual Microphones

  2. macrumors 6502a

    ZacNicholson

    Joined:
    Jun 25, 2011
    Location:
    Indiana
  3. macrumors 68000

    RoastingPig

    Joined:
    Jul 23, 2012
    Location:
    SoCal
    #3
    i wish there was no glue and only just magnets

  4. macrumors regular

    Joined:
    Jun 9, 2009
    #4
    Is what a good or bad thing?

  5. macrumors 6502a

    Joined:
    Jul 15, 2006
    #5
    a lot of people are about to complain saying that the new iMac isn't repairable. these same people would have never replaced an LCD in their iMac anyway.

  6. macrumors 6502

    Joined:
    Jan 26, 2006
    Location:
    SLC, Utah
  7. macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #7
    Its not too bad. Its actually adhesive transfer tape according this thread. RAM can be replaced by removing the screen and the fan.

  8. macrumors 65816

    Joined:
    Apr 10, 2008
    Location:
    Auckland, New Zealand
    #8
    Nice.

  9. macrumors regular

    Joined:
    Jul 14, 2011
    #9
    Bad, if you want to upgrade RAM yourself or anything else that requires removing the front glass. Makes me glad I bought a 2011.

  10. macrumors 6502a

    brock2621

    Joined:
    Jun 8, 2007
    Location:
    Kentucky
    #10
    Here's the deal, iFixit MAKES MONEY from repairing machines and trying to convince users they too can repair crap if they purchase their tools. So their "3 out of 10" is basically just their profit margins going down. Of course they are going to be "disappointed..."

    I'm not sure if they missed it, but this is an ALL IN ONE machine, which by their very nature aren't generally easy to bust open and start swapping things out.

    Besides, by the time you are in dire need of upgrading the CPU, Intel switches sockets on ya.

    In short, it's cool to see how they are put together, but iFixit's "ratings" are dumb when done on devices like this, Apple or not.

  11. macrumors 65816

    Luap

    Joined:
    Jul 5, 2004
    #11
    Try reading the article first..

  12. macrumors G3

    SchneiderMan

    Joined:
    May 25, 2008
    Location:
    Apple state
    #12
    You don't have to tear it down to reveal the dual-microphones. You can clearly see them both on the exterior. So they built the new iMacs more like MacBooks yet they cost much less??

  13. All Taken, Dec 1, 2012
    Last edited: Dec 1, 2012

    macrumors 6502a

    Joined:
    Dec 28, 2009
    Location:
    UK
    #13
    I'd say the point ifixit make about the lack of SSD slot connectivity on the base model is note worthy! You should update the article.

    I see you think the mention of a Broadcom WiFi chip is noteworthy but the exclusion of SSD connector is not.

  14. macrumors regular

    Joined:
    May 6, 2003
    #14
    Mostly Positive?

    Stick an optical drive back in it Tim. Also how much does it cost Apple for "all" that componentry? And how big would the bulge in back of the iMac be if they hadn't used the highest profile cooling fan they could possibly find mounted on top of the single speaker that's in the iMac?

  15. macrumors 6502a

    Joined:
    Jun 15, 2010
    #15
    People have spoken with their wallets that the majority of people buying apple products put a low priority of repairability

  16. macrumors member

    Joined:
    Sep 8, 2008
    Location:
    Austin, TX
    #16
    It was assembled in the USA!!! 3rd image on step 3.

  17. macrumors member

    Joined:
    Nov 2, 2012
  18. macrumors G3

    SchneiderMan

    Joined:
    May 25, 2008
    Location:
    Apple state
    #18
    When you have AppleCare, why bother repairing it yourself? One of the key advantages in getting a Mac is that it isn't some PC you either have to try to fix yourself or go thru hell to get support for it.

  19. macrumors regular

    Joined:
    May 26, 2011
    #19
    not quite true. You have to take out the logic board, since the RAM is on the back of it...

    ..which makes it a lot more difficult in my eyes.

  20. brock2621, Dec 1, 2012
    Last edited: Dec 1, 2012

    macrumors 6502a

    brock2621

    Joined:
    Jun 8, 2007
    Location:
    Kentucky
    #20
    There MAY be a case for blu ray, but we all know Apple's stance on that. So I think most gladly take nothing over a lil cd/dvd combo drive.

  21. macrumors 6502a

    Joined:
    Jul 29, 2007
    #21
    Biologicals and glue are different things;)

  22. macrumors G4

    flopticalcube

    Joined:
    Sep 7, 2006
    Location:
    In the velcro closure of America's Hat
    #22
    Nope. According to the user in that thread all he had to do was remove the fan.


  23. macrumors 6502a

    brock2621

    Joined:
    Jun 8, 2007
    Location:
    Kentucky
    #23
    this.

  24. macrumors 603

    Rocketman

  25. macrumors 6502

    Joined:
    Jul 23, 2008
    #25
    That's complete crap
    Never before has the iMac been totally non user serviceable, no ram upgrade at the very least, not to mention when the hdd fails
    All in one =/= non user serviceable
    Apple just took the cheap way out and used adhesive tape to stick it together rather than designing an alternative system
