Teardown of Retina MacBook Pro Finds Low Repairability with Custom Components

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Jun 13, 2012.

  1. MacRumors
    Expand Collapse
    macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    Following yesterday's teaser teardown of the updated MacBook Air, iFixit has now given Apple's new Retina MacBook Pro the same treatment.

    [​IMG]


    Apple of course showed off a fair bit of the machines internals during the keynote in order to promote all of the innovations included inside, but iFixit's teardown still provides an interesting hands-on look at the internals.

    Unsurprisingly, the Retina MacBook Pro is not designed to be user-accessible, with the slim form factor requiring a number of proprietary components that are designed and assembled for maximum space efficiency rather than upgradeability and repairability. This has resulted in iFixit dubbing the machine "the least repairable laptop we've taken apart".

    Taking a number of cues from the MacBook Air, the new MacBook Pro uses RAM soldered directly onto the logic board, as well as custom solid-state drives that include a new connector incompatible with existing third-party drives on the market.

    [​IMG]

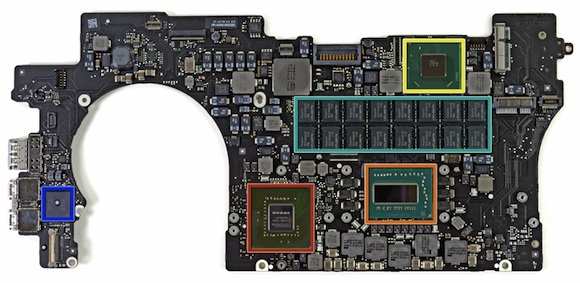

    Front of Retina MacBook Pro logic board with CPU (orange), NVIDIA graphics (red), and RAM (green)
    Apple has even taken to gluing the large battery into the body of the Retina MacBook Pro, with iFixit ultimately giving up on trying to remove it for fear of puncturing a battery cell. The glued-in battery pack also covers the trackpad cable, making it nearly inaccessible and susceptible to damage if users attempt to remove the battery.

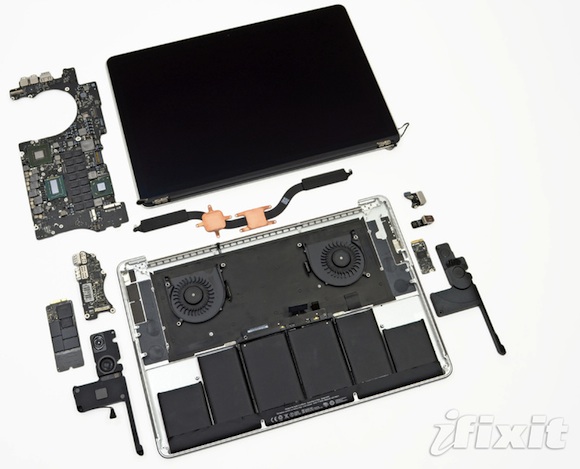

    Otherwise, the internals of the Retina MacBook Pro are fairly straightforward, with a large and densely-packed logic board with left-side ports integrated, a separate I/O board for the right-side ports, the asymmetric fan touted by Apple, and custom speaker assemblies.

    Article Link: Teardown of Retina MacBook Pro Finds Low Repairability with Custom Components

  2. TimUSCA
    Expand Collapse
    macrumors 6502

    TimUSCA

    Joined:
    Mar 17, 2006
    Location:
    Aiken, SC
    #2
    If AppleCare wasn't justifiable before, it is now.

  3. maflynn
    Expand Collapse
    Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #3
    For laptops - applecare was always justifiable.

  4. Pentad
    Expand Collapse
    macrumors 6502a

    Pentad

    Joined:
    Nov 26, 2003
    Location:
    Indiana
    #4
    I'm not happy with them moving everything to proprietary.


    -P

  5. Tronic
    Expand Collapse
    macrumors 6502

    Tronic

    Joined:
    Jun 10, 2009
    #5
    So if you have any battery problems they essentially have to replace the entire machine?

  6. PBP
    Expand Collapse
    macrumors 6502

    PBP

    Joined:
    May 13, 2011
    #6
    Well i guess no MBP retina for me then :rolleyes:
    Non removable ram and ssd sucks ass, absurd prices for memory/ssd upgrade in the online applestore

  7. Xscapes
    Expand Collapse
    macrumors regular

    Joined:
    Oct 16, 2011
    Location:
    New York
  8. Clubber
    Expand Collapse
    macrumors member

    Joined:
    May 29, 2009
    #8
    Give and Take

    It's a give and take. If you want newer, slimmer, lighter form factors, the manufacturer needs to break away from the designs we've been seeing the last 10 years. I'm all for it, I quit fiddling with the physical aspects of computers a long time ago.

  9. DaveN
    Expand Collapse
    macrumors 6502

    Joined:
    May 1, 2010
    #9
    I would have at least liked the ram and 'ssd' to be upgradable. Those are the only things I upgrade anyway. As the previous poster noted, it sure makes Applecare more justifiable.

  10. FFArchitect
    Expand Collapse
    macrumors regular

    FFArchitect

    Joined:
    Mar 14, 2010
    #10
    Well yea. At some point if you want all that in a small package, repairability will diminish.

  11. basesloaded190
    Expand Collapse
    macrumors 68030

    basesloaded190

    Joined:
    Oct 16, 2007
    Location:
    Wisconsin
    #11
    Being members to a tech blog like we all are, I think we forget there are a lot of people who have no desire to open up their machine to tinker with it, and will be more than satisfied with what comes in the box.

  12. maflynn
    Expand Collapse
    Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #12
    Not making excuses for apple, but is that all surprising. They were less then pleased when the people rolled out SSD upgrades to the MBA. So I'm sure they redesigned them in a way that will prevent someone else from doing the same (at least legally)

  13. samac92
    Expand Collapse
    macrumors 6502a

    Joined:
    Feb 18, 2008
    #13
    Expected really. You just have to think ahead about your RAM before you purchase. Good to see SSD options will likely be available in the future though.

  14. MOKHAN
    Expand Collapse
    macrumors 6502

    Joined:
    Mar 19, 2011
    Location:
    Toronto, Canada
    #14
    Aw, I figured as much when seeing how thin it was. I'm curious as to how Apple will be replacing components for users who have defective/damaged machines.

  15. Kaibelf
    Expand Collapse
    macrumors 65816

    Kaibelf

    Joined:
    Apr 29, 2009
    Location:
    Chicago, IL
    #15
    Then buy something that isn't so tightly designed that fumbling around in it would cause a problem. There, nice and easy.

  16. G5isAlive
    Expand Collapse
    macrumors 6502

    Joined:
    Aug 28, 2003
    #16
    I know I am shocked. Just shocked. I will definitely leave Apple now to find something much bigger and heavier that I can take apart with my walmart screw drivers.

    Or I could just enjoy using a lighter machine with a beautiful display.

  17. MH01
    Expand Collapse
    macrumors G3

    MH01

    Joined:
    Feb 11, 2008
    #17
    Was hoping the SSD could be upgraded. :(

    This kinda sucks, means one should buy the 512 SSD for futureproofing.

  18. bbeagle
    Expand Collapse
    macrumors 68030

    bbeagle

    Joined:
    Oct 19, 2010
    Location:
    Buffalo, NY
    #18
    You can either have something small, or something proprietary. Not both.

    Apple chose that to build custom parts so that they used as little space as possible, and were the shape and size to fit inside their laptops. Using proprietary parts, you have to use the size and shape that the third party manufacturers make. You're stuck with someone else telling you how small you can make a laptop. Apple now controls their own designs.

    I'd rather have a design which is smaller, lighter, has more battery power that I USE EVERY DAY, instead of make it heavier, bigger and have less batteries for the one day out of 5 years that makes repairing it easier.

  19. WannaGoMac
    Expand Collapse
    macrumors 65816

    Joined:
    Feb 11, 2007
    #19
    Isn't this always the cycle with Apple? new model has proprietary parts and not user servicable, then eventually Apple modifies it so you an add ram yourself and hard drives. Apple did with with the Mini and prior Macbook Pros too

    So it's not the service for repair apple defenders, it's the fact we cant add ram and an aftermarket hard drive.

  20. SprodeBoy
    Expand Collapse
    macrumors member

    Joined:
    Mar 5, 2012
    Location:
    Mankato, Minnesota
  21. Small White Car
    Expand Collapse
    macrumors G4

    Small White Car

    Joined:
    Aug 29, 2006
    Location:
    Washington DC
    #21
    You know the saying, "x, x, & x. Pick 2."

    In this case it's "super thin, long battery life, & user-serviceable"

    Apple picked their favorite 2 and they're the exact choices anyone could have predicted they'd make.

  22. troop231
    Expand Collapse
    macrumors 603

    Joined:
    Jan 20, 2010
    #22
    The SSD is upgradable... OWC offers their own SSD modules, and they are working on new ones for the Retina MBPs.

  23. surma884
    Expand Collapse
    macrumors regular

    Joined:
    Feb 21, 2011
    #23
    The only thing I hate about this is the battery. If the battery dies you can't replace it yourself.

  24. pr0t0type
    Expand Collapse
    macrumors newbie

    Joined:
    Jun 11, 2012
    #24
    ssd?

    Isn't that flash storage, and not a sdd which is built in? Or is both the same?

  25. smithrh
    Expand Collapse
    macrumors 68020

    smithrh

    Joined:
    Feb 28, 2009
    #25
    You may indeed be right, but I've never heard this before. Any link or attribution?
