Discussion in 'Apple Collectors' started by macEfan, Nov 21, 2009.

  1. macrumors 65816

    macEfan

    Joined:
    Apr 7, 2005
    Location:
    Forbidden, you do not have access to that server
    #1
    Hello all,

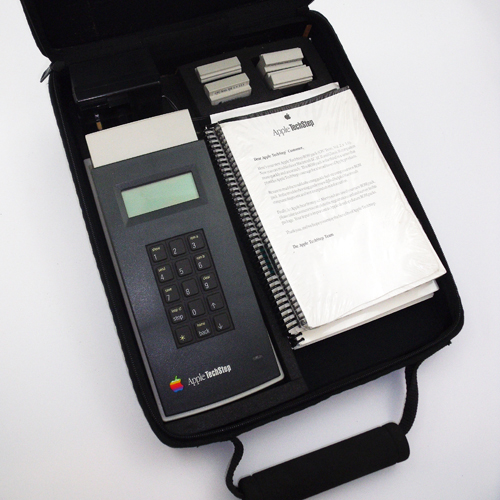

    I managed to come across an apple Techstep similar to this:

    http://www.forcedperfect.net/hardware/other/techstep/

    It's pretty cool and all, but I I seem to be missing the installation disks. Is there anywhere they are available? Would love to test this device out!

  2. macrumors 604

    gkarris

    Joined:
    Dec 31, 2004
    Location:
    "No escape from Reality..."
    #2
    I've heard of this - haven't seen pics until now...

    They're pretty cool and ultra rare - nice find for you!

  3. macrumors 6502a

    DZ/015

    Joined:
    Mar 23, 2003
    Location:
    New England
    #3
    I've got both original 800k images. If you still need them, let me know.

  4. macrumors 68000

    Hrududu

    Joined:
    Jul 25, 2008
    Location:
    Wichita KS
  5. thread starter macrumors 65816

    macEfan

    Joined:
    Apr 7, 2005
    Location:
    Forbidden, you do not have access to that server
    #5
    PM Sent, thanks!
    I've actually had it for about 3 years and ran into it a few days ago. Originally purchased on ebay from a seller that marketed surplus medical equipment. I'm not sure how they ended up with a Techstep!

  6. macrumors newbie

    Joined:
    Jan 26, 2005
    #6
    I googled Techstep primarily for vanity's sake to see if anyone out there even remembered it.

    I earned 3 patents for Apple with the design and project and am somewhat amused that it's become a minor collectors item.

    OBT, there is no such thing as "installation" software for Techstep. You simply put in the correct ROM Pack, attach the cables to the output ports of the appropriate Mac(s) and go.

    Software (aside from the ROM packs) was created to provide testing examples and probably to feedback to an Apple repair center (I can't remember exactly).

    Note that the serial port built into the side of the Techstep was for "Remote Diagnostics". That was where you could hook up a modem from where you were and we could take over the diagnosis or download tests that weren't in the ROM packs. The ONLY reason it was never implemented was because we had no internal infrastructure (people) to support it. Other than that it worked very well.

  7. macrumors 68020

    toolbox

    Joined:
    Oct 6, 2007
    Location:
    Australia (WA)
    #7
    Really Really Neet, Now where using USB Bootable diags and netboot images. Shows how much technology has changed over the years

  8. macrumors 6502a

    mkjj

    Joined:
    Jun 2, 2003
    Location:
    Liverpool
    #8

    Attached Files:

  9. macrumors newbie

    Joined:
    Aug 20, 2010
    #9
    Source for TechStep software?

    Bit of a thread necro, but relevant to the original post...

    I've got two of these that I've had laying around for ~15 years or so that were piled in a drawer with some other older stuff. Looking for floppy images as I'd like to putter around with them a bit, and verify they are both working properly before deciding what to do with them.

    The original manual (covering Classic through IIcx & SCSI drives) is right at 100 pages; if I'm feeling particularly adventurous I may create a PDF version since that also appears to be sought after.

    DZ/015 - I'd PM you but since I'm a long time lurker, and never had the need to post, the forums won't allow me to do so; if you still have access to these images I'd appreciate a copy!

  10. macrumors newbie

    Joined:
    Aug 20, 2010
    #10
    Update-

    Adding some pictures; forgot that one of these was a prototype; figured somebody would enjoy seeing these.

    Bottom:
    [​IMG]

    Rear:
    [​IMG]

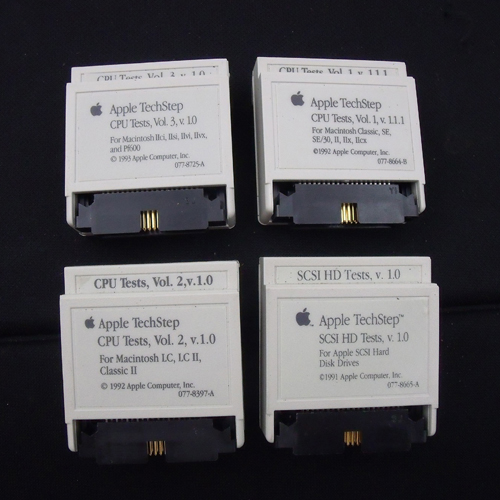

    Carts:
    [​IMG]

    TechStep ROM version. NOTE - notice that at this point it's called "TechTool" in the firmware, vs. "TechStep" in the final product.
    [​IMG]

    CPU Test Vol. 1 ROM version:
    [​IMG]

    SCSI Test ROM version:
    [​IMG]

  11. macrumors 6502a

    DZ/015

    Joined:
    Mar 23, 2003
    Location:
    New England
    #11
    Message has been sent.

    Anyone else need the images? There are two 800k disks that came with the techstep. They enable generating reports based on the diagnostic tests that are run.

  12. macrumors newbie

    Joined:
    Aug 20, 2010
    #12
    Awesome; appreciated. "sprout.the" at that commonly used google email domain.

    I'm assuming one of these two is the diagnostic I've seen mentioned - kinda doubt it's going to be any good for the prototype version, but will be good for checking the production one at least!

  13. macrumors newbie

    Joined:
    Mar 2, 2014
    Location:
    Birmingham, Alabama
    #13
    Yes, I just bought one, but no floppies.

    I realize they are not needed to use this, but I'd still like to have them.
    What I am still looking for are scans or pdf's of the manuals.
    Does ANYONE have links, scans, or ability to scan these?

  14. macrumors 6502a

    DZ/015

    Joined:
    Mar 23, 2003
    Location:
    New England
  15. macrumors newbie

    Joined:
    Jan 17, 2015
    #15
    sorry to bump an old thread, any chance any one in this thread still has an apple techstep that they would be willing to sell? I am looking for one for a more reasonable price than 5-600$. It would be extremely helpful as I would actually be using it. Thanks!
