Triple monitor on Mac mini?

Discussion in 'Mac mini' started by Pokernut, Apr 29, 2009.

  1. Pokernut macrumors member

    Joined:
    Mar 3, 2009
    #1
    Was just wondering if anyone out there has a triple monitor setup on their mini and if so how they did it.

    I currently have dual 24" monitors set-up and it works great. I'm curious of I could add a 30" to that or is the mini just not powerful enough.

    Thanks

  2. ADent macrumors 6502a

    Joined:
    Sep 9, 2007
    #2
    With the 2009 mini you can run a 30 off of the miniDisplayPort.

    The miniDVI is limited to 24" resolutions - though with a dual head 2 go you should be able to split that and run two 17" monitors.

    You can get a USB to DVI adapter to add 3rd monitor (and more) - though this monitor will be slower than the others. Good for palettes and email and such though. And the USB adapters don't support 24" monitors (max out around 1600x1200, not 1920x1200).

  3. kindablue09 macrumors regular

    kindablue09

    Joined:
    Mar 26, 2009
    #3
    Just out of curiosity, what do you plan on doing w/3 displays and a mini?

  4. djc6 macrumors 6502

    Joined:
    Aug 11, 2007
    Location:
    Cleveland, OH
    #4
    How about this... :)

    Get a mini-DVI to VGA adapter and one of these guys:

    http://www.matrox.com/graphics/en/products/gxm/dh2go/

    It can allegedly drive two 1920x1200 displays, which is the resolution on many 24" displays. These are your existing two 24" displays.

    Then get a 30" LCD with a displayport connector on it, and hook it up to the mini-displayport port with one of these:

    http://estore.circuitassembly.com/c...-displayport-adapter-cable-1-meter-p-287.html

    I'd wait for this cable to come out rather than deal with the mini-displayport to dual-link DVI adapter, which hasn't received stellar reviews.

  5. Pokernut thread starter macrumors member

    Joined:
    Mar 3, 2009
    #5
    I play online poker for a living, I like the extra landscape space. But it'd also just be for fun.

  6. Pokernut thread starter macrumors member

    Joined:
    Mar 3, 2009
    #6

    Hmmm.. I'll look into that. Thanks a lot.

  7. kindablue09 macrumors regular

    kindablue09

    Joined:
    Mar 26, 2009
    #7
    That makes a lot of sense :cool:

  8. colonelclick macrumors newbie

    Joined:
    Jan 17, 2013
    #8
  9. Giuly macrumors 68040

    Giuly

    #9
    If you want an additional 30", you'll have to hook it up to the Mini DisplayPort.

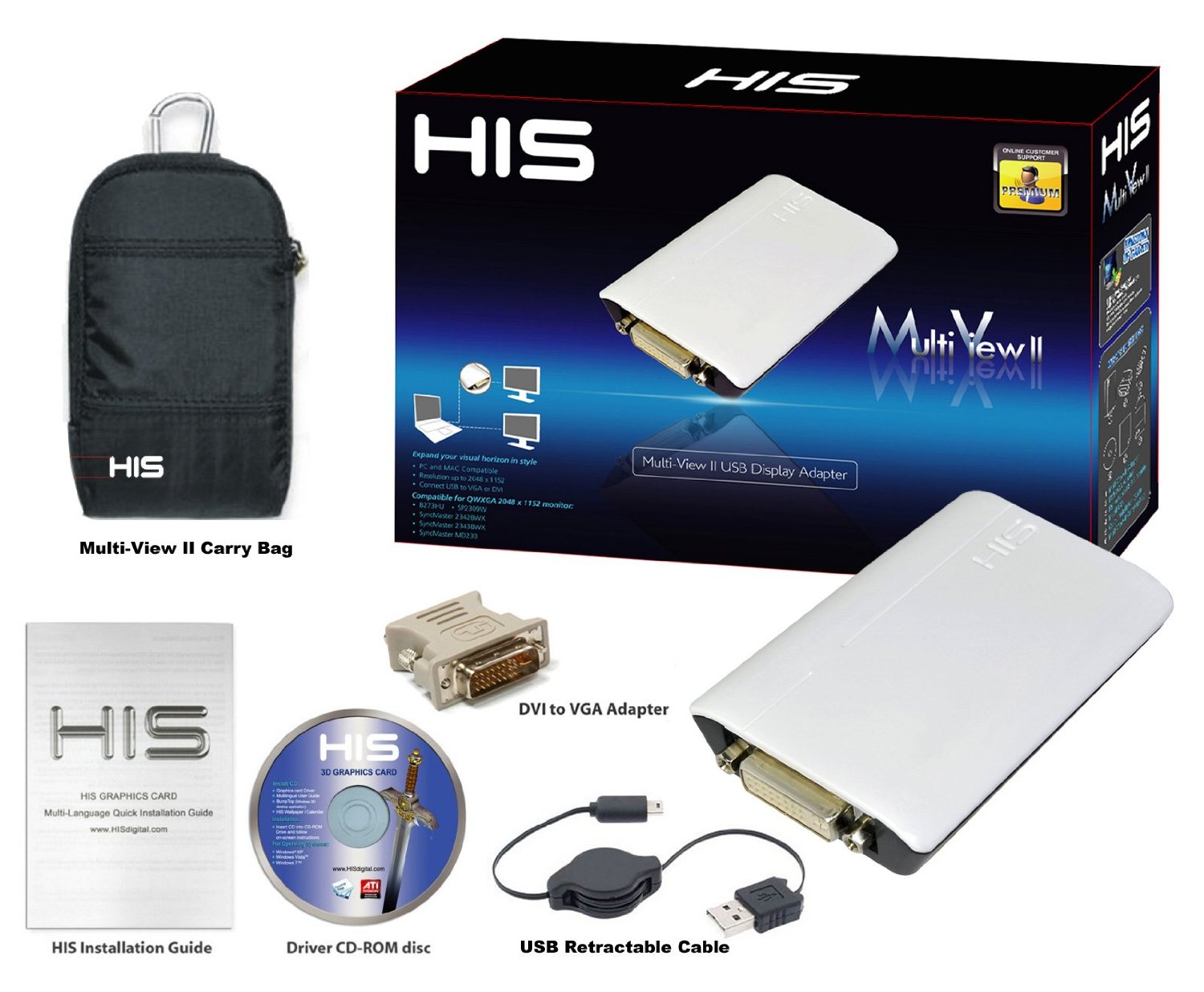

    The second monitor via HDMI, the third on via one of those USB 2.0 to DVI/VGA adapters.
    [​IMG]

  10. LucasLand macrumors 6502a

    LucasLand

    Joined:
    Mar 6, 2002
    Location:
    New England
    #10
    cant you just daisy chain thunderbolt displays?

    What website do make a living playing poker?

  11. LucasLand macrumors 6502a

    LucasLand

    Joined:
    Mar 6, 2002
    Location:
    New England
    #11

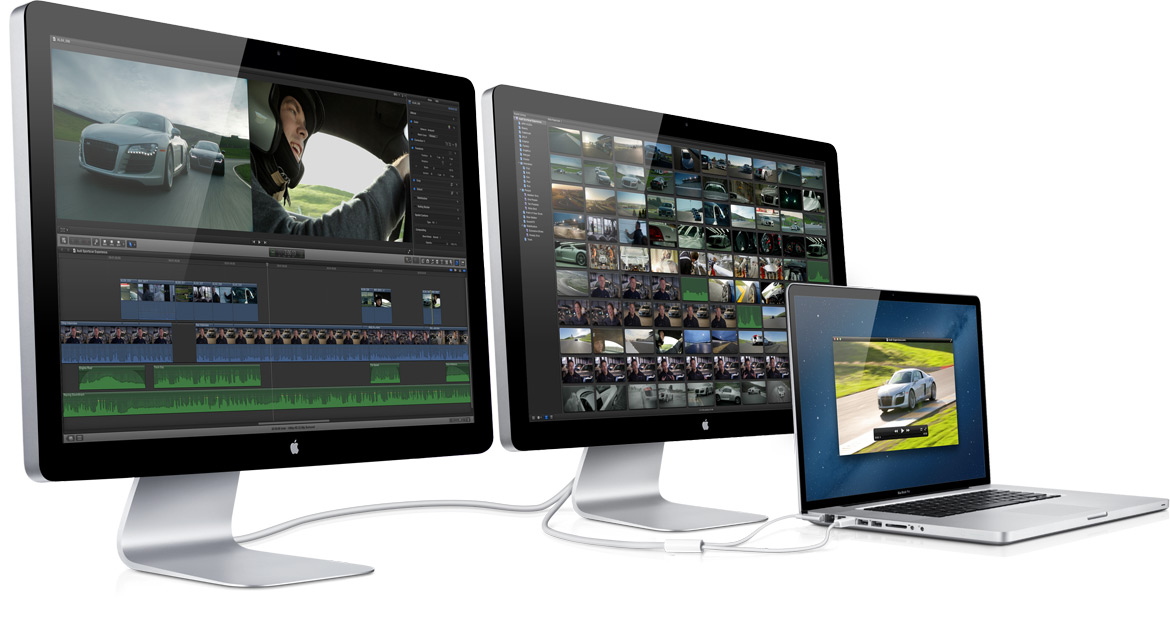

    check out this image from apple's thunderbolt display page.

    it shows 2 displays connected with one cable to a macbook. maybe this would also work by connecting the wire to a mac mini or iMac?

    the setup in this pic is pretty sweet and should give you enough real estate


    Attached Files:

  12. LucasLand macrumors 6502a

    LucasLand

    Joined:
    Mar 6, 2002
    Location:
    New England
    #12
    LOL. I just noticed I'm replying to a thread from 2009!!!!

  13. MultiFinder17 macrumors 68000

    MultiFinder17

    Joined:
    Jan 8, 2008
    Location:
    Tampa, Florida
    #13
  14. iCaleb macrumors 6502

    Joined:
    Apr 26, 2010
    Location:
    USA
    #14
    This thread was dug up from 2009?

    . . . . .. . . . . . . . . . . ,.-‘”. . . . . . . . . .``~.,
    . . . . . . . .. . . . . .,.-”. . . . . . . . . . . . . . . . . .“-.,
    . . . . .. . . . . . ..,/. . . . . . . . . . . . . . . . . . . . . . . ”:,
    . . . . . . . .. .,?. . . . . . . . . . . . . . . . . . . . . . . . . . .\,
    . . . . . . . . . /. . . . . . . . . . . . . . . . . . . . . . . . . . . . ,}
    . . . . . . . . ./. . . . . . . . . . . . . . . . . . . . . . . . . . ,:`^`.}
    . . . . . . . ./. . . . . . . . . . . . . . . . . . . . . . . . . ,:”. . . ./
    . . . . . . .?. . . __. . . . . . . . . . . . . . . . . . . . :`. . . ./
    . . . . . . . /__.(. . .“~-,_. . . . . . . . . . . . . . ,:`. . . .. ./
    . . . . . . /(_. . ”~,_. . . ..“~,_. . . . . . . . . .,:`. . . . _/
    . . . .. .{.._$;_. . .”=,_. . . .“-,_. . . ,.-~-,}, .~”; /. .. .}
    . . .. . .((. . .*~_. . . .”=-._. . .“;,,./`. . /” . . . ./. .. ../
    . . . .. . .\`~,. . ..“~.,. . . . . . . . . ..`. . .}. . . . . . ../
    . . . . . .(. ..`=-,,. . . .`. . . . . . . . . . . ..(. . . ;_,,-”
    . . . . . ../.`~,. . ..`-.. . . . . . . . . . . . . . ..\. . /\
    . . . . . . \`~.*-,. . . . . . . . . . . . . . . . . ..|,./.....\,__
    ,,_. . . . . }.>-._\. . . . . . . . . . . . . . . . . .|. . . . . . ..`=~-,
    . .. `=~-,_\_. . . `\,. . . . . . . . . . . . . . . . .\
    . . . . . . . . . .`=~-,,.\,. . . . . . . . . . . . . . . .\
    . . . . . . . . . . . . . . . . `:,, . . . . . . . . . . . . . `\. . . . . . ..__
    . . . . . . . . . . . . . . . . . . .`=-,. . . . . . . . . .,%`>--==``
    . . . . . . . . . . . . . . . . . . . . _\. . . . . ._,-%. . . ..`
