Tutorial: How to Connect MacBook Pro to High Definition TV (HDTV)

Discussion in 'MacBook Pro' started by Themegamacman, Apr 23, 2012.

  1. Themegamacman, Apr 23, 2012
    Last edited: May 1, 2014

    macrumors member

    Joined:
    Mar 27, 2012
    #1
    I've been seeing this question quite a lot lately, so I thought I'd jump in with a tutorial of how to connect any Mac laptop with a Mini Displayport to an HDTV. This allows for both video and audio from one output, the Thuderbolt/Mini Displayport. It is very simple.

    What you will need is a Mini Displayport to HDMI adapter. I've listed a few options with links below:
    All listed should work the same, the only thing that may vary is build quality. I've listed what I found to be the best. The links are for Amazon.com because it is far cheaper than the Apple store.

    And an HDMI Cable (Almost any will do since they're all essentially the same if they work, being as the signal is digital, not analog.)

    Now all you have to do is plug the adapter into your MacBook Pro or Air and the HDMI cable into the adapter and into your HDTV. Once you've put set the TV to the correct input the MacBook should automatically detect the TV and adjust (it will go to a blue screen as it detects the new display and adjusts). If it doesn't and something's not working, see below.

    If the picture isn't how you want it, adjust settings here: Navigate into System Preferences>Displays

    If your audio isn't working: Navigate into System Preferences>Sound>Output and adjust accordingly.

    If your video isn't working correctly: Navigate into System Preferences>Displays and click on Detect Displays. You can then choose the "mirroring" option and your computer screen should now be displayed on your TV. If you have any other problems, please let me know.

  2. macrumors Westmere

    GGJstudios

    Joined:
    May 16, 2008
    #2
  3. thread starter macrumors member

    Joined:
    Mar 27, 2012
    #3
    Saw that, but thought it might be a little too complicated for some people, so I wrote a simplified version that is a little more straightforward and less technical so that people who don't have time to spare can figure out how to do it quickly. Sorry if this counts as double posting, I only meant to help. :)

  4. macrumors Westmere

    GGJstudios

    Joined:
    May 16, 2008
    #4
    No problem. I just didn't know if you were aware of that guide.

  5. macrumors 65816

    shyam09

    Joined:
    Oct 31, 2010
    #5
    and of course, make sure your HDTV input is set to HDMI lolz :D

  6. macrumors 603

    blueroom

    Joined:
    Feb 15, 2009
    Location:
    Toronto, Canada
    #6
    I'm waiting for Mountain Lion so I can mirror to an ATV3.

  7. macrumors regular

    Joined:
    Feb 4, 2011
    #7
    Great tutorial!

    You can also use the Mini-display to VGA connector. But doing this would require an extra wire to be run from your headphone jack to the TV aswell.

    This is what I do with my Henge-Docks setup and it works pretty good, although an HDMI would be much cleaner of an install.

  8. JoshGlzBrk, May 5, 2012
    Last edited: May 5, 2012

    macrumors 6502a

    JoshGlzBrk

    Joined:
    Aug 27, 2009
    #8
    Never thought this was such a big deal?

    Buy this: http://www.amazon.com/Mini-DisplayP...6LWM/ref=sr_1_1?ie=UTF8&qid=1336279633&sr=8-1

    for $4...

    Hook it up to your tv, when you switch your tv to that hdmi input you will notice, then just change the output res on the displays settings. Either set it to output as a separate display, or choose mirroring. And if you want audio set hdmi as the default audio device in audio midi setup.

    Although it sucks for people with macbooks prior to the 2010 version :p

  9. macrumors regular

    Joined:
    Feb 4, 2011
    #9
    Never saw that before. I might have to order one to cleanup my current setup.. Plus the bulky connector on the apple adapter is a tight fit in the henge dock.

  10. macrumors member

    rault18

    Joined:
    Dec 13, 2011
    Location:
    Las Vegas, Nv
    #10
    Josh I just ordered one of those cables u posted ..

  11. macrumors 6502a

    Joined:
    Mar 20, 2006
    Location:
    Washington State
    #11
    Also, not all Macs output audio over the MiniDP. Started with some 2010 models, if I remember correctly.

    Also good to note, some MiniDP to HDMI adapters don't support audio, even if the Mac does.

    This guide is pretty useless since it is so incomplete.

  12. rault18, May 10, 2012
    Last edited by a moderator: Aug 26, 2012

    macrumors member

    rault18

    Joined:
    Dec 13, 2011
    Location:
    Las Vegas, Nv
    #12

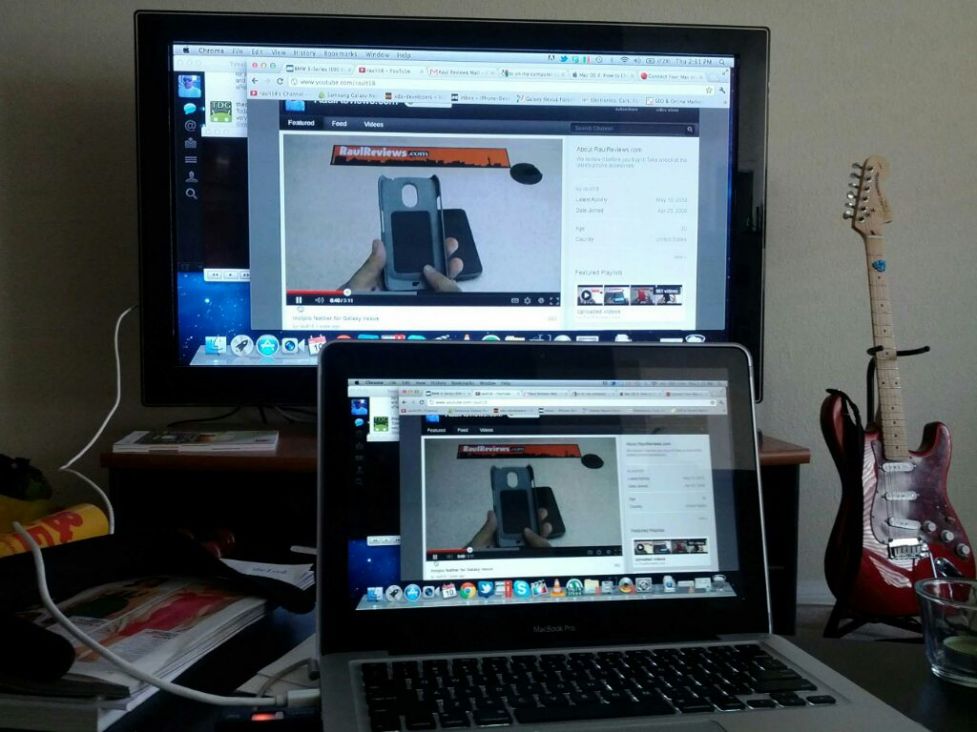

    [​IMG]
    woot!! Best 9 dollars I've spent this year

    Fyi I bought it off eBay not amazon

  13. macrumors member

    rault18

    Joined:
    Dec 13, 2011
    Location:
    Las Vegas, Nv
    #13
    Also in getting audio as well. One question. Is if I change it to 1080 I get the black bars on the side ..so I'm running at 720

  14. macrumors 6502

    Joined:
    Nov 26, 2011
    #14
    I'm not completely sure what you're asking but I may be able to help, as I've been using one of those adapters for quite some time. Are you having trouble with audio? And the black bars are probably because the aspect ratio of your TV is different from the aspect ratio of 1080p, but I don't know much about resolutions and stuff like that so I could be terribly wrong. Hope this helped a little bit and maybe the OP can chime in with a better answer.

  15. macrumors 6502

    Joined:
    Jun 1, 2012
    Location:
    NJ
    #15
    Monoprice has some pretty good prices on cables too.

  16. macrumors member

    Joined:
    May 19, 2011
  17. macrumors 601

    ixodes

    Joined:
    Jan 11, 2012
    Location:
    Pacific Coast, USA
    #17
    I've been using the source below for cables.

    They have a wide variety & several choices of quality & prices. From STD to high end. Great customer service, fast order fulfillment & shipping.

    http://www.cyberguys.com/

  18. simsaladimbamba, Aug 25, 2012
    Last edited by a moderator: Aug 26, 2012

    simsaladimbamba

    Joined:
    Nov 28, 2010
    Location:
    located
    #18
    Since there is also the Mini DVI interface for pre-unibody MacBooks, you might specify that in your post (what model you have).
    Anyway, the other guide is quite thorough, and I even added some additional information to it. If that is too complicated for some people, I don't really know, how they can operate a computer successfully, though many don't, otherwise this place would be quite empty.


  19. macrumors 6502a

    Blackberryroid

    Joined:
    Aug 8, 2012
    Location:
    /private/var/vm/
    #19
    Last time I checked, HDMI is stuck on 16:9 aspect ratio. That's why I stay with VGA.

  20. macrumors newbie

    Joined:
    Jul 19, 2012
    #20
    Thanks for the guide.
    Very useful.

  21. thread starter macrumors member

    Joined:
    Mar 27, 2012
    #21
    Of course! Glad I could be of help!

  22. macrumors newbie

    Joined:
    Oct 30, 2012
    #22
    Setting up multiple laptops to use the same TV Monitor

    I have a macbook pro and an hp laptop that I would like to connect to the same tv monitor and work using a shared screen. Can you tell me how/if this can be done?

  23. macrumors 6502a

    Joined:
    Jan 18, 2005
    Location:
    Southern California
    #23
    I responded to your new thread on this, but I'll echo my comments here for the benefit of others. No you cannot use two devices on one display at the same time. You can use only one device at a time per display.

  24. thread starter macrumors member

    Joined:
    Mar 27, 2012
    #24
    Thanks for helping out, I've not been online lately. :) Best wishes.

  25. macrumors member

    nyrblue35

    Joined:
    Mar 7, 2010
    #25
    issues:

    I'd like to add a question to this thread. I bought an iAdapt V2 mini display to HDMI cable for my macbook pro but i cannot get an image on my TV. I have tried two different HDMI cables as well as both ports on my tv to make sure.
    The macbook turns blue but the tv although it seems like it might be getting a signal doesnt show an image. The cable i bought was this one:

    http://www.ebay.com/itm/190709520892?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649

    My macbook pro was manufactured in February 2010 if that info is needed.
    I assumed this would work with my laptop but does 2 months make a difference? I just noticed that this ebay auction it says video/audio for APRIL 2010. :confused:
